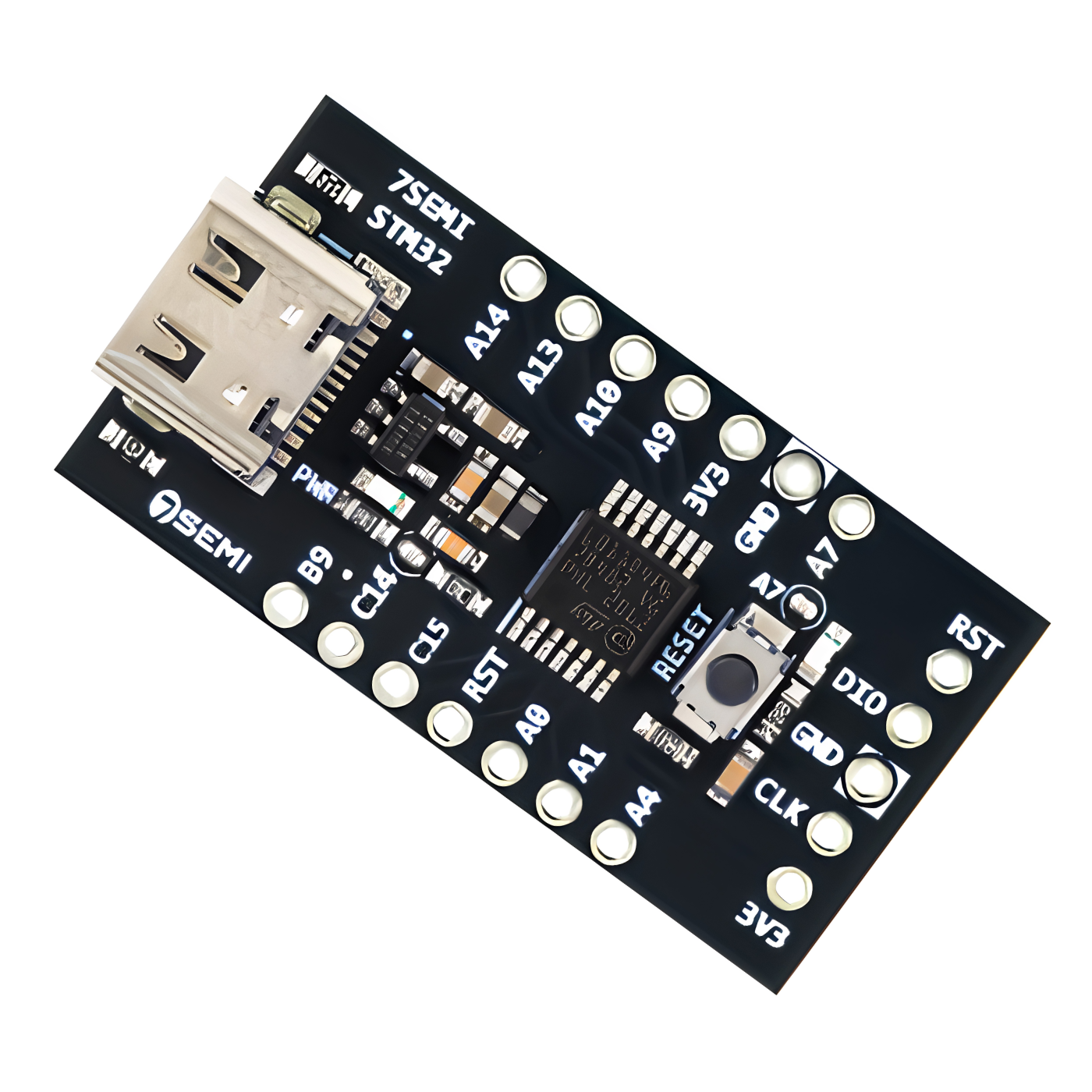

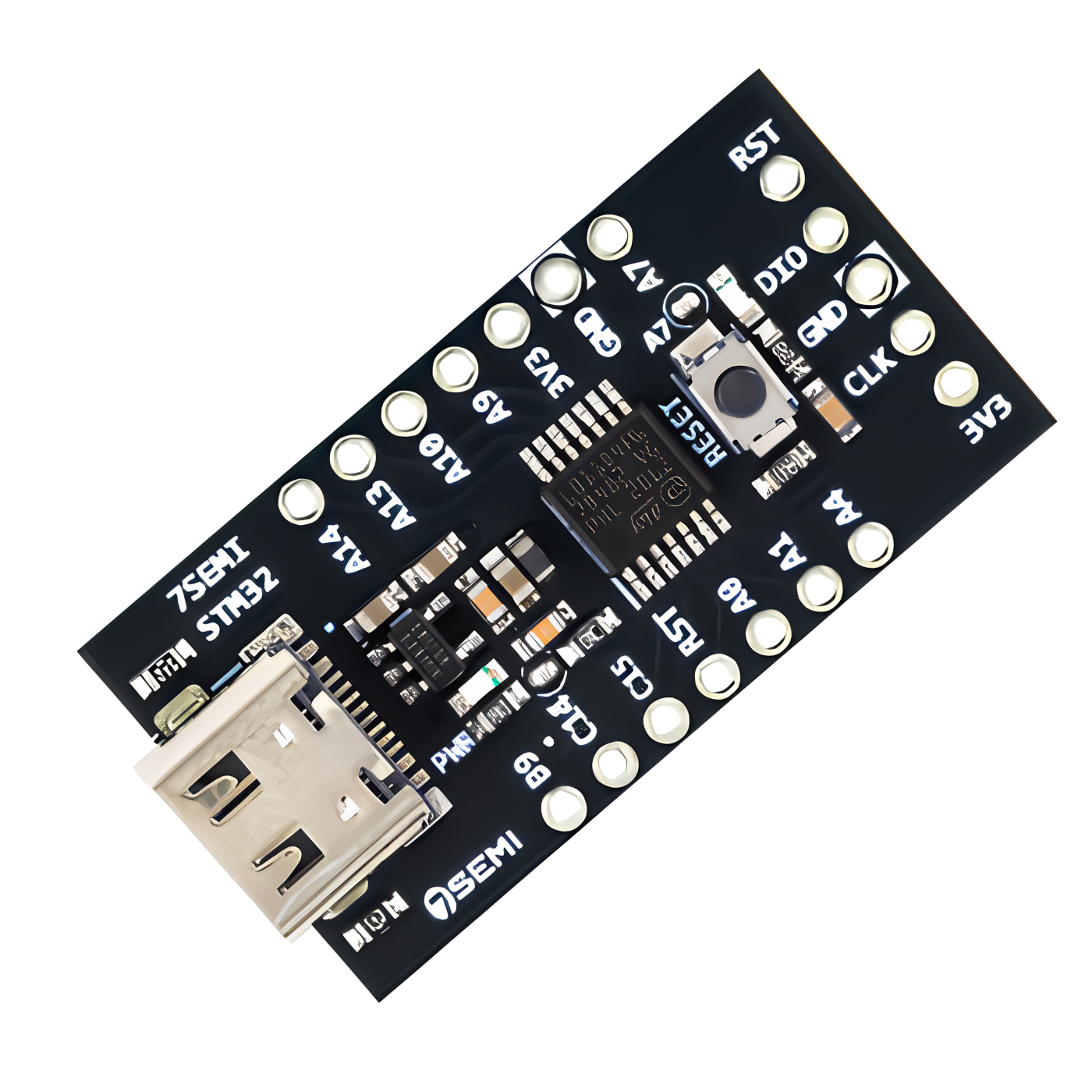

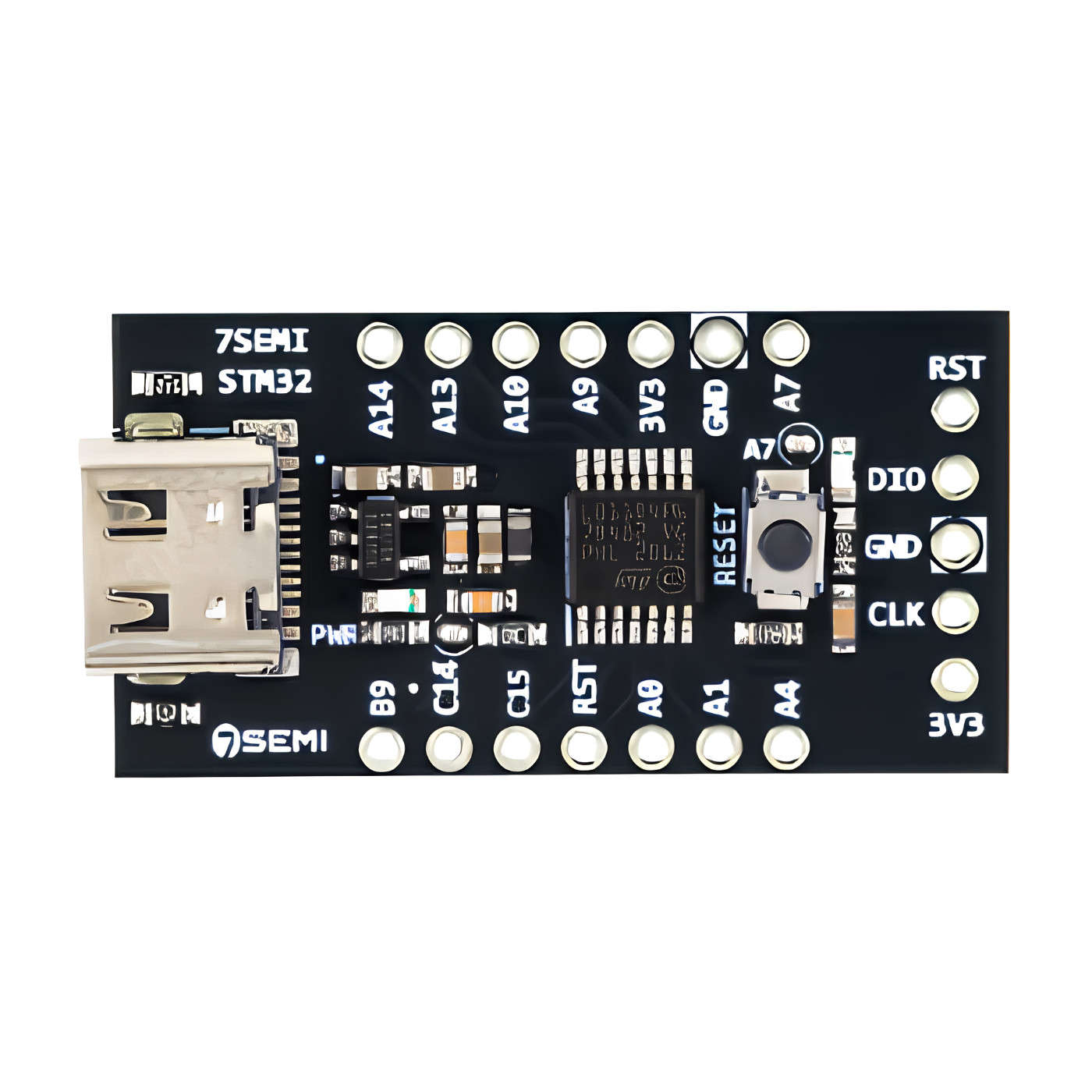

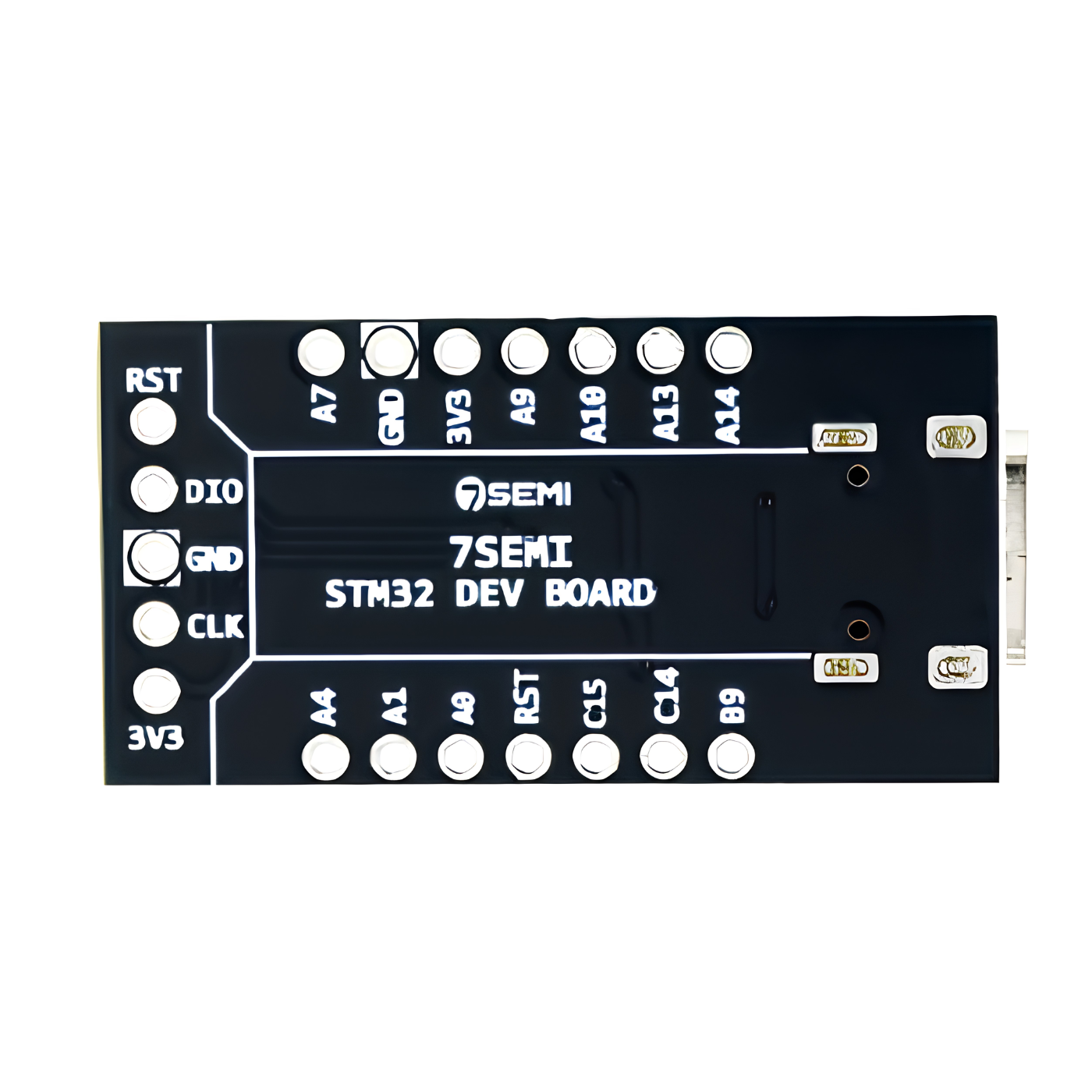

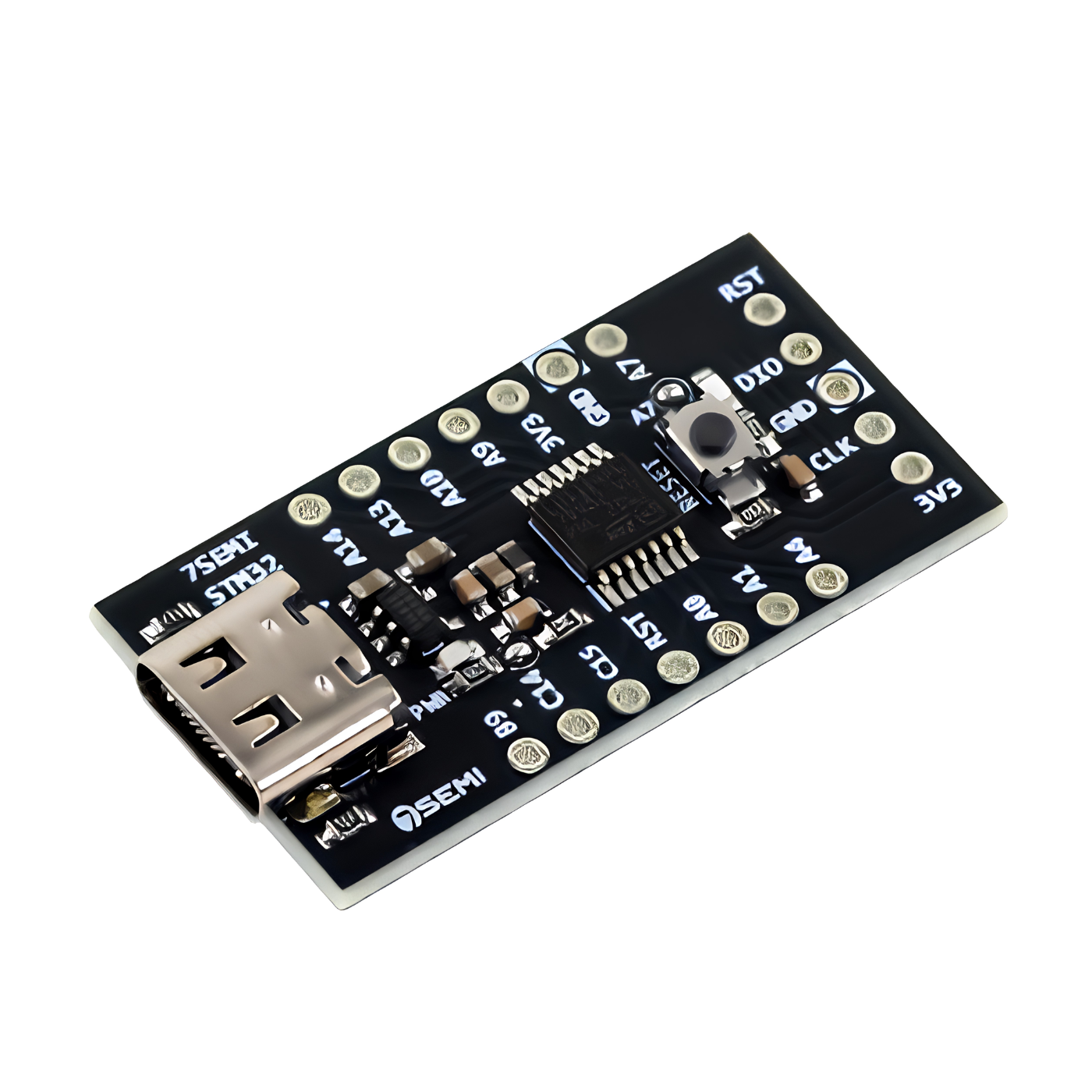

7Semi STM32L011D4P6 Low Power Development Board
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 7Semi STM32L011D4P6 Development Board is a compact platform designed for developing low-power embedded applications. Based on the STM32L011D4P6 microcontroller with an ARM Cortex-M0+ core, it is well suited for battery-operated electronics, wearable devices, IoT nodes, and other energy-efficient systems. Its breadboard-friendly layout makes it convenient for rapid prototyping, experimentation, and educational use.
The board offers USB Type-C power input for reliable power delivery and provides access to essential peripherals including GPIO, I2C, SPI, USART, ADC, and DAC interfaces. It integrates 16KB of Flash memory, 2KB SRAM, and 512 Bytes of EEPROM, enabling developers to build compact embedded applications while taking advantage of the STM32L0 series' ultra-low-power capabilities. An onboard reset button, user LED, and SWD programming support simplify firmware development and debugging.
Designed for flexibility, the development board combines a compact footprint with the essential hardware needed for embedded design. Whether used for learning STM32 programming, prototyping IoT devices, or developing portable electronics, it provides a practical and energy-efficient platform for a wide range of embedded projects.
• Built around the STM32L011D4P6 ARM Cortex-M0+ microcontroller.
• Designed for ultra-low-power embedded applications and battery-operated devices.
• Breadboard-friendly layout simplifies prototyping and hardware development.
• USB Type-C connector provides stable board power.
• Includes 16KB Flash memory for firmware storage.
• Features 2KB SRAM for application data processing.
• Integrates 512 Bytes of EEPROM for non-volatile data storage.
• Supports GPIO, I2C, SPI, USART, ADC, and DAC interfaces.
• Onboard reset button simplifies development and testing.
• User LED provides visual status indication during application development.
• SWD interface enables external programming and debugging.
• Suitable for IoT nodes, wearable devices, embedded systems, and educational projects.
| Parameter | Value |
| Brand | 7Semi |
| Product Type | STM32 Development Board |
| Microcontroller | STM32L011D4P6 |
| Processor Core | ARM Cortex-M0+ |
| Clock Speed | Up to 32 MHz Internal Oscillator (MSI) |
| Flash Memory | 16 KB |
| SRAM | 2 KB |
| EEPROM | 512 Bytes |
| Interface Support | USART, SPI, I2C, ADC, DAC, GPIO |
| USB Support | USB Type-C (Power) |
| Programming Interface | SWD |
| Operating Voltage | 3.3V–5V |
| Board Dimensions | 35 × 18 × 5 mm |
| Board Weight | 3 g |
