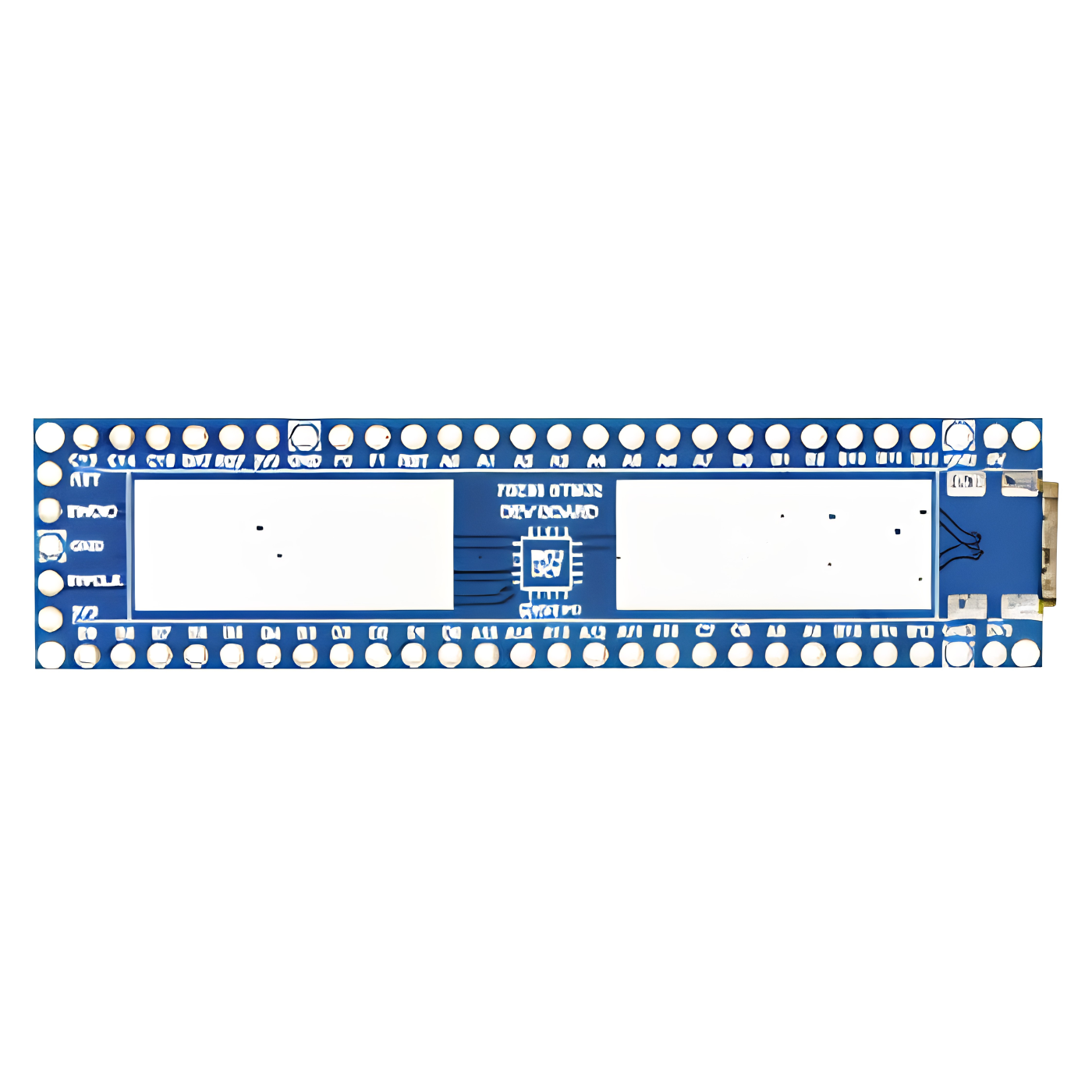

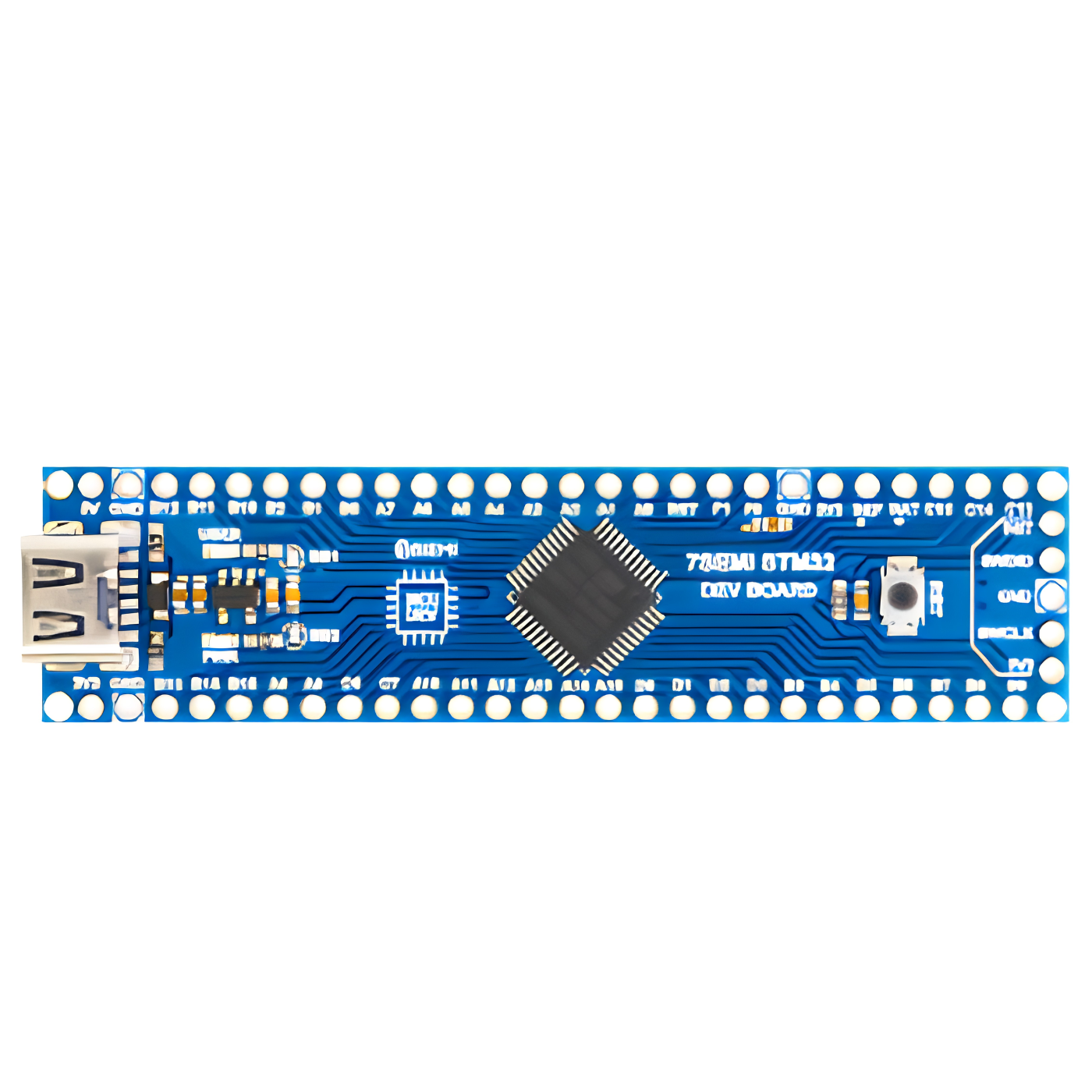

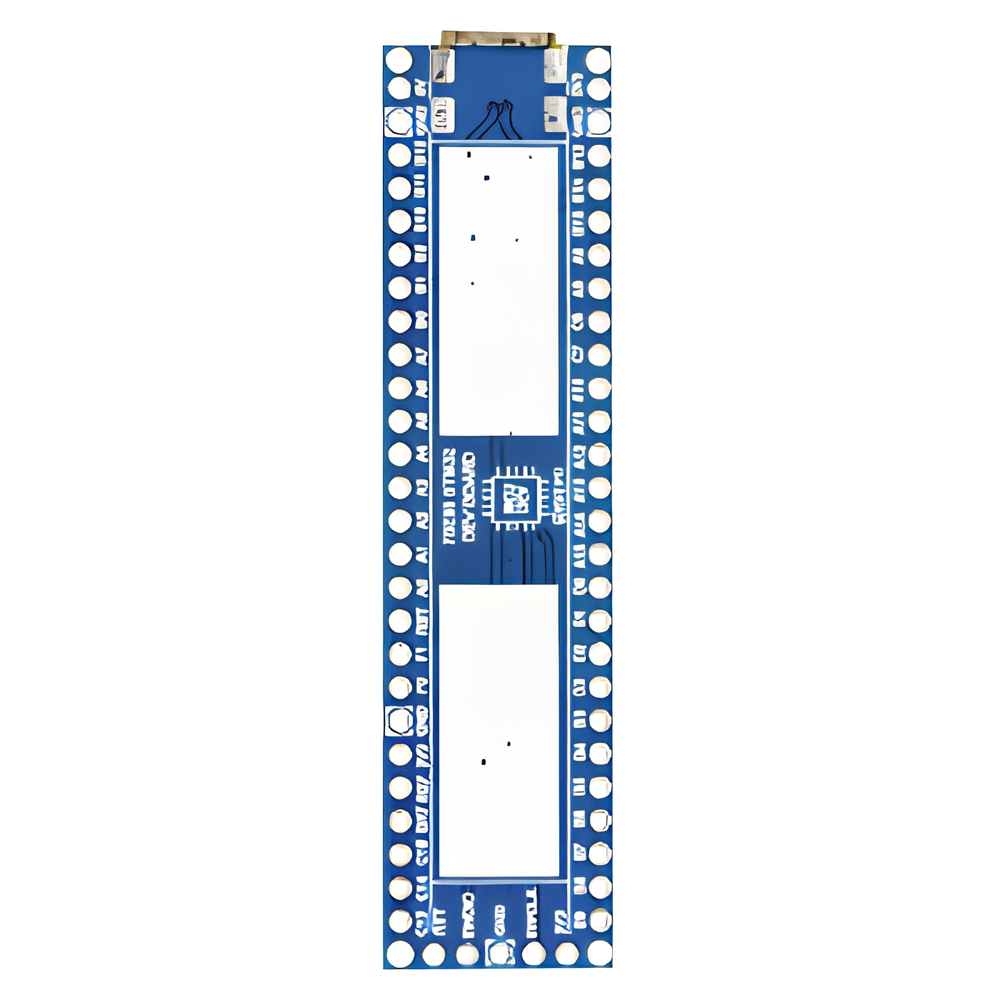

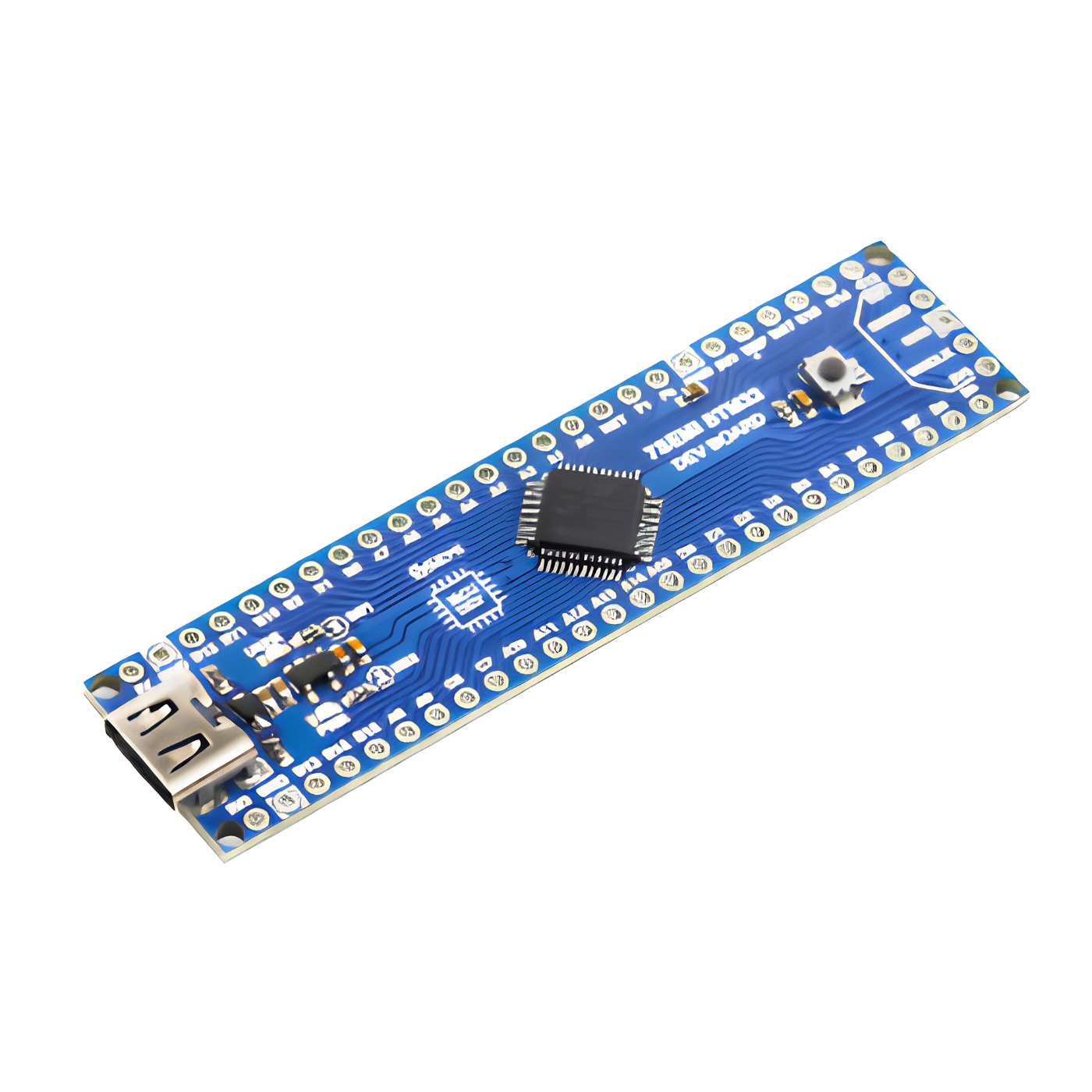

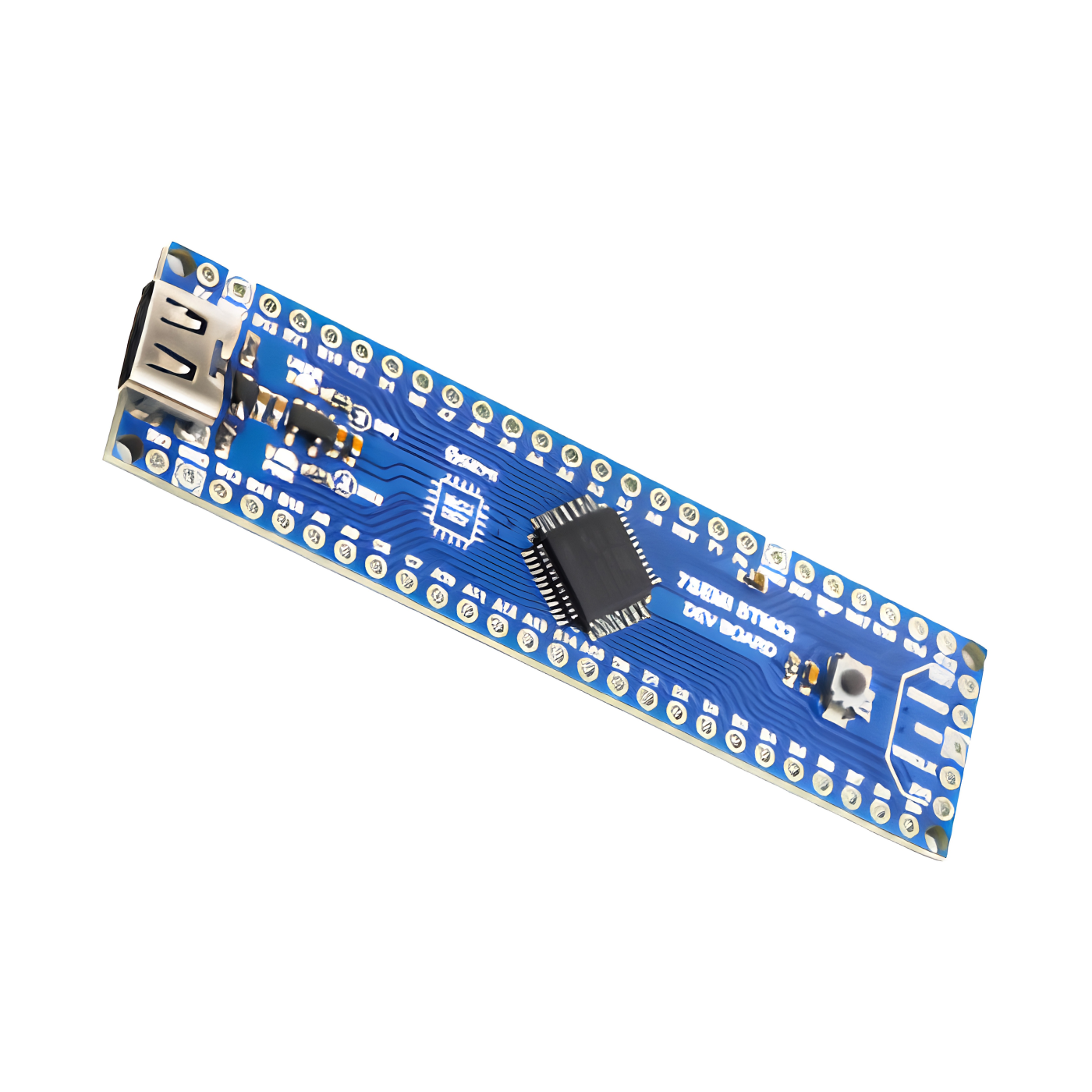

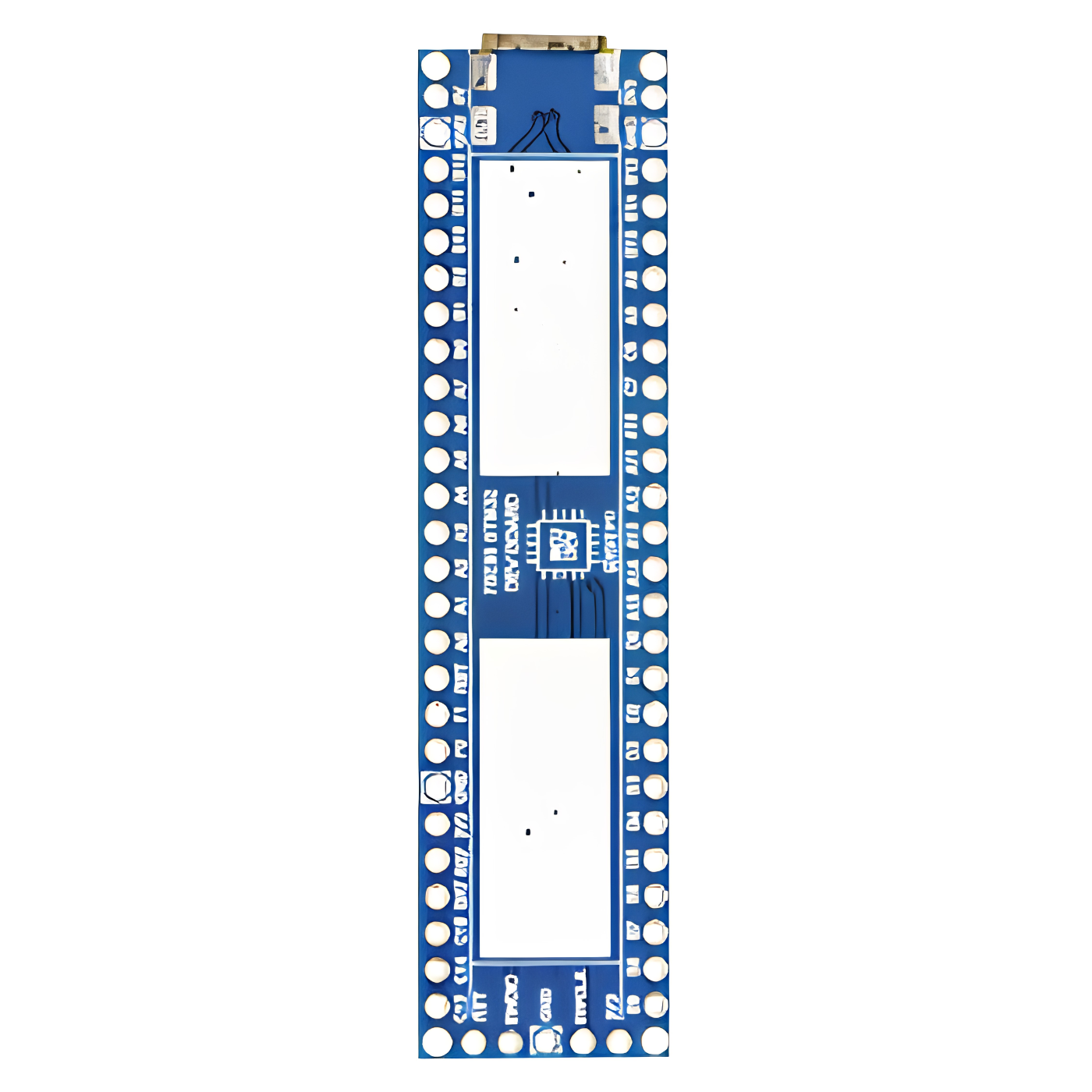

7Semi STM32G0B0CET6 STM32 Development Board
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 7Semi STM32G0B0CET6 STM32 Development Board is a compact embedded development platform designed around the STM32G0B0CET6 microcontroller. Powered by a 64MHz Arm Cortex-M0+ core, the board is suitable for embedded systems, IoT development, industrial control, and rapid prototyping. Its compact form factor makes it easy to integrate into development setups while providing the essential interfaces required for firmware development and testing.
The board features 512KB of Flash memory and 144KB of SRAM, providing ample memory resources for embedded applications. USB Type-C is used for power input, while the onboard SWD interface enables convenient programming and debugging. These integrated features simplify the development workflow and reduce the need for additional programming hardware during application development.
Multiple communication interfaces including I2C, SPI, USART, and USB allow the board to connect with sensors, displays, communication modules, and other embedded peripherals. Advanced timer resources support PWM generation, timing operations, and control applications, making the board suitable for a wide range of embedded projects. Onboard LEDs and a reset button further enhance usability during firmware development and hardware testing.
The 7Semi STM32G0B0CET6 Development Board is suitable for IoT devices, industrial automation, embedded controllers, educational projects, robotics, and product prototyping. Its combination of processing capability, communication interfaces, USB-C connectivity, and debugging support provides a practical platform for embedded software and hardware development.
• The board is powered by the STM32G0B0CET6 microcontroller with a 64MHz Arm Cortex-M0+ processor.
• It includes 512KB of Flash memory and 144KB of SRAM for embedded application development.
• USB Type-C provides a reliable power input for the development board.
• An onboard SWD interface supports programming and debugging operations.
• Communication interfaces include I2C, SPI, USART, and USB for peripheral connectivity.
• Advanced timer resources support PWM generation, timing, and control applications.
• The board includes one user LED for application status indication.
• A dedicated power LED provides visual confirmation of board power status.
• An onboard reset button enables convenient hardware reset during development.
• The compact board design is suitable for embedded systems and space-constrained applications.
• The development board is designed for embedded, industrial, and IoT applications.
• USB-C power and debugging support simplify firmware development and testing.
| Parameter | Value |
| Brand | 7Semi |
| Product Type | STM32 Development Board |
| Microcontroller | STM32G0B0CET6 |
| Processor Core | Arm Cortex-M0+ |
| Clock Frequency | 64MHz |
| Flash Memory | 512KB |
| SRAM | 144KB |
| Communication Interfaces | I2C, SPI, USART, USB |
| Debug Interface | SWD |
| Host Connector | USB Type-C |
| Operating Voltage | 5V |
| User LED | 1 |
| Power LED | 1 |
| Reset Button | Yes |
| Dimensions | 72 × 18 × 4.79 mm |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
