7Semi STM32G070KBT6 Cortex-M0+ Development Board
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

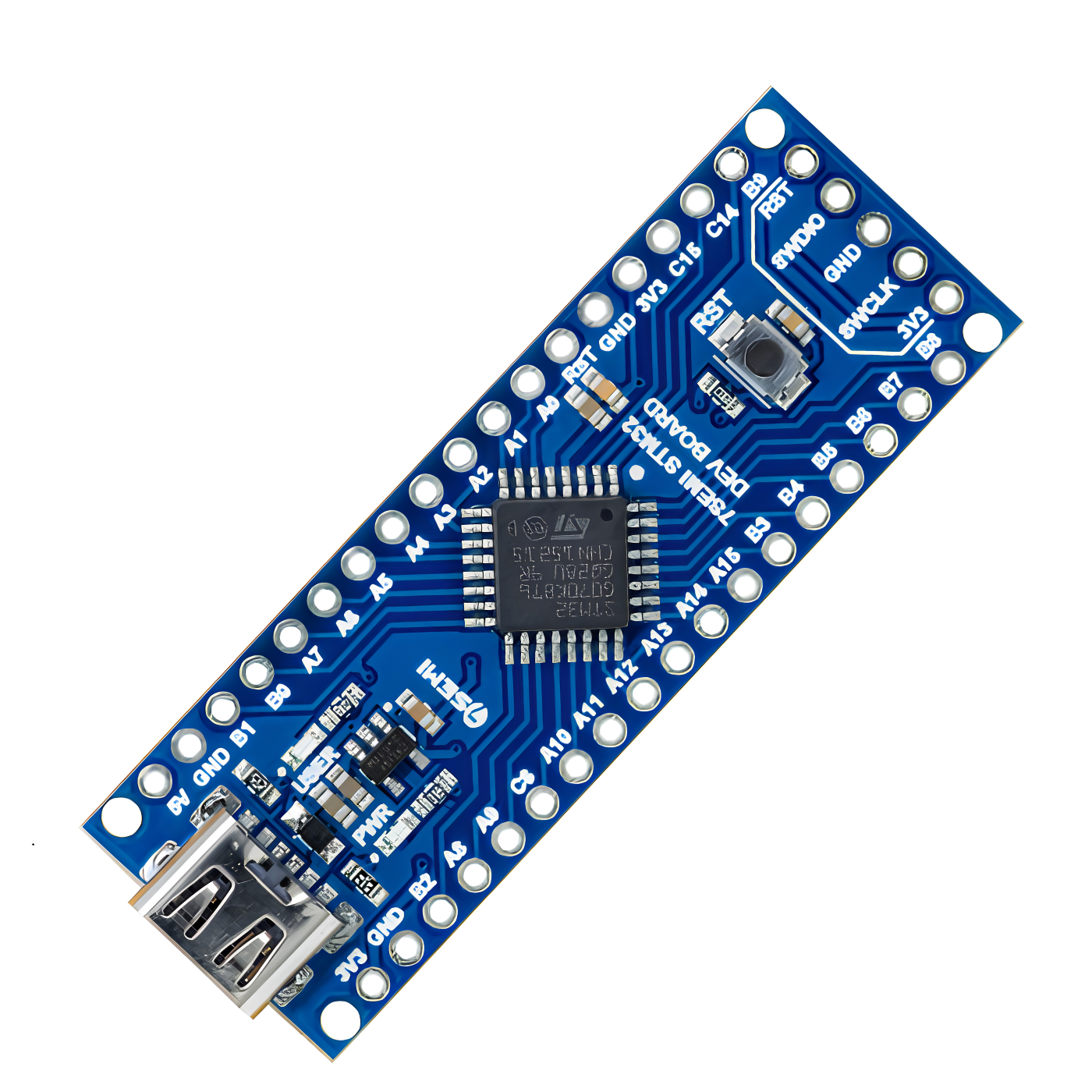

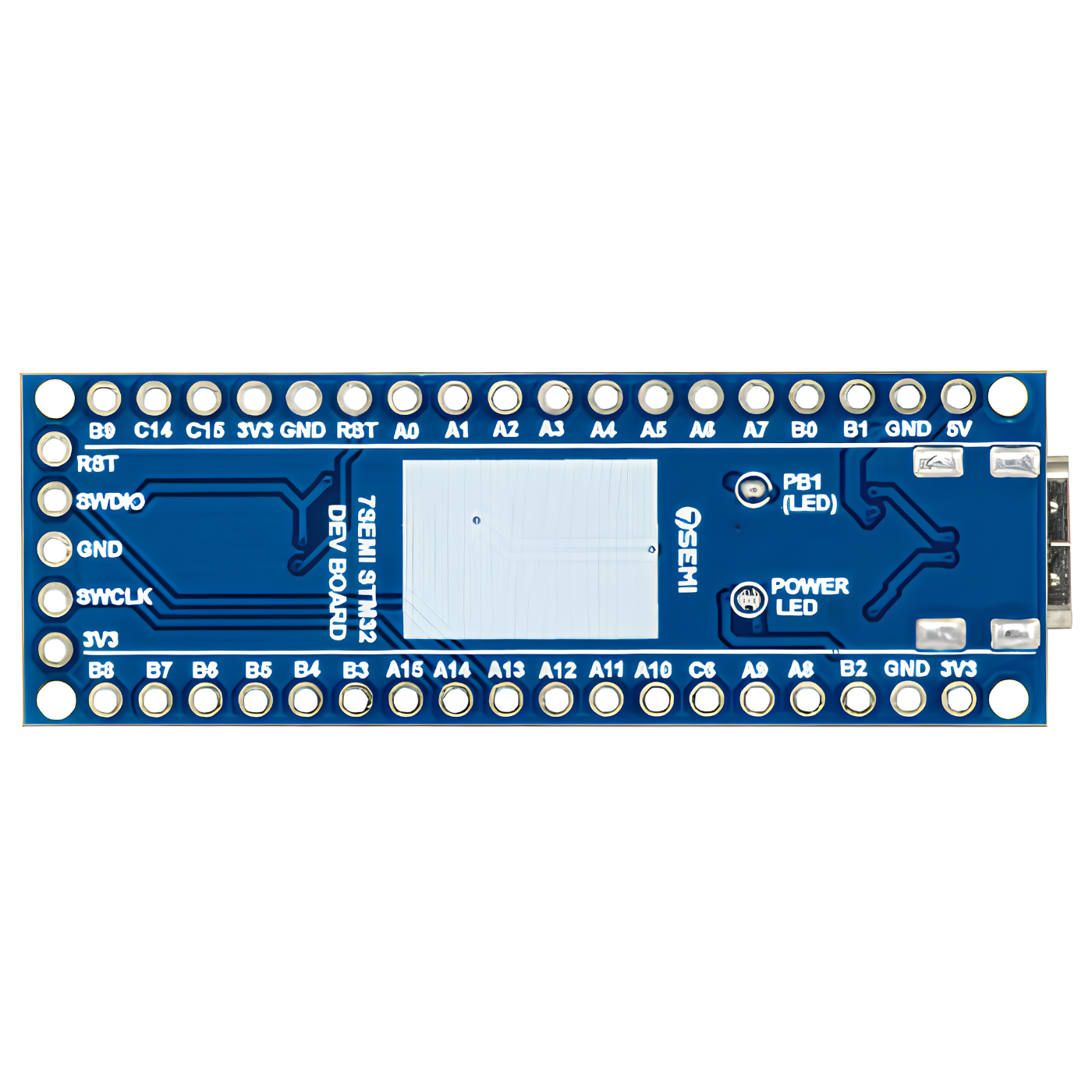

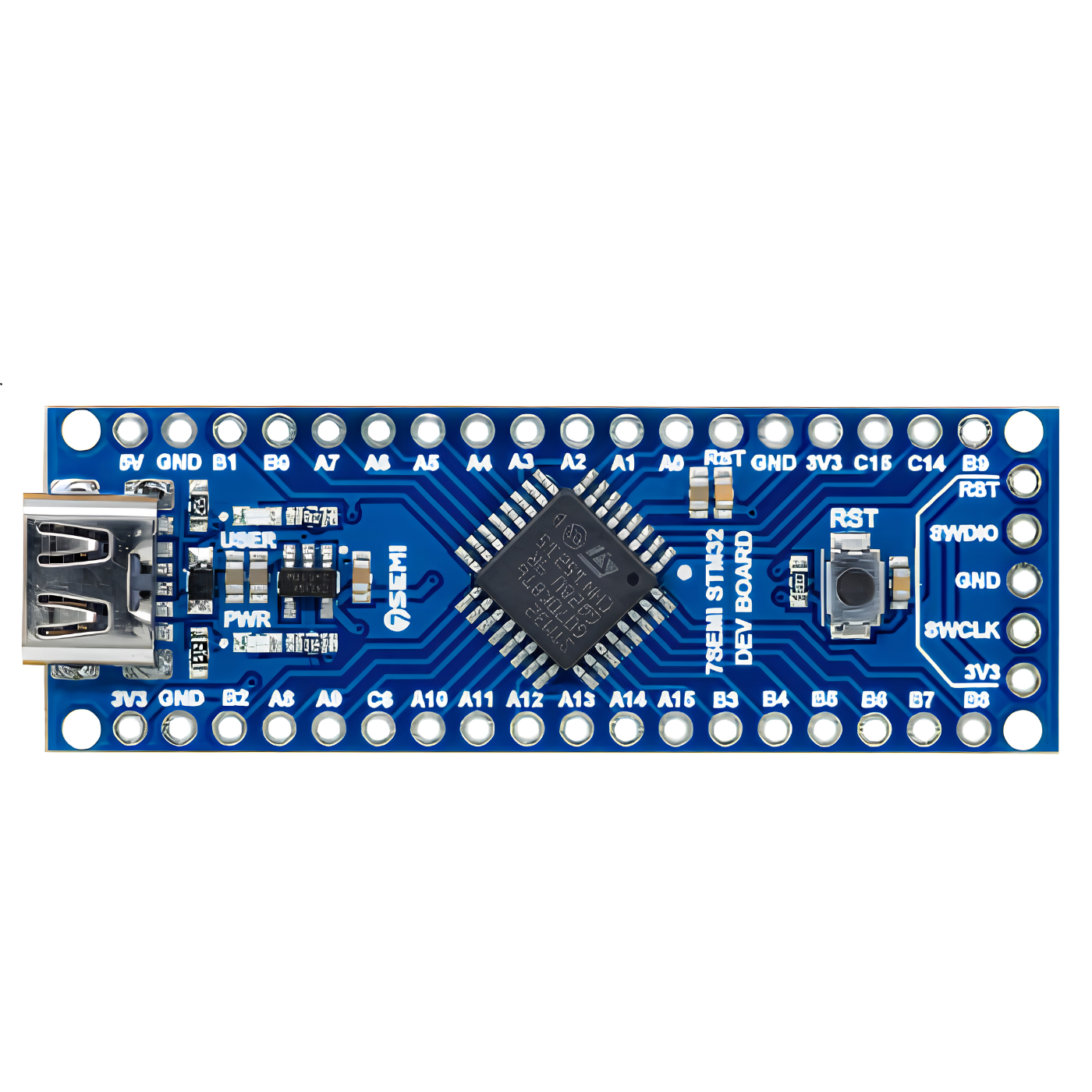

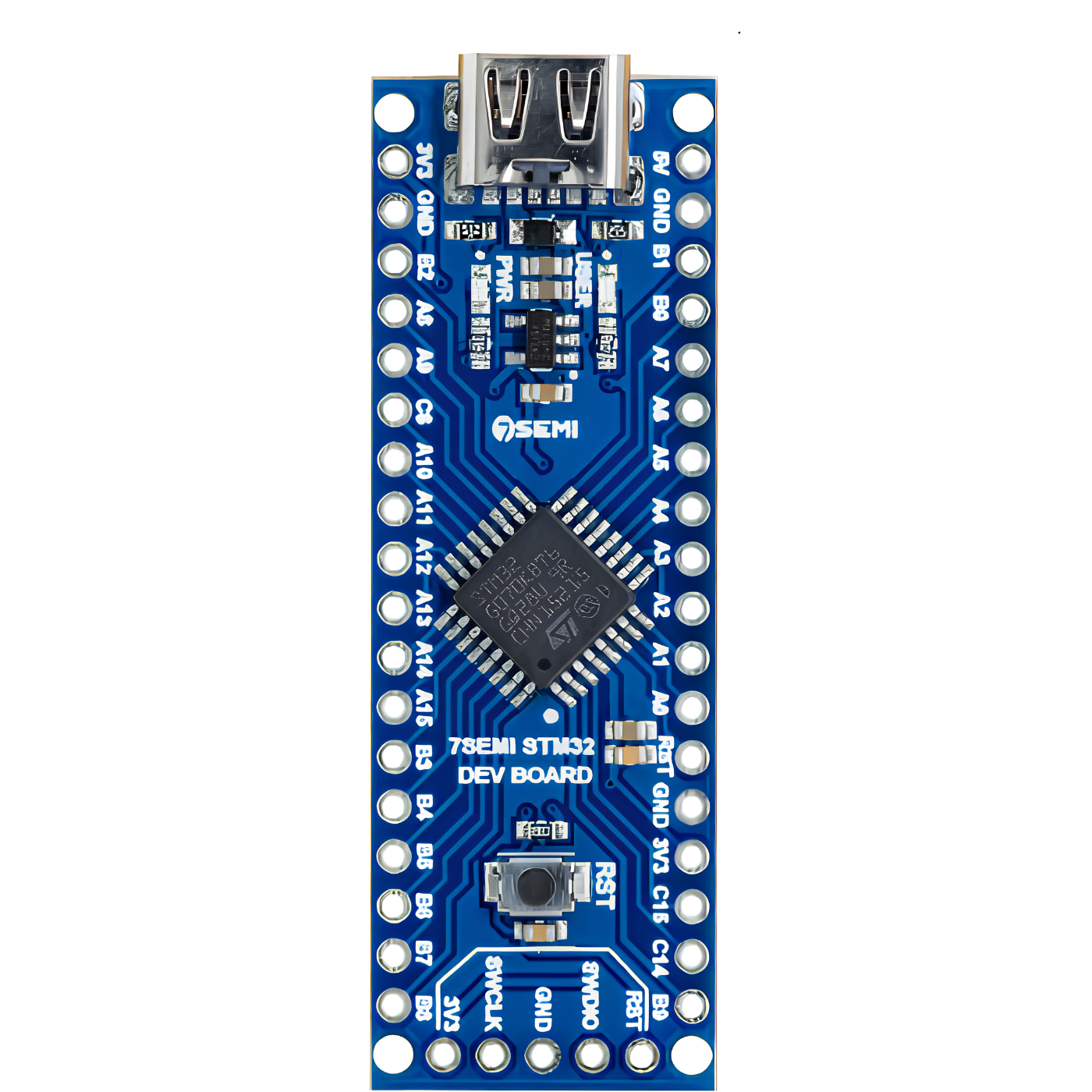

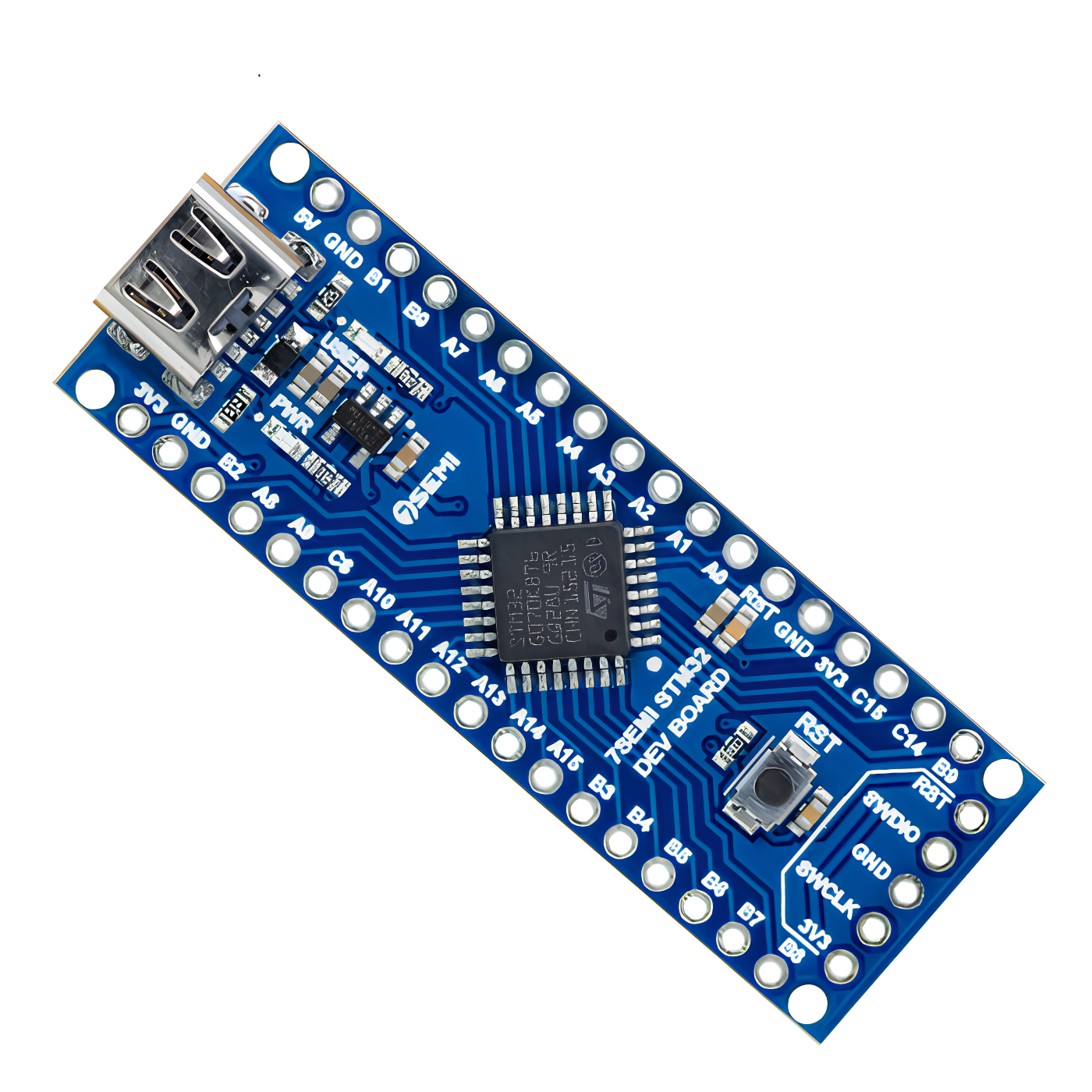

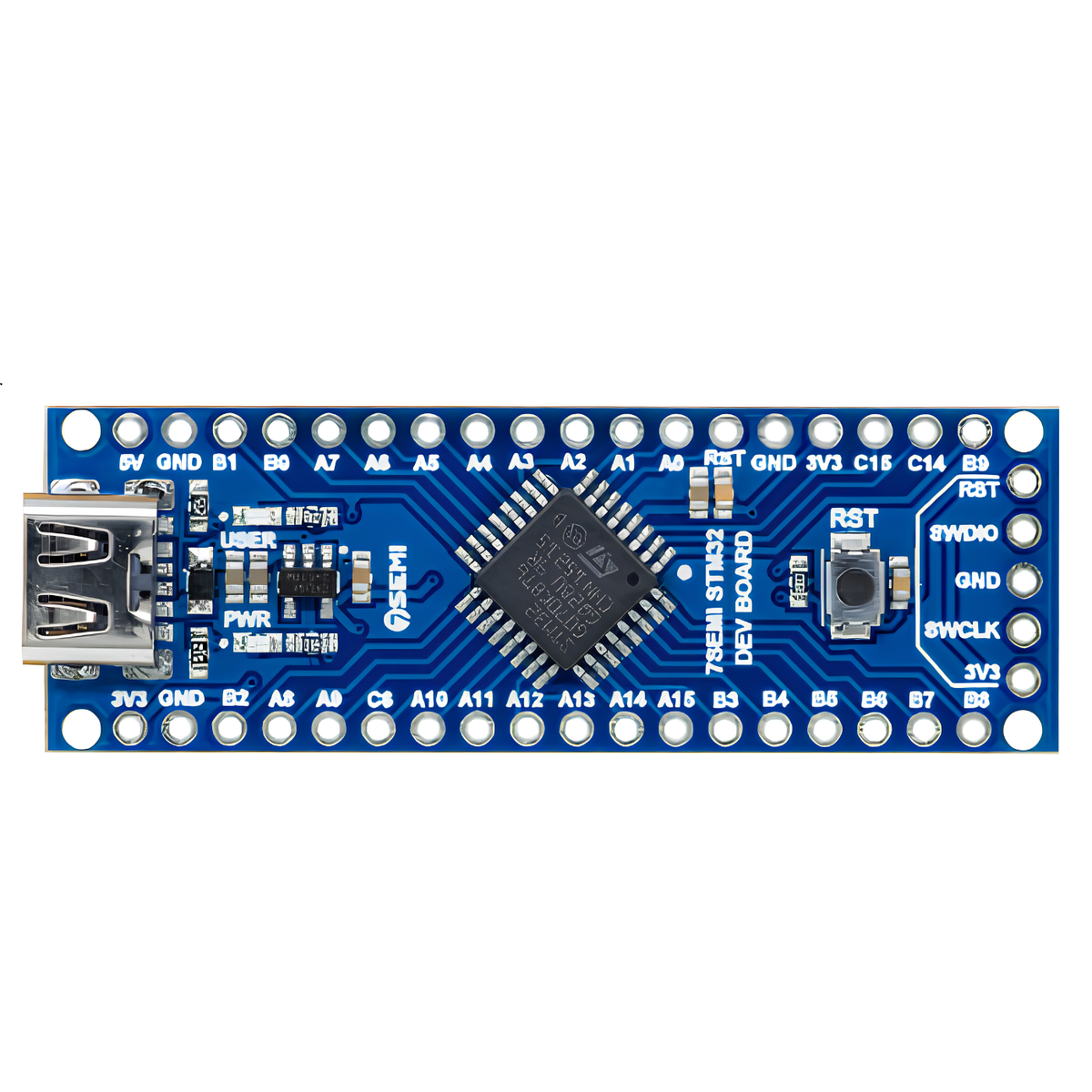

The 7Semi STM32 ARM 32-bit Cortex-M0+ RISC Mini Development Board is a compact development platform built around the STM32G070KBT6 microcontroller. Powered by an Arm Cortex-M0+ core operating at up to 64 MHz, the board is designed for embedded applications that require efficient performance, broad peripheral support, and a compact form factor. Its breadboard-compatible DIP layout enables rapid prototyping with minimal wiring, making it suitable for developers, students, and embedded system designers.
The development board features 128 KB of Flash memory and 36 KB of RAM, providing sufficient resources for firmware development and embedded applications. It includes a USB Type-C interface for power input and SWD connectivity, allowing convenient programming and debugging. The board can be powered either through the USB Type-C connector or a 3.3 V header, providing flexibility for different development environments.
Integrated peripherals such as a 12-bit ADC with up to 2.5 MSps and 19 channels, advanced PWM timers, communication interfaces, watchdog timers, and system timers support a wide variety of embedded projects. The onboard Reset button, Power LED, and User LED simplify testing and development while maintaining a compact hardware design. The board also supports development using STM32CubeIDE and STM32duino, enabling developers to build firmware using familiar software tools.
The 7Semi STM32G070KBT6 USB-C Development Board is suitable for embedded prototyping, automation, IoT nodes, motor control, educational projects, and low-cost product evaluation. Its combination of compact dimensions, USB Type-C connectivity, and breadboard-friendly layout makes it a practical platform for rapid embedded system development.
• The 7Semi STM32G070KBT6 USB-C Development Board is powered by an Arm Cortex-M0+ 32-bit RISC core operating at up to 64 MHz.
• The board includes 128 KB Flash memory and 36 KB RAM for embedded firmware development.
• A USB Type-C interface provides power input and SWD debugging connectivity.
• The board supports power input through either the USB Type-C connector or a 3.3 V header.
• A 12-bit ADC supports conversion speeds of up to 2.5 MSps across 19 input channels.
• Integrated timer resources include an advanced control PWM timer, five 16-bit timers, two basic timers, and a SysTick timer.
• The breadboard-compatible DIP layout enables convenient prototyping without additional adapter boards.
• Independent watchdog and window watchdog timers enhance application monitoring capabilities.
• The board includes a dedicated Reset button for quick hardware resets during development.
• Power and User LEDs provide visual indication of board status during operation.
• Peripheral interfaces include ADC, timers, PWM, USART, I2C, SPI, and I2S support.
• The board is compatible with STM32CubeIDE and STM32duino development environments.
• Its compact design is intended for embedded prototyping, automation, IoT, motor control, and educational applications.
| Brand | 7Semi |
| Product Type | STM32 ARM 32-bit Cortex-M0+ RISC Mini Development Board |
| Microcontroller | STM32G070KBT6 |
| Core | Arm Cortex-M0+ up to 64 MHz |
| Flash Memory | 128 KB |
| RAM | 36 KB |
| ADC | 12-bit, up to 2.5 MSps, 19 channels |
| Interfaces | USB Type-C, SWD |
| Power Input | 5 V via USB Type-C or 3.3 V via headers |
| Timers | Advanced control PWM timer, 5 × 16-bit timers, 2 × basic timers, SysTick |
| User Controls | Reset button |
| Indicators | Power LED, User LED |
| Watchdogs | Independent watchdog, Window watchdog |
| Board Format | Breadboard-compatible DIP layout |
| Development Compatibility | STM32CubeIDE, STM32duino |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
