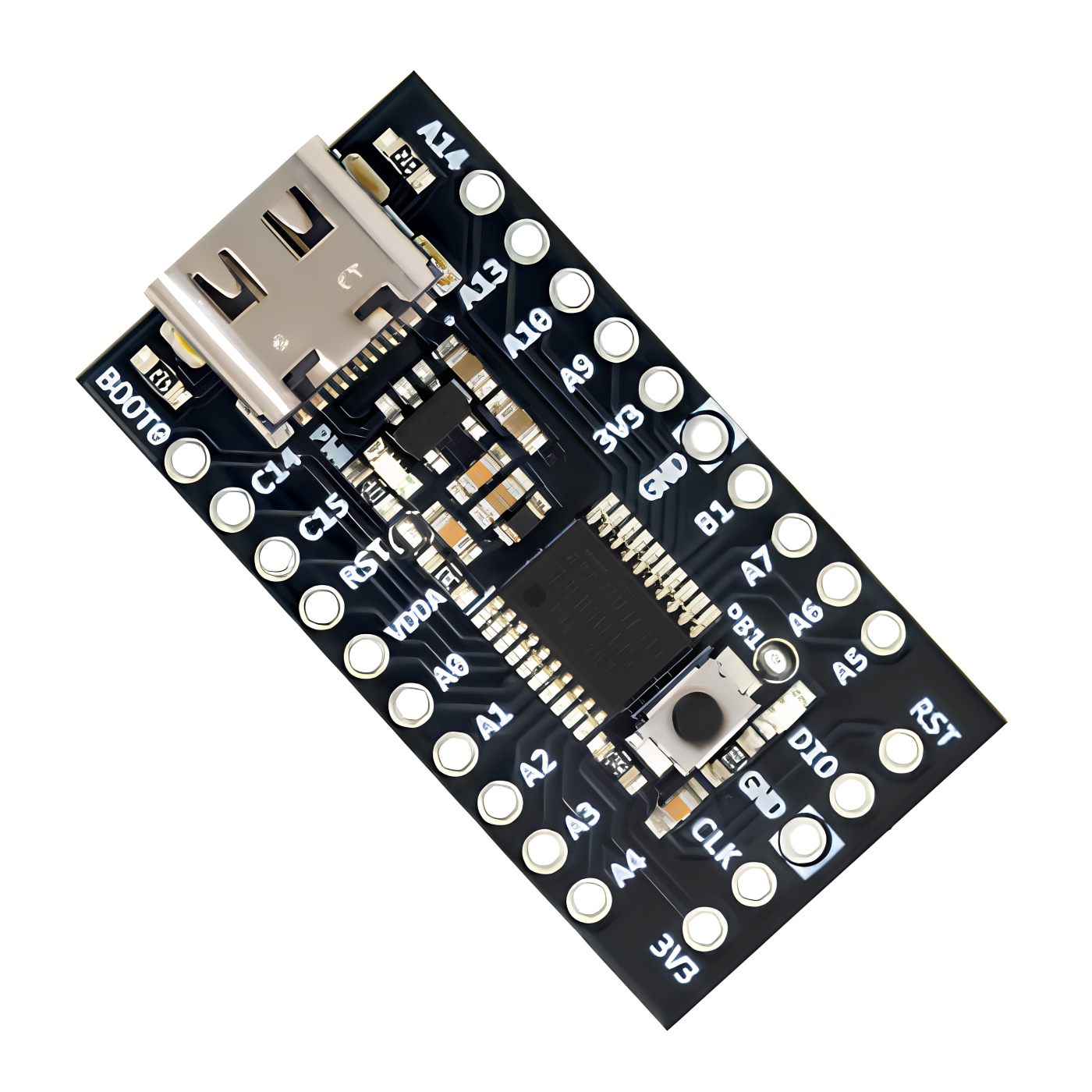

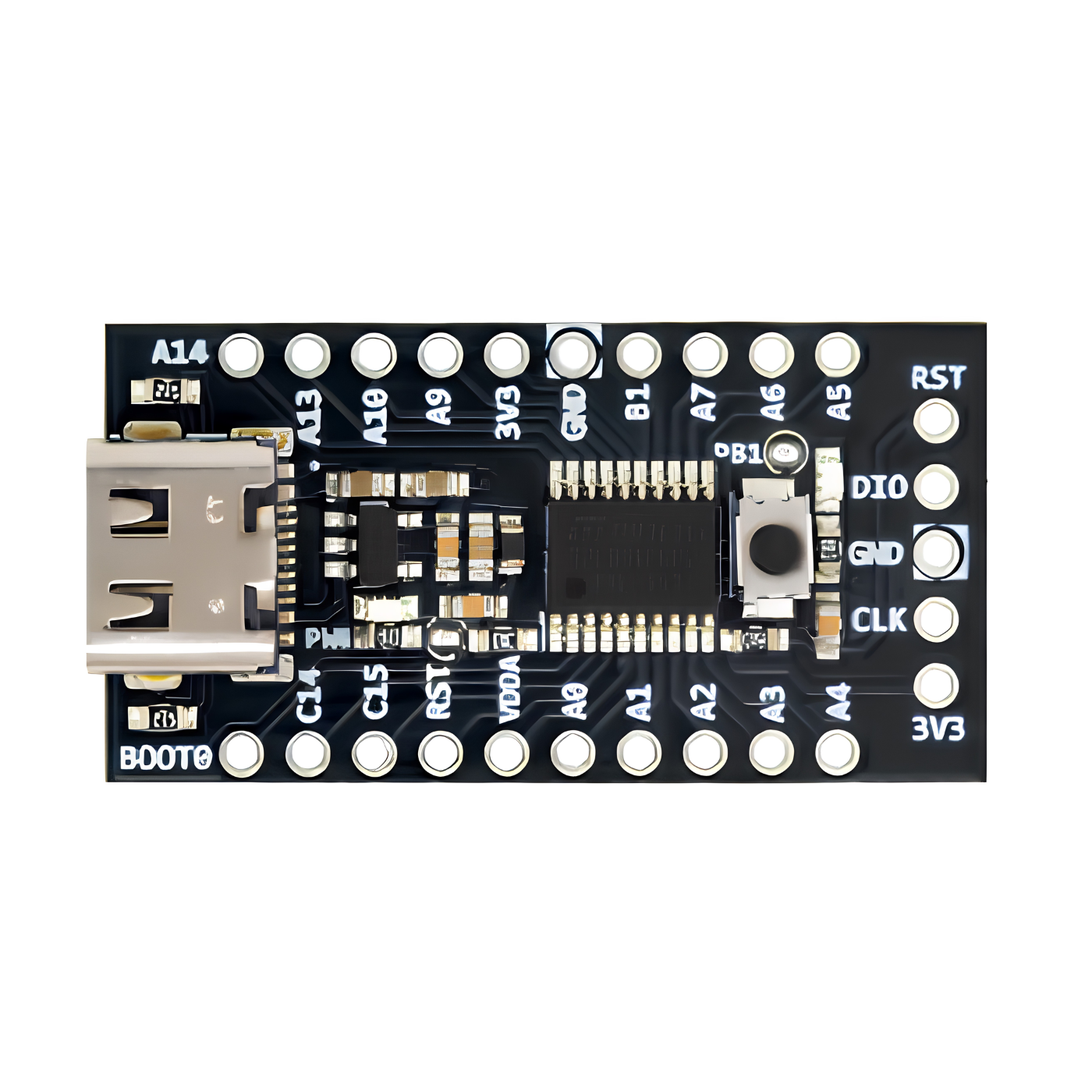

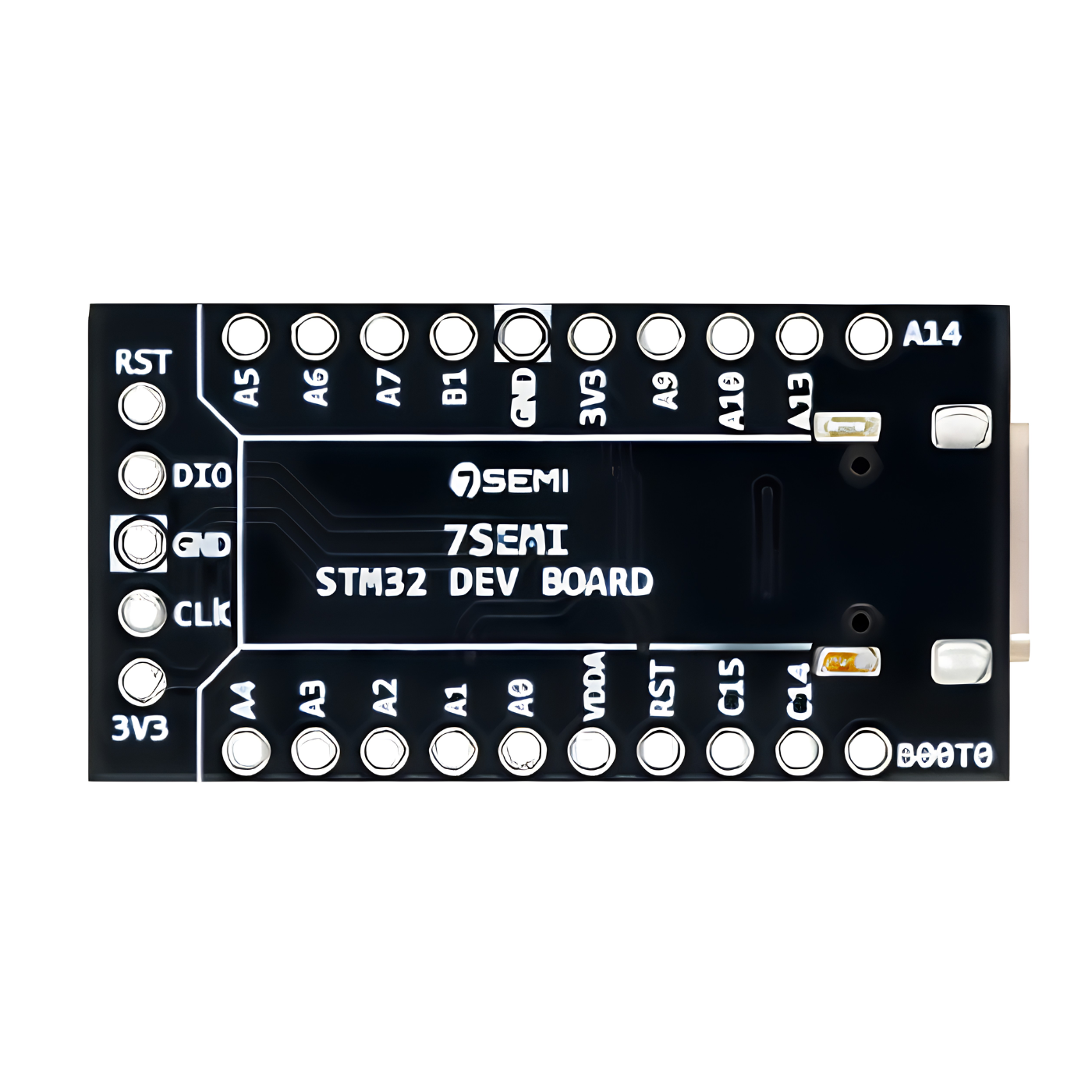

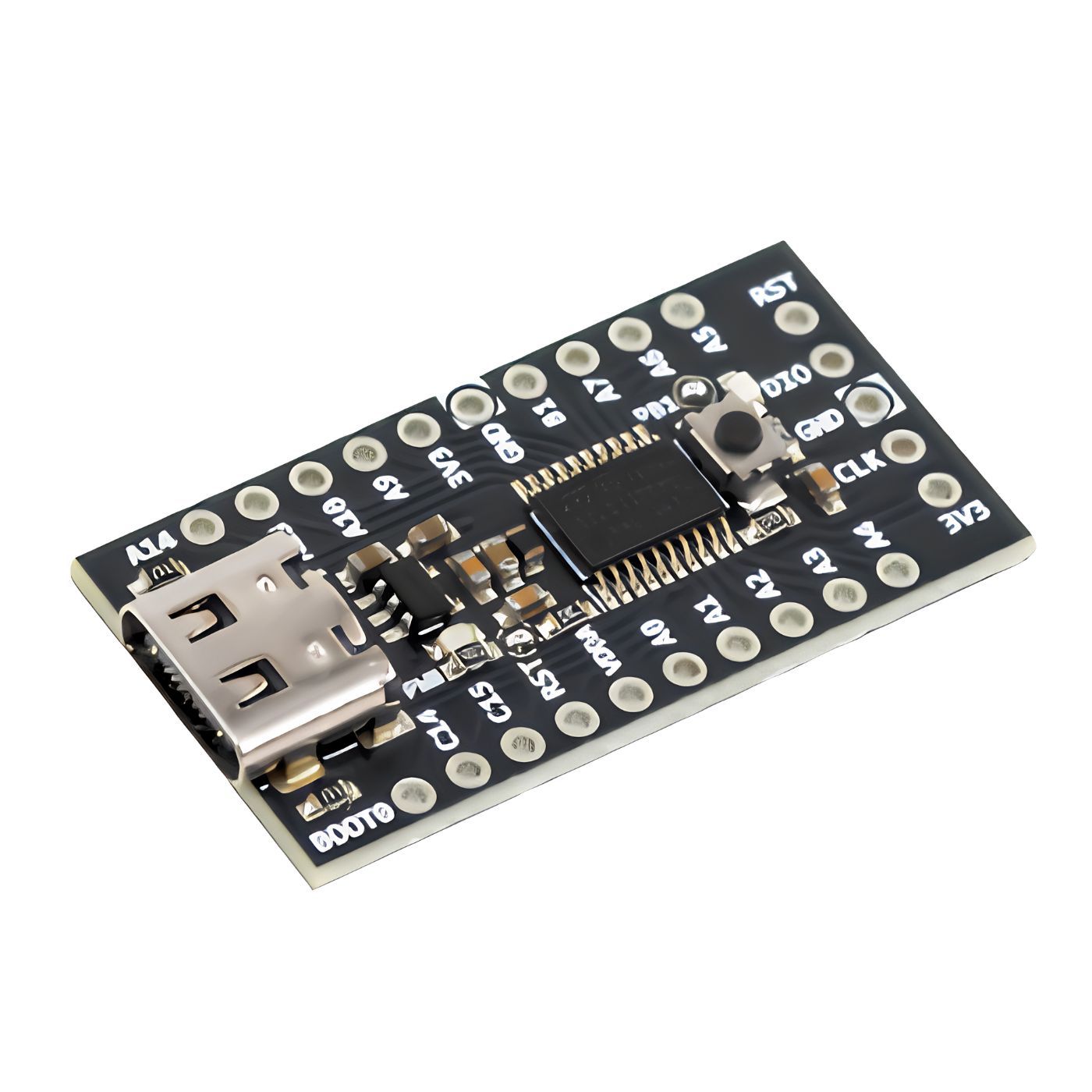

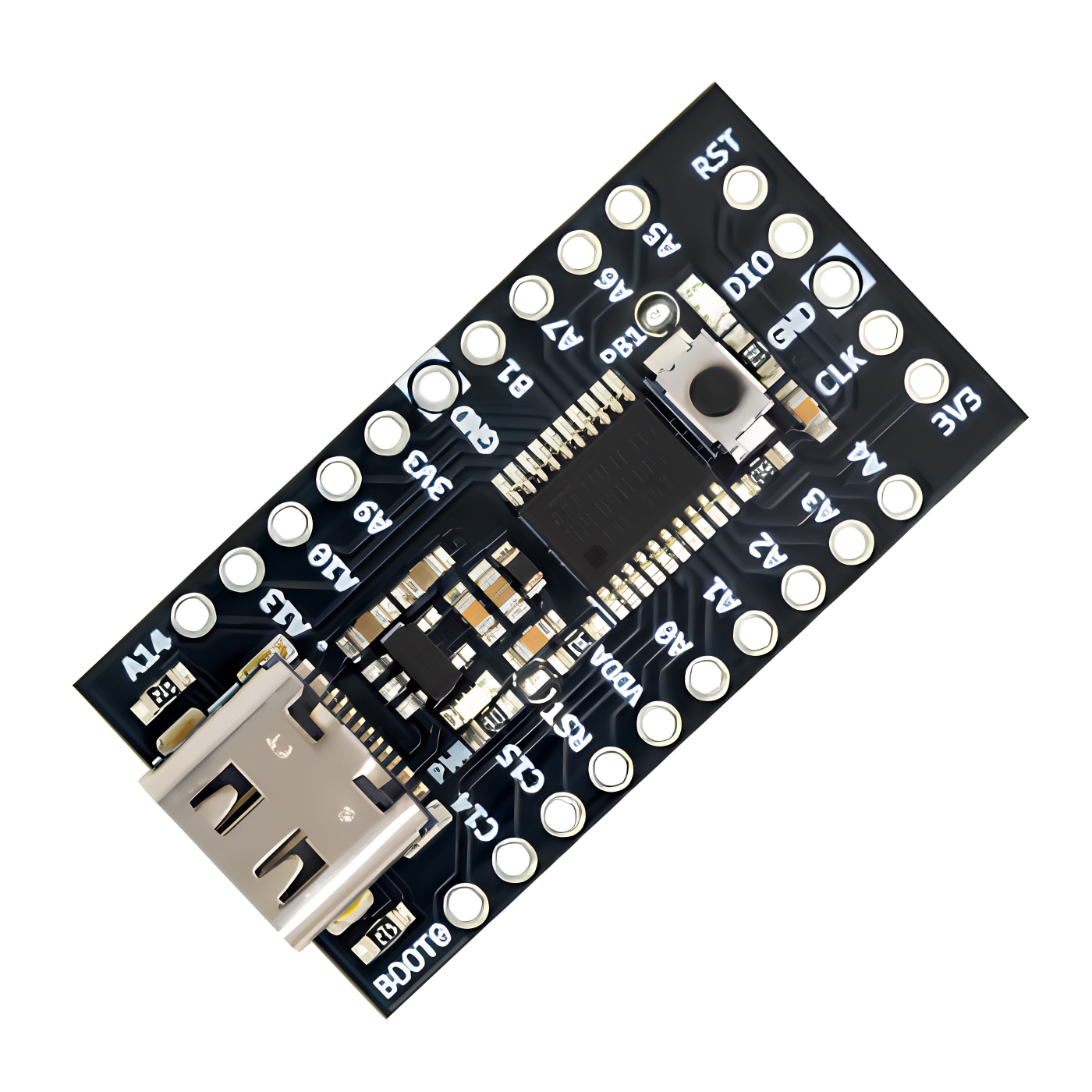

7Semi STM32 ARM 32-bit Cortex-M0+ RISC Mini Development Board USB-C - STM32L031F6P6
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 7Semi STM32L031F6P6 Mini Development Board is a compact platform built for low-power embedded development and rapid prototyping. Based on the STM32L031F6P6 microcontroller with an ARM Cortex-M0+ core, the board is intended for battery-powered applications including IoT devices, wearable electronics, automation projects, and sensor nodes. Its breadboard-compatible form factor makes it easy to integrate into prototype designs and educational projects.
The board features a USB Type-C connector for stable power input and includes an onboard reset button for convenient development. It supports SWD programming, allowing firmware upload and debugging with an external programmer. Compatible with STM32CubeIDE, the board provides a practical environment for developing and testing embedded applications using the STM32L0 series microcontroller.
With 32KB Flash memory, 8KB SRAM, and support for GPIO, UART, SPI, I2C, ADC, and PWM interfaces, the 7Semi STM32L031F6P6 Development Board offers the essential resources needed for a variety of embedded projects. Its compact design, low-power architecture, and accessible development features make it suitable for both learning and product development.
• Built around the STM32L031F6P6 ARM Cortex-M0+ microcontroller.
• Designed for ultra-low-power embedded and battery-operated applications.
• Compact, breadboard-compatible design simplifies prototyping.
• USB Type-C connector provides convenient and stable power input.
• Supports SWD programming with an external programmer.
• Compatible with STM32CubeIDE for firmware development.
• Includes 32KB Flash memory for application storage.
• Integrates 8KB SRAM for embedded program execution.
• Provides GPIO, UART, SPI, I2C, ADC, and PWM interfaces for peripheral connectivity.
• Onboard reset button enables quick hardware reset during development.
• Suitable for IoT devices, wearable electronics, automation projects, and sensor nodes.
• Offers a compact platform for learning and developing STM32-based embedded applications.
| Parameter | Value |
| Brand | 7Semi |
| Product Type | STM32 Mini Development Board |
| Microcontroller | STM32L031F6P6 |
| Processor Core | ARM Cortex-M0+ |
| Core Speed | Up to 32 MHz |
| Flash Memory | 32 KB |
| SRAM | 8 KB |
| Operating Voltage | 3.3V–5V |
| Interfaces | GPIO, UART, SPI, I2C, ADC, PWM |
| Programming Interface | SWD (ST-Link required) |
| Power Input | USB Type-C |
| Reset Button | Yes |
| Development Support | STM32CubeIDE |
| Board Dimensions | 35 × 18 × 4.96 mm |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
