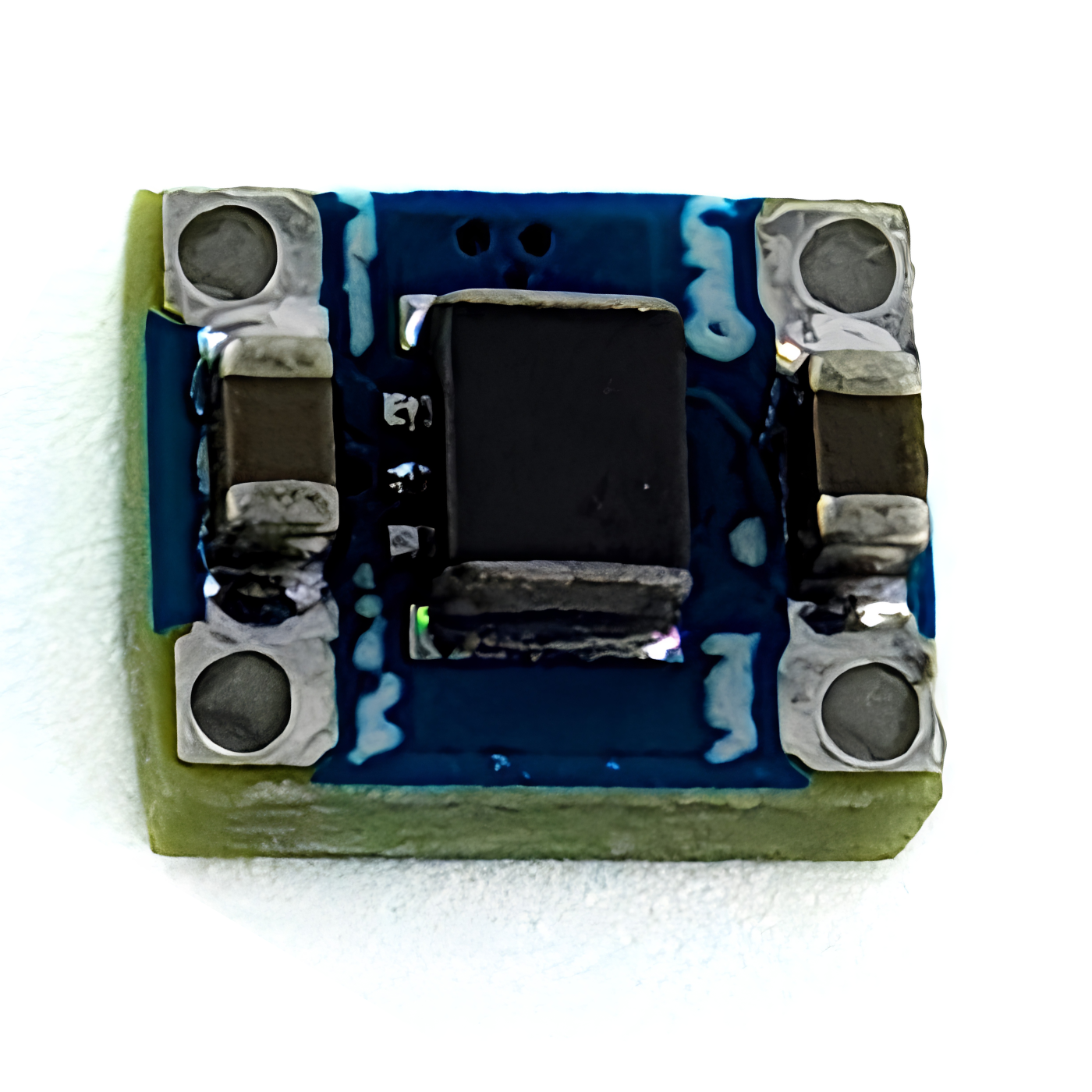

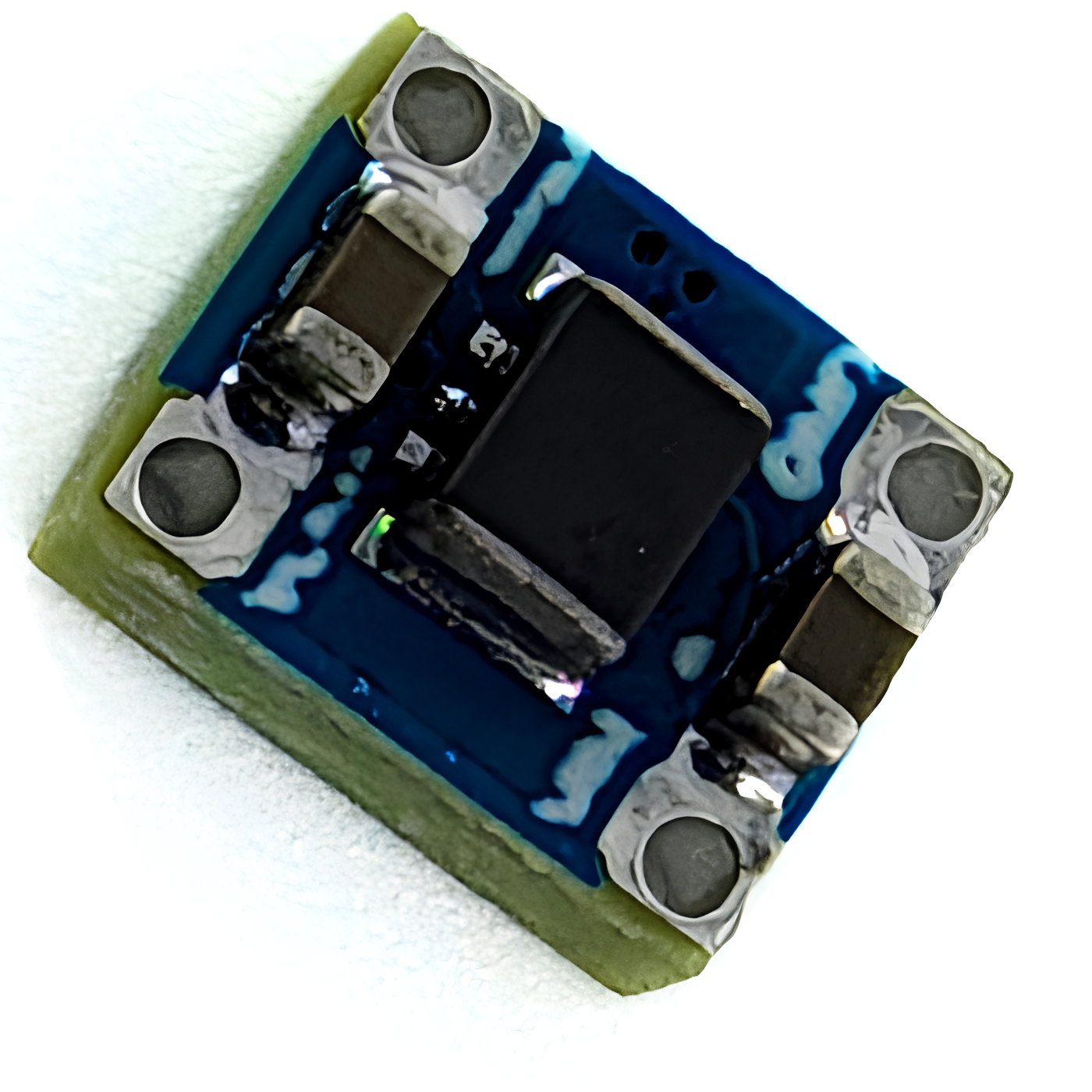

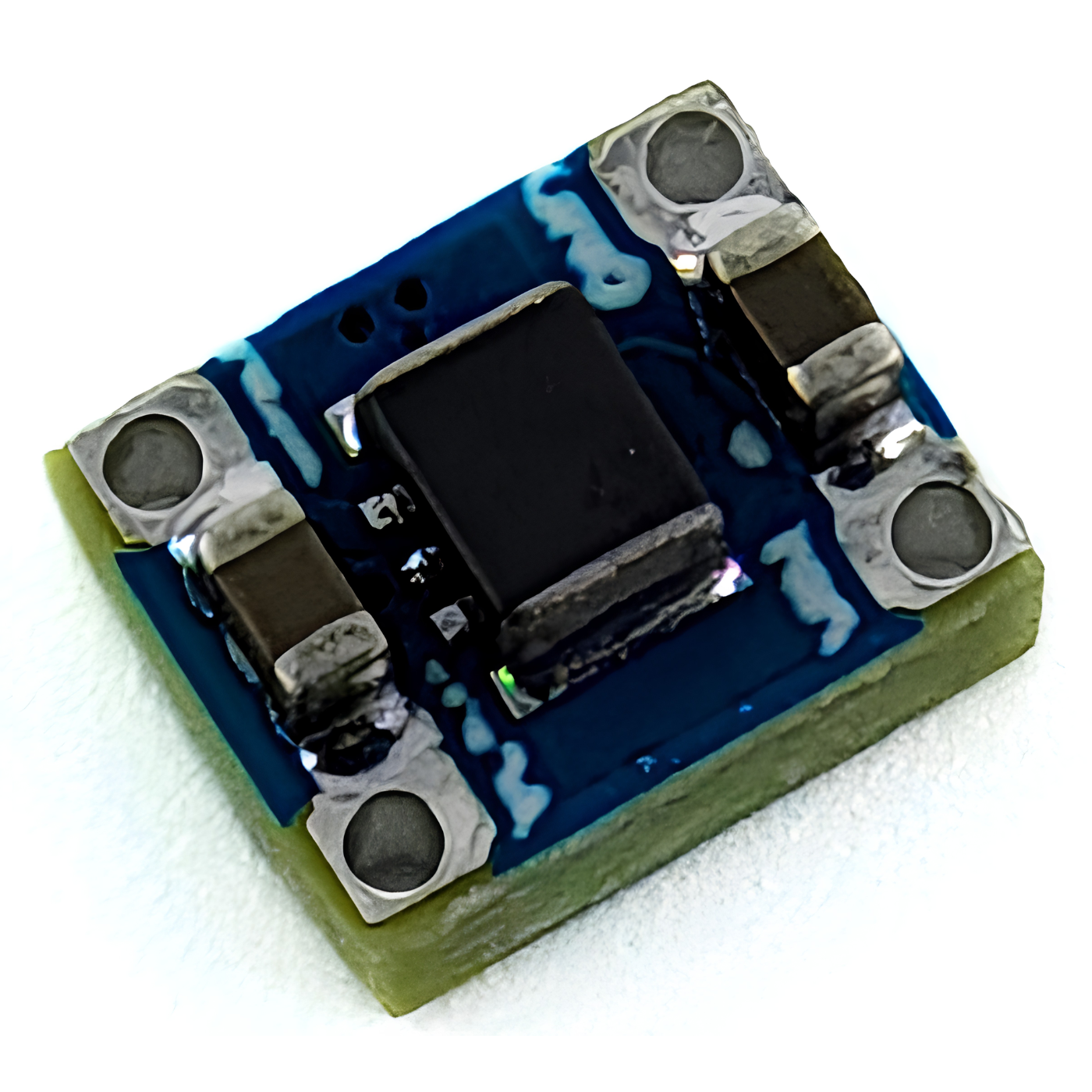

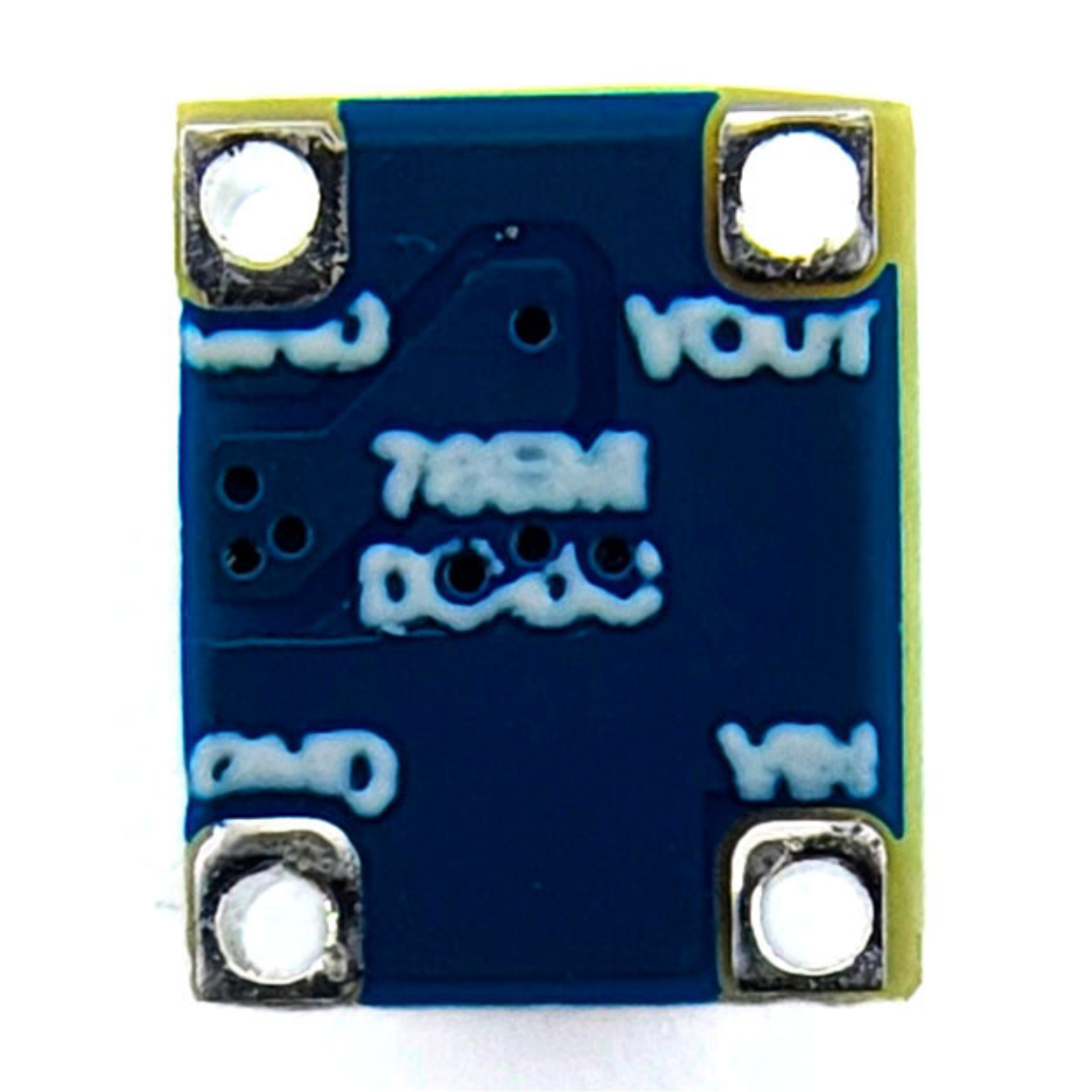

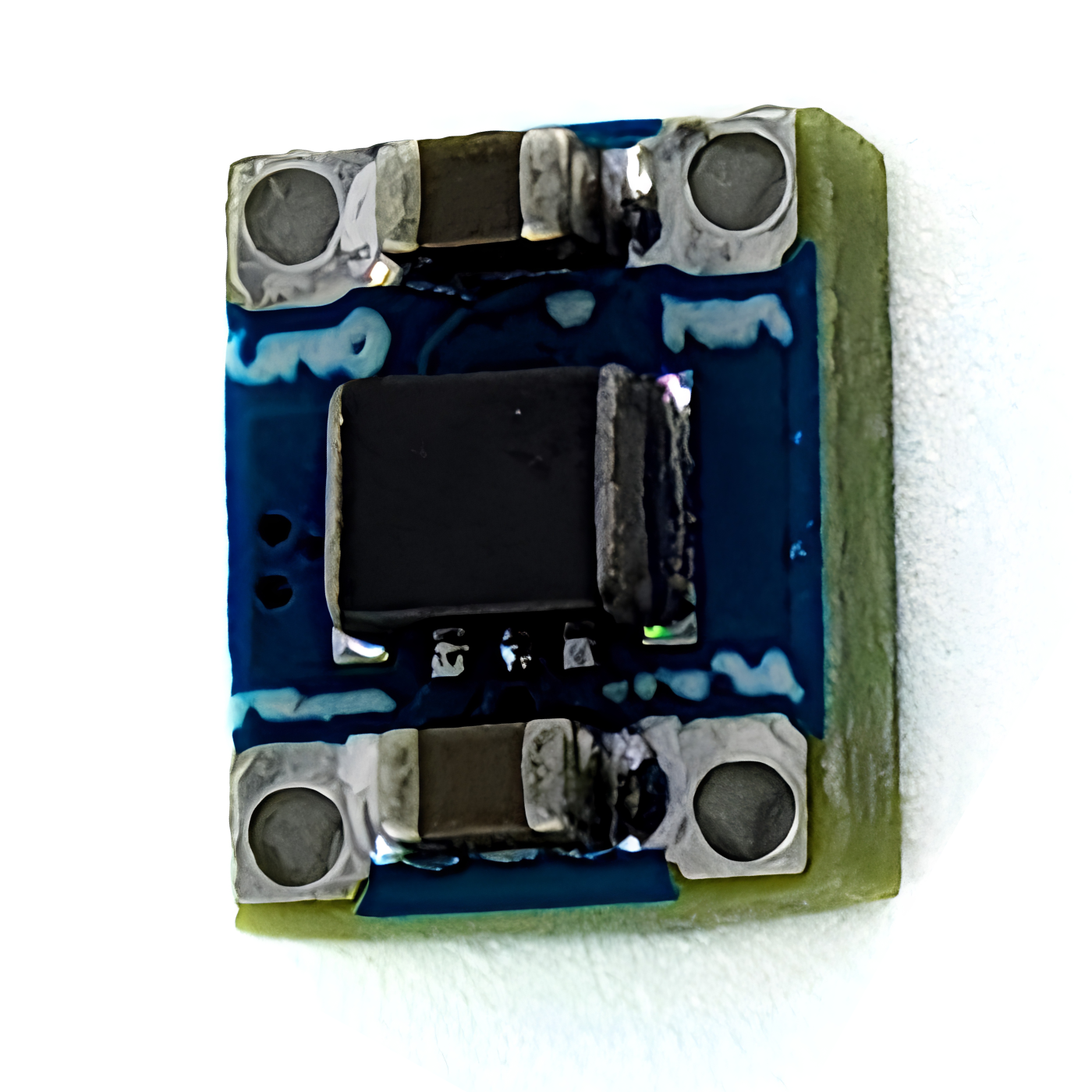

7Semi Step-Up Miniature DC-DC Converter 3.3V Output Module
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability
The 7Semi Step-Up Mini DC-DC Converter is a compact power module designed to convert low input voltages into a stable fixed 3.3V output. Supporting an input voltage range of 0.65V to 6.0V, the module is suitable for powering low-voltage embedded electronics, battery-operated devices, and applications requiring reliable voltage boosting from low-power sources. The miniature design integrates a Murata MYRBP330080W21RD inductor and control IC into a single compact package, reducing board space requirements.
The converter requires only two external capacitors to create a stable step-up power supply, helping simplify circuit design while reducing wiring complexity and electrical noise. It utilizes PWM switching control for efficient power conversion and incorporates a CL Discharge Function that rapidly discharges the output capacitor during standby mode, helping prevent application malfunctions.
Designed for compact electronic systems, the module is suitable for real-time clocks (RTC), battery-powered equipment, and low-voltage embedded applications. Its combination of a wide input voltage range, fixed regulated output, and integrated inductor makes it a practical solution where space-saving and efficient power conversion are important design considerations.
• Accepts an input voltage range from 0.65V to 6.0V.
• Provides a fixed regulated 3.3V output voltage.
• Built using the Murata MYRBP330080W21RD integrated step-up converter.
• Integrates the inductor and control IC into a compact 2.0mm × 2.5mm × 1.0mm package.
• Requires only two external capacitors to create a stable power supply.
• Uses PWM switching control for efficient DC-DC voltage conversion.
• Internal coil design helps reduce circuit complexity and wiring-related noise.
• CL Discharge Function rapidly discharges the output capacitor during standby mode.
• Designed for powering real-time clock (RTC) applications.
• Suitable for battery-operated electronic devices.
• Compact module simplifies integration into embedded systems with limited PCB space.
• Intended for low-voltage embedded and portable electronic applications.
| Parameter | Value |
| Brand | 7Semi |
| Product Type | Step-Up Mini DC-DC Converter |
| Input Voltage Range | 0.65V to 6.0V |
| Output Voltage | Fixed 3.3V |
| Converter | Murata MYRBP330080W21RD |
| Control Method | PWM Switching Control |
| External Components Required | Two Capacitors |
| Integrated Package | Inductor and Control IC (2.0mm × 2.5mm × 1.0mm) |
| Standby Feature | CL Discharge Function |
| Typical Applications | Real-Time Clocks (RTC), Battery-Operated Devices, Low-Voltage Embedded Systems |
