7Semi Outdoor Temp & Humidity Sensor with I2C & Radiation Shield
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

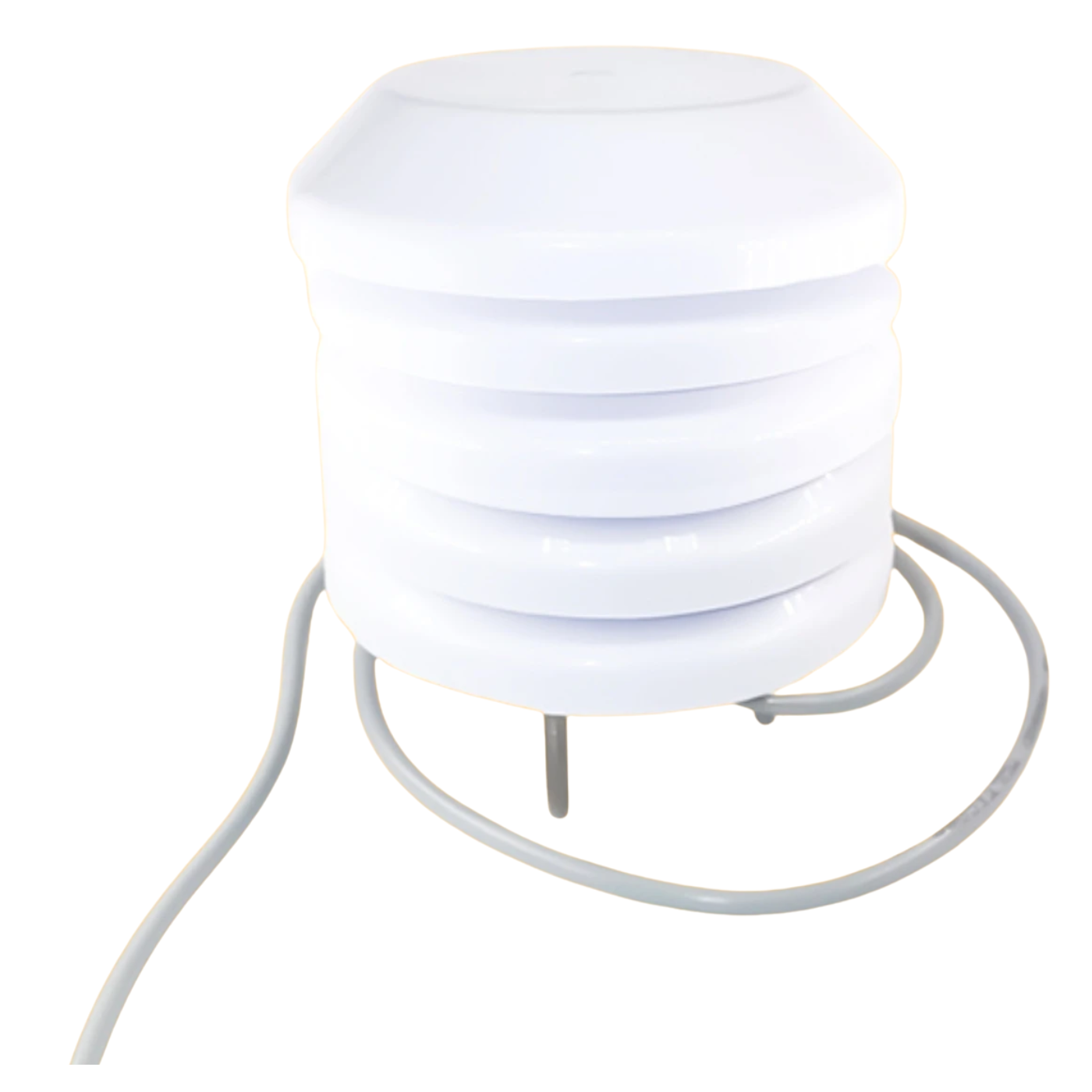

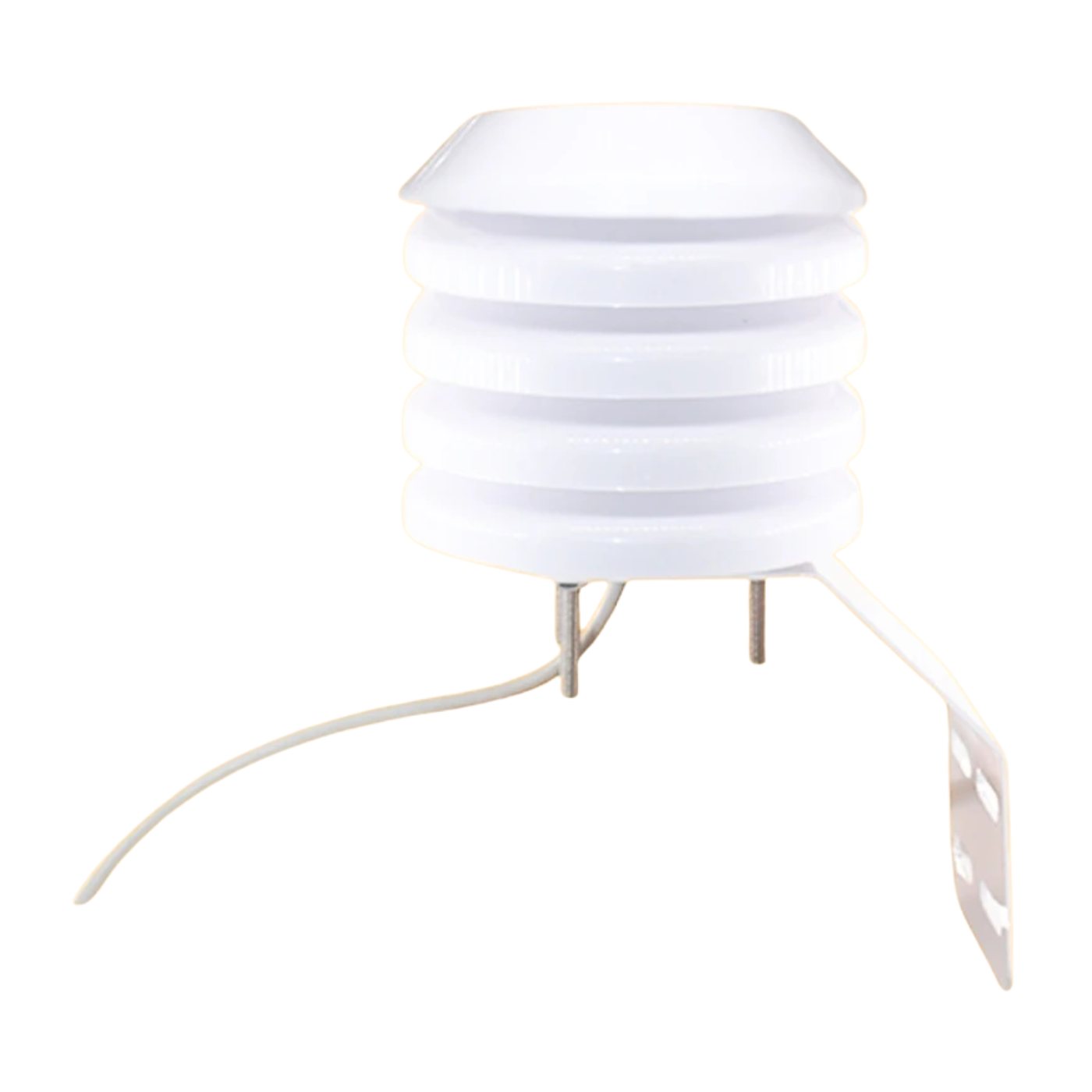

The 7Semi Outdoor Temp & Humidity Sensor with I2C & Radiation Shield is a rugged environmental sensing module designed for accurate temperature and humidity monitoring in outdoor conditions. Its multi-layer radiation shield helps minimize the effects of direct sunlight, reflected heat, and rain, allowing the sensor to provide more reliable climate data.
The digital I2C temperature and humidity sensor interface makes integration simple with popular development platforms such as ESP32, Arduino, STM32, and Raspberry Pi, as well as industrial controllers. With low power consumption and a weather-resistant design, it is well suited for outdoor weather stations, smart agriculture, HVAC monitoring, environmental monitoring, and industrial IoT projects where dependable real-time temperature and humidity data is required.
| Specification | Details |
|---|---|
| Supply Voltage | 1.8V – 3.6V |
| Interface | I2C (address options supported) |
| Idle Current | Very low (sub-µA) |
| Measurement Time | 1.3–8.3 ms, depending on precision mode |
| Output | Digital Temperature + Relative Humidity |
| Temperature Accuracy | ±0.1°C typical |
| Humidity Accuracy | ±1.0% RH typical |
| Temperature Range | –40°C to +125°C |
| Humidity Range | 0–100% RH |
| Humidity Long-term Drift | <0.2% RH/year |
| Temperature Long-term Drift | <0.03°C/year |
| Enclosure | Multi-layer white radiation shield |

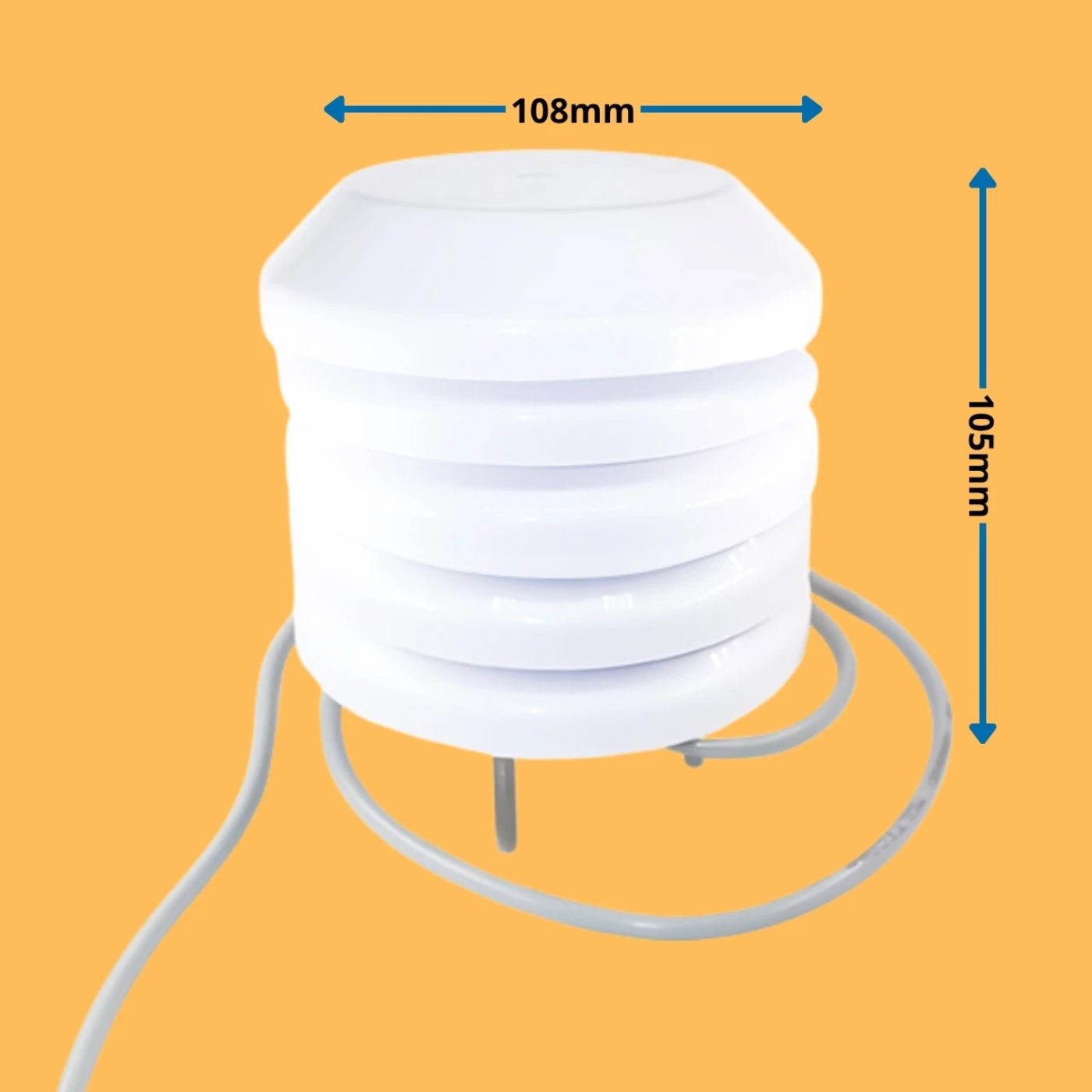

| Dimensions | 108 mm × 105 mm |
| Cable Length | Included as shown |

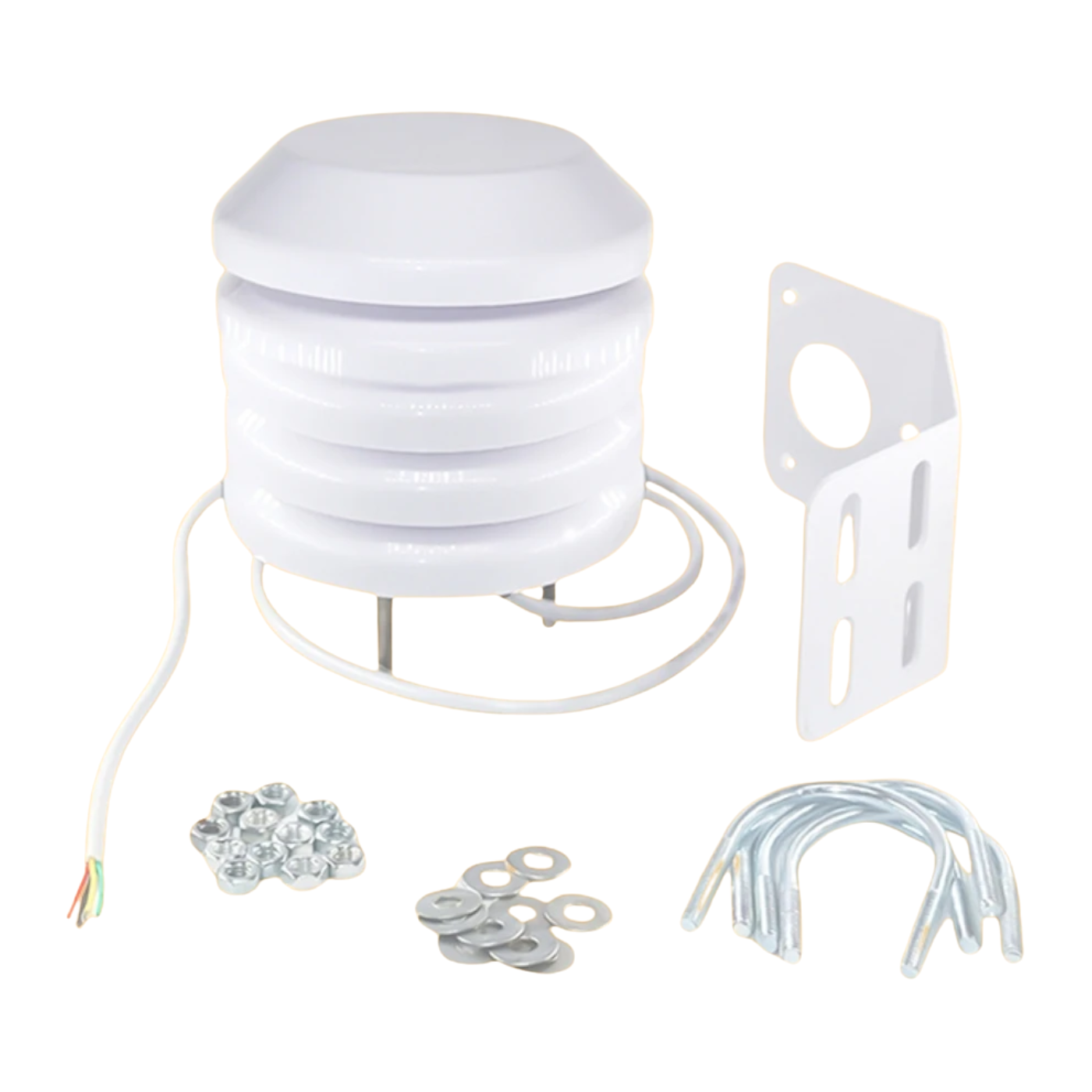

| Mount Type | Bracket + U-Bolt |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
