7Semi MLX90393 3-axis Micropower Magnetometer Breakout Module - Buy Online in India

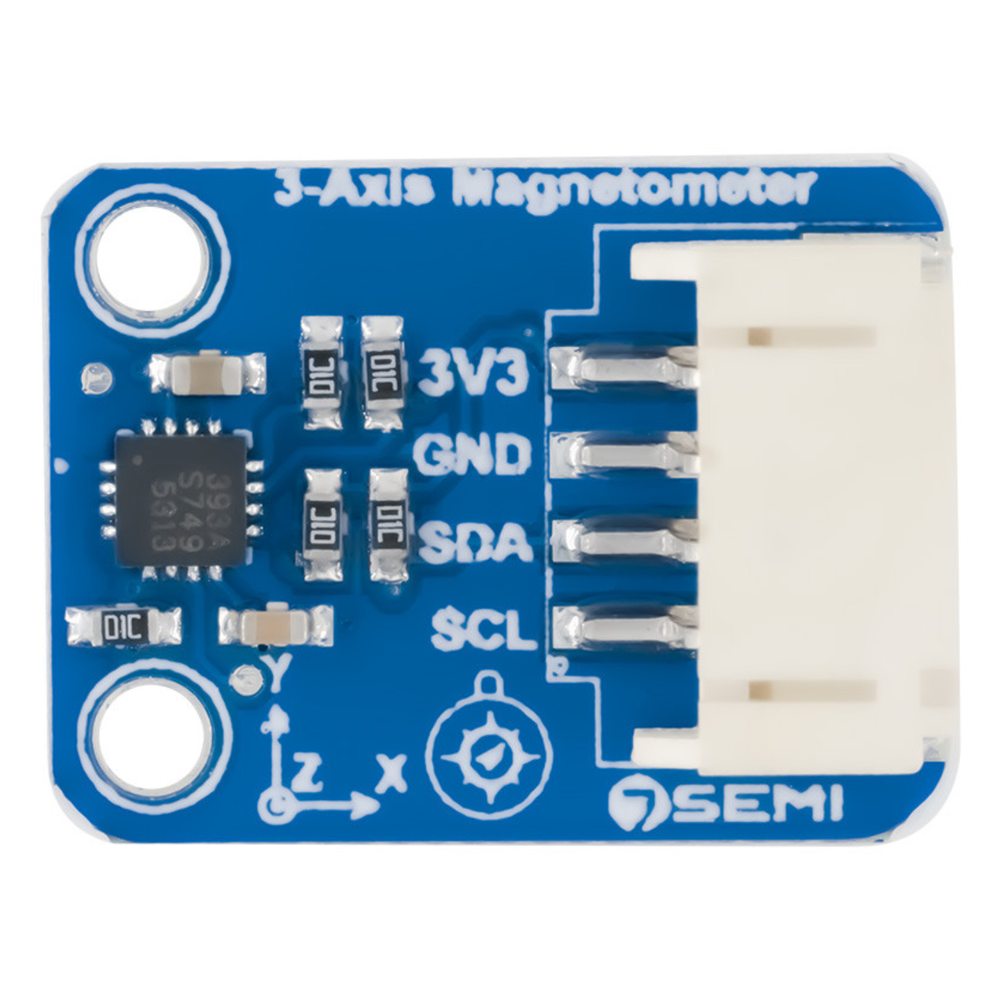

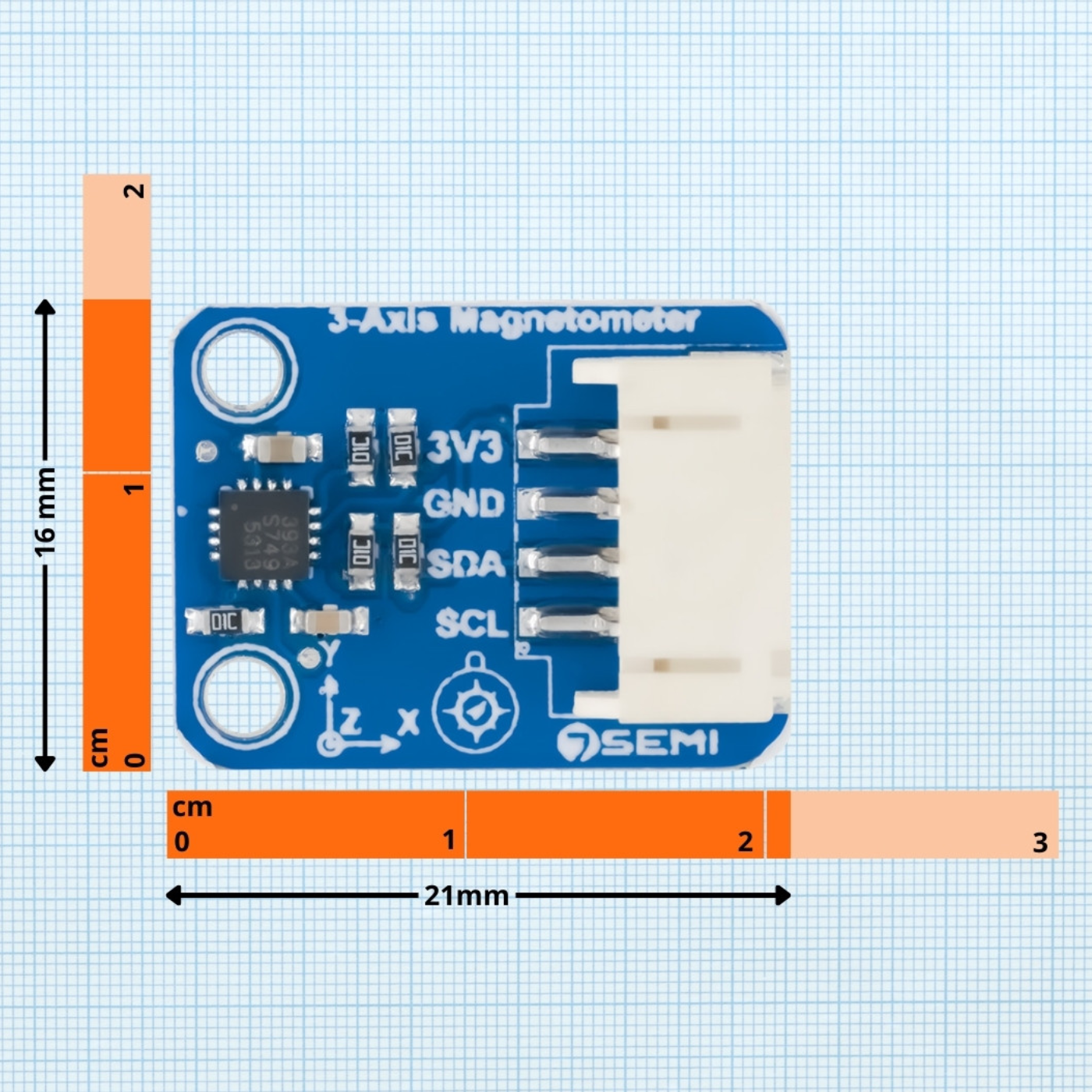

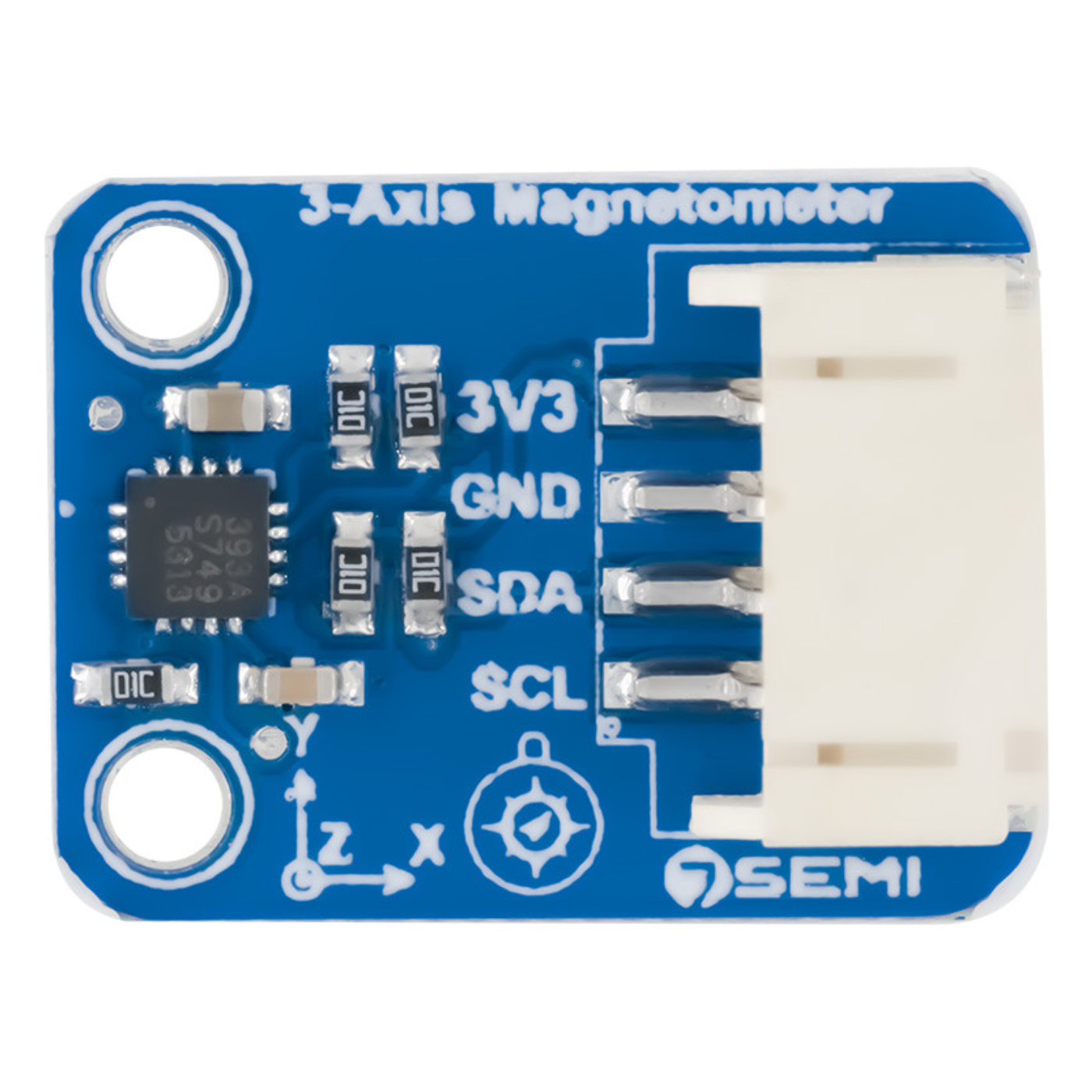

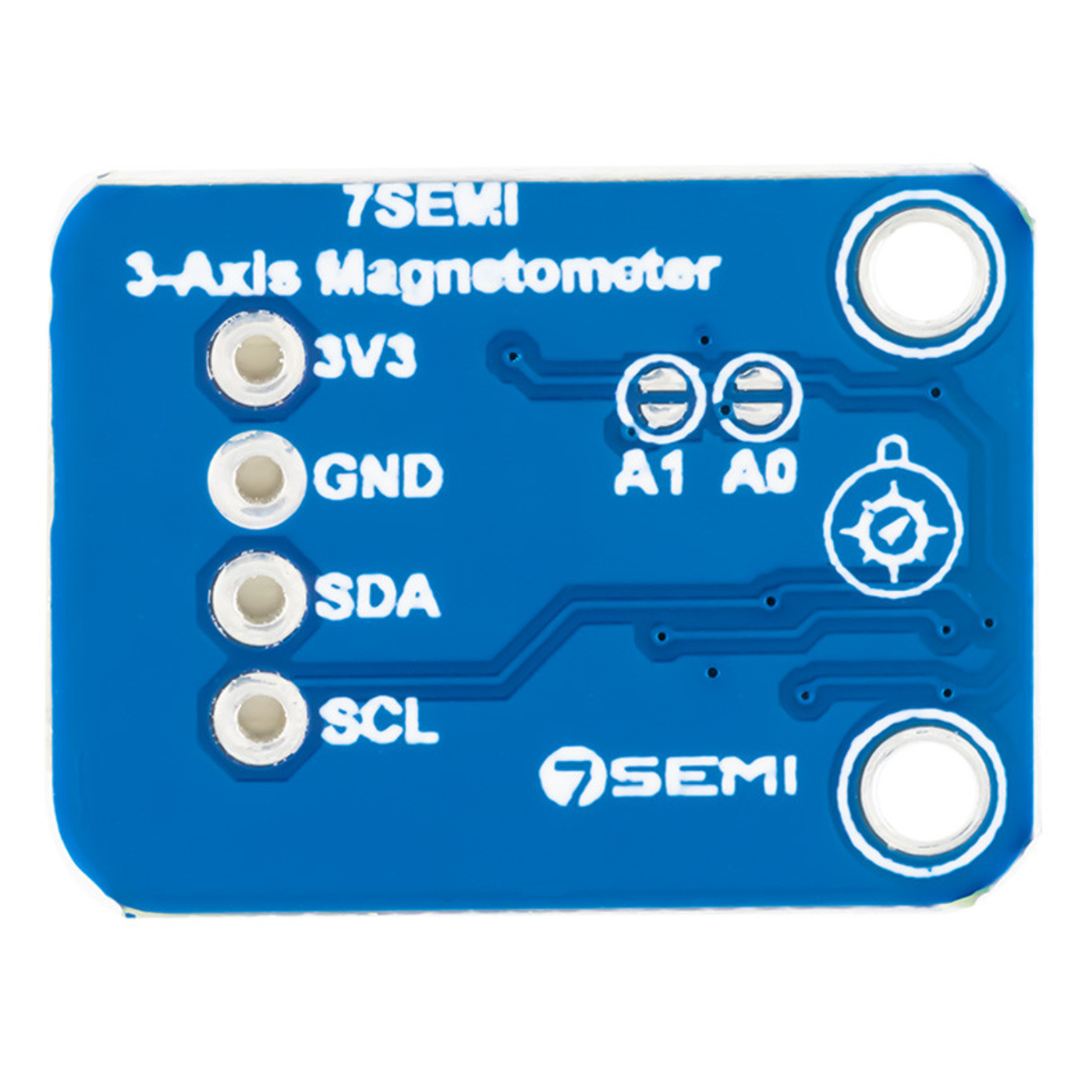

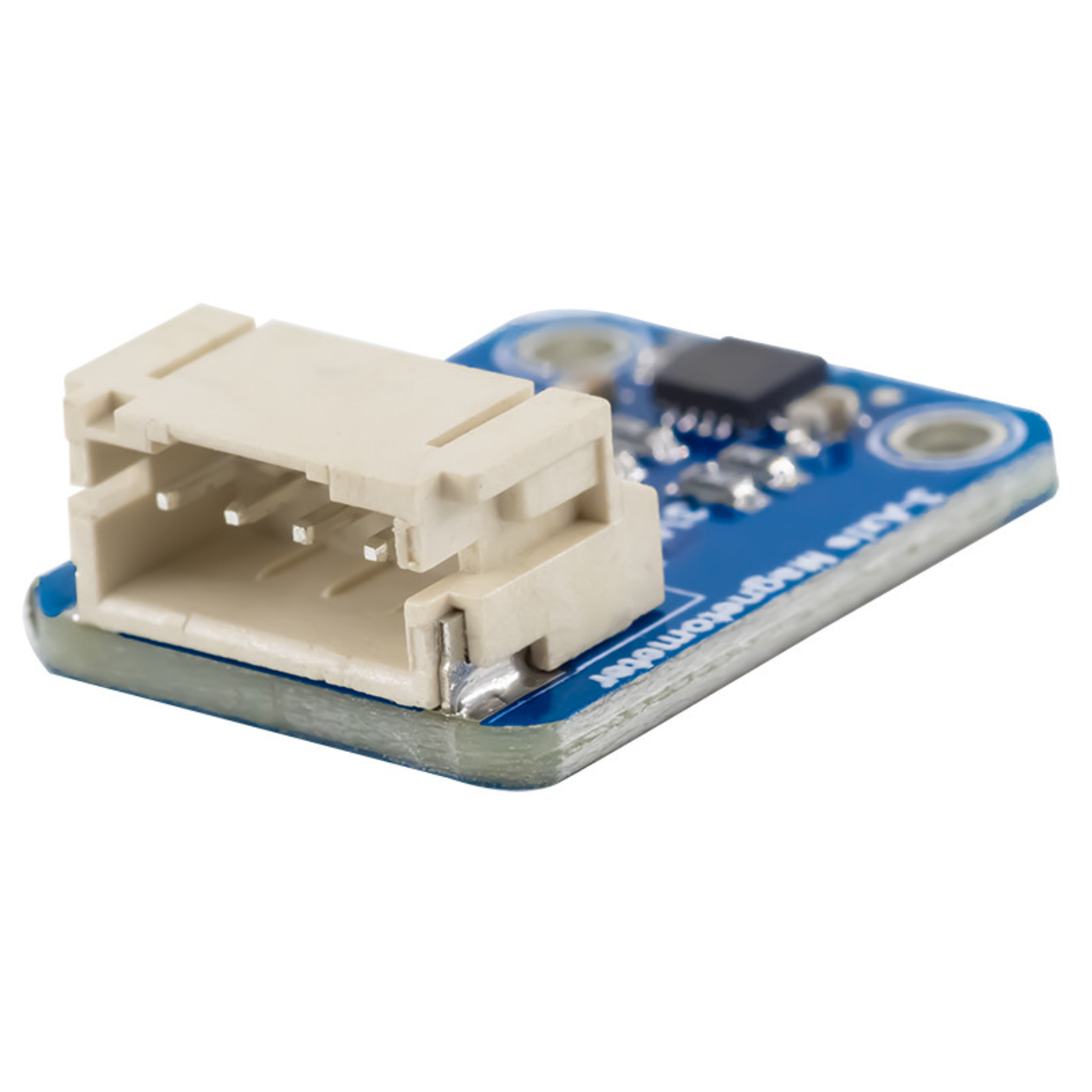

7Semi MLX90393 3-axis Micropower Magnetometer Breakout Module

The 7Semi MLX90393 3-axis Micropower Magnetometer Breakout Module is a compact and highly accurate magnetic field sensing solution designed for advanced sensing applications. Powered by the MLX90393 tri-axis magnetometer sensor, this module can precisely measure magnetic fields across the X, Y, and Z axes while maintaining extremely low power consumption, making it perfect for portable and battery-operated devices.

With support for both I2C and SPI communication, it offers easy integration with microcontrollers and development boards for IoT, robotics, motion tracking, digital compass, and position sensing applications. The module also features configurable resolution and adjustable sampling rates, allowing developers to optimize performance based on their project requirements.

Features:

• Advanced Magnetic Sensing: Detects magnetic fields in three axes (X, Y, and Z) and temperature (T), providing comprehensive sensing data for precise measurements.
• Designed for micropower applications, this device consumes under 100µA on average, making it excellent for battery-powered devices.
• Wide Duty Cycle: Configurable from 0.1% to 100%, allowing for a specific balance of power efficiency, speed, and signal accuracy.
• High-Resolution Measurements: With a maximum full-scale resolution of 44,000µT and a fine sensitivity of 0.161µT, this device is ideal for measuring minute magnetic changes.
• Versatile Connectivity: The 4-pin 2 mm pitch JST connections and 0.1" pins offer both soldering and breadboard setups for simple microcontroller integration.
• Reliable Operating Range: Operates successfully between -20°C and 85°C, making it suited for a variety of environments.
• I2C Communication Interface: Uses I2C with an address of 0xC0 for easy yet effective communication with most microcontroller components.
