7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales - Buy Online in India

7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales

Rs 588/-
- 31%
Rs 588/-
Rs 849/-
Save Rs 261/-
🪙
RC REWARDS Earn 5 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 9 left in stock

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFSS0516
  • 18-bit high-resolution ADC for precise analog signal measurement
  • Designed for weighing scales and weight measurement applications
  • Features differential analog inputs for accurate signal acquisition
  • Built-in 2.048V voltage reference for stable measurements
  • Programmable gain amplifier with 1x, 2x, 4x, and 8x gain
  • Supports I²C communication for easy microcontroller interfacing
  • Selectable data rates of 3.75, 15, 60, or 240 SPS
  • Suitable for precision weighing, sensor interfacing, and measurement systems

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales
Rs 849/- Rs 588/-
7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales -Electronic Modules -Breakout Boards -Robocraze
7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales -Electronic Modules -Breakout Boards -Robocraze

7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales

Rs 849/- Rs 588/-
Description

7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales

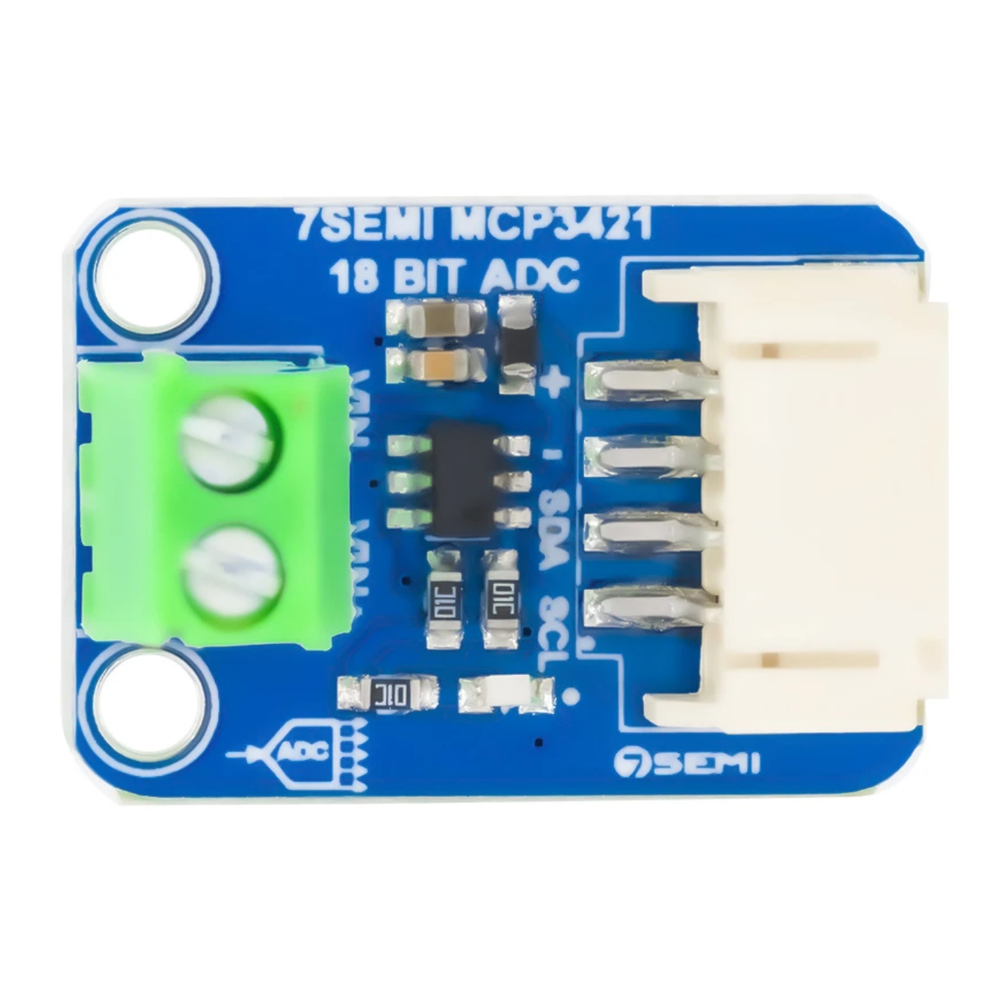

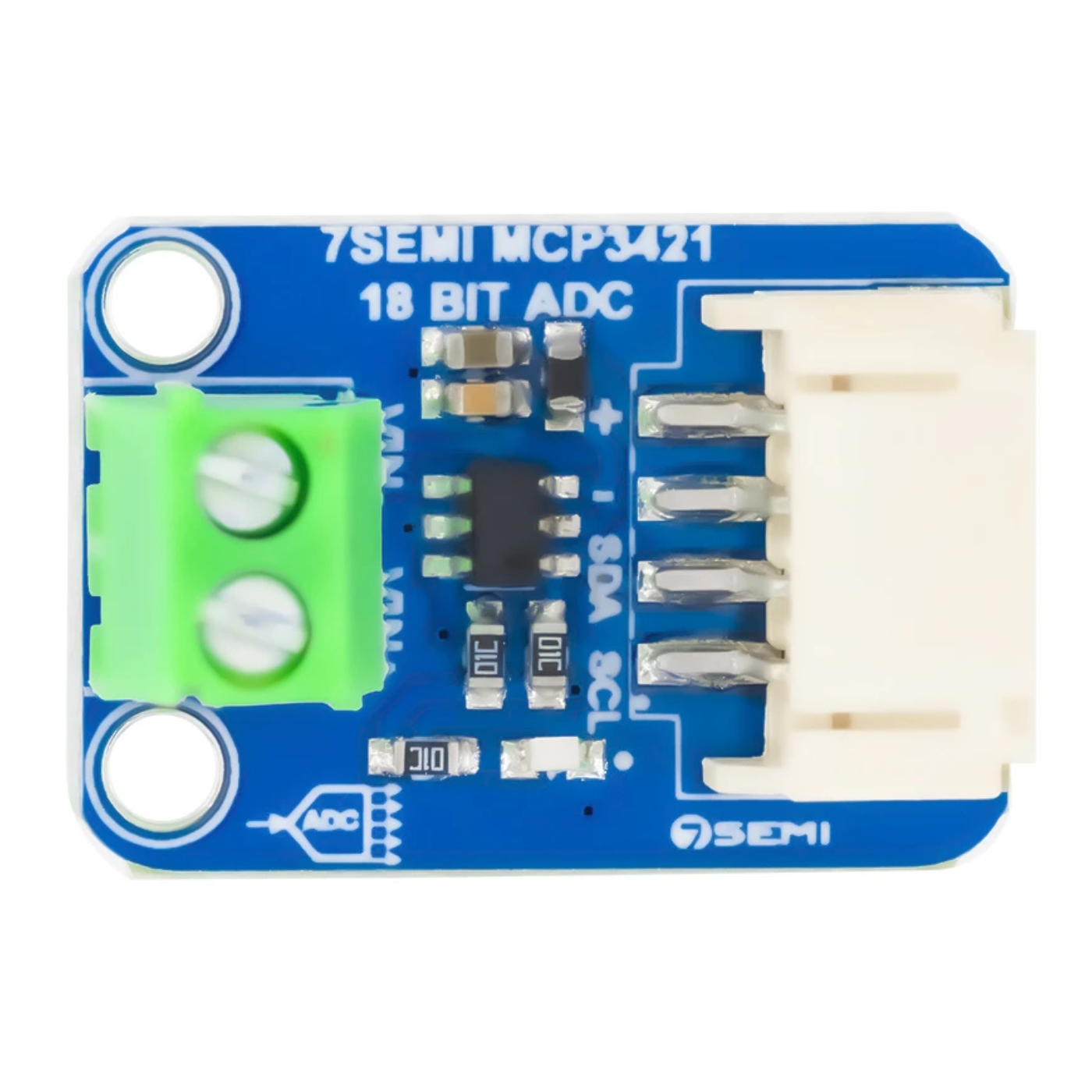

The 7Semi MCP3421 18-Bit Analog-to-Digital Converter (ADC) is a high-precision solution for applications that require accurate analog signal measurement, especially weighing scales and weight measurement systems. With 18-bit resolution and differential inputs, it can capture small changes in sensor signals with good accuracy.

The built-in 2.048V voltage reference provides a stable reference for consistent measurements, while the programmable gain amplifier offers selectable gains of 1, 2, 4, or 8 to suit different input signal levels. The ADC communicates through the I²C interface, making it convenient to connect with microcontrollers and development boards.

With programmable sampling rates from 3.75 to 240 samples per second, the MCP3421 is well suited for digital weighing scales, precision sensor interfaces, load cell measurement, and other high-accuracy data acquisition applications.

Features:

  • Even in the most demanding conditions, 18-bit resolution assures precise reading.

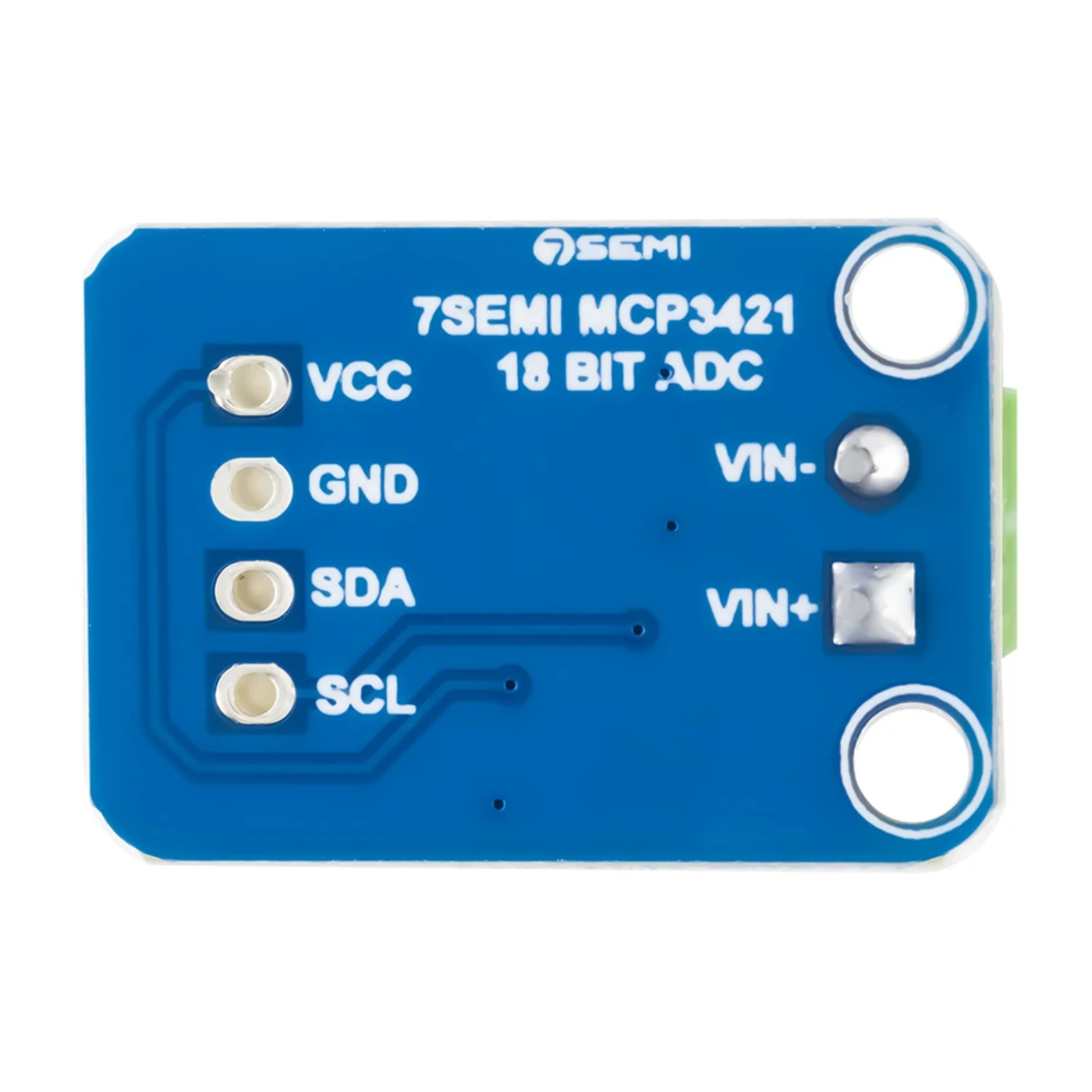

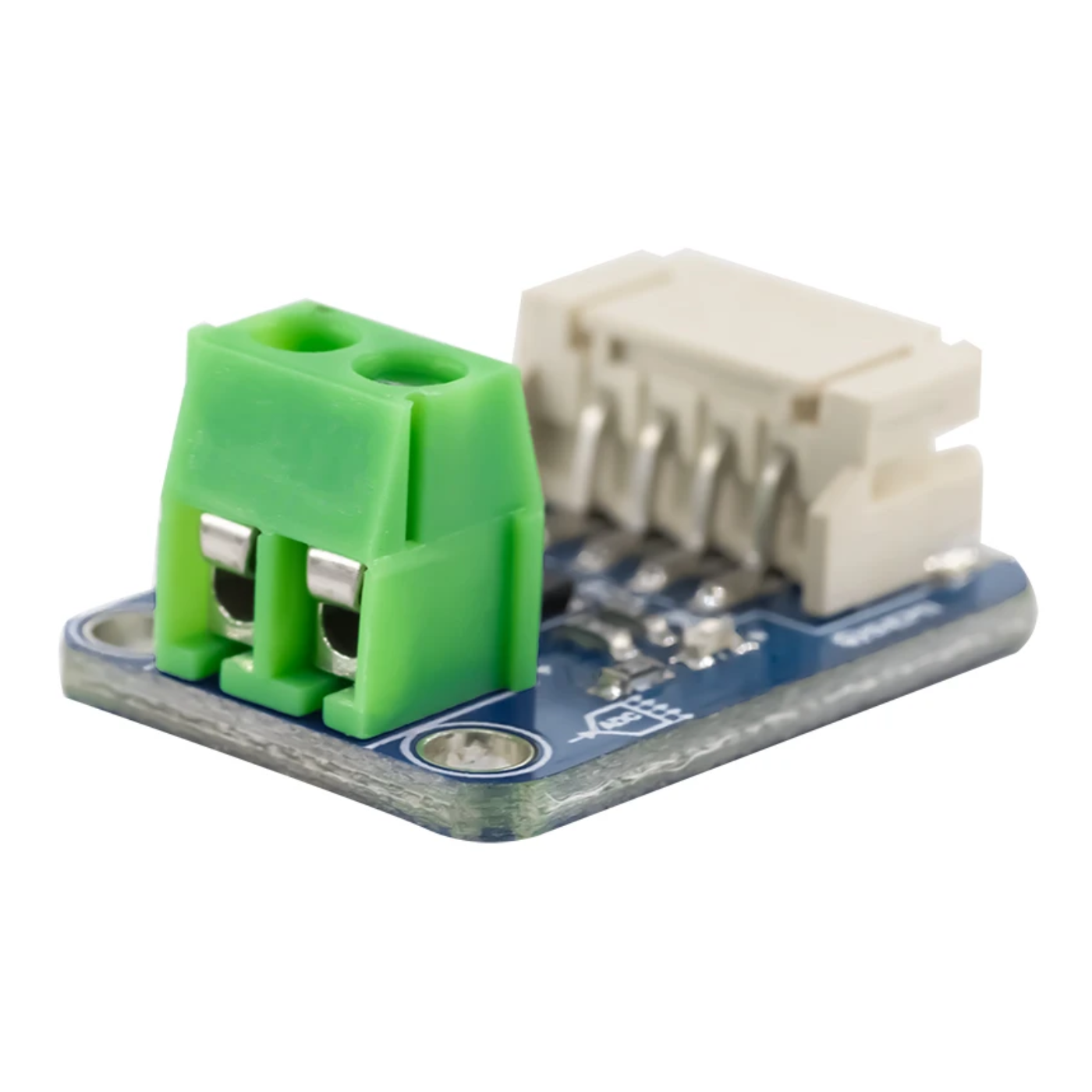

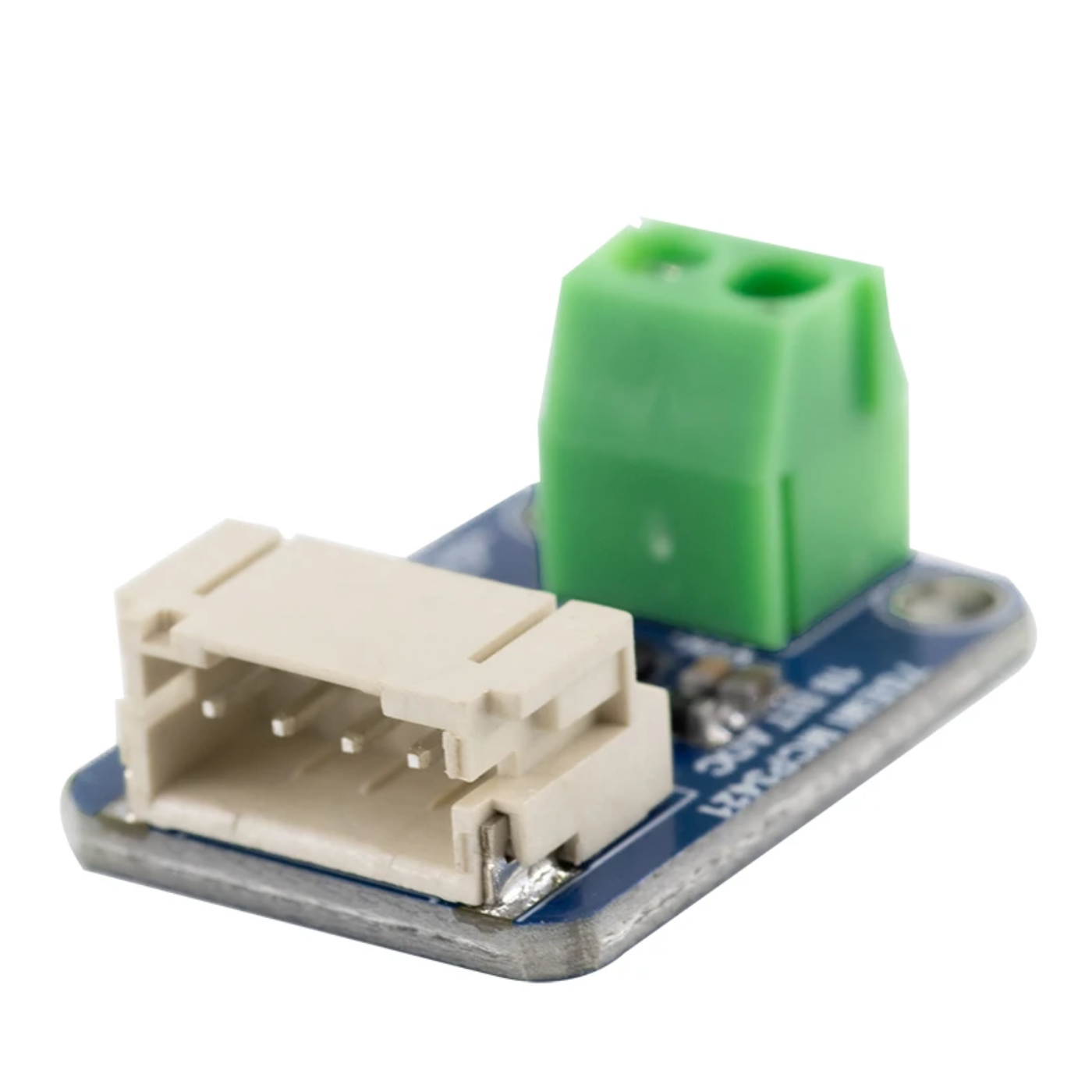

  • 4 pin 2.0 mm pitch connector for easy integration.
  • Ideal for use as a weigh scale, fuel gage, temperature sensor, and other applications.
  • Supports differential inputs, which enable positive or negative measurements between two signals.
  • Seamless connection with a clock rate of up to 3.4MHz ensures smooth data transfer.
  • Built-in accuracy and low-drift reference voltage, as well as adjustable gain, allow for more flexible operation.
  • While maintaining high precision, the MCP3421 allows you to modify the conversion speed to meet your individual requirements.
Specifications

Package Includes:

  • 1 x 7Semi MCP3421 18-Bit Analog-to-Digital Converter for Weighing Scales

Specifications:

Specification Details
Chip Used MCP3421
Category ADC
Supply Voltage (VDD) 3.3V to 5V
Operating Temperature -40°C to 80°C
Communication I²C
Resolution 18-Bit
Sampling Rate 40 KSPS
Topology Delta-Sigma (ΔΣ) + PGA

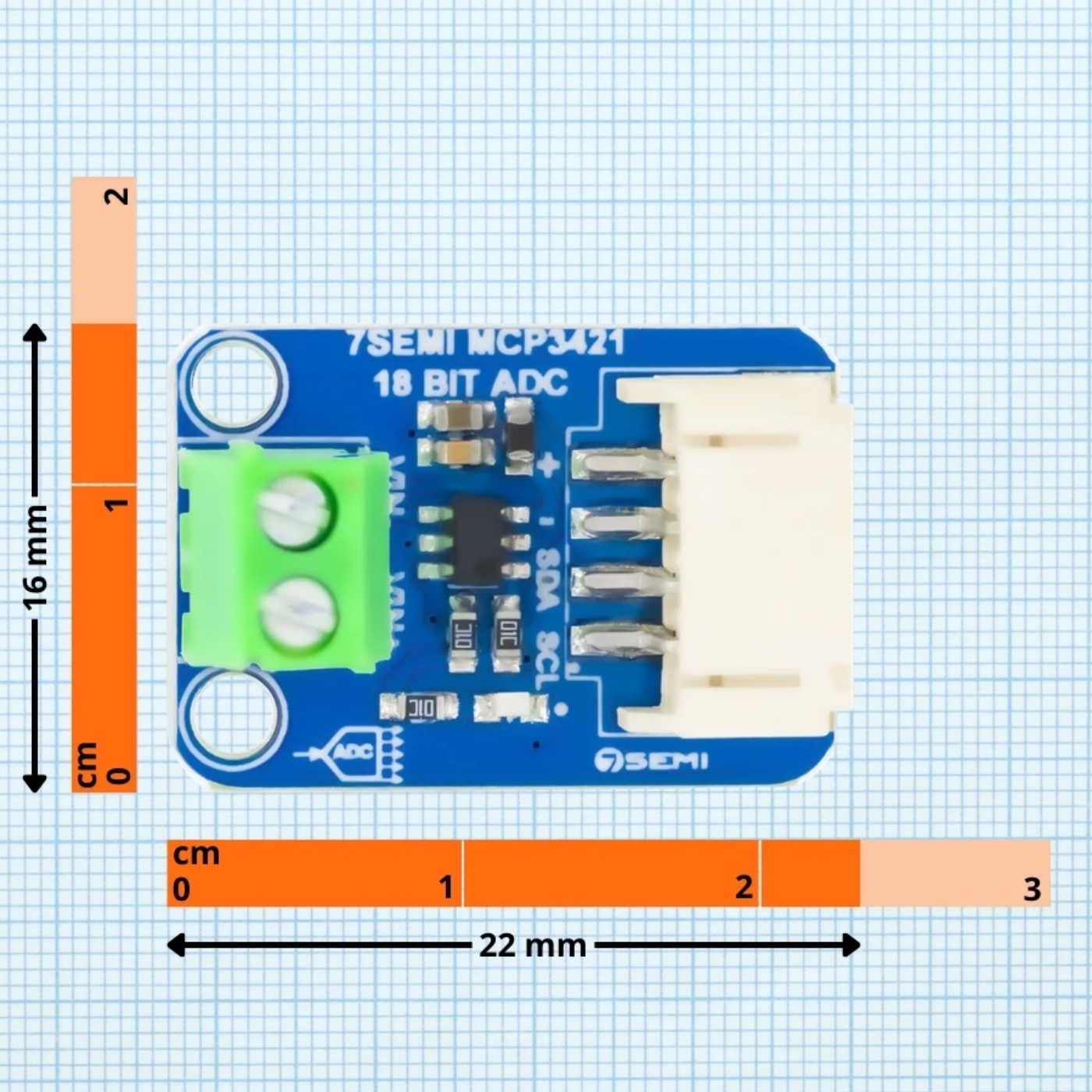

Dimensions L = 23 mm × W = 16 mm × 12.26 mm
