Name: 7Semi LDO 5V to 3.3V 1A Low Dropout Regulator Breakout Board
Brand: Robocraze
SKU: TIFSS0446
Price: 67 INR
Availability: InStock

7Semi LDO 5V to 3.3V 1A Low Dropout Regulator Breakout Board

Rs 67/-

- 32%

Rs 67/-

~~Rs 99/-~~

Save Rs 32/-

Incl. GST (No Hidden Charges)

Please hurry! Only 5 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery

SKU: TIFSS0446

Converts 5V to 3.3V output with a reliable 1A current capacity
Built using Diodes Incorporated AP7361C-33Y5-13 LDO voltage regulator IC
Ultra-low dropout voltage of 360mV ensures efficient power conversion
High PSRR of 75dB @ 1kHz for stable and noise-free output
Low quiescent current of just 60µA for energy-efficient designs
Features ENABLE pin for controlled power switching
Integrated current limiting and short circuit protection for safety
Ideal low dropout regulator breakout board for IoT, Arduino, and embedded systems
Perfect 5V to 3.3V LDO module for sensors, microcontrollers, and communication modules

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

7Semi LDO 5V to 3.3V 1A Low Dropout Regulator Breakout Board

~~Rs 99/-~~ Rs 67/-

Quantity:

7Semi LDO 5V to 3.3V 1A Low Dropout Regulator Breakout Board

~~Rs 99/-~~ Rs 67/-

Description
Specifications
Additional Resources
Warranty
Shipping & Return

Description

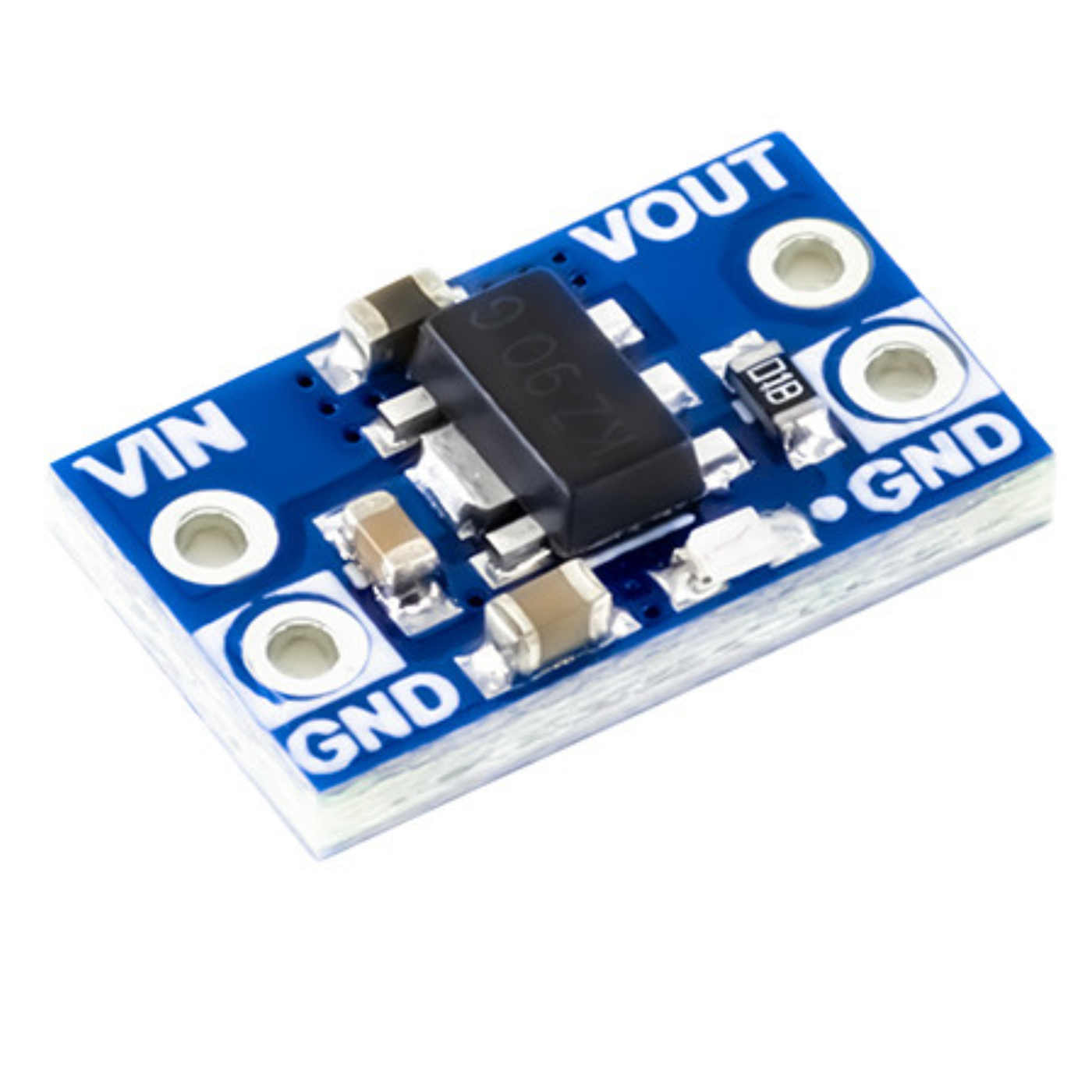

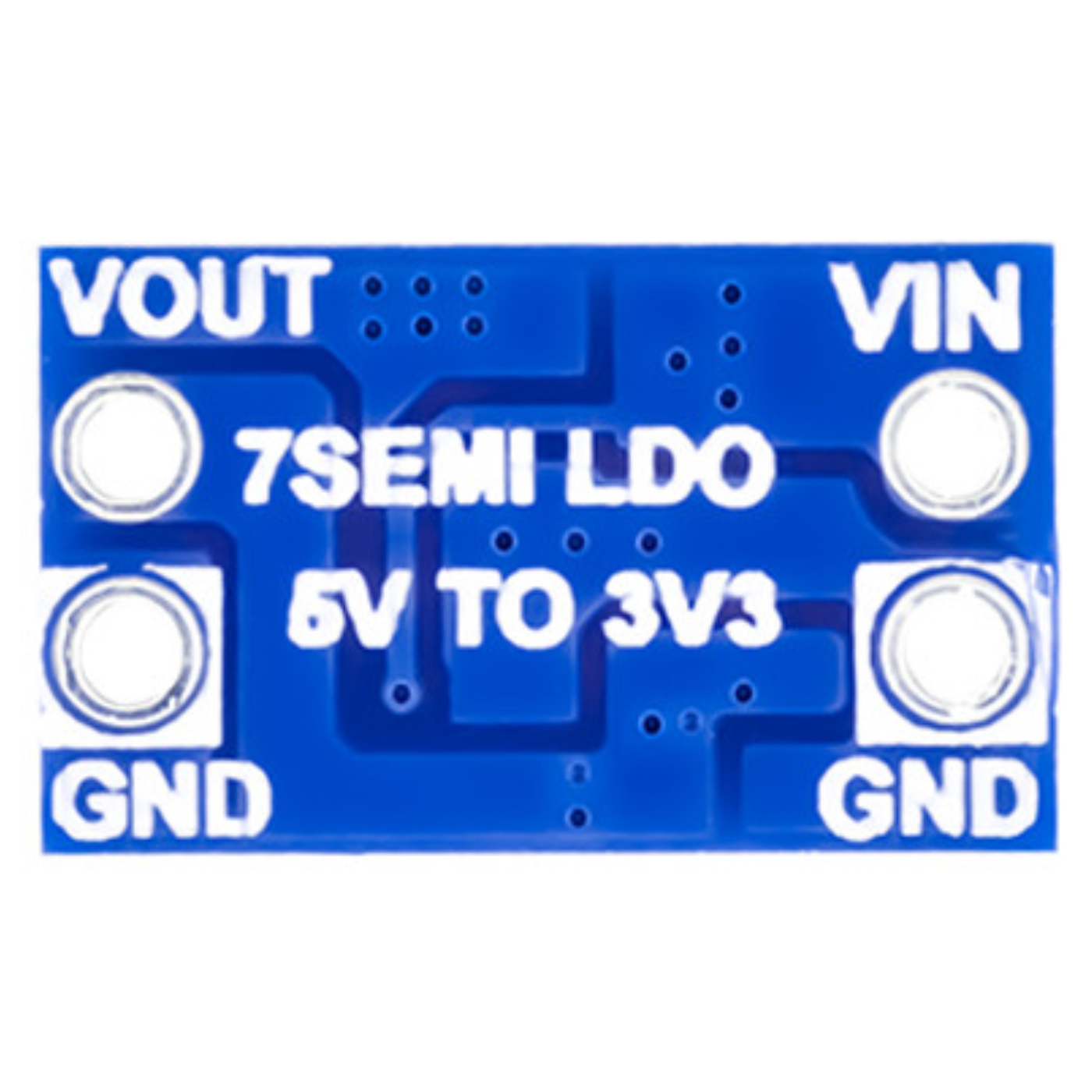

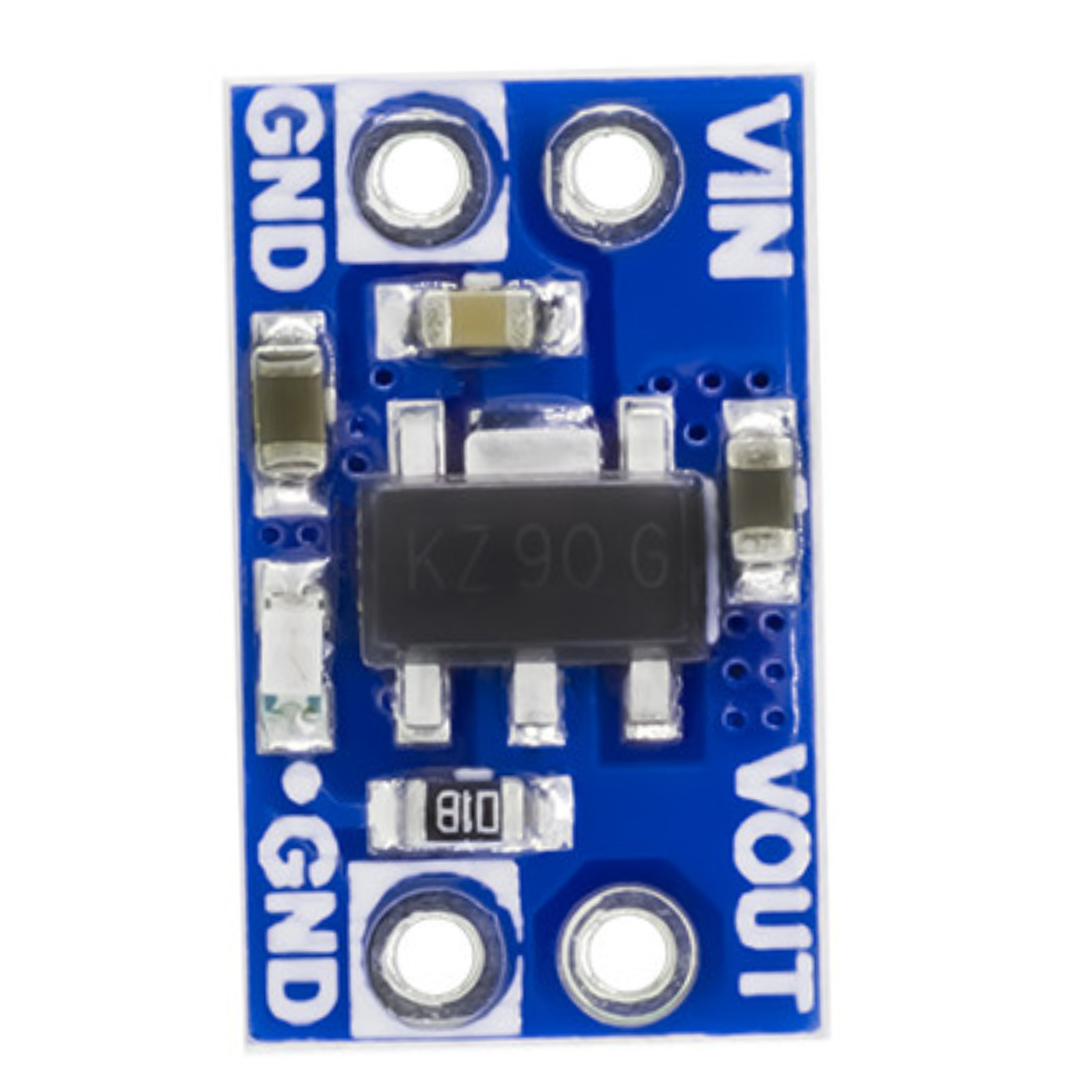

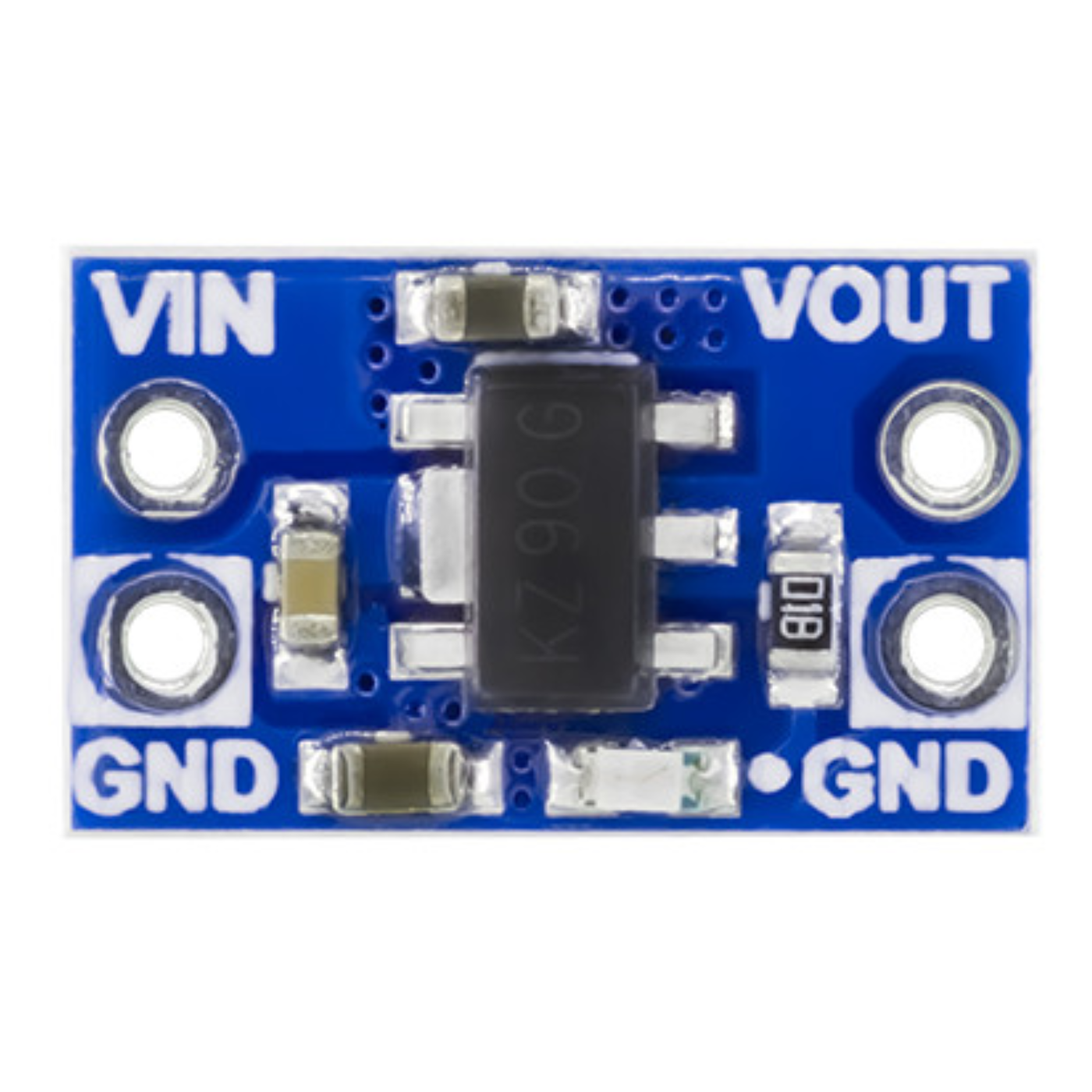

7Semi LDO 5V to 3.3V 1A Low Dropout Regulator Breakout Board

The 7Semi LDO 5V to 3.3V 1A Low Dropout Regulator Breakout Board is a compact and efficient LDO voltage regulator module designed to deliver a stable 3.3V output from a 5V input source with up to 1A current. Powered by the high-performance AP7361C-33Y5-13 regulator IC, this low dropout regulator breakout board features an ultra-low dropout voltage of just 360mV, ensuring efficient operation even under full load conditions.

With a high power supply rejection ratio (PSRR) of 75dB at 1kHz, it effectively filters noise, making it ideal for sensitive electronics. The module also boasts a low quiescent current of 60µA, enhancing energy efficiency in battery-powered applications.

Equipped with an ENABLE pin for controlled operation and built-in protections like current limiting and short circuit safety, this 5V to 3.3V LDO regulator board is perfect for powering microcontrollers, sensors, and communication modules in Arduino, Raspberry Pi, and IoT projects.

Features:

Wide Input Voltage Range: It can handle input voltages ranging from 2.2V to 6.0V, making it suitable for a variety of power sources.
Output Voltage Accuracy: Ensures exact output with an accuracy of ±1%.
Very low dropout voltage: The 360mV dropout voltage at 1A ensures efficient operation.
Low Quiescent Current: It consumes only 60 µA, making it suitable for battery-powered applications.
High Power Supply Rejection Ratio: Provides 75dB at 1kHz, guaranteeing minimum noise interference.
Current Limiting and Short Circuit Protection: There is a 1.5A current limit with fold-back and 400mA short circuit protection, ensuring strong safety features.

Specifications

Package Includes:

1 x 7Semi LDO 5V to 3.3V 1A Low Dropout Regulator Breakout Board

Specifications:

Parameter	Value
Input Voltage	5V
Output Voltage	3.3V
Current Rating	1A

Additional Resources

AP7361C Datasheet
