ESP32 38-Pin WiFi + Bluetooth NodeMCU Development Board
7Semi L89 USB Multi-GNSS Receiver for GPS, IRNSS, GLONASS
7Semi L89 USB Multi-GNSS Receiver for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS
- Rs 1,175/-
- Rs 1,175/-
-
Rs 1,789/-
- 34%
Save Rs 614/-
RC REWARDS
Earn
11
RC Coins
on this order
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFDC0076
Couldn't load pickup availability
7Semi L89 USB Multi-GNSS Receiver for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS
7Semi L89 USB Multi-GNSS Receiver for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS
7Semi L89 USB Multi-GNSS Receiver for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS

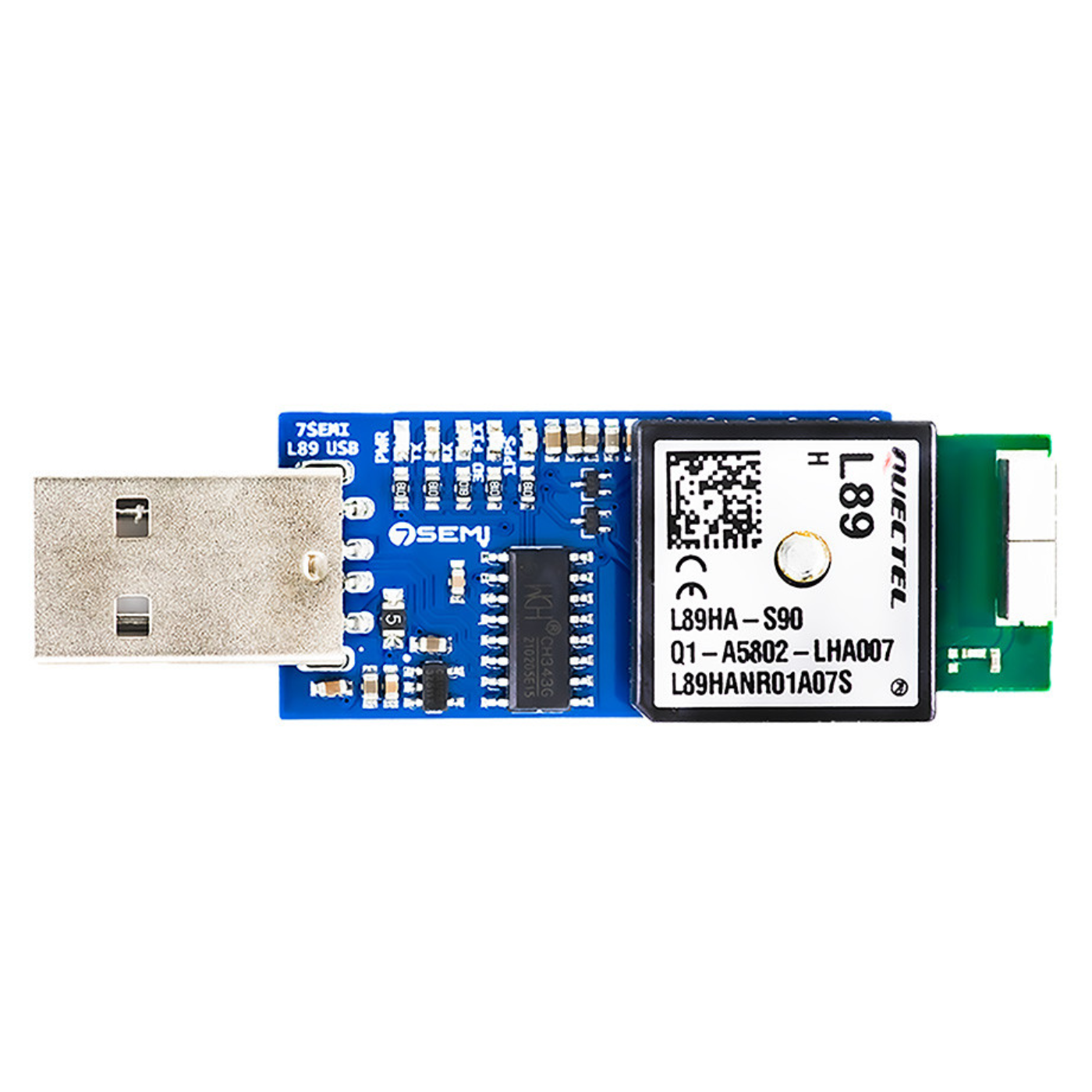

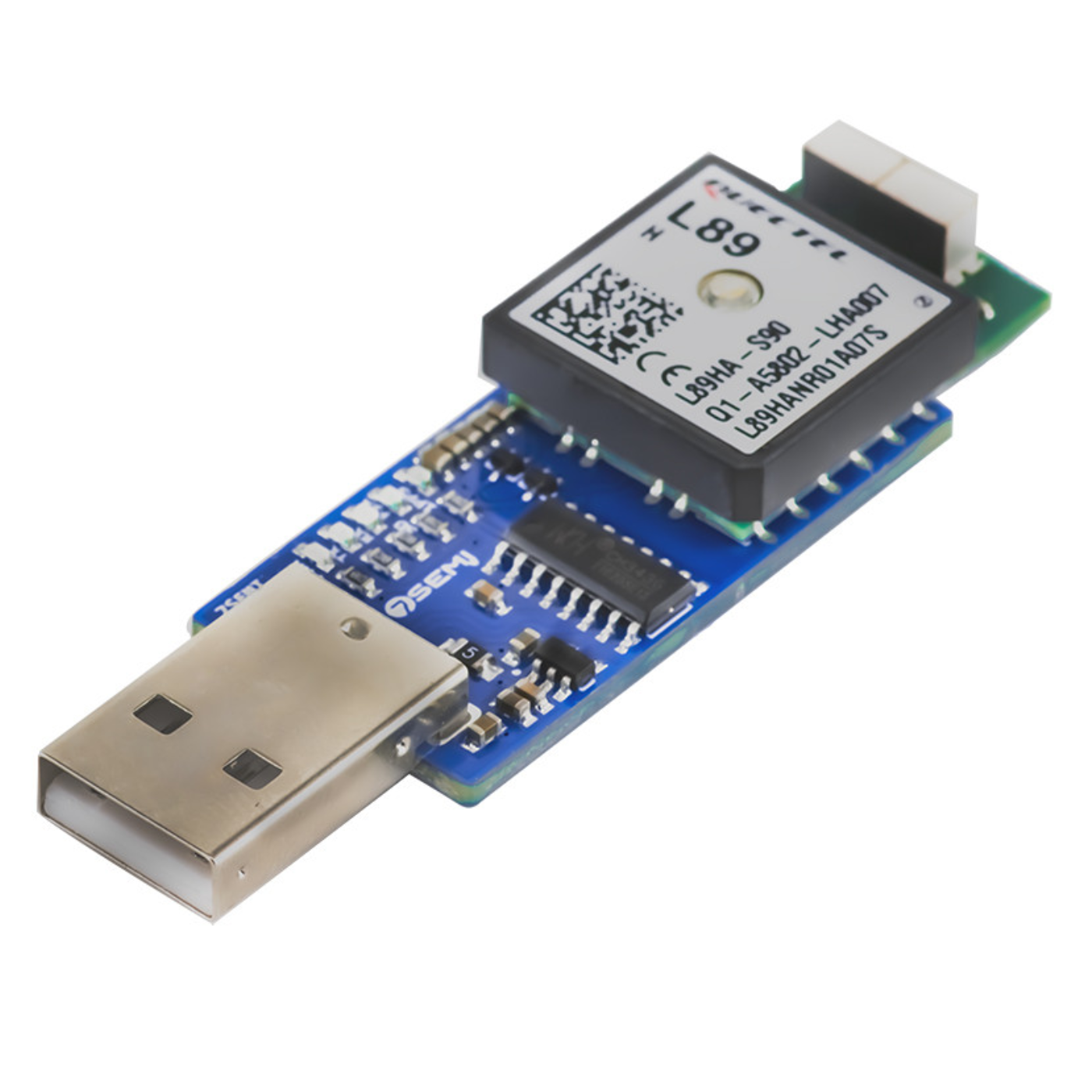

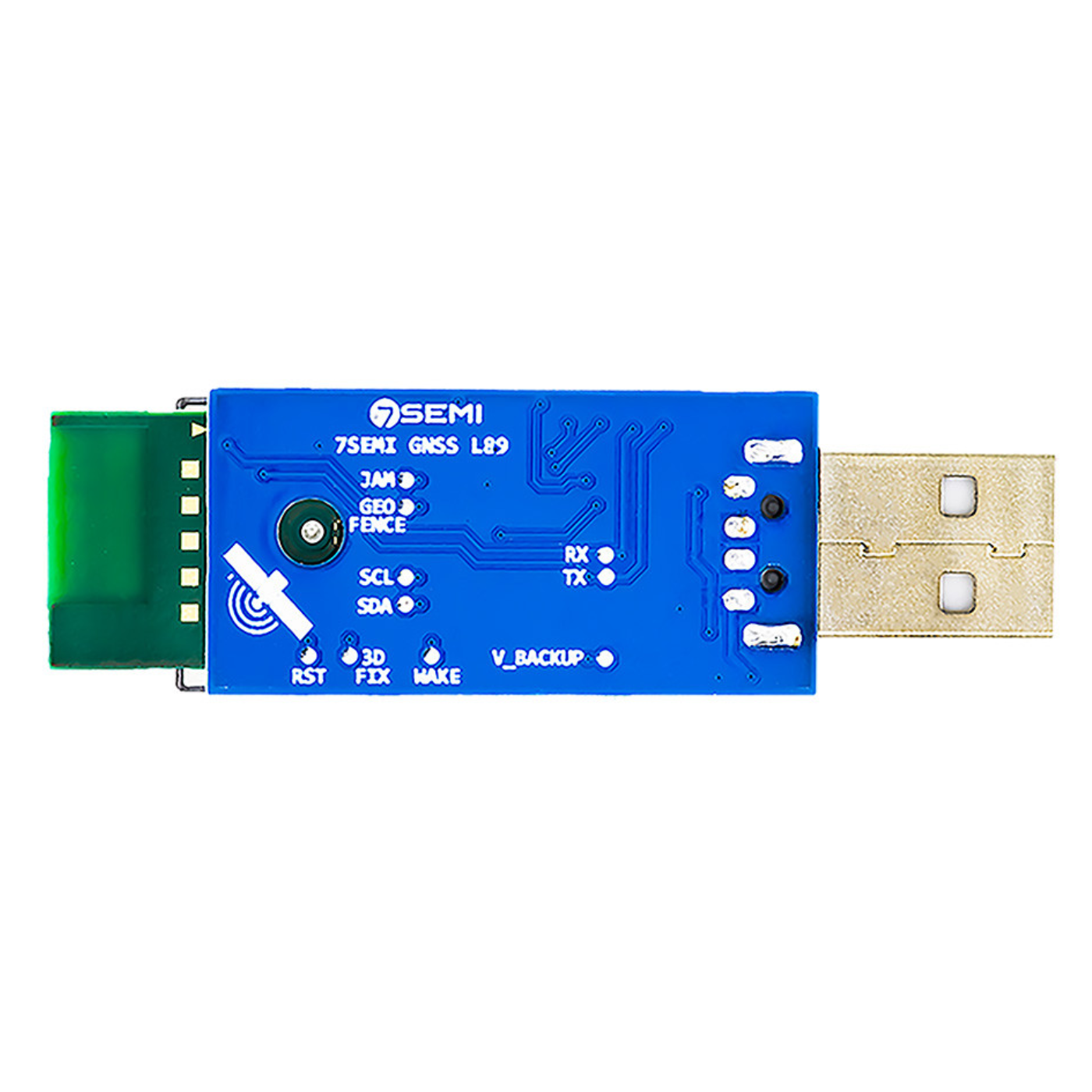

The 7Semi L89 USB Multi-GNSS Receiver is a compact and high-performance USB GNSS receiver designed for precise and reliable positioning across a wide range of applications. Supporting multiple satellite systems including GPS, NavIC (IRNSS), GLONASS, Galileo, BeiDou, and QZSS, this multi-GNSS receiver ensures enhanced global coverage and consistent signal availability.
With dual-frequency operation on L1 and L5 bands, it significantly improves accuracy and reduces errors caused by interference or urban obstructions. The device features a built-in antenna with signal amplification, enabling strong and stable signal reception even in challenging environments.
Its plug-and-play USB interface makes it easy to integrate with PCs, embedded systems, and development boards, making it an excellent choice for navigation systems, real-time tracking, automotive solutions, and industrial IoT applications.
Features:
- Multi-GNSS support: Compatible with NavIC, GPS, Galileo, GLONASS, BeiDou, and QZSS.
- Dual Band Operation: Uses the L1 and L5 bands to improve signal accuracy and dependability.
- High Accuracy Positioning: Enables quick and exact location tracking.
- Built-in antennae: Includes two antennae for improved signal reception.
- Excellent Signal Performance: Performs effectively even in urban and tough areas.
- USB Plug-and-Play: Simple to use and requires no complex setup.
- Versatile: Ideal for navigation, tracking, automotive, and industrial applications.
Package Includes:
- 1 x 7Semi L89 USB Multi-GNSS Receiver for GPS, IRNSS, GLONASS, BeiDou, Galileo and QZSS
Specifications:
| Parameter | Specification |
|---|---|
| GNSS Bands | GPS L1 (1575.42 MHz), Galileo E1, IRNSS L5 (1176.45 MHz), GLONASS L1, BeiDou B1 |
| Multi-GNSS Support | GPS, Galileo, GLONASS, BeiDou, IRNSS (NavIC), QZSS |
| Position Accuracy (CEP) | < 1.8 m |
| Velocity Accuracy | < 0.1 m/s |
| Acceleration Accuracy | < 0.1 m/s² |
| Timing Accuracy | 1PPS, 3.9 ns RMS |
| Sensitivity | Acquisition: –147 dBm, Tracking: –163 dBm |
| Operating Temperature | –40 °C to +85 °C |

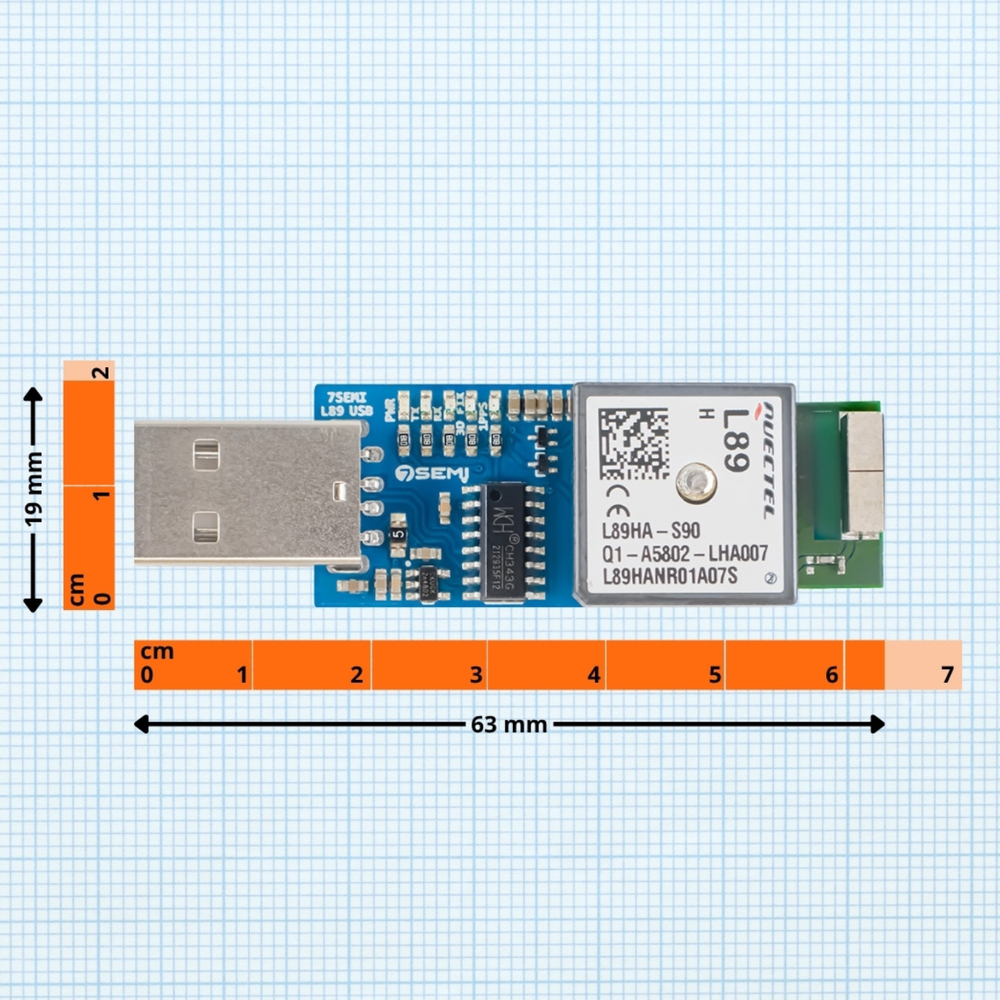

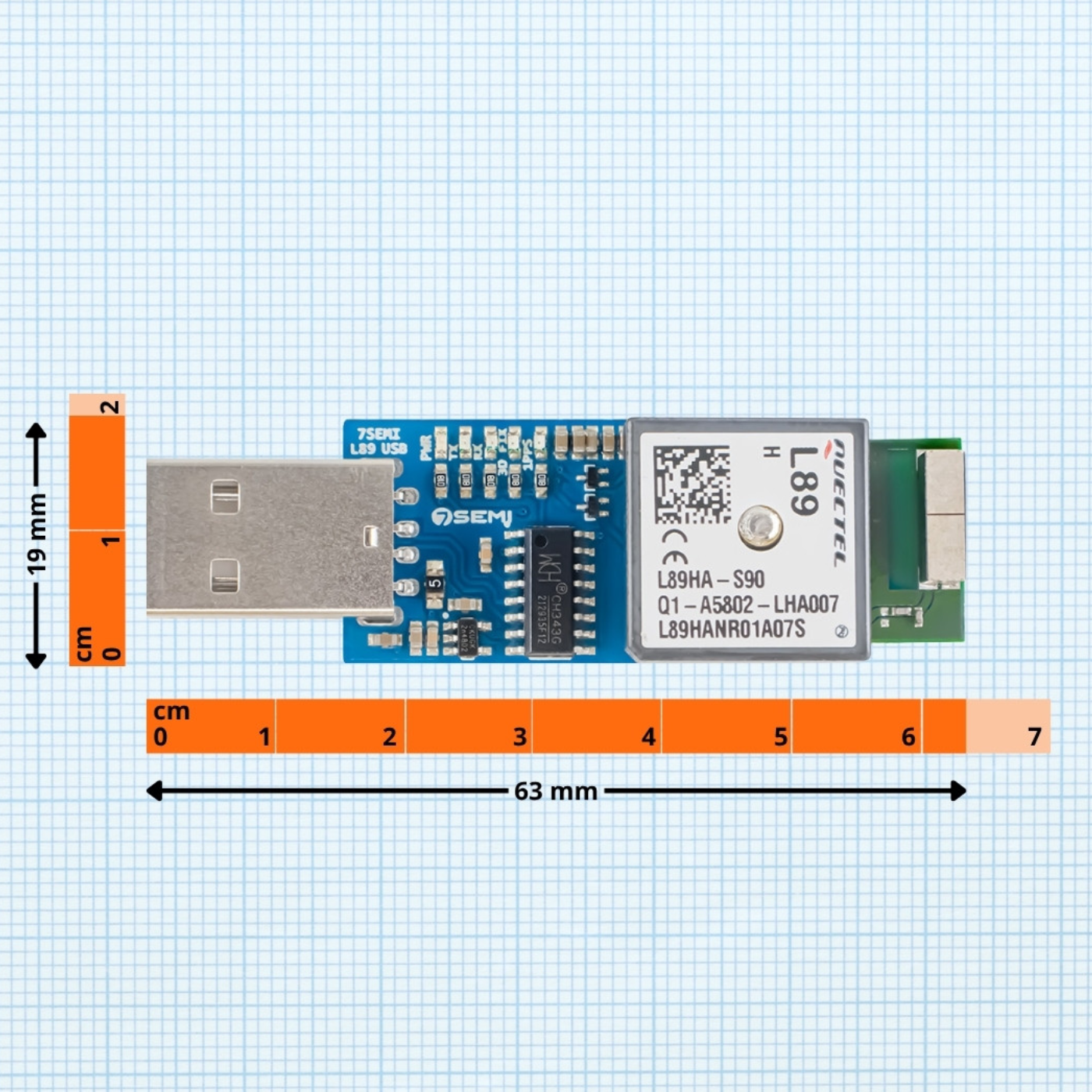

| Module Dimensions | L = 63 mm × W = 19 mm × H = 8.46 mm |
Warranty Coverage:
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
Warranty Void If:
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
