7Semi Dual-Channel Digital Signal Isolator Breakout Module
Let us know!
We'll try to match the price for you
Couldn't load pickup availability

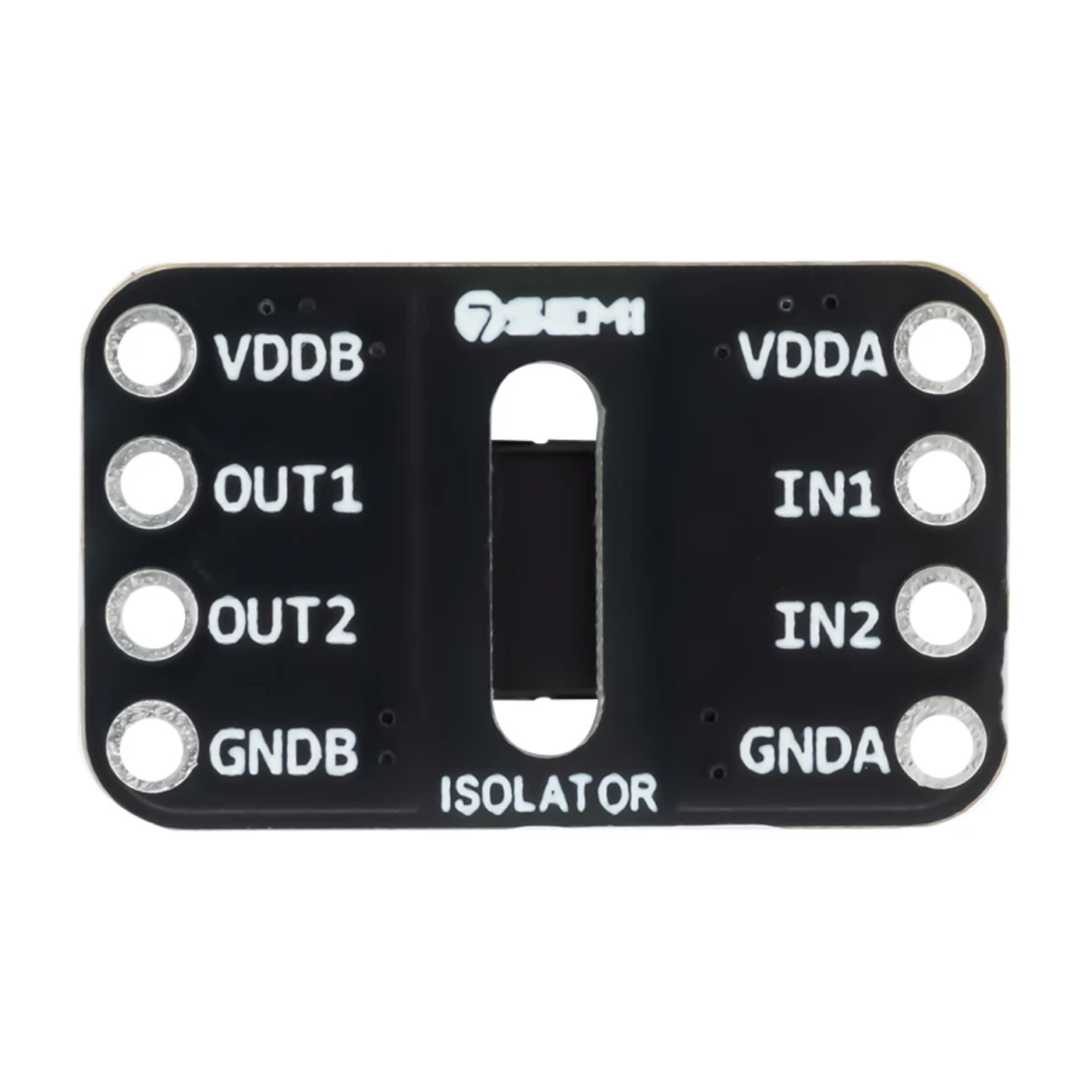

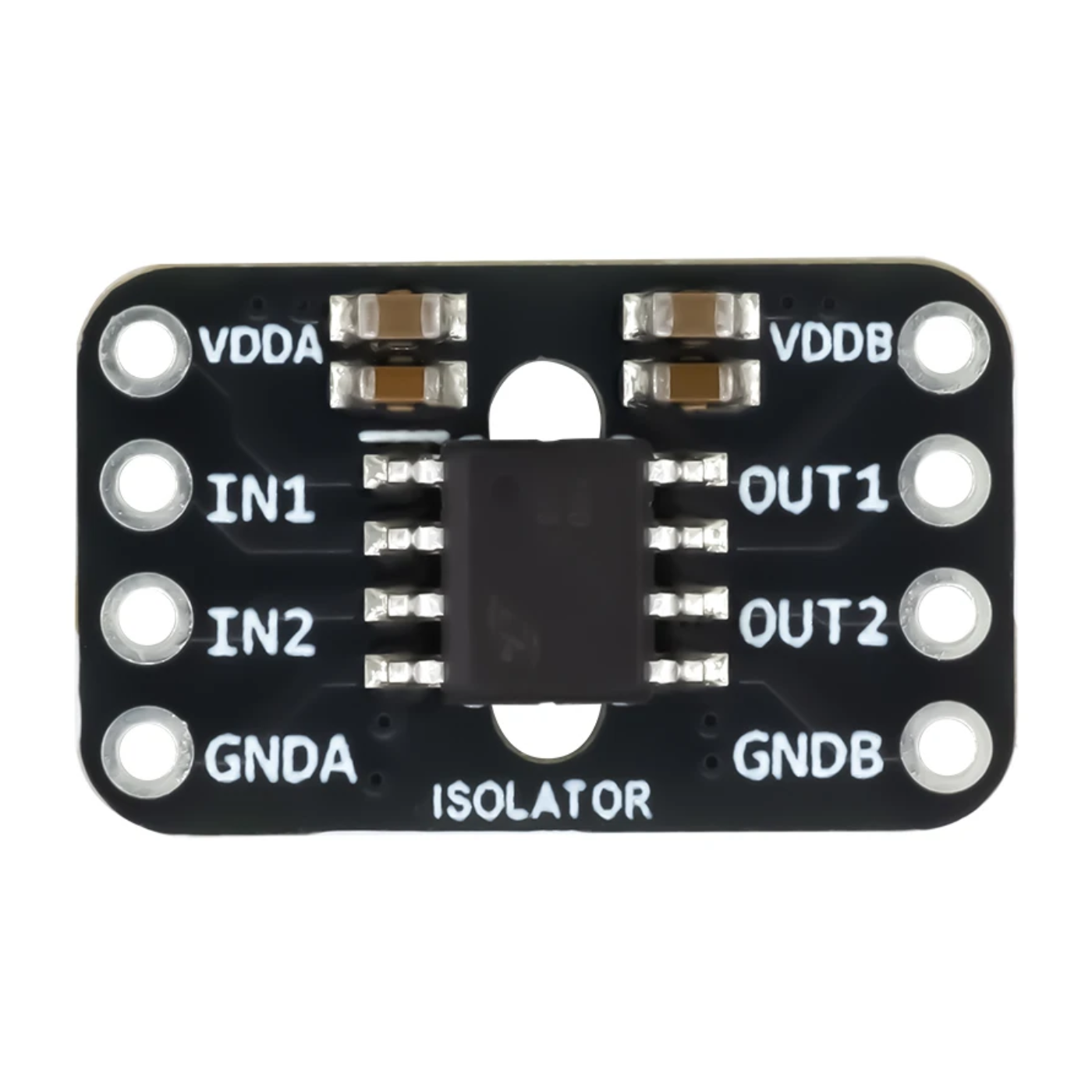

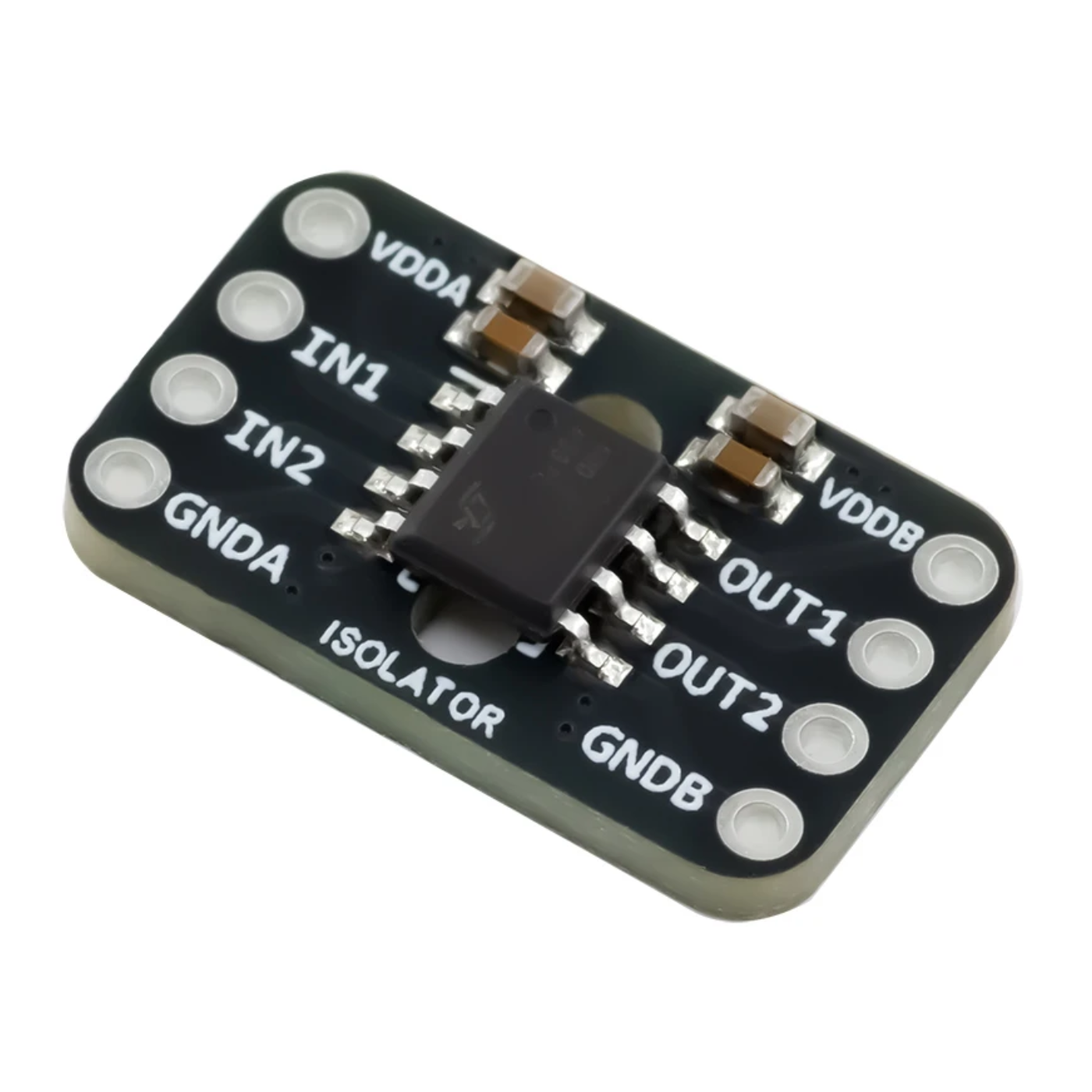

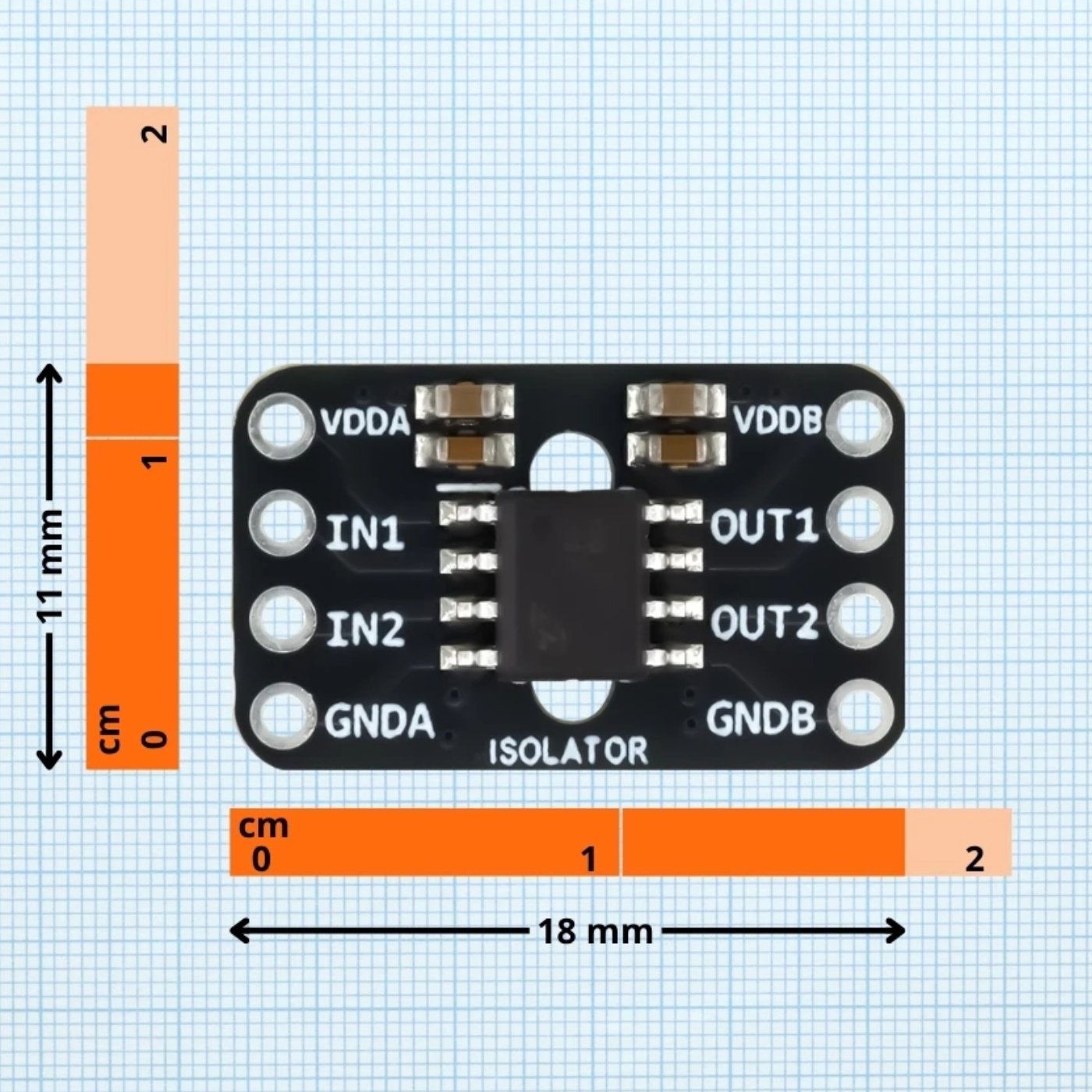

The 7Semi Dual-Channel Digital Signal Isolator Breakout Module is a compact and practical solution for safely transferring digital signals between two electrically isolated circuits. Built around the CA-IS3720CHS digital isolator IC, this module provides stable signal communication while helping protect sensitive controllers from electrical noise, voltage spikes, and ground loop issues.
Its dual-channel design makes it suitable for applications such as industrial automation, motor control, embedded systems, microcontroller projects, and high-noise electronic environments where reliable signal isolation is important. The straightforward pin layout makes the module easy to connect and integrate into existing circuits, making it suitable for both professional applications and DIY electronics or hobby projects.
| Specification | Details |
|---|---|
| Data Rate | DC to 40 Mbps |
| Supply Voltage | 3V to 5V |
| Operating Temperature | –40°C to 70°C |
| Number of Channels | Dual Channel |
| Isolation Rating | 5 kVRMS |
| Current Consumption | 5.2 mA per channel at 40 Mbps with VDDX = 5.0V |
| Propagation Delay | 22 ns typical |
| Skew | 3 ns propagation delay skew (chip-to-chip) |
| Pulse Width Distortion | 1 ns |
| Minimum Pulse Width | 20 ns |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
