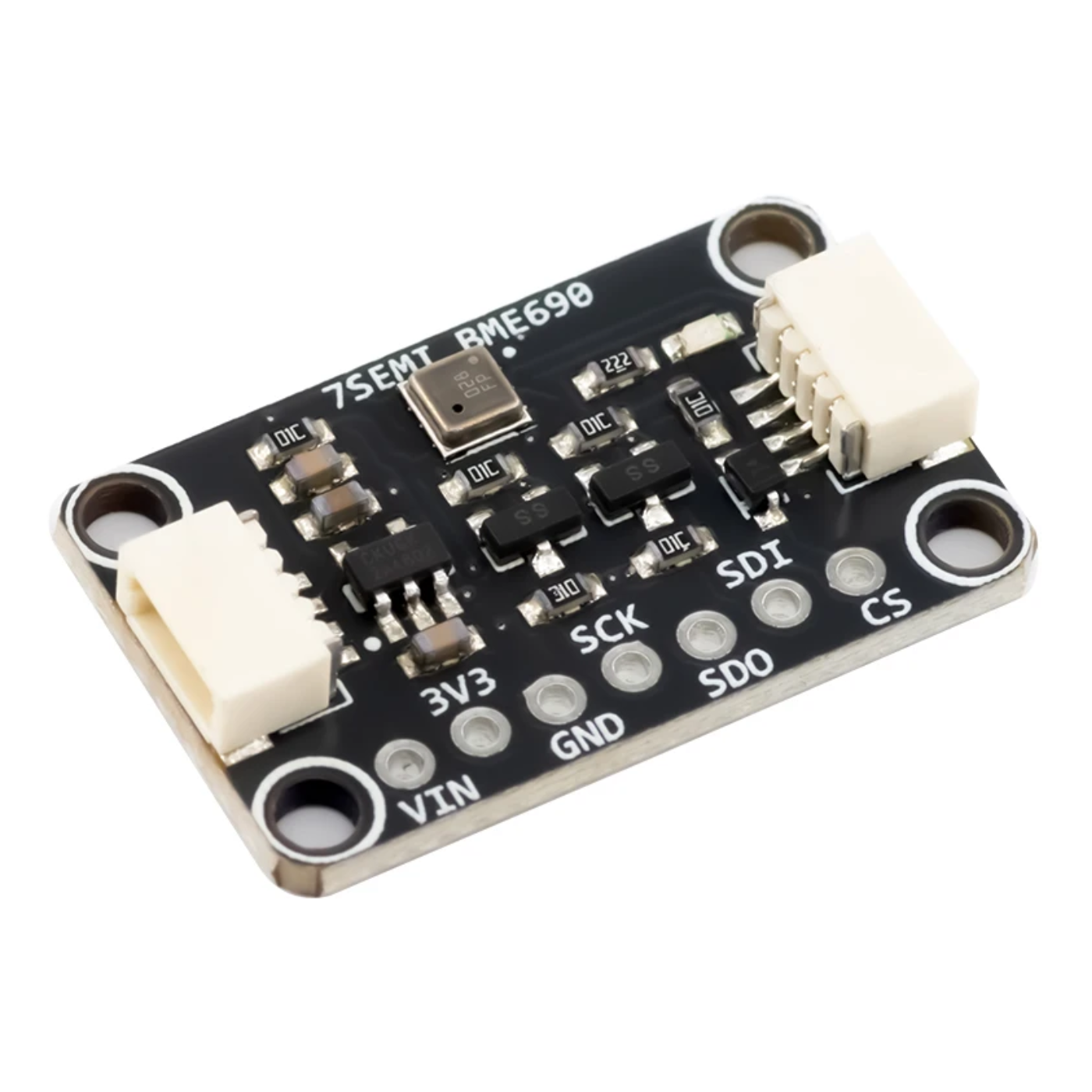

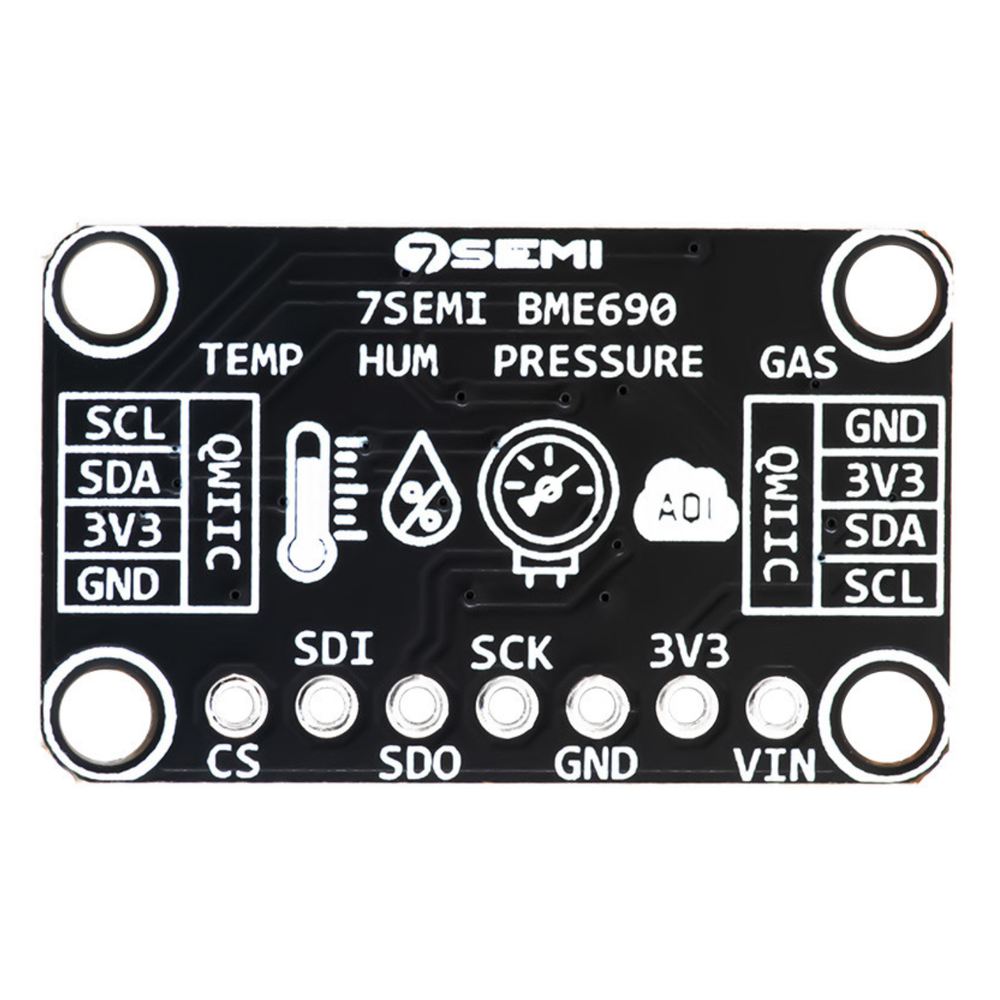

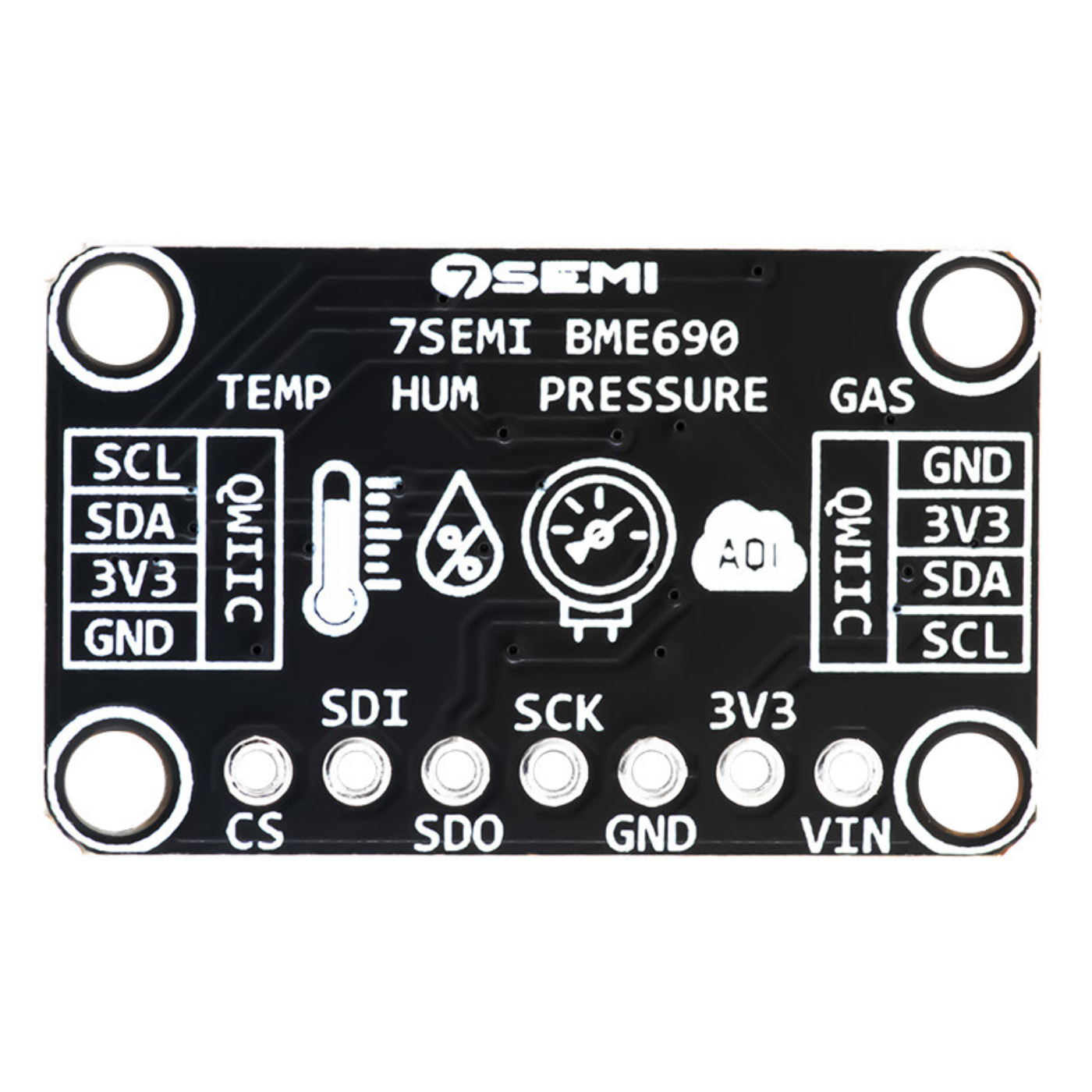

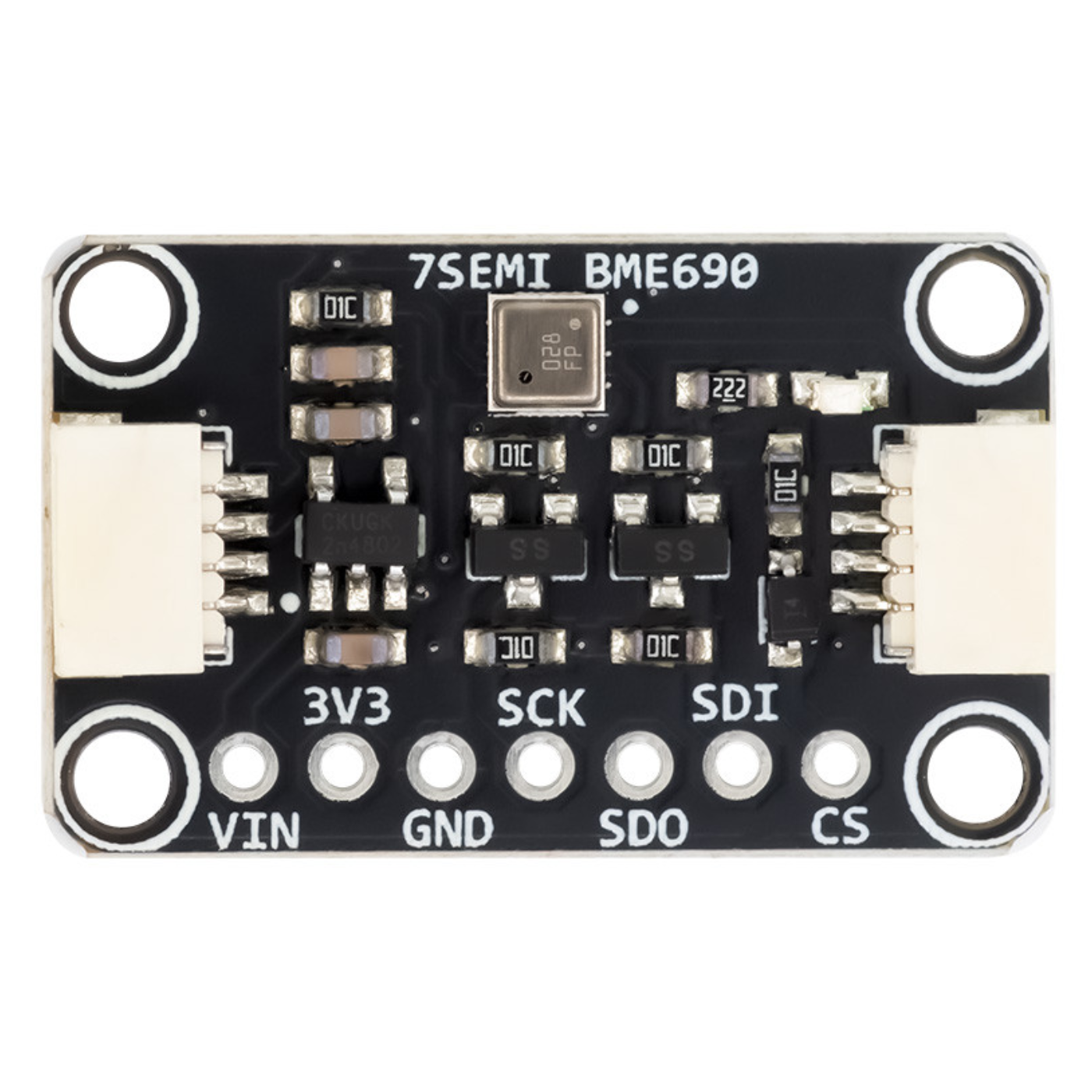

7Semi BME690 Digital Sensor Module - Temp, Humidity, Pressure, Gas
Let us know!
We'll try to match the price for you
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The 7Semi BME690 Digital Sensor Module – Temperature, Humidity, Pressure, and Gas Sensor is a powerful all-in-one environmental sensing solution designed for accurate and efficient air quality monitoring. It precisely measures temperature, humidity, atmospheric pressure, and gas levels (VOC/VSC), providing real-time insights essential for IoT, smart home, and industrial applications.
With built-in support for both I²C and SPI communication interfaces, this sensor module ensures seamless integration with popular development boards like Arduino, ESP32, and STM32. Its compact design, low power consumption, and multi-parameter sensing capability make it an ideal choice for developers looking to build reliable, space-saving, and high-performance environmental monitoring systems.
| Supply Voltage | 3.3V – 5V |
| Interfaces | I²C, SPI (3/4 wire) |
| Temperature Accuracy | ±0.5 °C (0 to 65 °C) |
| Humidity Accuracy | ±3% RH (20% to 80%) |
| Pressure Accuracy | ±0.5 hPa (300 to 1100 hPa) |
| Gas Resistance Output | Yes (IAQ, bVOC, CO₂-equivalents) |
| Sleep Current | 0.11 µA |
| Ultra-Low Power Gas Sensing | 0.05 mA (average current) |
| Operating Temperature | -40 °C to +85 °C |

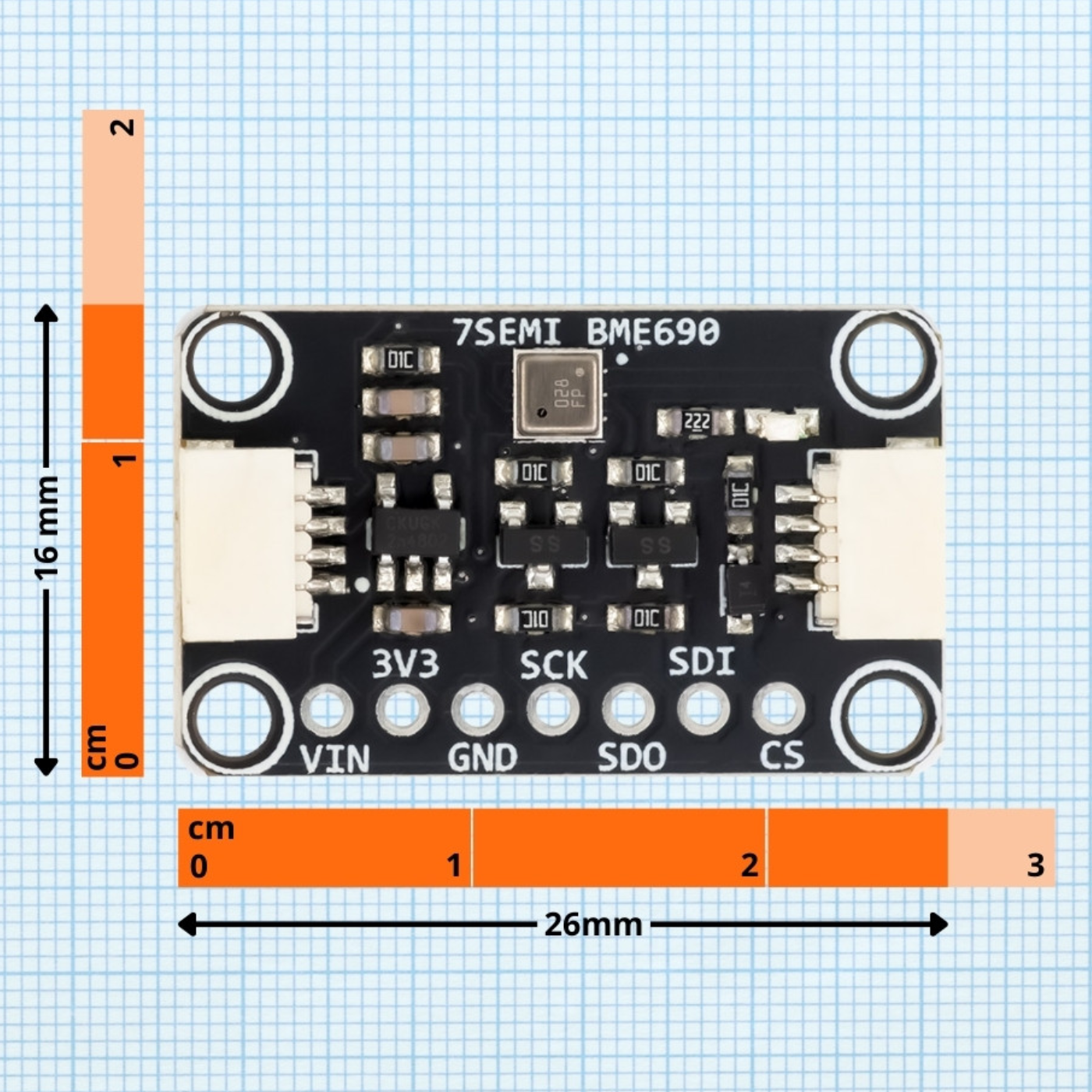

| Board Dimensions | Approx. 25.5 × 15 mm |
| Board Weight | 2g |
This product comes with a 1-year manufacturer warranty from the date of purchase, covering manufacturing defects only.
