7Semi AP64350 3.8V to 40V Input 5V Output DC-DC Buck Converter - Buy Online in India

Name: 7Semi AP64350 3.8V to 40V Input 5V Output DC-DC Buck Converter
Brand: Robocraze
SKU: TIFEC0341
Price: 265 INR
Availability: InStock

7Semi AP64350 3.8V to 40V Input 5V Output DC-DC Buck Converter

Rs 265/-

- 42%

Rs 265/-

~~Rs 456/-~~

Save Rs 191/-

Incl. GST (No Hidden Charges)

Please hurry! Only 3 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery

SKU: TIFEC0341

Wide input voltage support from 3.8V to 40V DC
Provides stable 5V regulated output
Delivers up to 1.5A output current
Built using AP64350SP-13 synchronous buck converter
High-efficiency DC-DC buck converter module
Low quiescent current for power-saving applications
EMI-optimized design for stable performance
Integrated protection features for reliable operation
Compact design suitable for embedded and DIY projects
Ideal 5V power supply module for MCUs, sensors, and IoT devices

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

7Semi AP64350 3.8V to 40V Input 5V Output DC-DC Buck Converter

~~Rs 456/-~~ Rs 265/-

Quantity:

7Semi AP64350 3.8V to 40V Input 5V Output DC-DC Buck Converter

~~Rs 456/-~~ Rs 265/-

Description
Specifications
Additional Resources
Shipping & Return

Description

7Semi AP64350 3.8V to 40V Input 5V Output DC-DC Buck Converter

The 7Semi AP64350 3.8V to 40V Input, 5V Output DC-DC Buck Converter is a compact and efficient power management module designed to provide a stable 5V output at up to 1.5A from a wide 3.8V–40V DC input range. Powered by the reliable AP64350SP-13 synchronous buck converter IC, this step-down voltage regulator ensures high efficiency, low heat generation, and dependable performance for a variety of electronics applications.

Its low quiescent current and EMI-optimized design make it an excellent choice for IoT devices, automation systems, embedded electronics, sensors, communication modules, and microcontroller-based projects. With built-in protection features and a space-saving form factor, this DC-DC buck converter module is ideal for both DIY makers and industrial applications requiring a stable 5V power supply.

Features:

Input Voltage Range: 3.8V to 40V DC
Fixed output voltage: 5 volts.
Output current: up to 1.5A continuous
Efficiency: >90% average; 85% under light loads.
Low Quiescent Current: 22μA (PFM Mode)
Protections include UVLO, overvoltage, thermal shutdown, and current limiting.
Compact, Efficient, and EMI-Friendly Design

Specifications

Package Includes:

1 x 7Semi AP64350 3.8V to 40V Input 5V Output DC-DC Buck Converter

Specifications:

Specification	Value
IC	AP64350SP-13
Input Voltage	3.8V – 40V DC
Output Voltage	5V Fixed
Maximum Output Current	1.5A (Continuous)
Efficiency	Up to 90%
Quiescent Current	22μA in Light Load (PFM)
Operating Temperature	–40°C to +85°C

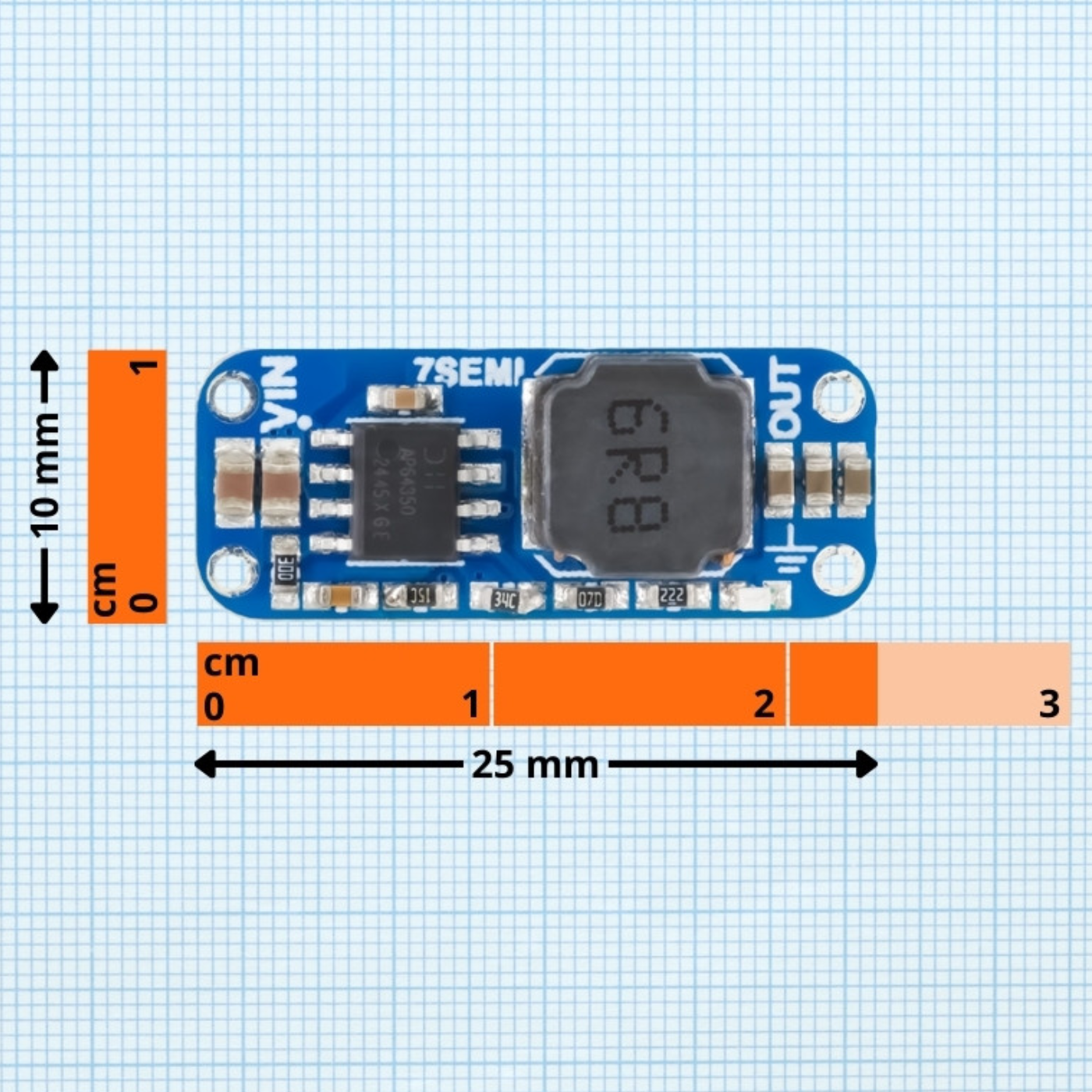

Board Dimensions	Approx. 24.60mm × 9.83mm
Board Weight	2g
