7Semi AP3012 DC-DC Boost Converter Module 24V Output
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
Couldn't load pickup availability

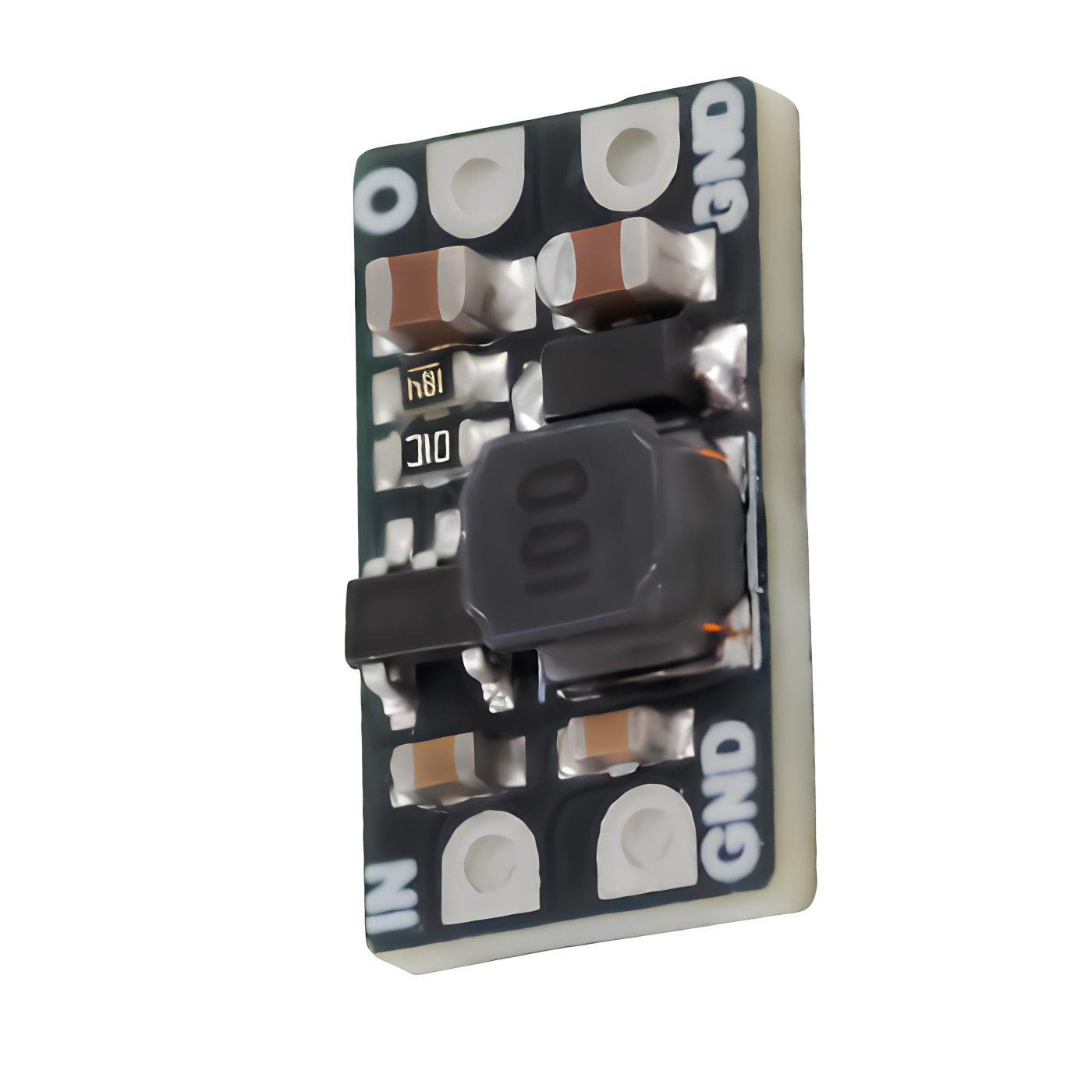

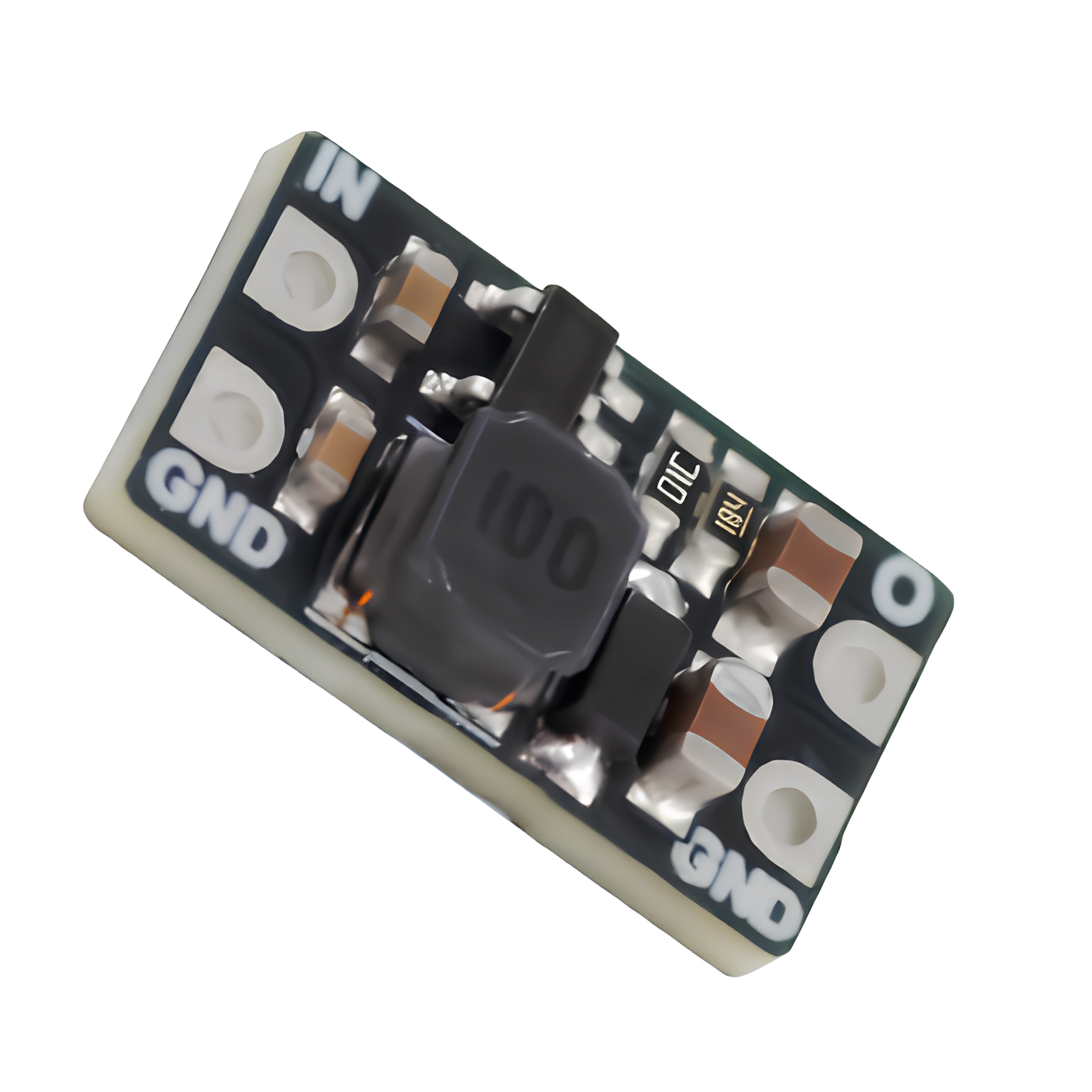

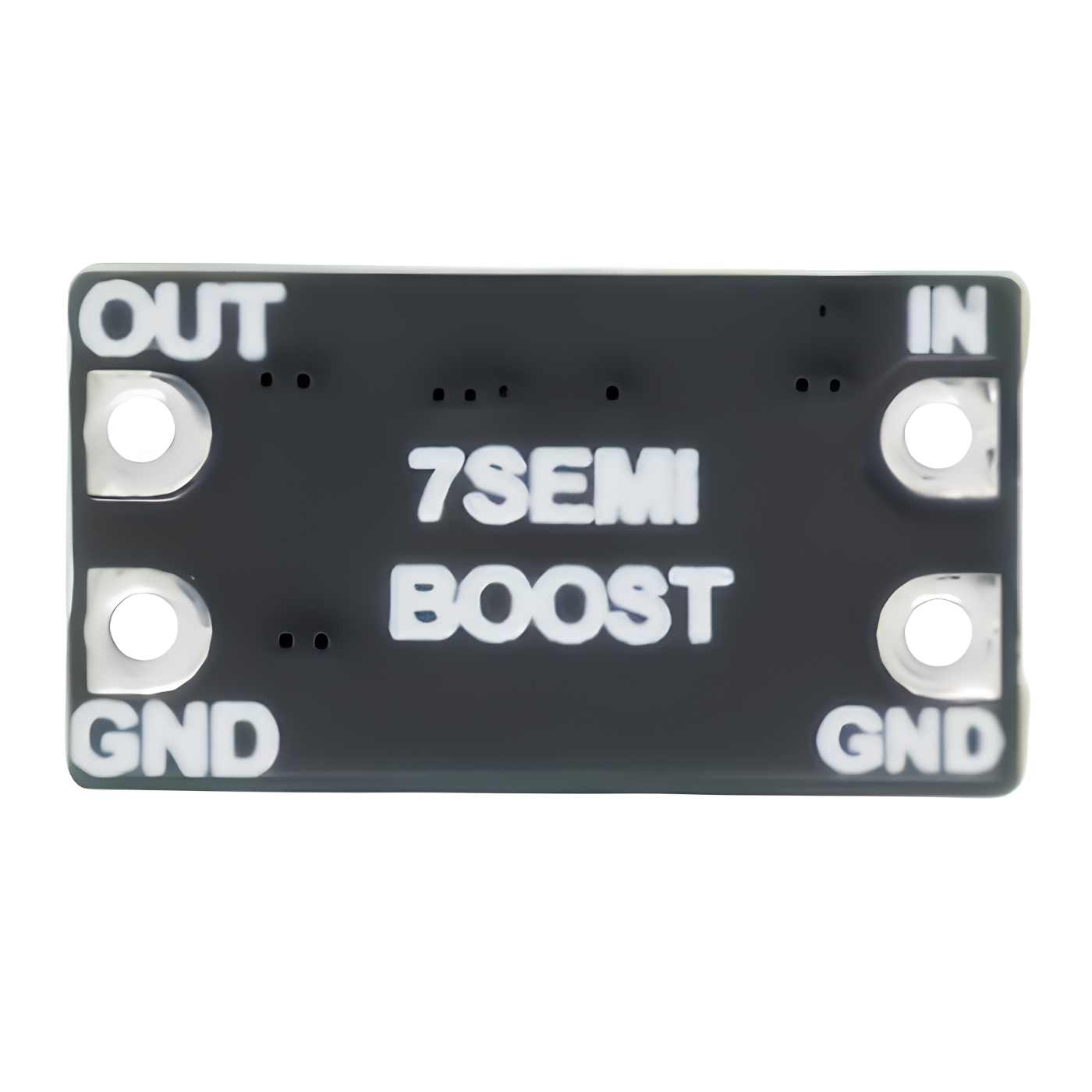

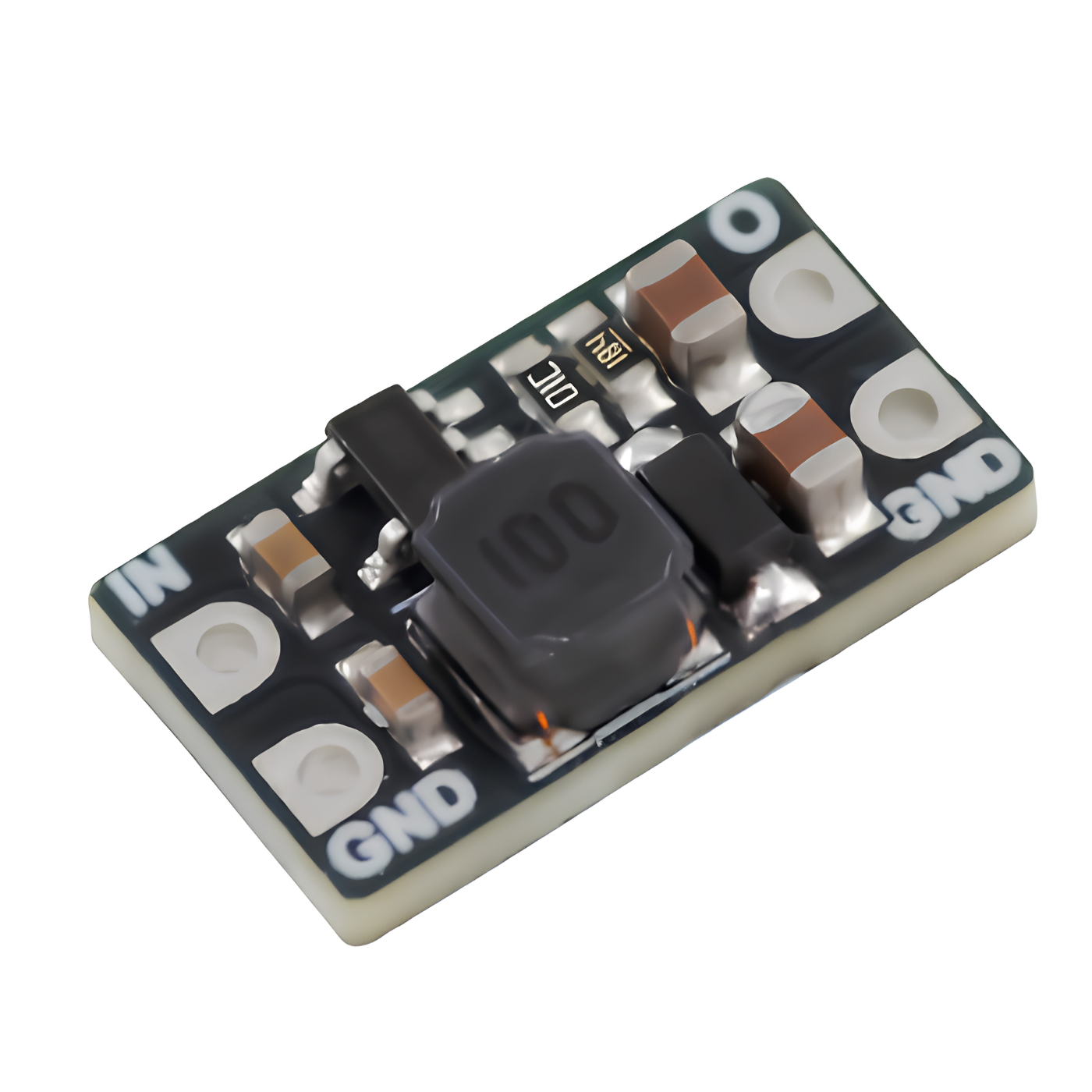

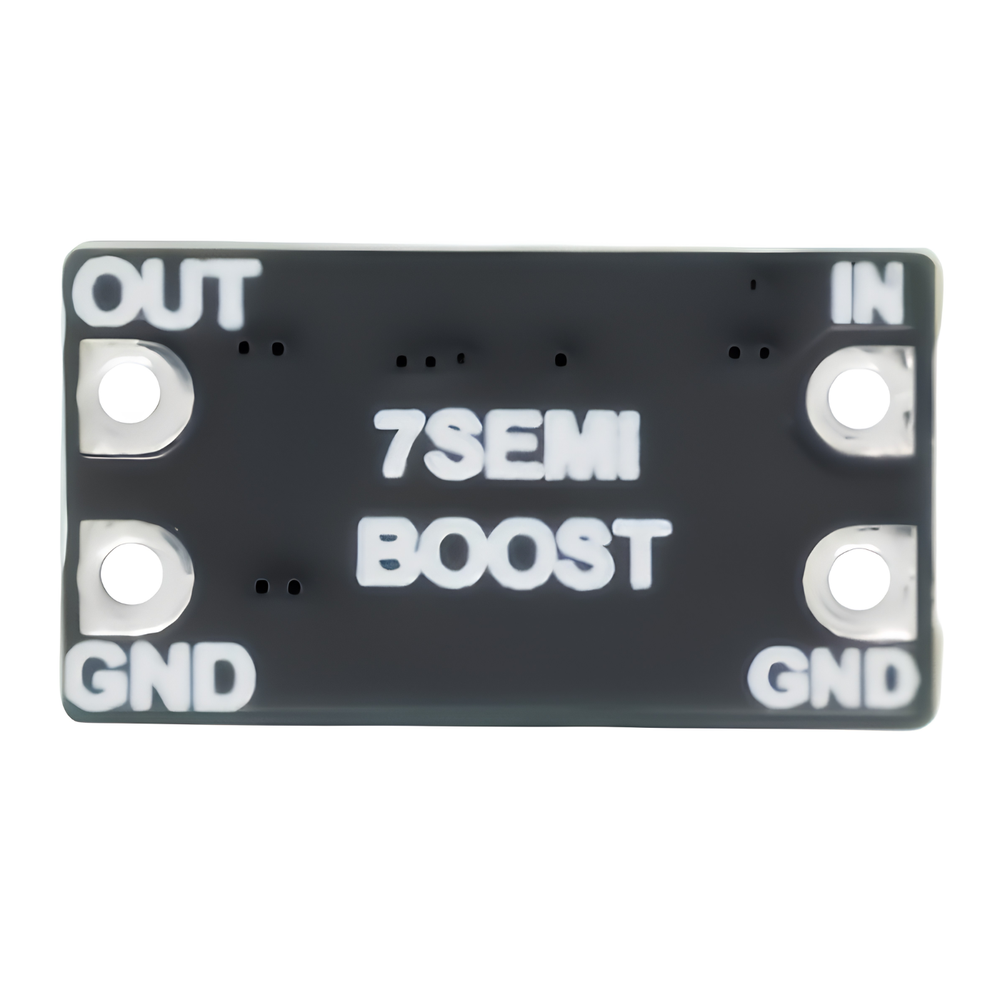

The 7Semi AP3012 Boost Converter Module is a compact DC-DC step-up power module built around the AP3012 boost converter IC. It is designed to convert low input voltages ranging from 3.3V to 16V into a fixed 24V output, making it suitable for battery-powered electronics, portable devices, and embedded applications that require a higher operating voltage.
Operating at a switching frequency of 1.5MHz, the module supports efficient voltage conversion while maintaining a compact board size. It delivers up to 81% efficiency under typical operating conditions and incorporates built-in overvoltage protection with a 29V threshold. The soft-start function helps reduce inrush current during startup, while the typical shutdown current of just 1µA supports low-power system designs.
The module is intended for applications such as OLED and LCD display bias supplies, white LED backlighting, portable sensor nodes, IoT devices, battery-powered electronics, and DIY power supply projects. Its lightweight construction and simple interface make it easy to integrate into prototypes and embedded systems requiring reliable DC-DC voltage boosting.
• Built around the high-performance AP3012 DC-DC boost converter IC.
• Accepts an input voltage range from 3.3V to 16V.
• Provides a fixed 24V DC output.
• Operates at a switching frequency of 1.5MHz for compact circuit implementation.
• Delivers up to 81% conversion efficiency under typical operating conditions.
• Includes built-in overvoltage protection with a 29V threshold.
• Soft-start functionality helps reduce startup inrush current.
• Features a typical shutdown current of only 1µA.
• Supports a typical output current of approximately 150mA when converting 5V to 12V.
• Suitable for battery-powered and portable electronic applications.
• Can be used in OLED/LCD display bias supplies and white LED backlighting circuits.
• Designed for IoT devices, portable sensor nodes, and DIY power supply projects.
OLED/LCD Display Bias Supplies
White LED Backlighting
Battery-powered Electronics
Portable Sensor Nodes
IoT and Wearables Power Systems
DIY Power Supply Projects
| Parameter | Value |
| Brand | 7Semi |
| Product Type | DC-DC Boost Converter Module |
| Converter IC | AP3012 |
| Input Voltage Range | 3.3V – 16V |
| Output Voltage | 24V Fixed |
| Switching Frequency | 1.5MHz |
| Maximum Output Current | ~150mA at 5V → 12V (Typical Use Case) |
| Efficiency | Up to 81% |
| Shutdown Current | 1µA (Typical) |
| Overvoltage Protection | 29V Threshold |
| Board Dimensions | Approx. 14.4mm × 8mm |
| Board Weight | 0.5g |
This product comes with a 6-month manufacturer warranty from the date of purchase, covering manufacturing defects only.
The product shows signs of physical damage, mishandling, exposure to water/moisture, fire, natural calamities, unauthorized repairs, improper storage near heat or direct sunlight, or alteration in any way.
