7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout - Buy Online in India

Name: 7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout
Brand: Robocraze
SKU: TIFDC0093
Price: 265 INR
Availability: InStock

7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout

Rs 265/-

- 42%

Rs 265/-

~~Rs 456/-~~

Save Rs 191/-

Incl. GST (No Hidden Charges)

Please hurry! Only 10 left in stock

Quantity:

Free Delivery Above ₹999

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Purchase

Cash on Delivery

SKU: TIFDC0093

8-bit resolution with 8 analog input channels
Supports both single-ended and differential inputs
I²C interface for easy microcontroller communication
Operating voltage range: 2.7V to 5.5V
Sampling rate up to 70 kSPS
Built-in 2.5V internal reference voltage
Integrated sample-and-hold amplifier
Compact ADC breakout board for sensor interfacing and data acquisition projects

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

First Name *

Last Name *

Email *

Phone *

Company

Materials List

File(s) size limit is 20MB.

Enter the Captcha *

Captcha challenge – enter the characters shown in the image

Reload Captcha

7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout

~~Rs 456/-~~ Rs 265/-

Quantity:

7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout

~~Rs 456/-~~ Rs 265/-

Description
Specifications
Additional Resources
Shipping & Return

Description

7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout

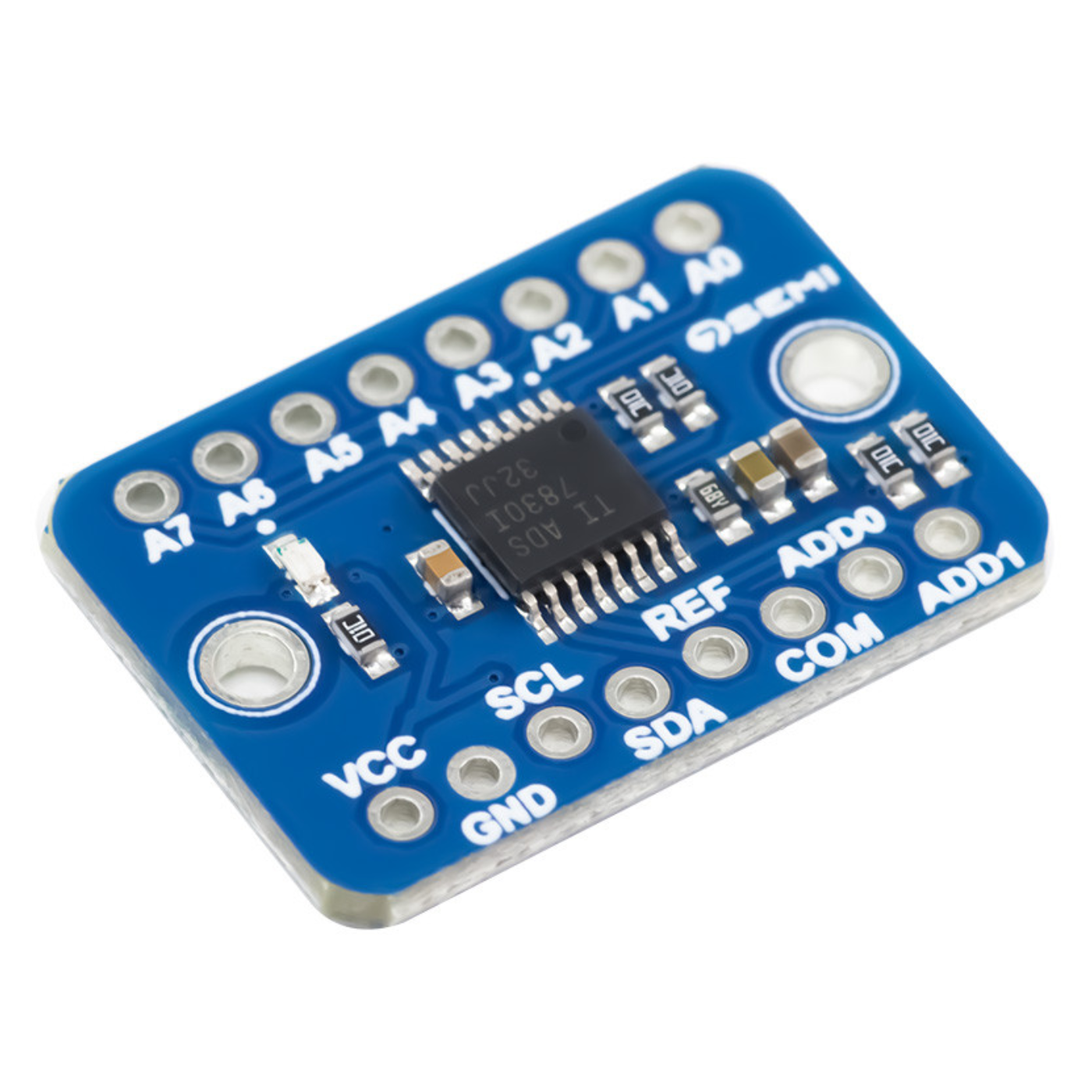

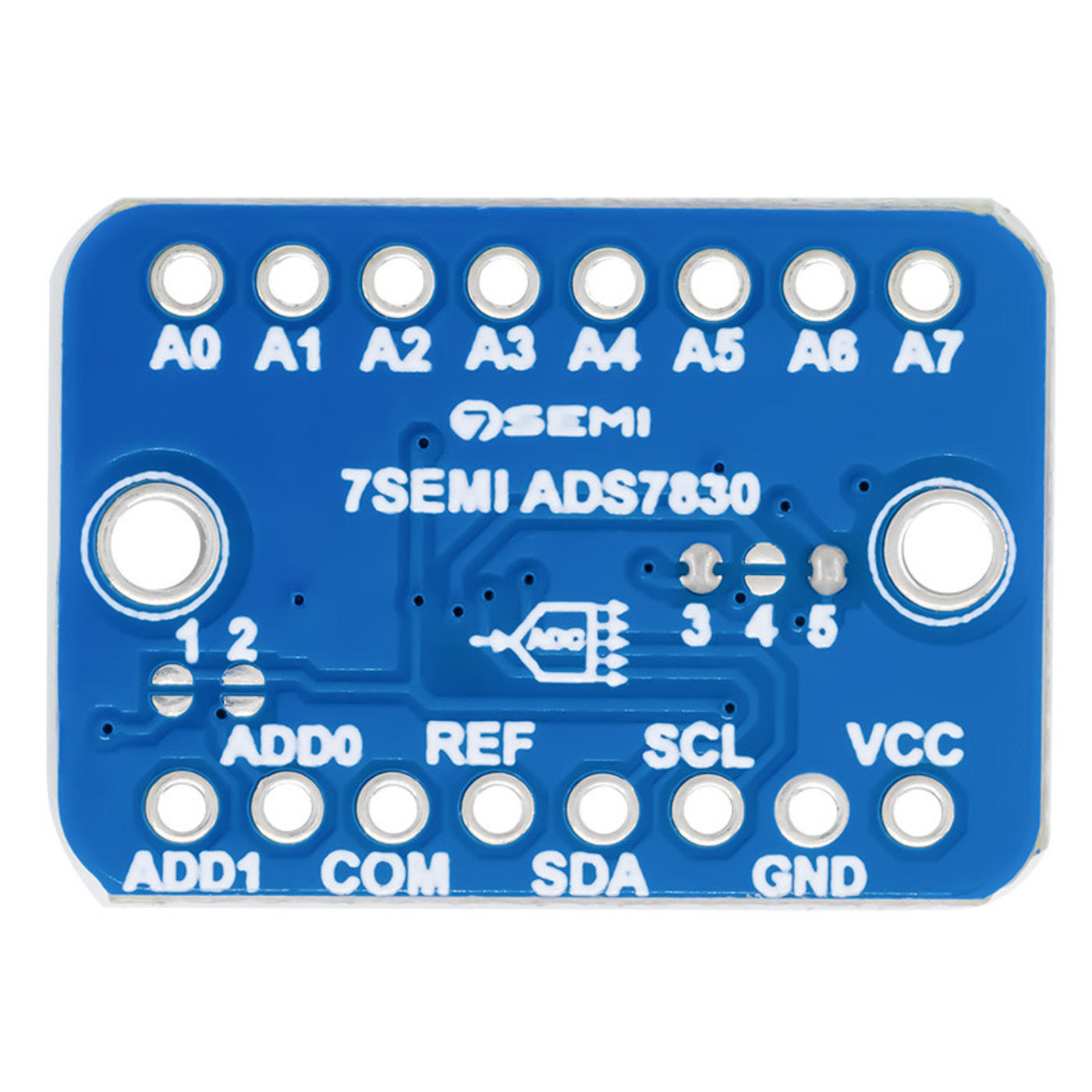

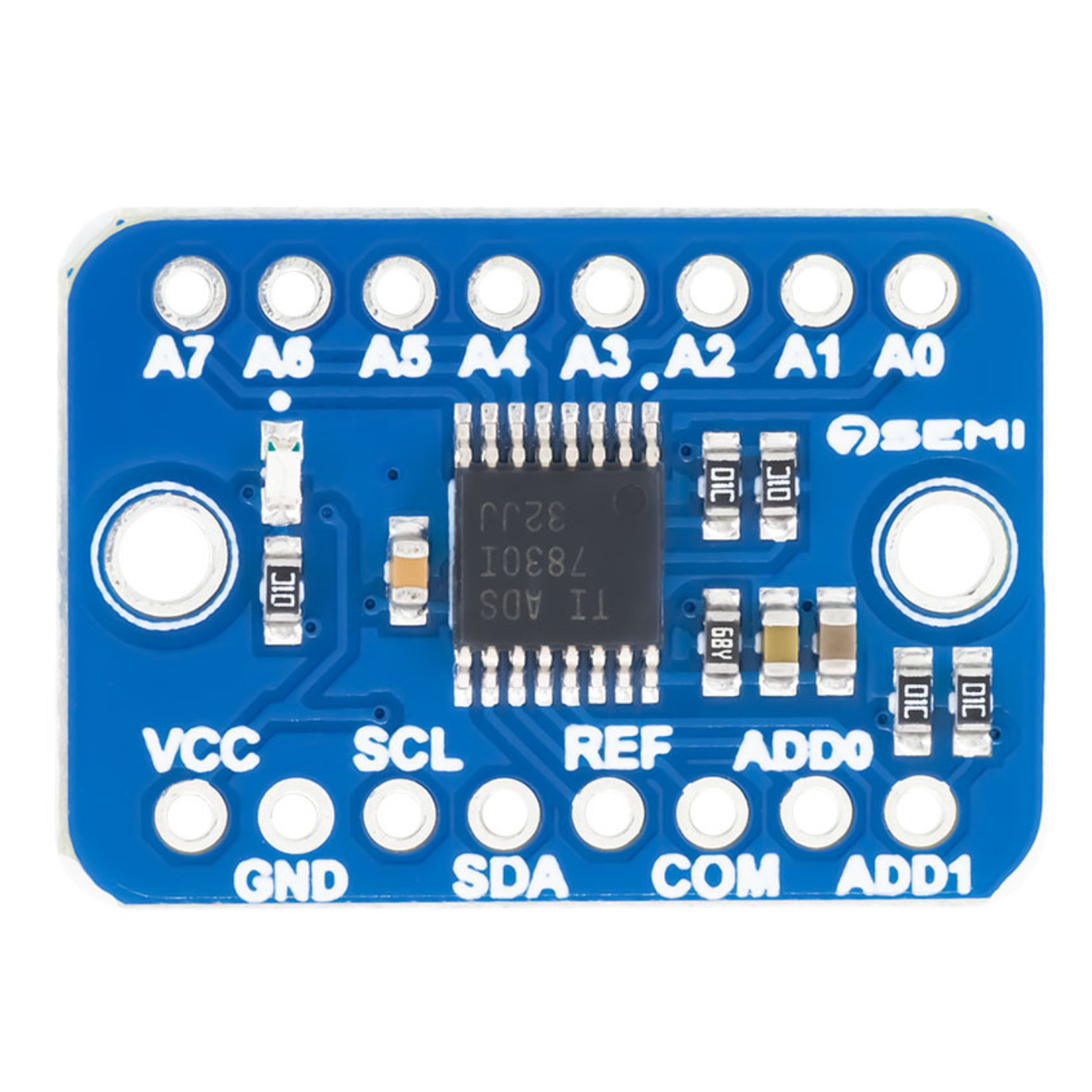

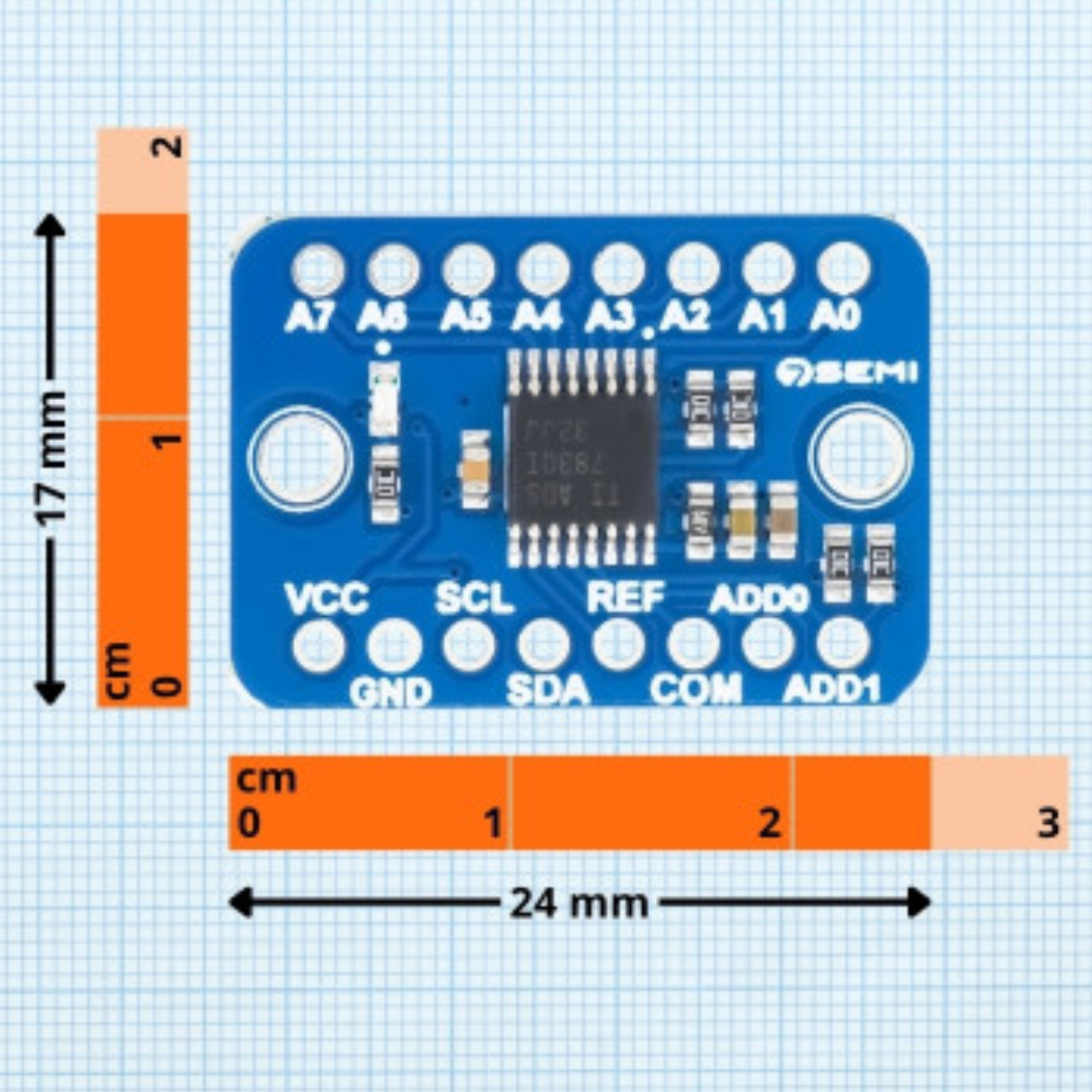

The 7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout is a compact and efficient ADC module designed for converting multiple analog signals into digital data for microcontroller-based projects. Featuring 8-bit resolution and 8 input channels, this ADS7830 ADC breakout supports both single-ended and differential input configurations, making it ideal for sensor monitoring, embedded systems, and data acquisition applications.

With an operating voltage range of 2.7V to 5.5V and a fast sampling rate of up to 70 kSPS, the module ensures reliable and responsive analog signal conversion. The built-in 2.5V reference and sample-and-hold amplifier further improve measurement stability and accuracy, while the I²C interface allows simple integration with platforms like Arduino, Raspberry Pi, and other development boards.

Features:

High-performance data acquisition: accurate analog-to-digital conversion using 8-bit resolution and a sampling rate of 70 kHz.
Flexible Input Options: Adapts to different application needs by supporting four differential or eight single-ended inputs.
Broad Operating Range: Suitable for a variety of applications, it runs on a single supply voltage between 2.7 and 5 volts.
Integrated Reference and Buffer: For reliable, accurate conversions, a 2.5V reference buffer is integrated.
I2C Interface Compatibility: Provides flexible interaction with a range of systems by supporting Standard, Fast, and High-Speed I2C modes.
Compact and Energy-Efficient: Perfect for low-power applications and remote data collection.

Specifications

Package Includes:

1 x 7Semi ADS7830 I2C 8-Bit 8-Channel Analog to Digital Converter Breakout

Specifications:

Specification	Value
ADC Resolution	8-Bit
Number of Channels	8 Channels
Interface	I2C
Input Type	Single-Ended / Differential
Operating Voltage	2.7V – 5.5V
Sampling Rate	Up to 70 kSPS
Internal Reference Voltage	2.5V

Additional Resources

ADS7830 Datasheet
