This DIY electronics kit is perfect for both electronics hobbyists and beginners. The Wireless Stereo FM Radio Receiver Module PCB DIY Electronic Kits 76MHz-108MHz Kit has been optimized for easy element arrangement and high success rates during manufacturing and installation. It has even been used in schools, so its performance is trusted.
This RF kit is not just a simple welding assembly. It allows for hands-on adjustment of the coiled-coil and more fun than other simple assembly kits. The main advantage of using a headset is that it takes into account the noise in student classrooms. The FM radio program provides rich and good sound quality, making it possible to launch your own FM radio station.

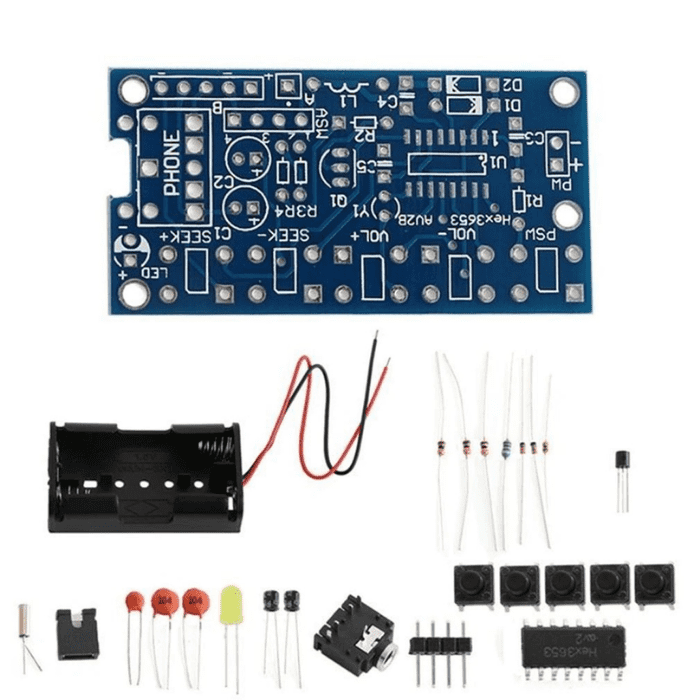

The kit includes an FM scan radio pocket computer using special blocks, including the RDA5807FP FM radio module, a 16-pin dual flat package, and a working voltage of 1.8-3.6V. The circuit includes an FM radio receiver from the antenna to the frequency discriminator output audio signals, with features like a search tuning circuit, a signal detection circuit, a mute circuit, and a compression frequency offset of the frequency-locked loop (FLL) circuit.
The IF frequency of the circuit is designed to be 70KHZ, with peripheral circuits without an intermediate frequency transformer. The frequency is selected by an internal RC circuit IF filter to complete. The circuit also includes digital radio tuner buttons for electrical tuning (SEEK +, SEEK-) and volume control buttons (VO). Get started with electronics and DIY radio with this Electronic kit for beginners.
Features
- Functional and high quality, Receives at 76MHz - 108MHz
- The perfect DIY and practice kit for hobbyist and electronic professionals
- An excellent tool to educate young pioneers.
Applications
- DIY kit for building a wireless stereo FM radio receiver
- Can receive frequencies between 76MHz and 108MHz with stereo sound
- Easy to assemble, suitable for educational or DIY projects
- Once assembled, can be used to listen to FM radio stations
- Available for purchase on Amazon and other online retailers
