7inch Raspberry Pi LCD Touch Screen Display with Kit HDMI VGA Input Driver Board

7inch Raspberry Pi LCD Touch Screen Display with Kit HDMI VGA Input Driver Board

Out of stock

Regular price Rs. 4,388
Regular price Rs. 4,787 Sale price Rs. 4,388
Sale Sold out 8% off Best Price Guaranteed
You save Rs. 399 | Eligible for Free Shipping
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 200/- OFF RC200

When you shop for ₹ 5000 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • This is the 7inch Raspberry Pi LCD Touch Screen Display with Kit HDMI VGA Input Driver Board
  • This is the 7 inch 800* 480 Lcd Panel AT070TN92 with Touch Screen.

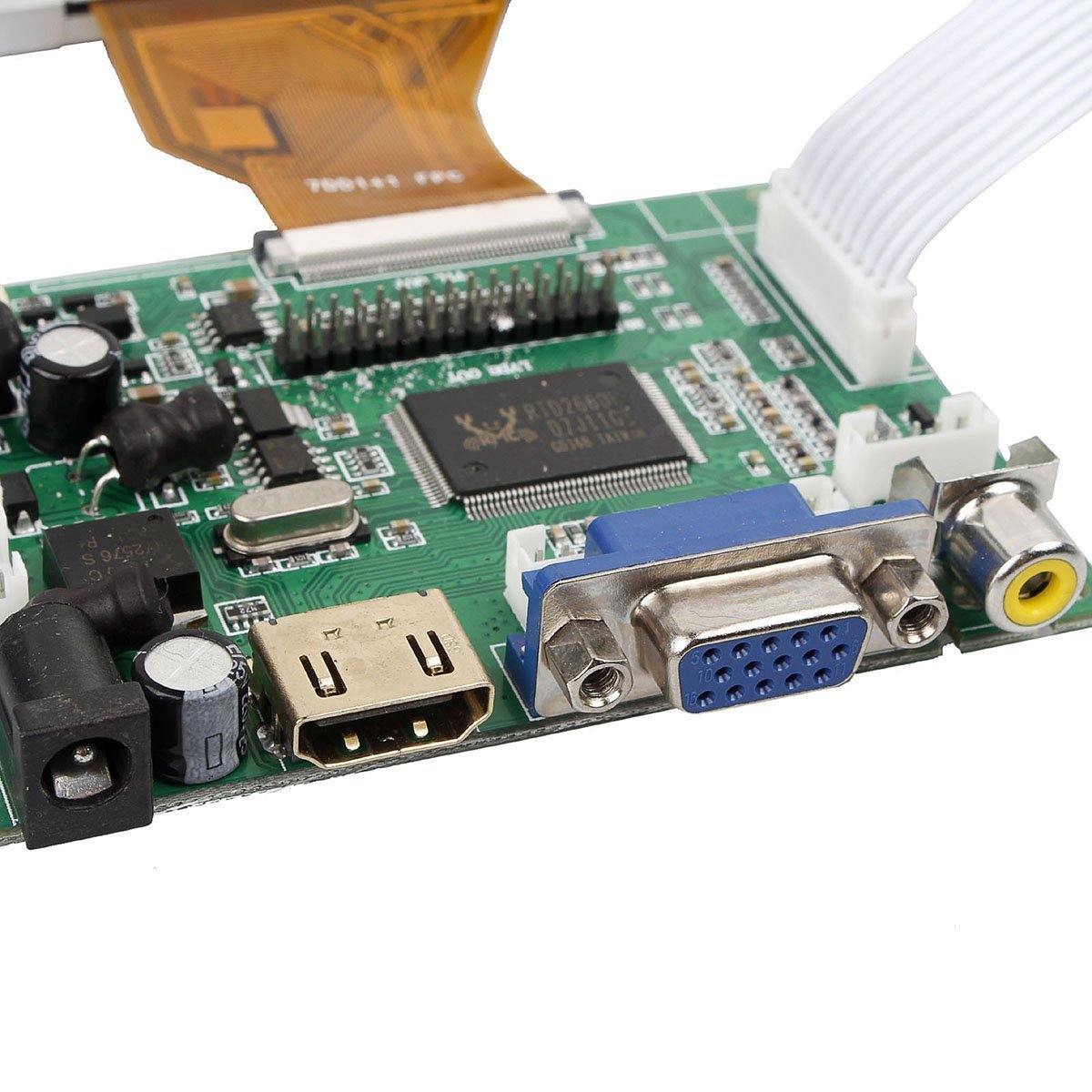

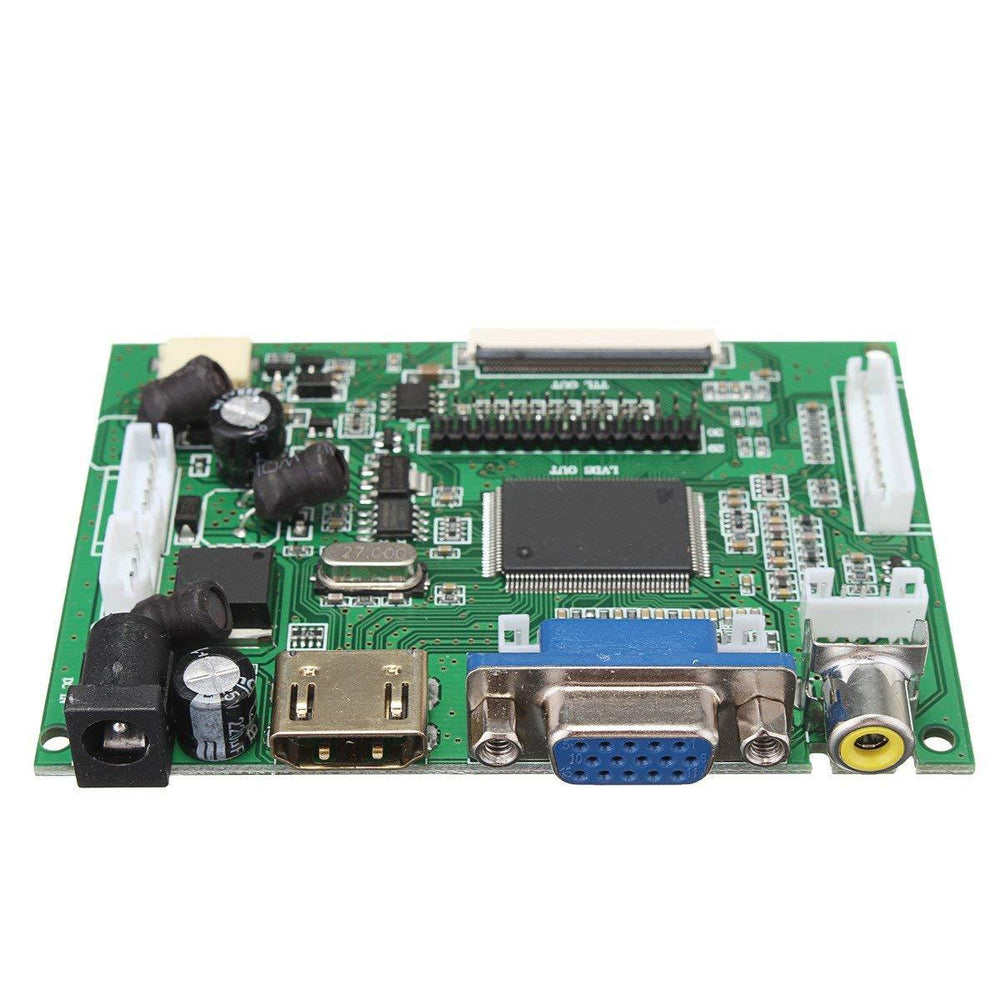

  • HDMI+VGA+2AV Controller Board VS-TY2662-V1.
  • Brightness of the 7inch Raspberry Pi LCD Touch Screen Display is 250cd/m2 (Typ.).
  • RGB:800*480; Aspect Ratio: 16:9 (width: height).
  • The Display Mode: TN, often white display, transmissive.
  • Robocraze is the approved seller of Raspberry Pi products in India and you can buy 7inch waveshare display at best prices.

7″ Raspberry Pi LCD Touch Screen Display with Kit HDMI VGA Input Driver Board

The 7 Inch LCD Touch Display With Driver Board Kit For Raspberry Pi allows users to build all-in-one, integrated projects like tablets, infotainment systems, and embedded projects! The 800x480 physical resolution (resolution range adjustable between 640 x 480 and 1600 x 1200) display is connected by an adapter board that handles power and signal conversion. Only two connections are required to the Pi: power from the GPIO port and a ribbon cable that connects to the DSI port found on all Raspberry Pi's. Touchscreen drivers with 10-finger touch support and an on-screen keyboard will be integrated into the latest Raspbian OS, allowing for full functionality without the use of a physical keyboard or mouse.

Features:

  • The function of plug and play support
  • 5V supports DC voltage input, and can also be powered by USB or mobile power supply.
  • Truly Interactive – the latest software drivers will support a virtual touchscreen ‘on-screen’ keyboard, so there is no need to plug in a keyboard and mouse.
  • Make your own Internet of Things devices including a visual display. Simply connect your Raspberry Pi, develop a Python script to interact with the display, and you’re ready to create your own home automation devices with touchscreen capability.
  • A range of educational software and programs available on the Raspberry Pi will be touch-enabled, making learning and programming easier on the Raspberry Pi.
  • Control mode: multi-function OSD operation or potentiometric adjustment of brightness and color.
  • Performance characteristics: adopt the mature scheme, clear display effect.
  • 0 support the image flip up and down, and image 4:3/16:9 display format conversion.
  • The scope of application: it is used in visual intercom, onboard computers, instruments, industrial control, medical equipment, portable display equipment, and other electronic fields.

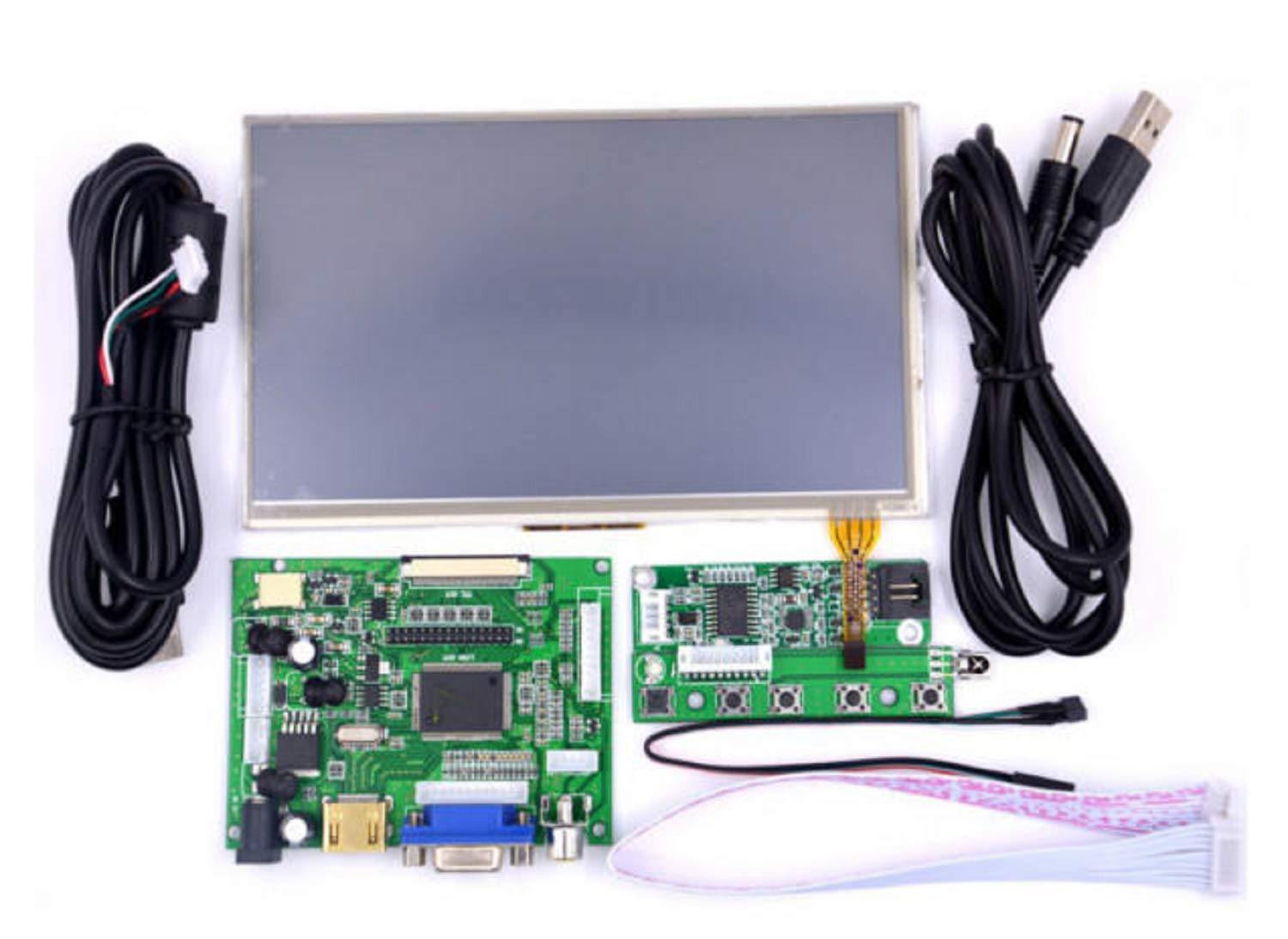

Package Includes:

  • 1 x HDMI+VGA+2AV Controller Board VS-TY2662-V1 (Support Automatically switch to AV2)
  • 1 x 7" 800* 480 Lcd Panel AT070TN92 with Touch Screen
  • 1 x USB Controller Card
  • 1 x USB Cable

NOTE: Raspberry Pi 3 Model B is NOT included. Robocraze is the authorized sellers of Raspberry Pi products in India. Therefore even if you are in Bangalore, Hyderabad, Kerala, Mumbai or Pune, you can buy Raspberry Pi 7inch Waveshare LCD Display online from Robocraze at the comfort of your homes.

Specifications

Power Supply 5~12V 2A
RGB 800*480
Aspect Ratio  16:9
Package Dimensions  15 x 8 x 5cms
Weight  100 grams

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. How do I connect my Raspberry Pi to a 7 inch monitor?

  • To connect your raspberry Pi to a 7 inch monitor/display follow the steps mentioned below.
    1. First of all, you need to gather all the necessary items like a 15 Pin Ribbon Cable, screws, spacers and jumper wires.
    2. Fix the Raspberry Pi to the 7 inch Display using screws and spacers in standoff position.
    3. Connect the jumper wire from the display to the Raspberry Pi.
    4. Now power up the Raspberry Pi and you can use the display. Additionally, You can add a Physical keyboard or just install a keyboard.

2. What is a good monitor for Raspberry Pi?

  • There are several good monitors you can use for Raspberry Pi. You can choose the best Monitor based on your requirements. Some best monitors in India are mentioned below.
    • 7 inch LCD Capacitive Touch Panel with HDMI and USB Cable
    • 1.8 inch TFT LCD Module
    • Waveshare HDMI 7 inch Display
