6DOF Robotic Arm Metal Bracket Kit
Couldn't load pickup availability
The 6DOF Robotic Arm Metal Bracket Kit serves as the stable mechanical core for building an advanced robotic manipulator used widely in college education, maker spaces, and personal DIY production.

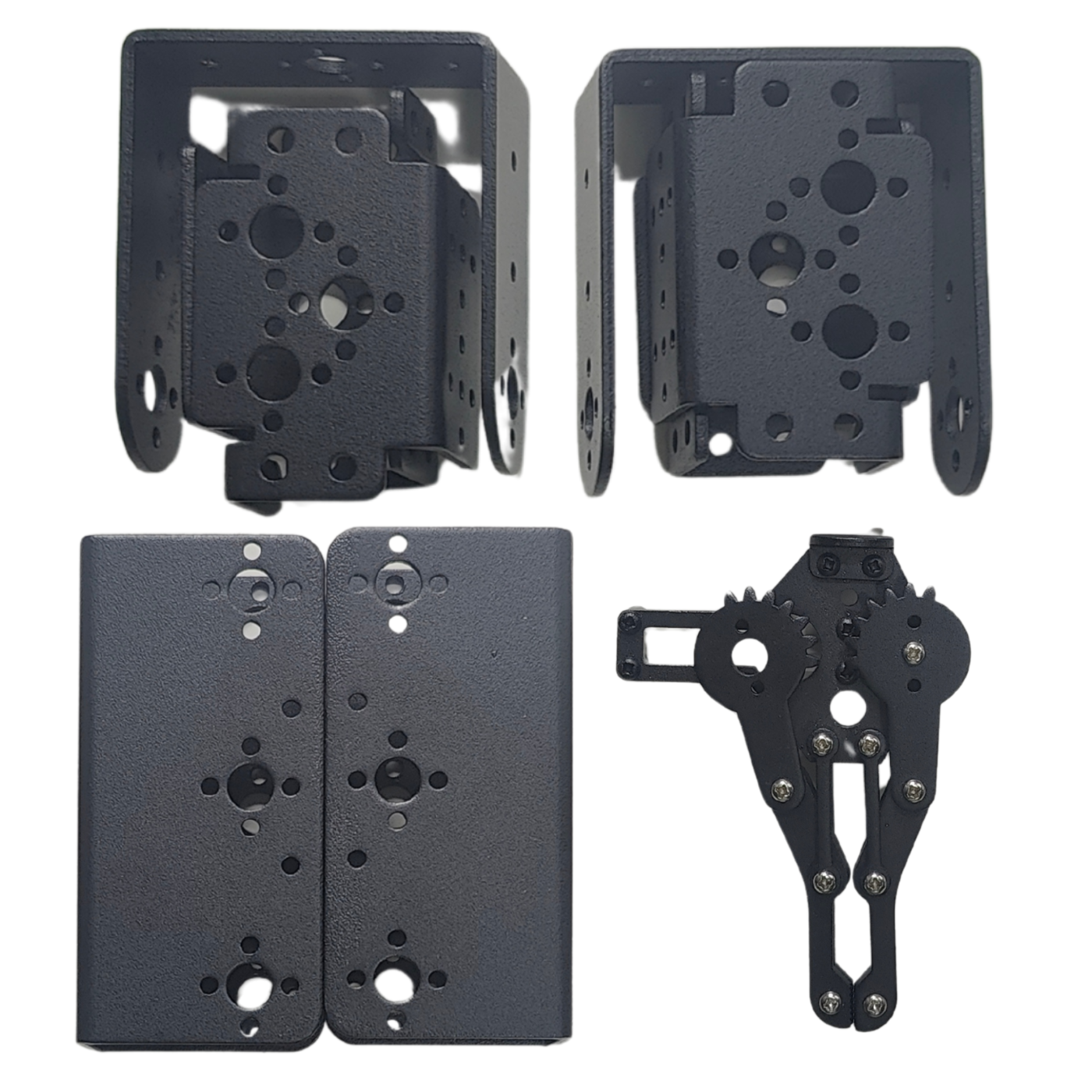

The kit utilizes a full set of high-quality metal brackets engineered for superior strength and structural integrity, ensuring reliable performance across all six axes of movement.
A key design feature is the inclusion of imported bearings in the steering joints, which not only enhance the flexibility of movement but also ensure high precision and alignment for the necessary 6 servo motors (required separately).
This robust construction allows the arm to reliably demonstrate forward/backward, up/down, and left/right grasping and handling movements.

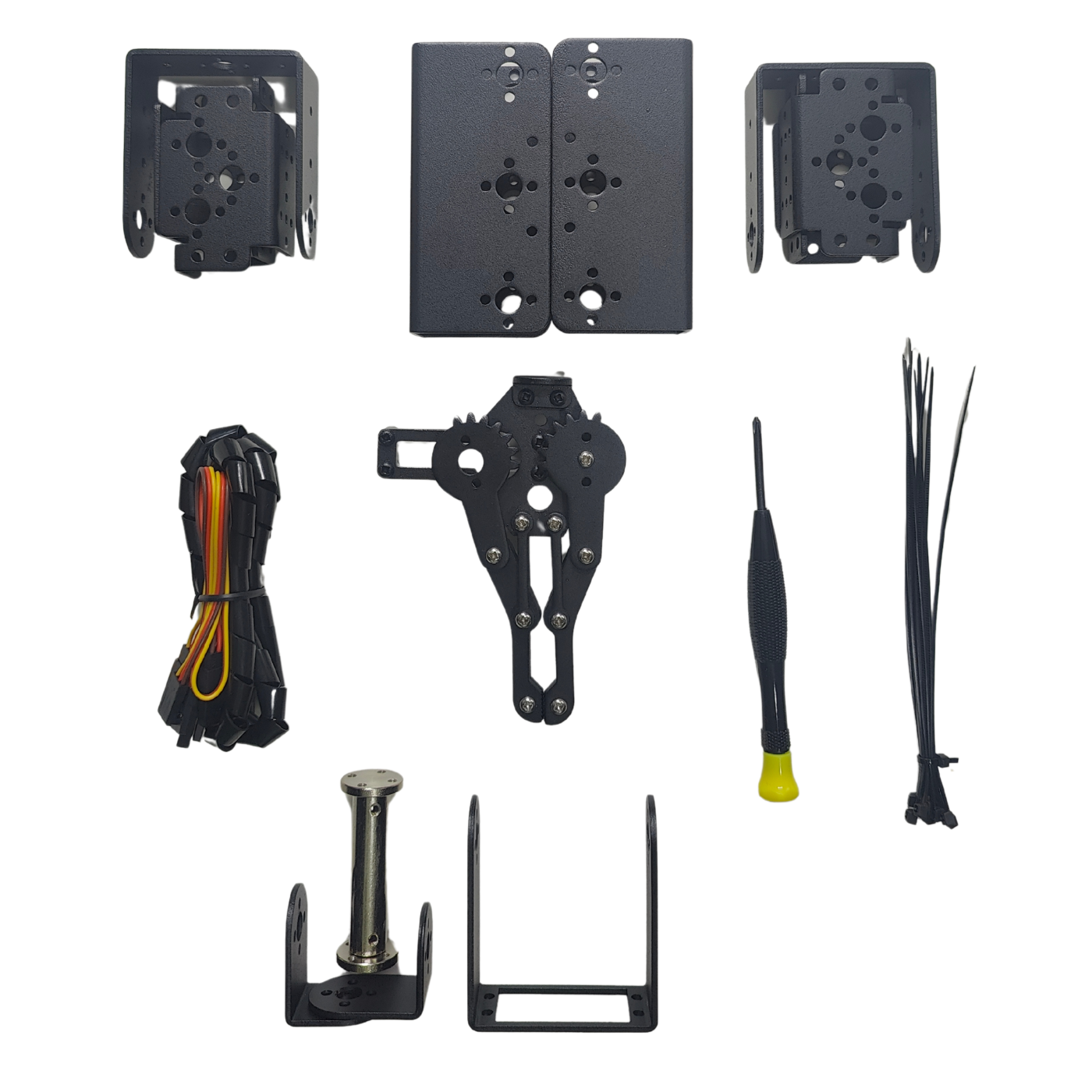

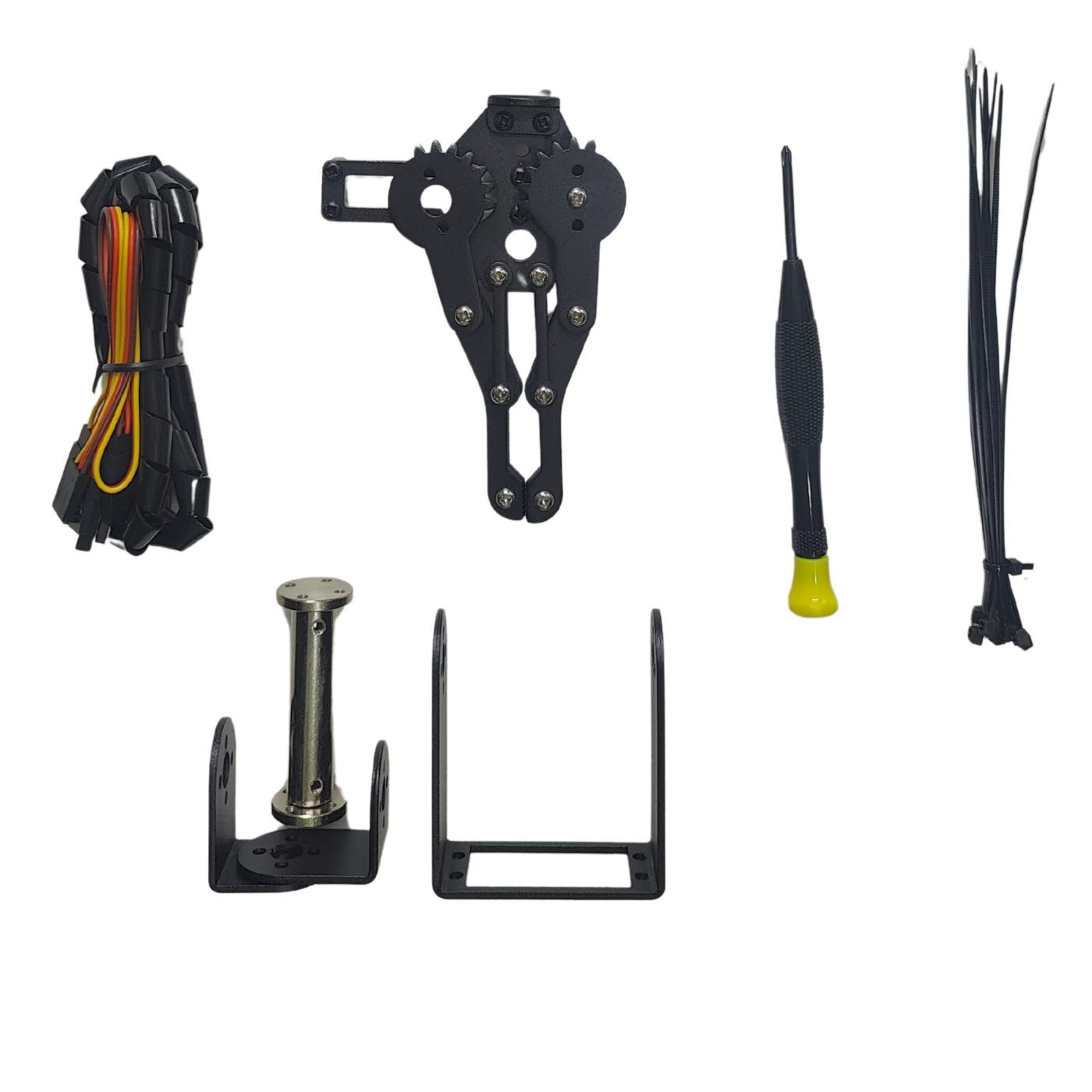

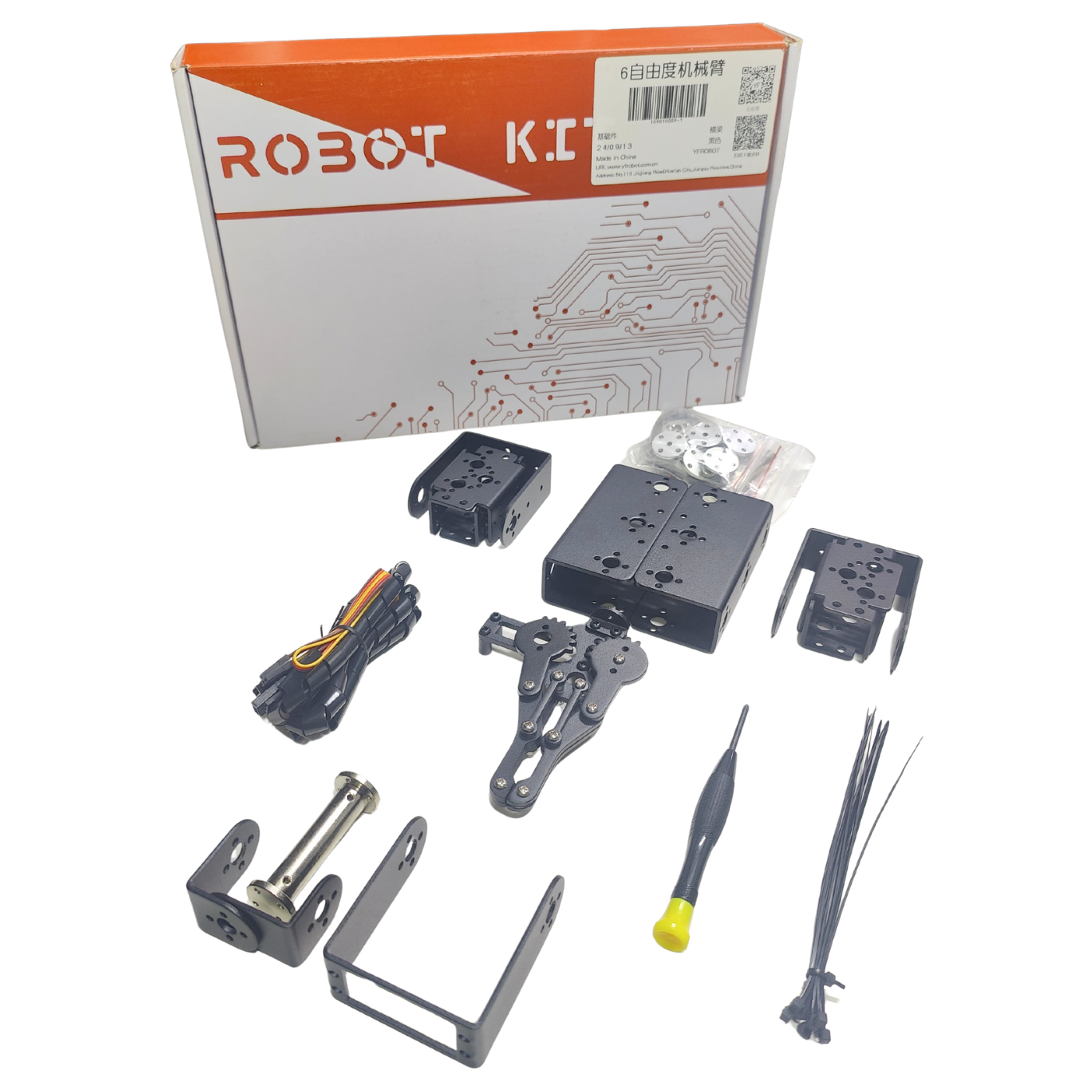

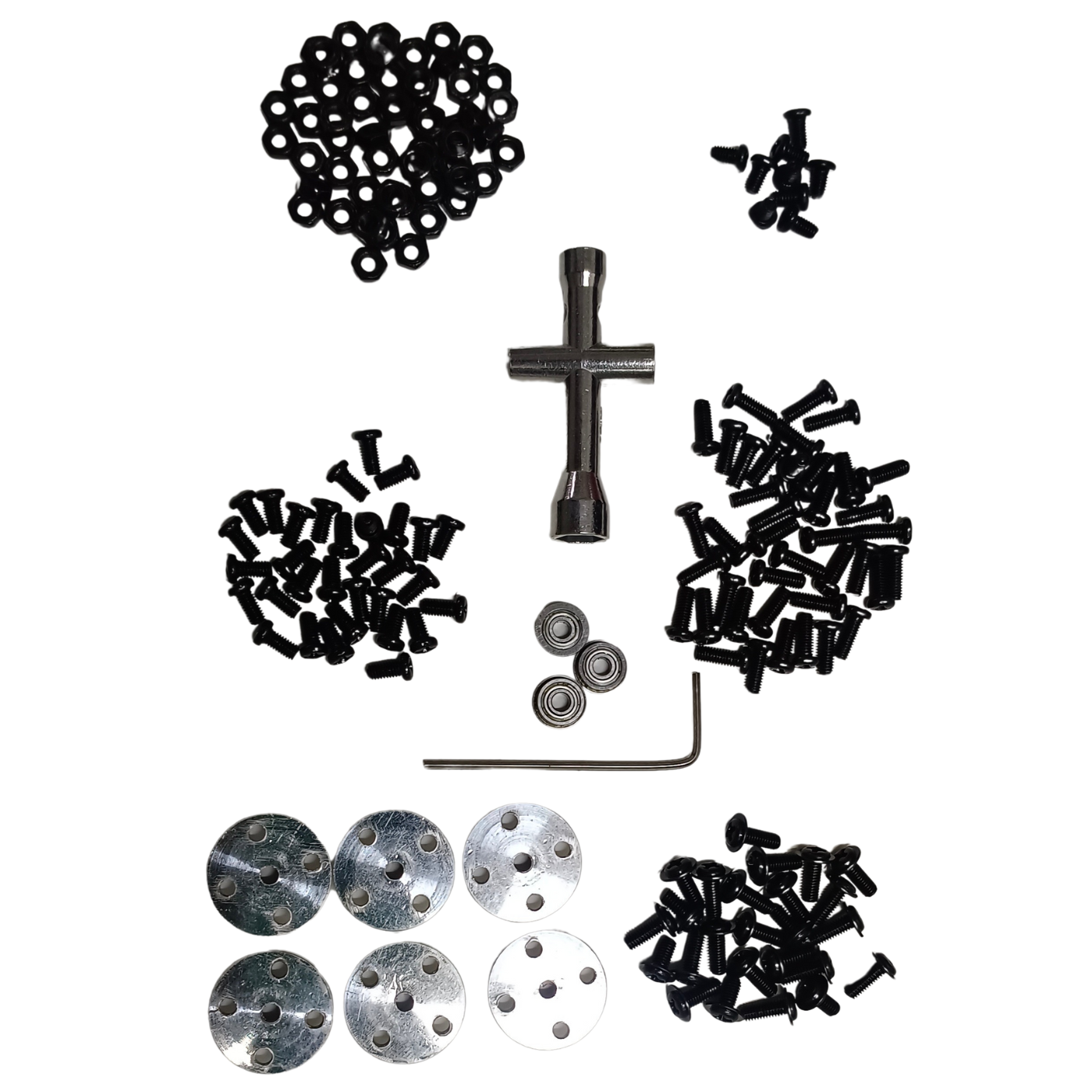

Please note, this kit includes only the metal bracket structure and hardware; the servo motors and the control system must be purchased separately.
| Parameter | Specification |
|---|---|
| Structure | 6 Degrees of Freedom (6DOF) Articulated Arm |
| Kit Type | Mechanical Frame Only (Unassembled) |
| Material | High-Quality Aluminum Alloy Plates (typically 2mm thick) |
| Base Design | Disc-Shaped Chassis for 360° Rotation |
| Joints/Bearings | Imported Cup Bearings (or Ball Bearings) at Steering Joints |
| Motor Compatibility | Designed for 6 Standard-Sized Servos (e.g., MG996R, DS3218) |
| Supported Load | Typically supports servos with torque ≤10 kg-cm per joint |
| Grasping Mechanism | Included Metal Clamp Claw (Gripper) |
| Assembly | Requires Self-Assembly and Alignment/Calibration |
