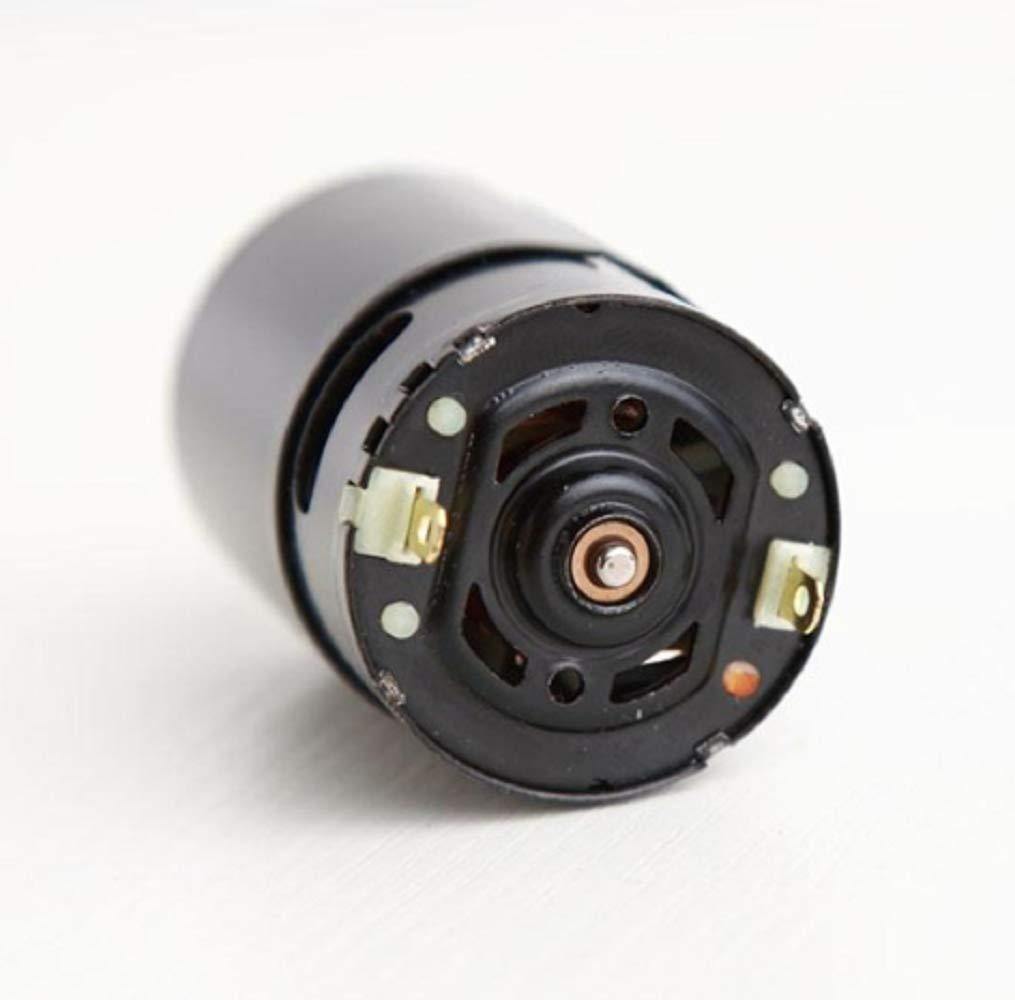

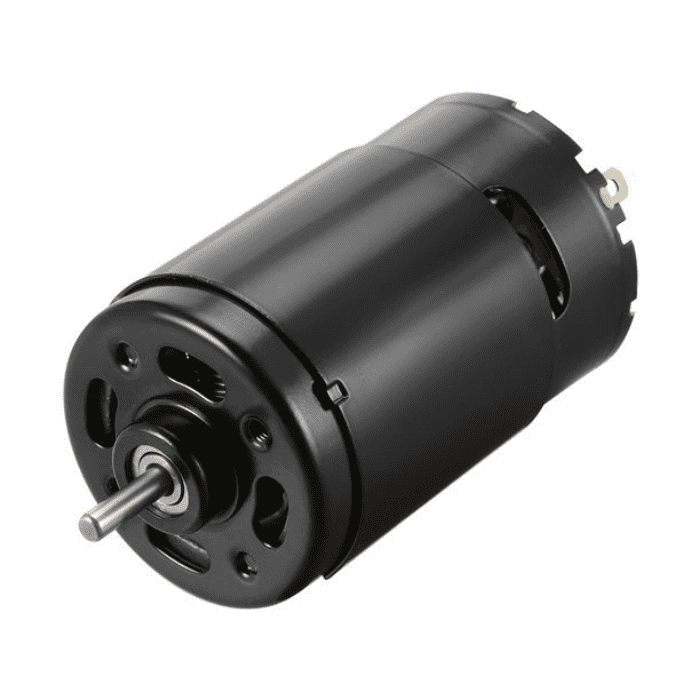

550 10400 RPM High Torque DC Motor
Electric motors turn electricity into motion by exploiting electromagnetic induction. A simple direct current (DC) motor is illustrated below. The motor features a permanent horseshoe magnet (called the stator because it's fixed in place) and a turning coil of wire called an armature (or rotor, because it rotates).
The following is the voltage 7.4v when the parameters: No-load speed: 10400 r / min no-load current: 1a maximum efficacy: Efficacy of 71 percent general load: Torque 42.441mn-m, speed 8984rpm / min, current 6.3a , power 32.41w the maximum load: Torque 155.842mn-m.
Applications:
- Used in Vehicles & Remote-Control Toys
- Used in Printers
- Used in electronic game machine
- Robotic
Package Includes:
- 1 x 550 10400 RPM High Torque DC Motor
Specifications:
|
Voltage |
7.4V |
|
RPM |
10400rpm |
|
Min no-load current |
1A |
|
Maximum efficacy |
Efficacy of 71% |
|
Shaft diameter |
3.175 mm |
|
Power |
32.41W |
|
Maximum load Torque |
155.842mn-m. |
|
Rated Speed |
8984rpm |
|
Min current |
6.3A |
|
Shaft length |
13 mm D-type shaft |
|
Dimensions |
77mm/3.031inch |
|
Weight |
216g |
Frequently Asked Questions
1. What is the RPM of a 550 DC motor?
- The 550 DC motors are simple DC motors with shaft gears to achieve the best performance characteristics. Because their shaft extends through the center of the gearbox assembly, they are known as Center Shaft DC Geared Motors. The RPM of this 550 DC Motor is 10400rpm.
2. What is a DC motor?
- A DC motor is a type of electric machine that converts electrical energy into mechanical energy. Direct current motors use direct current to convert electrical power into mechanical rotation.
3. What is a DC motor used for?
- DC motors are found in a variety of tools, toys, and appliances. The universal motor is a lightweight brushed motor that can operate on direct current and is used for portable power tools and appliances. Larger DC motors are currently used in electric vehicle propulsion, elevators and hoists, and steel rolling mill drives.
