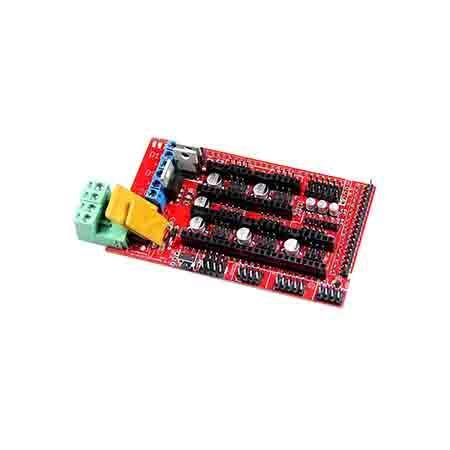

3D Printer Ramps 1.4 Shield

Rs. 252
Rs. 377
Rs. 252
Save Rs. 125
(-33%)
Incl. GST (No Hidden Charges) Found a better price?
Please hurry! Only 46 left in stock
SKU: TIF3P0015

  • The RAMPS for 3D Printer has provisions for the cartesian robot and extruder.
  • It is Expandable to control other accessories.
  • The RAMPS is equipped with 3 mosfets for heater / fan outputs and 3 thermistor circuits.
  • The shiedl is fused at 5A for additional safety and component protection and H
  • heat bed control with additional 11A fuse.
  • Servo style connectors are used to connect to the endstops, motors, and leds. These connectors are gold plated, rated for 3A, very compact, and globally available.

FLAT ₹ 100/- OFF
RC100
COPY CODE

When you shop for ₹2500 or more. Applicable at checkout.
*Coupons are not applicable on Original Boards and Kits.

Free shipping on Orders Above Rs 499/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
Enter the Captcha
Reload
Robocraze Academy Limited Time Offer
3D Printer Ramps 1.4 Shield-Robocraze
3D Printer Ramps 1.4 Shield
Rs. 377 Rs. 252
3D Printer Ramps 1.4 Shield-Robocraze
3D Printer Ramps 1.4 Shield-Robocraze

3D Printer Ramps 1.4 Shield

Rs. 377 Rs. 252
Description

RAMPS 1.4 Shield for 3D Printer

The RepRap Arduino-compatible MEGA Pololu Shield, or RAMPS for short. It is designed to fit the entire electronics needed for a RepRap in one small package for low cost. RAMPS interfaces an Arduino-compatible Mega with the powerful Arduino-compatible MEGA platform and has plenty room for expansion. The modular design includes plug in stepper drivers and extruder control electronics on an Arduino-compatible MEGA shield for easy service, part replacement, upgrade-ability and expansion. Additionally, a number of Arduino expansion boards can be added to the system as long as the main RAMPS board is kept to the top of the stack.
Specifications

Package Includes:

  • 1 x 3D Printer Ramps 1.4 Shield

Specifications

Model  RAMPS 1.4 Shield
Dimensions  5 x 4 x 3cms
Weight  15 grams
