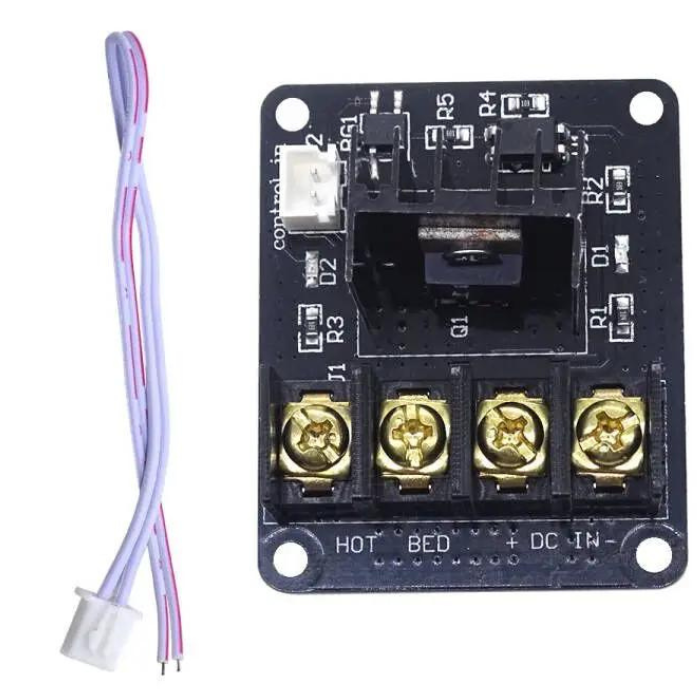

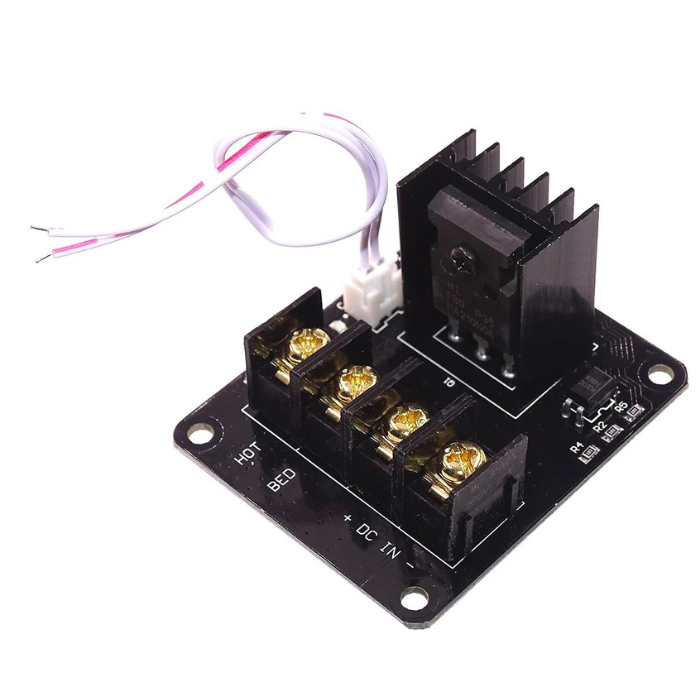

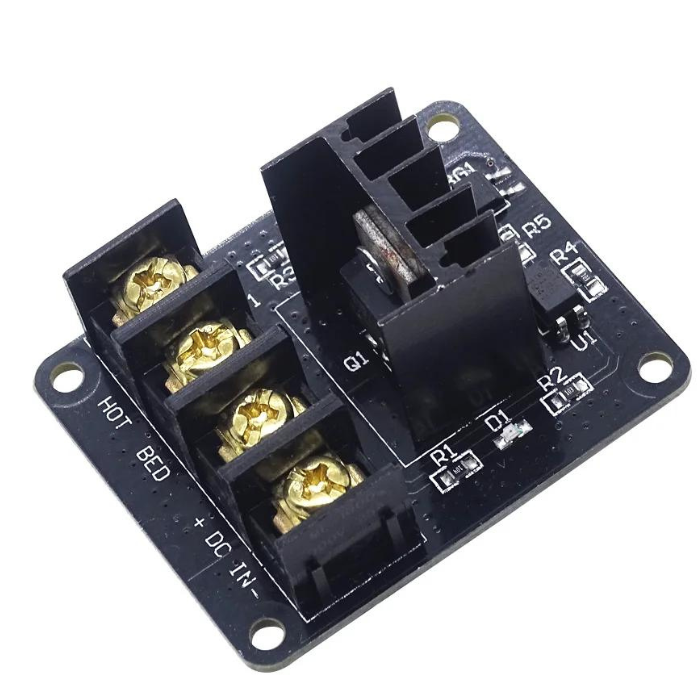

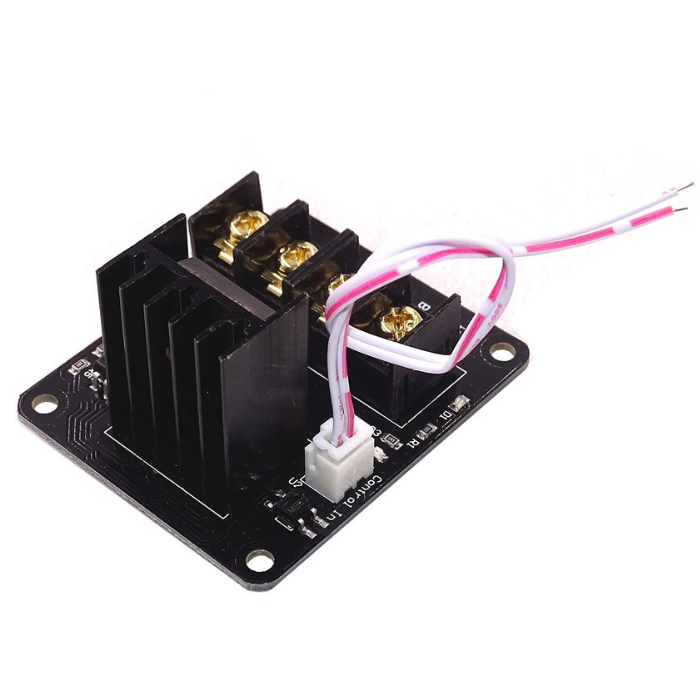

3D printer parts heating-controller MKS MOS25 V1.0 for heat bed extruder MOS module support big current 25A

3D printer parts heating-controller MKS MOS25 V1.0 for heat bed extruder MOS module support big current 25A

3D printer parts heating-controller MKS MOS25 V1.0 for heat bed extruder MOS module support big current 25A

Regular price
Rs. 225
Sale price
Rs. 225
Regular price
Rs. 257
You save Rs. 32
12% off
You save Rs. 32
Unit price
per
  • ⚡ Dispatched within 24 hours
  • 🚚 Free shipping on orders above Rs 500/-
  • 💰 Earn RC Coins on every purchase
  • 🛠️ Dedicated Technical Support Team
  • This module can be used in both Chitu motherboard.
  • This high power module helps your 3D printer equipped with the Chitu controller board (capable of max 15A) become even more powerful.
  • With this addon module to your ChiTu board you can lead the maximum current up to 25A.
  • If you intend to use heated bed with your 3D printer that uses a 12V power supply, then this module is recommended, else it may cause excessive current during times which may burn the connectors on the controller board.

3D printer parts heating-controller MKS MOS25 V1.0 for heat bed extruder MOS module support big current 25A

This is a Heated Bed controller that can control the temperature of any 12V/24V heated bed with a maximum current rating of 25A. Very powerful to withstand higher current than normal ramps or other 3D printer driver. A general add-on heated bed power expansion module for 3D printer Completely solve the hot bed power is too large and the load current issue.

Wiring Diagram:

MKS-MOS25-003

Wiring diagram of MKS MOS25 V1.0 with heatbed and board.

Note: This module under the premise of normal cooling, found at I (Max) = 25A stable work situation, the process of using the current not exceed 25A

Package Includes:

  • 1 x 3D printer parts heating-controller MKS MOS25 V1.0 for heat bed extruder MOS module support big current 25A

Specifications:

Model MKS MOS25
Operating Voltage 12/24V
Max. Current 25A
Max. Power 300W
Compatible RepRap, Creality CR-10, Anet E10, etc.
Dimensions 60 x 50 x 40mm
Weight 35g
