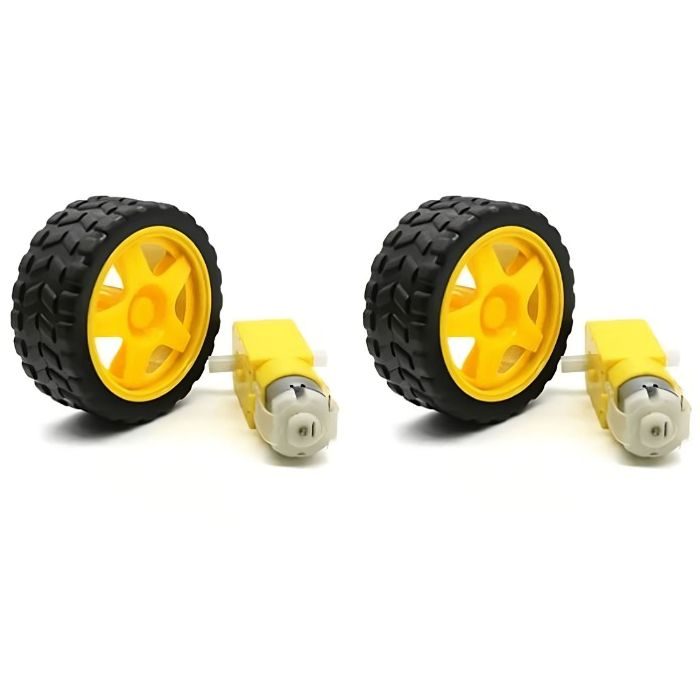

300 RPM Dual Shaft BO Motor + Wheel (2 pcs)

300 RPM Dual Shaft BO Motor + Wheel (2 pcs)

Regular price Rs. 124
Regular price Rs. 210 Sale price Rs. 124
Sale Sold out 41% off Best Price Guaranteed
You save Rs. 86
Incl. GST (No Hidden Charges)
  • These are the 300 RPM Dual Shaft BO Motor + Wheels
  • These BO motors have a relatively low coefficient of friction
  • The wheels are made up of high-quality rubber
  • The wheels are strong and sturdy
  • These dual-shaft BO motors have a low density and low inertia
  • The Operating Voltage is 3V to 12V
  • Rated Speed(After Reduction): 300 RPM
  • This dual-shaft BO motor is lightweight

300 RPM Dual Shaft BO Motor + Wheel

This is the 300 RPM Dual Shaft BO Motor + Wheel  (2 pcs). The BO motor gives good torque and rpm at lower operating voltages, It is the biggest advantage of these single shaft BO motors. The 300 rpm BO motor is the low-cost geared DC Motor. It is an alternative to our metal gear DC motors. The wheel is made up of high-quality rubber which gives maximum traction while operating. The wheel is strong and sturdy as it features a nylon-reinforced plastic rim.

The BO motor with wheels is easy to install and ideally suited for use in a mobile robot car. If you want to make a mobile robot car, for that you will need few essential components like Arduino , batteries , switches , wires and soldering tools

Making a DIY line follower Robot

Applications:

  • DIY Robots
  • 2WD Robot Car

PACKAGE INCLUDES:

  • 2 x 300 RPM Dual Shaft BO Motor-Straight
  • 2 x BO Motor Wheels

SPECIFICATIONS:

Type
Dual Shaft BO Motor
RPM
300
Rated Torque
0.35 Kgcm
No Load Current
40-180mA.
Shaft Diameter (mm)
5.5 (Double D-type)
Shaft Length (mm)
8.5
Operating Voltage(VDC)
3-12
Colour
Yellow
Weight (gm)
30

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.What is a Bo motor?

  • Bo motor (Battery Operated) is a lightweight DC geared motor that produces high torque and rpm at low voltages. These motors are commonly used in robotics applications.

2.What are the uses of dual shaft DC motor?

  • Dual shaft geared motors can be used in robotics. The presence of a shaft on both sides allows the user to use a Wheel and an Encoder at the same time. Furthermore, the user has enough headroom for the motor's orientation and can use it in any orientation required by the application.
