3-State Output Octal D-Type Flip-Flop IC - 74HC374

3-State Output Octal D-Type Flip-Flop IC - 74HC374

Rs. 22
Rs. 26 Rs. 22
Sale Sold out 15% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, 11 people are actively viewing.
Trust Badge 1
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Buffered inputs
  • Common three-state output enable control
  • Three-state outputs
  • Bus line driving capability
  • Balanced propagation delay and transition times
  • Significant power reduction compared to LSTTL logic ICs
  • High noise immunity
  • Direct LSTTL input logic compatibility
  • CMOS Input compatibility
  • 10 LSTTL Load standard outputs
  • 15 LSTTL Load bus driver outputs

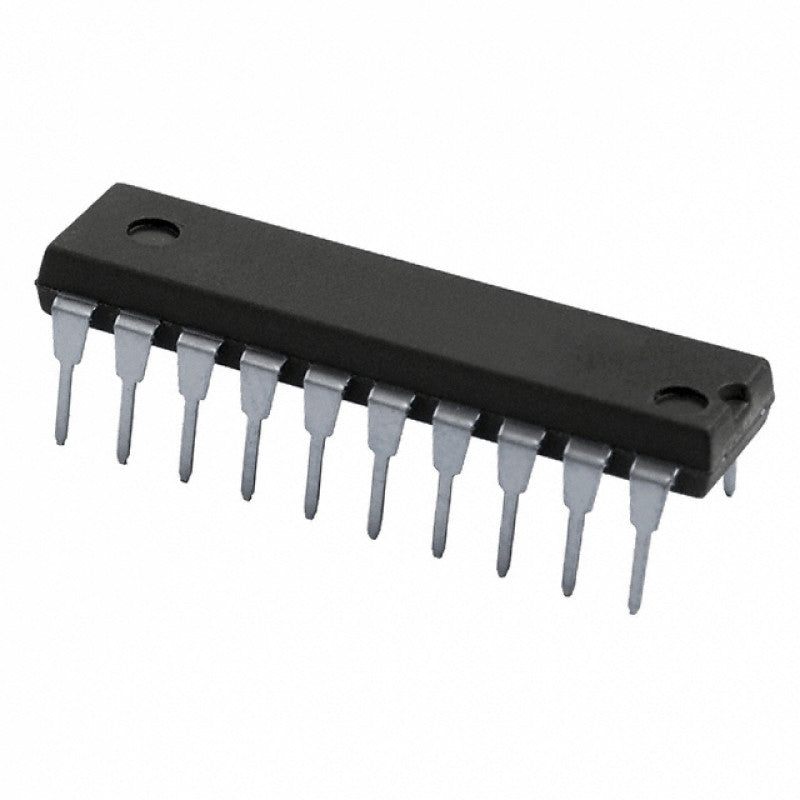

3-State Output Octal D-Type Flip-Flop IC - 74HC374

The 74HC Series 74HC374 is a 20 Pin 3-State output Octal D-Type Flip-Flop IC having 2V to 6V Operating Voltage range with 7.8mA output current and high noise immunity. It has the ability to drive  15  LS-TTL  loads.  Due to the large output drive capability and the 3-STATE feature, these devices are ideally suited for interfacing with bus lines in a bus organized system.

The eight edge-triggered flip-flops enter data into their registers on the LOW to HIGH transition of the clock (CP). The output-enable (OE) controls the 3-state outputs and is independent of the register operation. When OE is HIGH, the outputs are in the high-impedance state.

Pinout:

Pinout of 74HC374 IC

Package Includes:

  • 1 x IC - 74HC374

Specifications:

Operating Voltage Range 2.0 to 6.0 V
Package DIP−20
Input Current 1 uA
Powering Current 80 uA
Output Current at VCC 6 mA
Fan-Out 10 LS-TTL Load
Propagation Delay 14 ns
Temperature Range -65 °C to +150 °C
