30-05-2024
It's works fine.
Works perfectly! Both the display and touchscreen are functional, as shown in the pictures. I tested it with an Arduino Uno and demo libraries downloaded from the internet. It met my requirements.
Robocraze
Arduino 3.2in TFT LCD Display Shield
Arduino 3.2in TFT LCD Display Shield
Regular price
Rs. 1,179
Regular price
Rs. 1,599
Sale price
Rs. 1,179
Unit price
per
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 36 minutes.
Couldn't load pickup availability
BEST COUPON FOR YOU
FLAT ₹ 100/- OFF
RC100
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- This is the 3.2in TFT LCD Display Shield for Arduino
- This TFT display is a 3.2" TFT LCD Screen Module designed for board compatible with arduino.
- The LCD display is features a 240RGB x 320-dot resolution capable with real 262,144 display color.
- This LCD display shield supports MVA (Multi-domain Vertical Alignment) wide view display.
- The Power saving functions: 8-color mode, standby mode, sleep mode

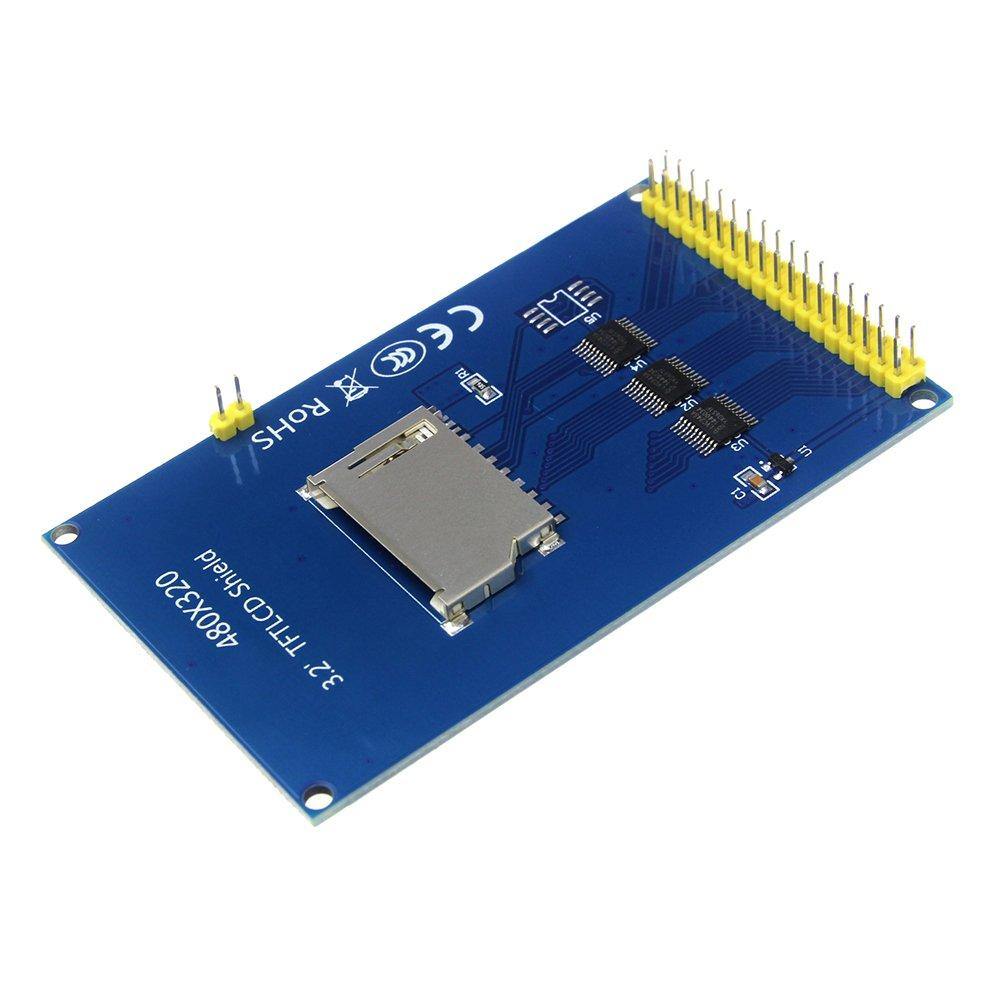

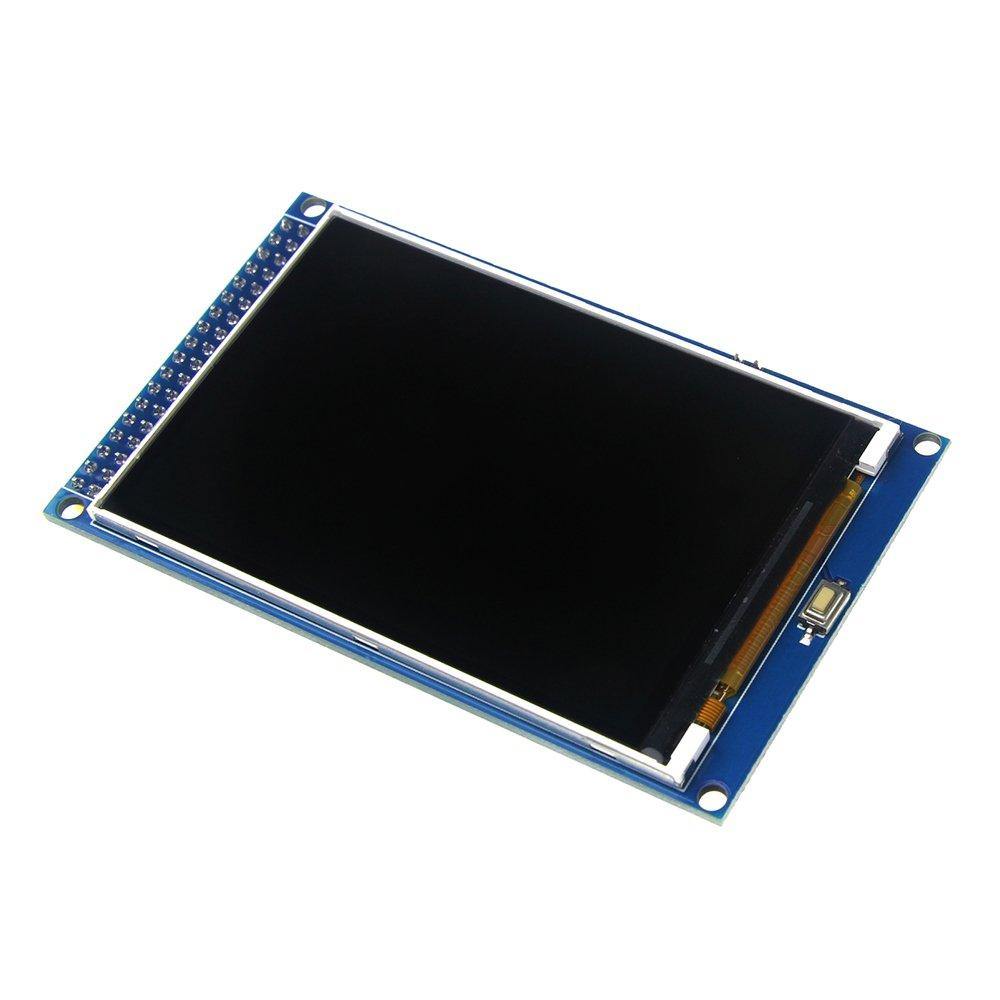

3.2in TFT LCD Display Shield for Arduino

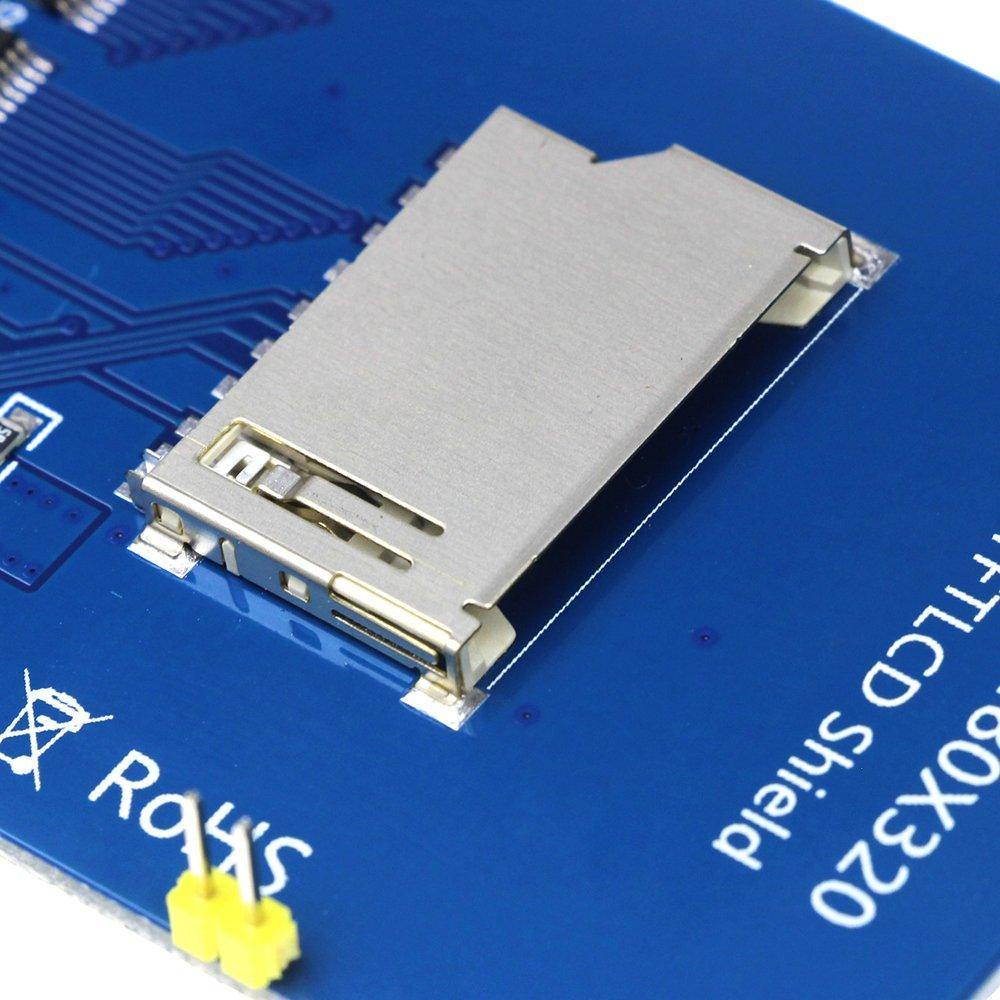

The 3.2 TFT LCD display shield compatible with arduino is a powerful interface and is equipped with an SD card reader. It's powerful features allow multifunctional abilities for your projects. The TFT LCD display is also user friendly as it helps the users with wiring. You can easily just plug the LCD display onto the Mega Board compatible with Arduino.
Precautions while using the 3.2in TFT LCD Display Shield
The control and driving circuit of TFT modules is low voltage and FRIDA micro-power CMOS circuit, can be easily damaged by static, static damage is an irreparable damage, and sometimes human have hundreds of volts of high voltage static electricity, therefore, in handling, assembling and use should be extremely careful to prevent static electricity:
- Using soldering iron or power FRIDA tools must be well grounded and operation, make them without leakage.
- Do not use hand to touch the leads, circuit boards and metal boxes.
- Do not use a vacuum cleaner for cleaning, because it generates strong static electricity;
- When the air is dry, can also generate static electricity, therefore, workshop humidity shall be above RH60%.
- If it is necessary to direct contact it , should enable the human body in the same potential with the modules ,or make human body be well grounded.
- Remove or back in the bags or move locations, also need to be careful to prevent static electricity.
- Don't replace or discard the original packing. Electrostatic damage or man-made damage is not within the scope of the warranty.
Features:
- 3.2-inch TFT LCD: Provides a clear and vibrant display.
- 320x240 Resolution: High resolution for detailed visuals.
- Resistive Touchscreen: Allows for interactive touch-based projects.
- SD Card Slot: Enables storage and display of images or data.
- Compatible with Arduino Boards: Works with various Arduino boards like Arduino Mega and Due.
- Easy Integration: Designed to stack on top of Arduino boards easily.
- Wide Viewing Angle: Ensures good visibility from different angles.
- Backlight Control: Adjustable backlight for better visibility in different lighting conditions.
Applications:
- Personal digital assistants
- Portable instruments
- Point-of-sale terminals
- Pagers
- Touch screen monitors
- Cellular phones
- Weather monitoring system
Package included:
- 1 x 3.2 inch TFT LCD display module
Specifications:
| Display Type | TFT display |
| Display Size | 3.2inch |
| Resolution | 240RGB x 320-dot |
| Operating Voltage | 5V |
| Size | 94mm * 65mm |
| Weight | 50 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
Arduino Uno R3 Original
Regular price
Rs. 1,860
Regular price
Rs. 2,699
Sale price
Rs. 1,860
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Arduino UNO Basic Starter Kit compatible
Regular price
Rs. 902
Regular price
Rs. 1,470
Sale price
Rs. 902
Unit price
per
Incl. GST (No Hidden Charges)
Sold out
3.5in TFT LCD Shield for Arduino
Regular price
Rs. 1,218
Regular price
Rs. 1,508
Sale price
Rs. 1,218
Unit price
per
Incl. GST (No Hidden Charges)
Sale
Found a better price?
Let us know!
We'll try to match the price for you
ADDITIONAL RESOURCES
1. Which is better TFT display or LCD display?
- TFT displays motion more smoothly and responds more quickly than monochrome LCD displays. TFT displays require more electricity to operate than monochrome LCD screens, so they are not only more expensive to purchase in the first place, but they are also more expensive to operate.
2. What do LCD and TFT stand for?
- A thin-film transistor liquid crystal display (TFT LCD) is a type of LCD that uses thin-film transistor technology to improve qualities such as contrast and addressability.
3. What is 3.2in TFT LCD Display Shield?
- The 3.2in TFT LCD display shield for Arduino is a powerful interface that includes an SD card reader. Its powerful features enable your projects to be multifunctional. The TFT LCD display is also user-friendly because it aids users in wiring. You can simply plug the LCD display into an Arduino-compatible mega board.
4. How does TFT LCD work?
- A voltage change applied to liquid crystals changes the transmittance of the panel, which includes the two polarizing plates, and thus the amount of light that passes from the backlight to the display's front surface. Because of this principle, the TFT LCD can produce full-color images.
