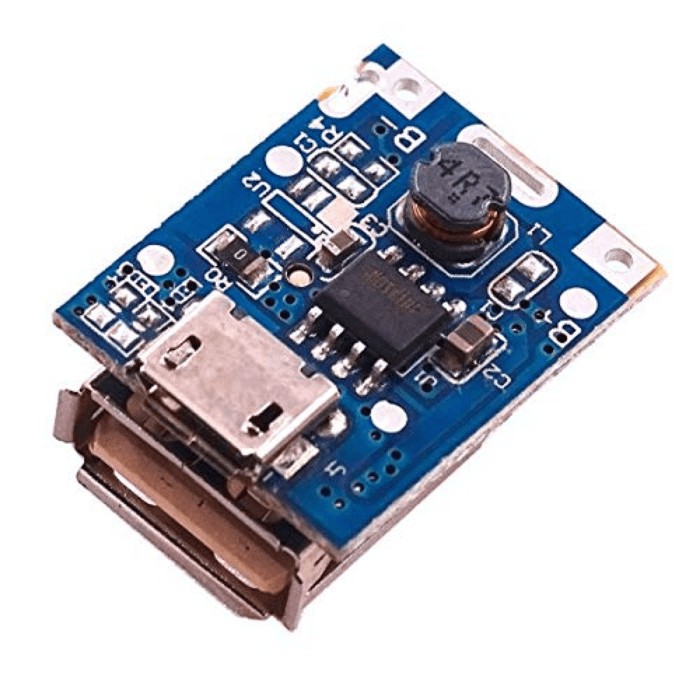

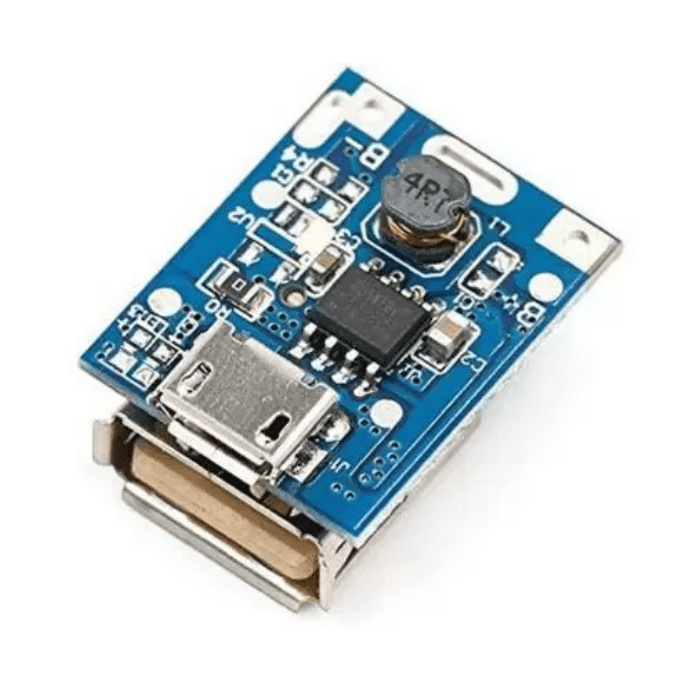

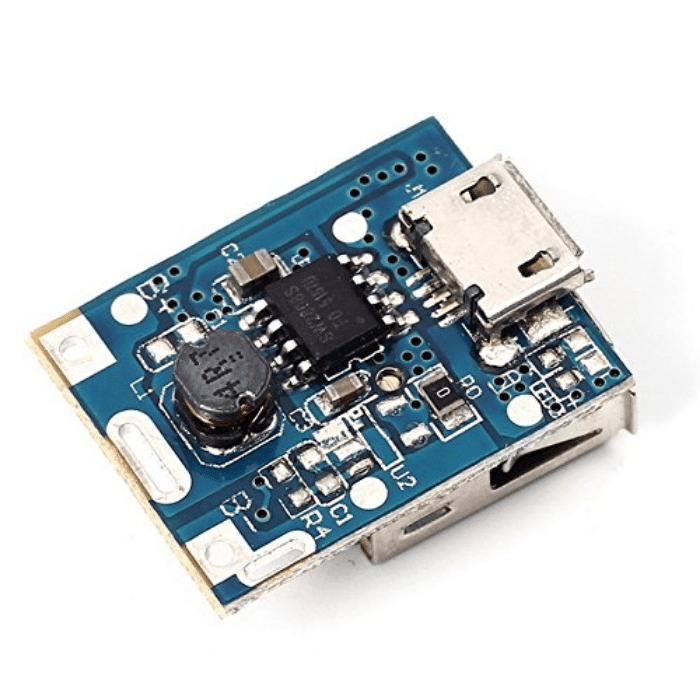

2in1 charge discharge board module DIY 18650 lithium battery Power Mobile Bank

Rs. 22
Rs. 39 Rs. 22
Sale Sold out 44% off
Incl. GST (No Hidden Charges)
Submit your Bulk Enquiry Here
Currently, people are actively viewing.
Trust Badge 1
Same Day Shipping
If Ordered within 6 Hours and 53 Minutes
Trust Badge 2

Technical Support & Easy Returns

Trust Badge 3

Earn RC Coins on Every Purchase

Rewards

Trust Badge 4

Cash on Delivery Available

Cash Delivery

COUPON

RC100 FLAT ₹ 100/- OFF

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

  • Almost all mobile power shell can be easily installed.
  • Intelligent temperature control and overtemperature protection; Integrated Output overvoltage protection, short circuit protection, overload protection, overcharging and over-discharging protection
  • Android, Apple mobile phone charging identification circuit and other mobile power of all functions.
  • High circuit integration, the external circuit is simple, so high reliability.
  • 1A output is not continuous current, it changes according to USB connecting load, automatic current output as per load

2in1 charge discharge board module DIY 18650 lithium battery Power Mobile Bank

5V Step-Up Power Module Lithium Battery Charging Protection Board USB For DIY Charger 134N3P  Lithium Battery Charging Protection Board Boost Converter LED Display USB For DIY Charger 134N3P High-Quality USB iron with Cheap display port video card and Integrated Circuits.

Key Features:

  • BAT Discharging Stop Voltage: 2.9V.

  • Discharging Efficiency:85%(input 3.7V output 5V/1A).

  • Charging and discharging indication.

  • Internally installed charging and discharging power MOS.

  • Preset 4.2V charging voltage, precision ±1%.

  • Max 8uA standby current.

  • Integration charging management and discharging management.

  • Intelligent temperature control and overtemperature protection.

  • Integration output overvoltage protection, short circuit protection, overload protection.

  • Integration overcharging and over-discharging protection.

  • Support trickle mode and zero voltage charging.

  • When charging: red light flashing.

  • Fully charged: Red light glows for a long time.

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 4

Package Includes:

  • 1 x 2in1 charge discharge board module

Specifications:

Input Supply voltage (V) 3.7 ~ 5.5
Charging Current (A) 1 (max)
Output voltage (V) 5
Output Current (A) 1
Length (mm) 23
Width (mm) 17.5
Height (mm) 12
Weight (gm) 3
