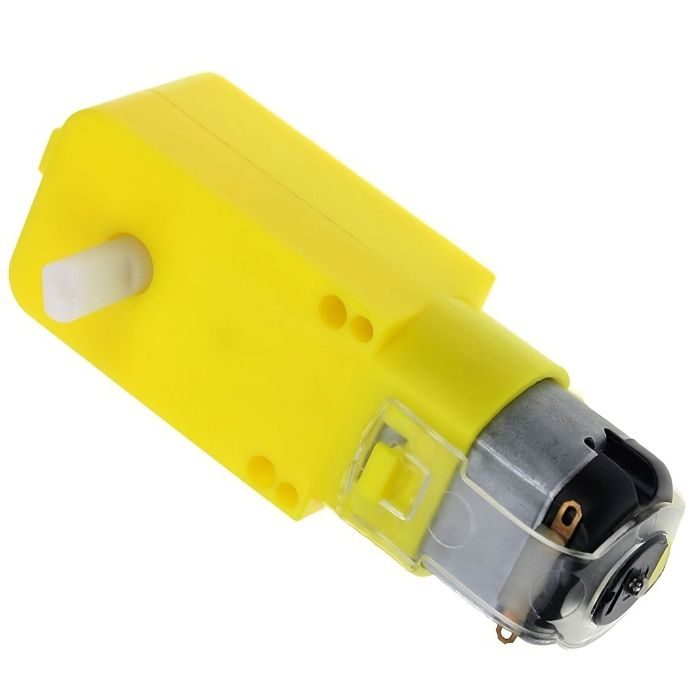

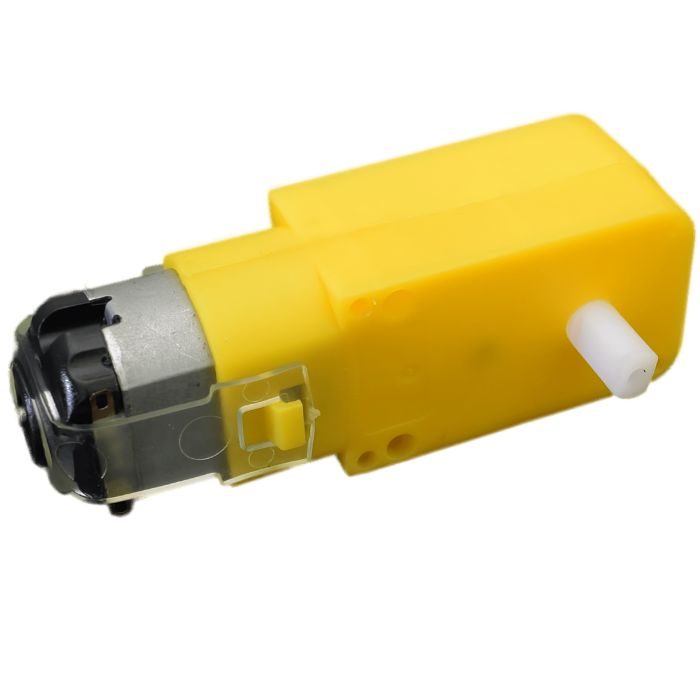

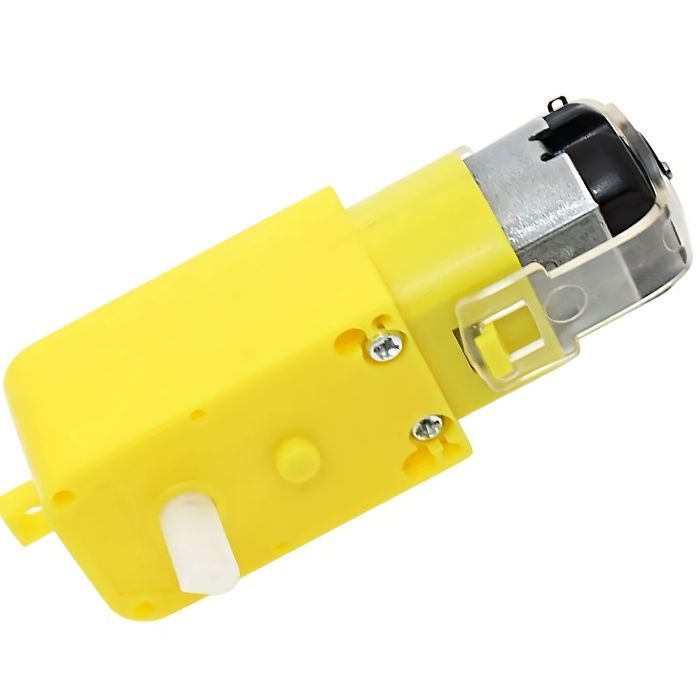

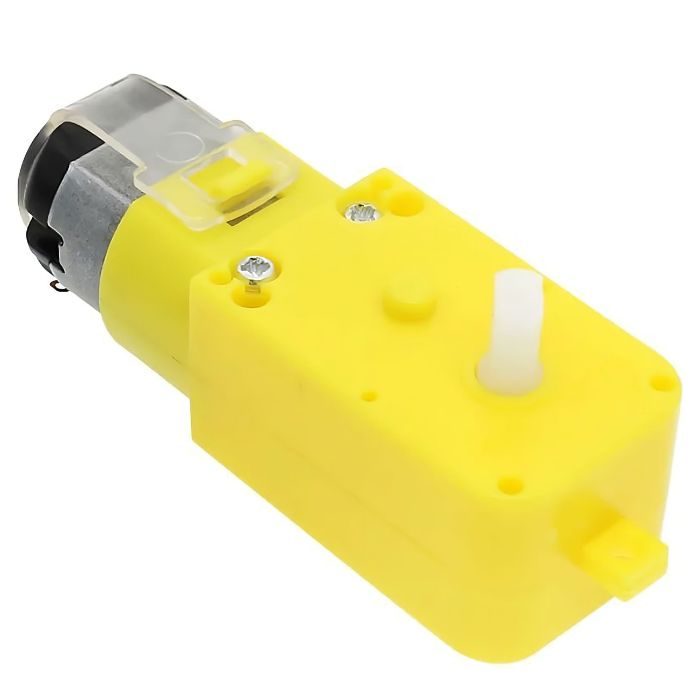

200 RPM Single Shaft BO Motor Straight

200 RPM Single Shaft BO Motor Straight

Regular price Rs. 58
Regular price Rs. 74 Sale price Rs. 58
Sale Sold out 22% off Best Price Guaranteed
You save Rs. 16 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

  • This is the 200 RPM straight single shaft BO motor
  • This BO motor capability to absorb shock and vibration as a result of elastic compliance.
  • This BO motor ability to operate with minimum or no lubrication, due to inherent lubricity.
  • The relatively low coefficient of friction.
  • The Operating Voltage is 3V to 12V
  • Rated Speed(After Reduction): 200 RPM
  • This single-shaft BO motor is lightweight

200 RPM Single Shaft BO Motor Straight

This is the 200 rpm straight single shaft BO motor, which gives good torque and rpm at lower operating voltages, It is the biggest advantage of these BO motors. Small shaft with matching wheels gives an optimized design for your application or robot. Mounting holes on the body & light weight makes it suitable for in-circuit placement.

This BO motor is the low-cost geared DC Motor. It is an alternative to our metal gear DC motors. It comes with an operating voltage of 3-12V and is perfect for building small and medium robots. This BO motor is ideal for DIY enthusiasts. This motor set is inexpensive, small, easy to install, and ideally suited for use in a mobile robot car. If you want to use this 200 rpm straight single shaft BO motor in your projects , for that you will need few essential components like batteries , switches , wires , soldering tools and wheels.

Features:

  • Cost-effectiveness of the injection-molding process.
  • Elimination of machining operations.
  • Low density: lightweight, low inertia.
  • Uniformity of parts.
  • Capability to absorb shock and vibration as a result of elastic compliance.
  • Ability to operate with minimum or no lubrication, due to inherent lubricity.
  • The relatively low coefficient of friction.
  • Corrosion-resistance; elimination of plating, or protective coatings.
  • The quietness of operation.
  • Tolerances often less critical than for metal gears, due in part to their greater resilience.

Package Includes:

  • 1 x 200 RPM Single Shaft BO Motor Straight

Specifications:

Shaft length  7 mm
Shaft Diameter  5.5 mm
Size  55 x 48 x 23 mm
Operating Voltage  3V - 12V
Current (without loading)  40-180mA
RPM  200 rpm
Output Torque  0.55 kg cm
