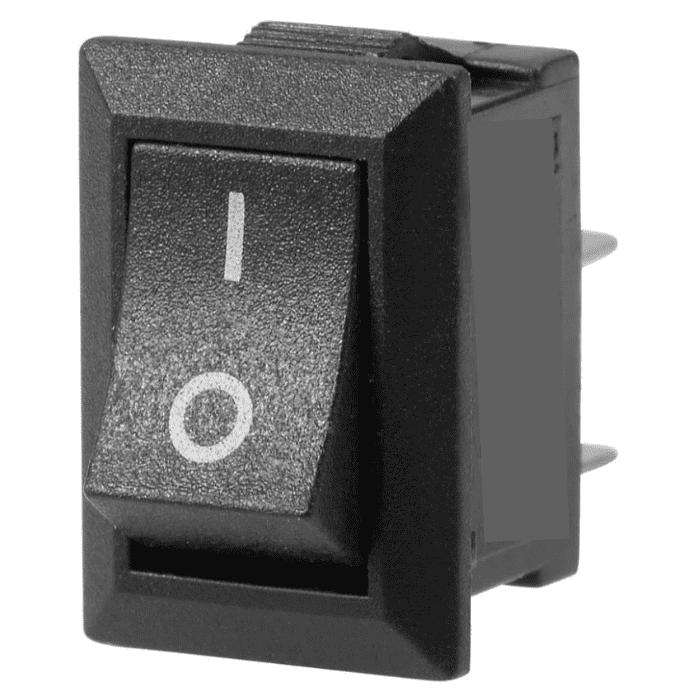

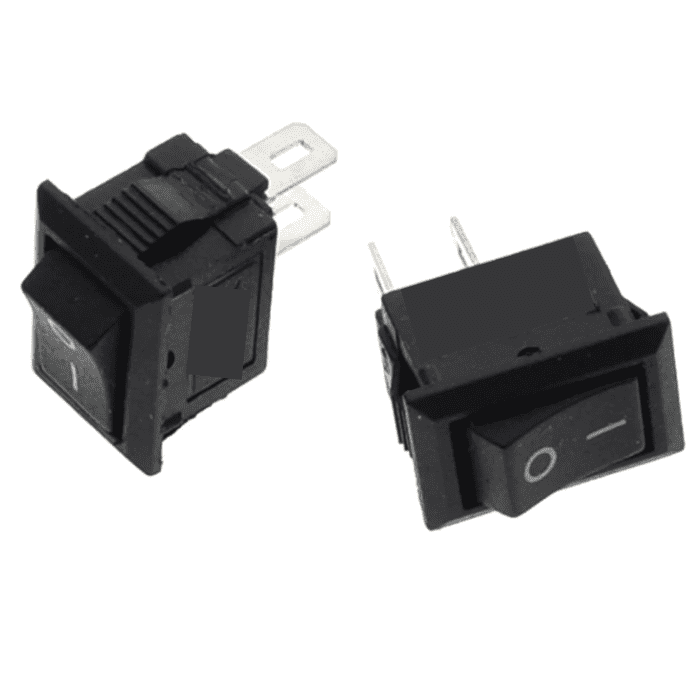

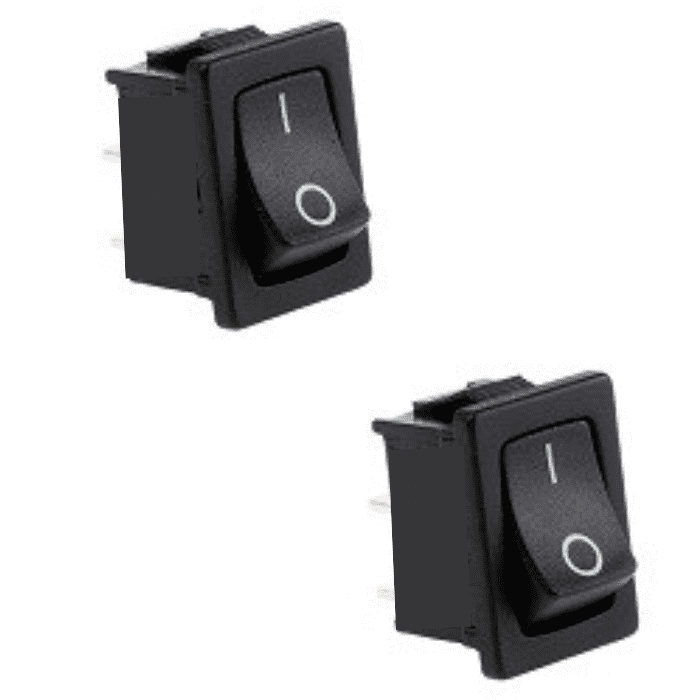

2 Pin Mini On-Off SPST Rocker Switch (19 x 13mm) - Pack of 2
Couldn't load pickup availability
This is a basic On/Off SPST Rocker Switch for your projects. No screws required, it simply clips into place. This is a two-pin switch that is easy to use, simply cut one of the two power wires and solder each of the ends to the unit.
This 6A 250V AC KCD1-108 On-Off Rocker Switch is perfect for controlling power to electronic circuits, robots, etc. We have carefully selected the best On/Off Rocker Switch with a high load rating and the perfect size to for all general-purpose On/Off applications. This rocker switch has two positions – one on position and another off position. The rocker switch stays in the one till it is pressed and changed to the other position. It has two large pins on the backside to which wires can be soldered and connected to your circuit.
The KCD1-108 On/Off Rocker Switch is the simplest and easiest power control switch for your project. It comes with tabs on the top and bottom which secure it onto an enclosure without the need for any screws. On and Off positions are clearly marked which help users identify the current switch position during usage.
This switch is great to turn on/off and control DC Motors in Robotics, Car and Motorcycle DC Motors, DC Motors in Industrial Machines, Water Dispensers, etc. We have sourced the best switch with a high load rating of 6A at 250VAC which should be suitable for most applications.
| Switch Type |
SPST |
| Rated Voltage (V) |
250 |
| Rated Current(A) |
6 |
| Contact Resistance |
?50 M? |
| Insulation Resistance (M?) |
100 |
| Dielectric Strength |
1500VAC, 1 Minute |
| Length (mm) |
19x12x 13 |
| Weight (gm) |
3 each |
SPST
250
6
?50 M?
100
1500VAC, 1 Minute
19x12x 13
3 each
