1K ohm 16mm Rotatory Variable Potentiometer (Pack of 5)

1K ohm 16mm Rotatory Variable Potentiometer (Pack of 5)

Regular price Rs. 74
Regular price Rs. 98 Sale price Rs. 74
Sale Sold out 24% off Best Price Guaranteed
You save Rs. 24 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

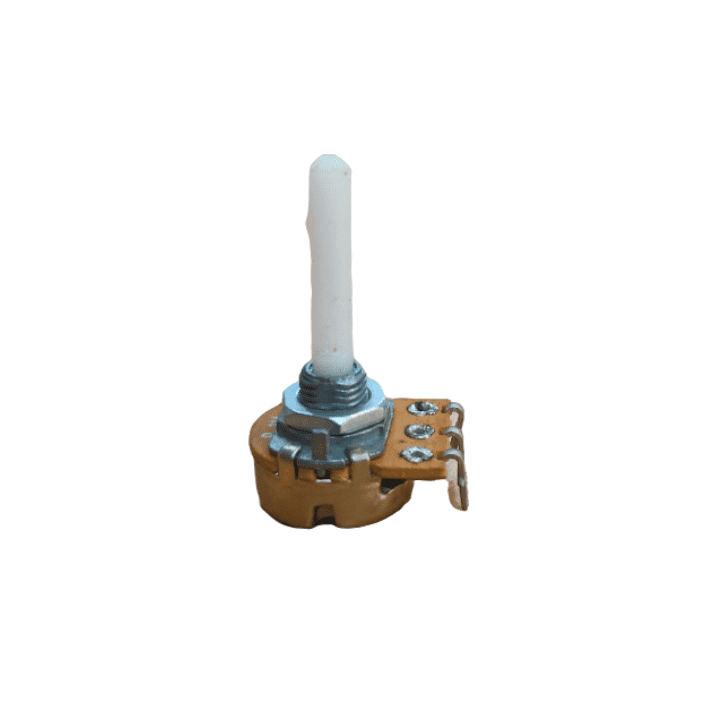

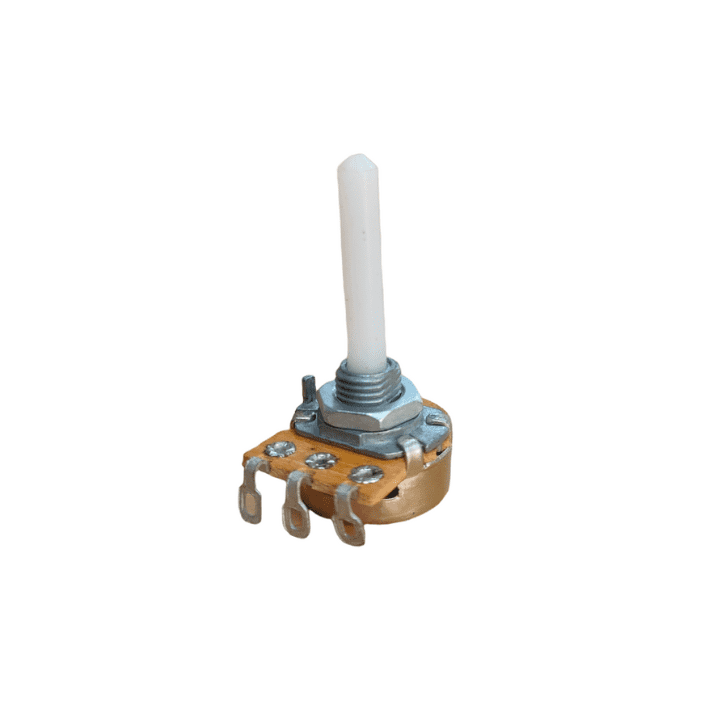

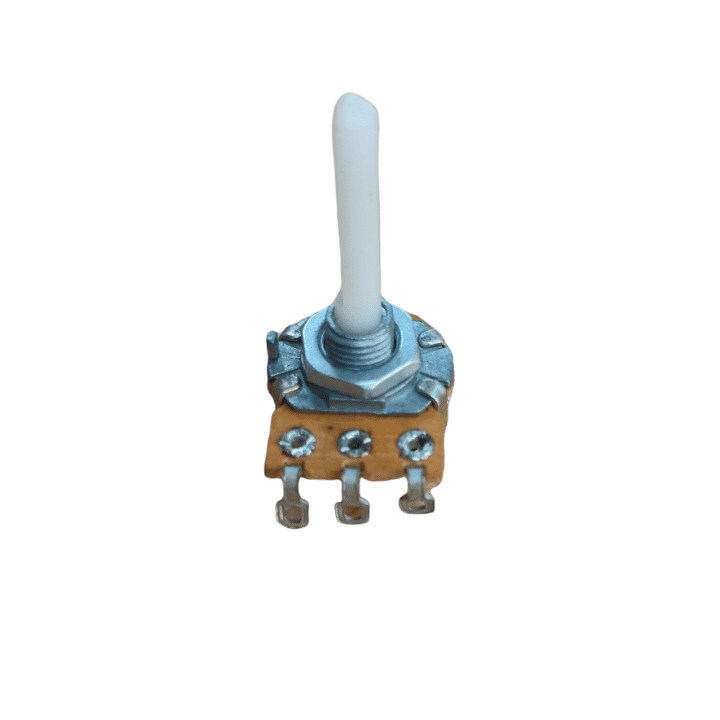

  • This is a 16mm size 1k ohm rotary potentiometers (plastic shaft).
  • It has a tolerance of 20%
  • Turn the pot and the resistance changes. Connect vcc to an outer pin, gnd to the other, and the center pin will have a voltage that varies from 0 to Vcc depending on the rotation of the pot.
  • This is used for adjusting various parameters like voltage, current, etc. in an electronic circuit.

1K ohm 16mm Rotatory Variable Potentiometer

Potentiometers are very useful in changing the electrical parameters of a system. It is a single turn 1K Potentiometer with a rotating knob. These potentiometers are also commonly called as a rotary potentiometer or just POT in short. These three-terminal devices can be used to vary the resistance between 500 to to 1k ohms by simply rotating the knob. A potentiometer knob can also be used along with this POT for aesthetic purposes.

This is a carbon track, single turn, adjustable resistances, of value 1KOhm Knob potentiometer. It is meant for mounting on panel and is supplied complete with a knob. The knob is affixed on the plastic spindle of the potentiometer and turns the spindle which changes the resistance. The variation of resistance is linearly proportion to the degree of rotation. Potentiometer, in electronic parlance, is a manually variable resistance. Because its most common consumer application is for controlling volume/tone of sound in broadcast receivers, it is loosely referred to as "volume" or ''tone''. It is not a meter with scale and needle. Potentiometers look different depending on size, power handled, application, value and type of material used. There is, however, a common feature-there is wiper which sweeps over a length of resistive material. The two ends of the resistive material as also the wiper are available to the user as electrical terminations. The user gets a variable resistance between the wiper and the two ends.

check out : 10K Pot potentiometer with Knob

Package Includes:

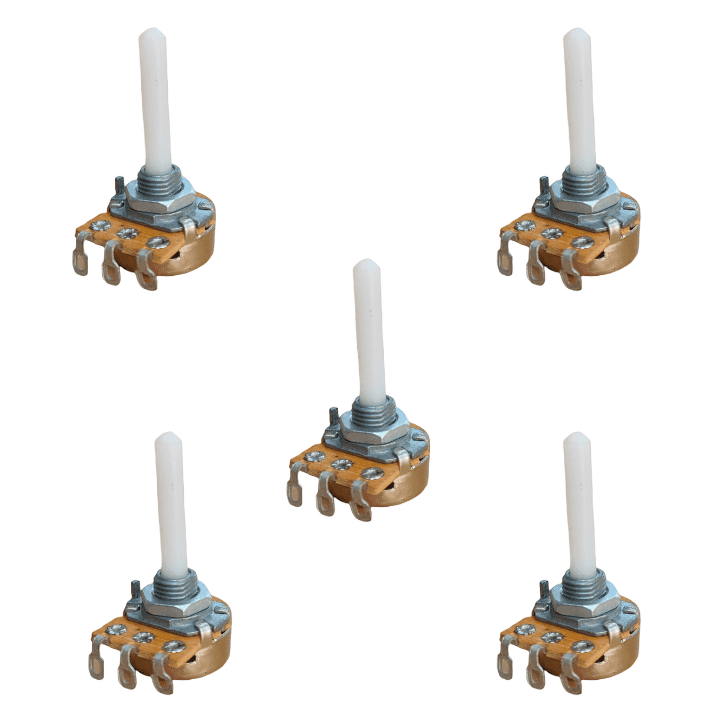

  • 5 x 1K ohm 16mm Rotatory Variable Potentiometer

Specifications:

Resistance (Ω)  1k
Total rotational angle 300° ± 5°
Withstand voltage for 1 minute or more at AC 500V
Total resistance tolerance ± 20% (more than 1MΏ ± 30%)
