- 170° wide-angle mini FPV camera with 600TVL resolution and audio
- Compatible with Mini 200 / 250 / 300 quadcopters
- Supports PAL (sharper text display) and NTSC (smoother playback) video formats
- Captures at 1280 x 960 resolution with ~50 fps frame speed
- Compact, lightweight, and works efficiently in low-light conditions
- Operates on 3.7–5V (100mA) power, ideal for FPV drone builds

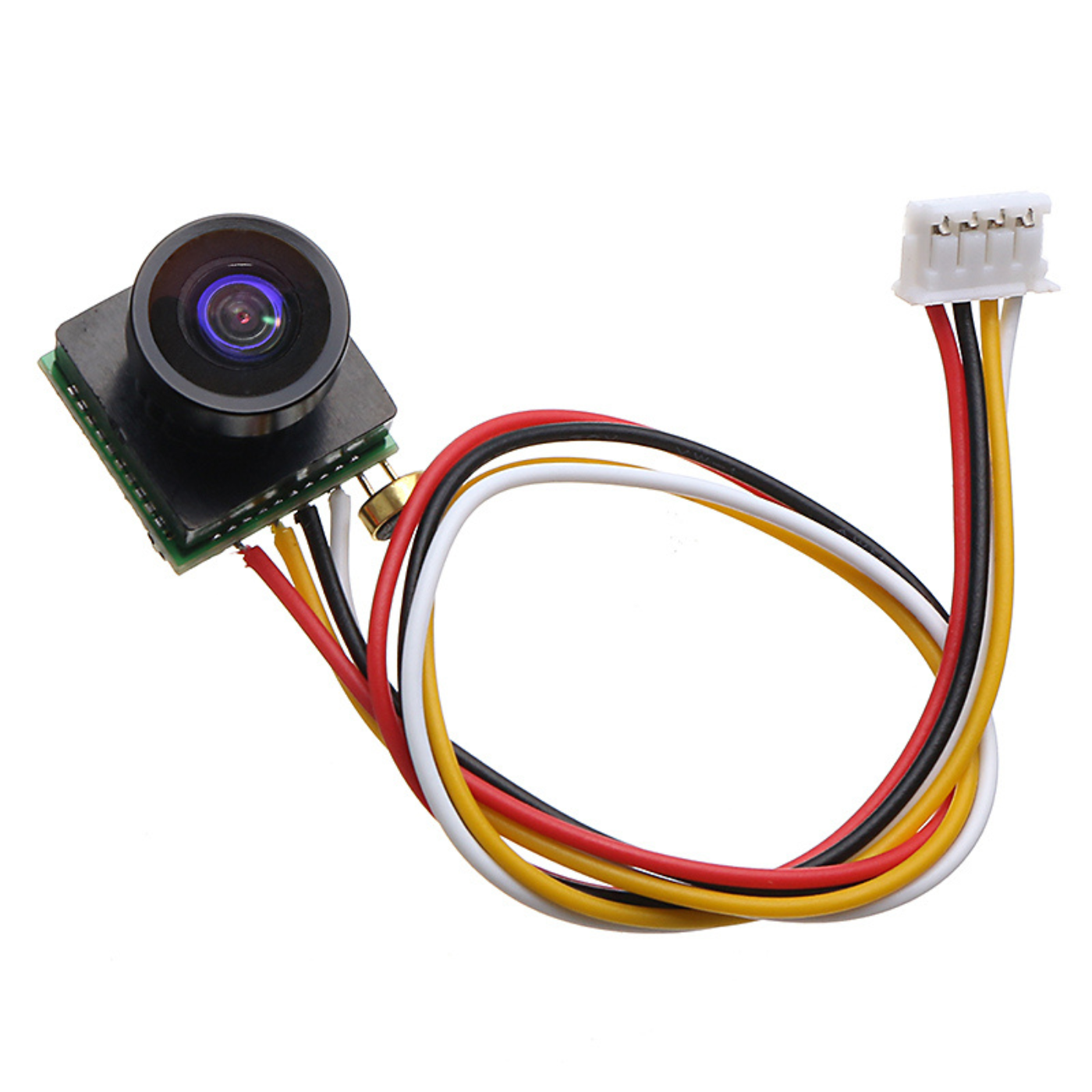

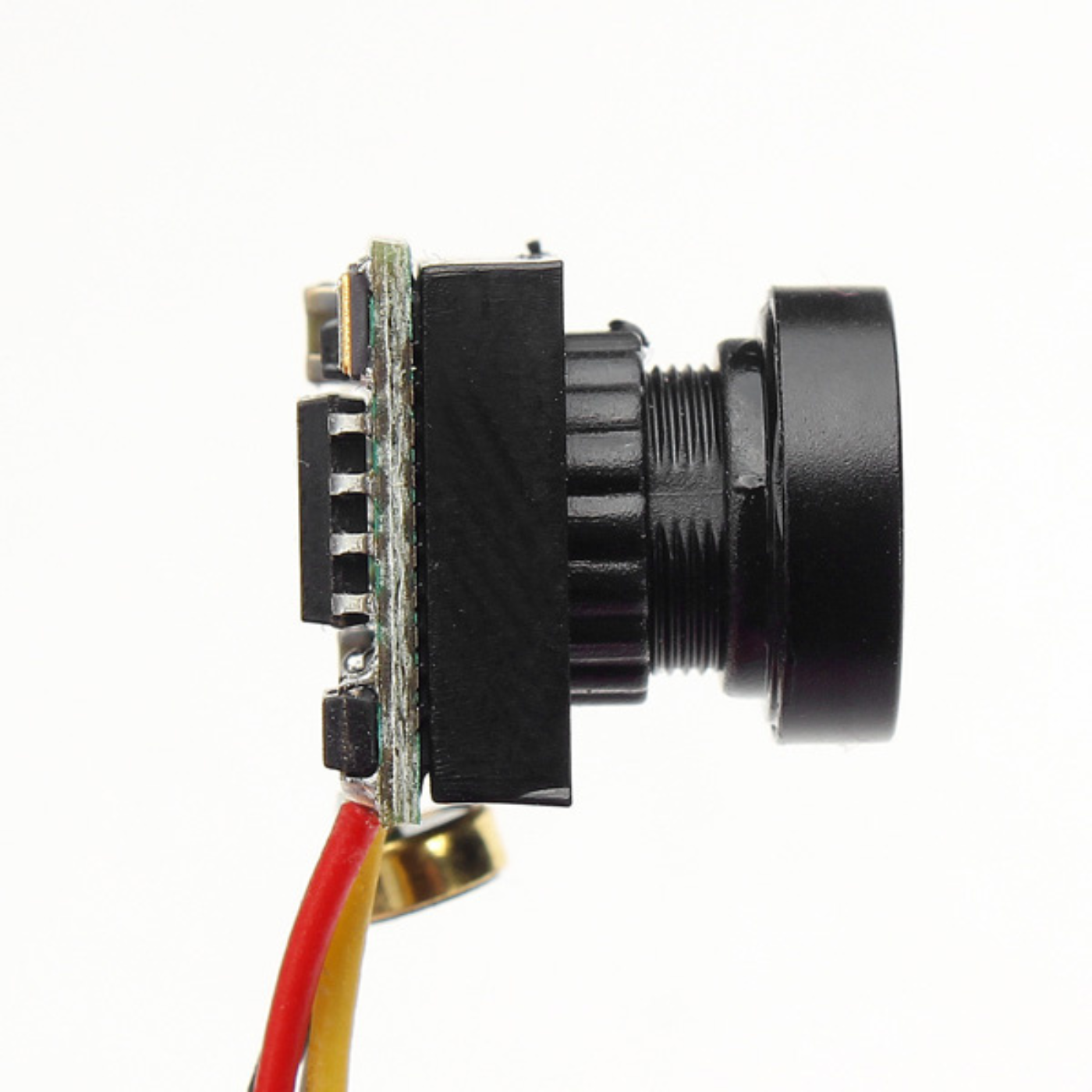

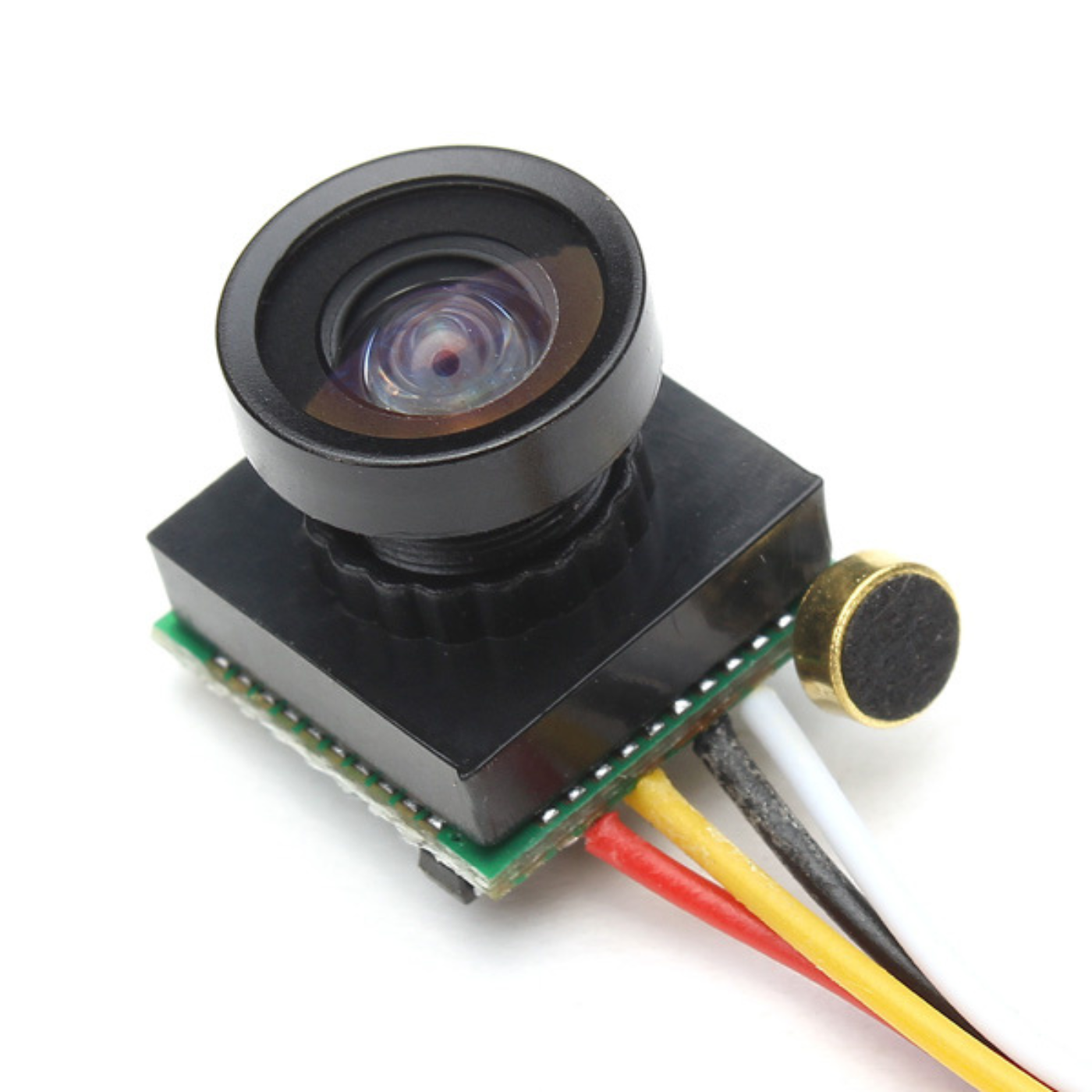

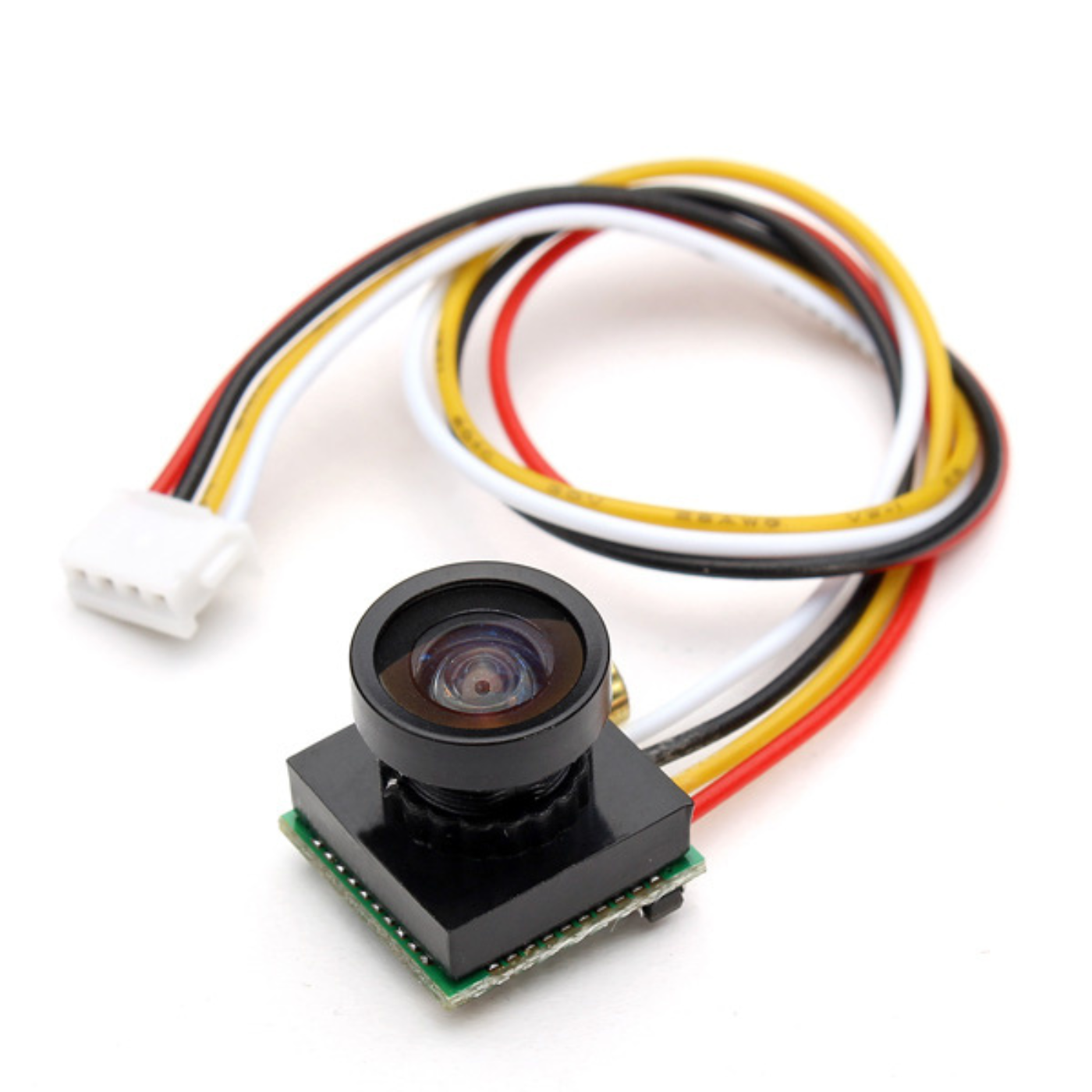

170 Degree Mini FPV AV Drone Camera 600TVL with Audio for Mini 200/250/300 Drone
The 170 Degree Mini FPV AV Drone Camera 600TVL with Audio is a must-have for any drone enthusiast looking to enhance their aerial experience.
Designed for Mini 200/250/300 drones, this compact FPV camera delivers clear and stable video with a 600TVL resolution and a wide 170° field of view, ensuring you capture every angle with precision.
Supporting both PAL and NTSC video formats, it offers flexibility between sharper text display and smoother video playback.
With its lightweight build, 1280 x 960 recording resolution, ~50 fps frame speed, and excellent low-light performance, this FPV camera is perfect for aerial photography, FPV racing, remote inspections, and other drone applications.
Operating efficiently on just 3.7–5V at 100mA, it’s an ideal choice for building or upgrading your FPV drone setup.
Features:
- Illumination: 0.5 Lux.
- Format: PAL/NTSC
- Audio Lens: Wide-angle. 1.8 mm (170 degrees).
- Sensitive area: 3.5964 x 2.7084 mm
- Dimensions: 648 pixels horizontally and 488 pixels vertically.
- Horizontal scanning frequency: 15.625 kHz
- Vertical frequency: 50Hz, level: 15.7343 kHz.
- Vertical: 60 Hz.
- Electronic Shutter 1/50-1/80000 (sec) 1/60-1/80000 (sec)
- Standard lens: 1.8 mm.
- Size of the lens: M10.
- Power: DC5V ± 10%; 70mA ± 10%
- The operating temperature range is -10 °C to 60 °C with a maximum humidity of 95%.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
- 1 x 170 Degree Mini FPV AV Drone Camera 600TVL
Specifications:
| Specification | Details |
|---|---|
| Item Type | FPV Camera |
| Resolution (TVL) | 600 |
| Image Sensor | 1/4 CMOS |
| Minimum Illumination | 0.1 Lux / F1.2 |
| Resolution | 1280 x 960 |
| Video Output | 1.0Vp – P75Ω |
| S/N Ratio (dB) | 48 |
| Operating Temperature (°C) | -10 to 50 |
| Dimensions (L x W x H) mm | 12.5 x 12.5 x 17 |
| Weight (g) | 4 |
