- The I2C interface simplifies wiring and reduces IO port use
- Address 0x27 for simple configuration.
- Clear and readable 16x2 character display
- The text color black on a green background.
- Adjustable green LED
- It operates at 5V.

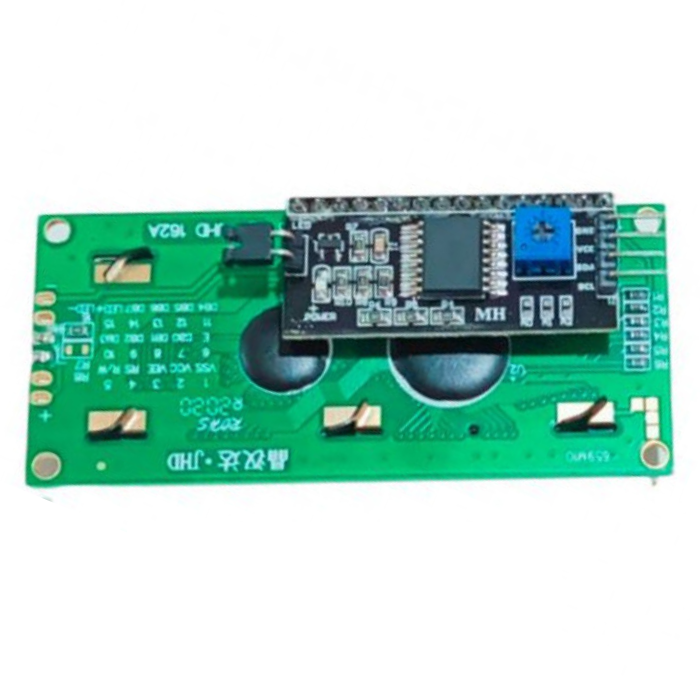

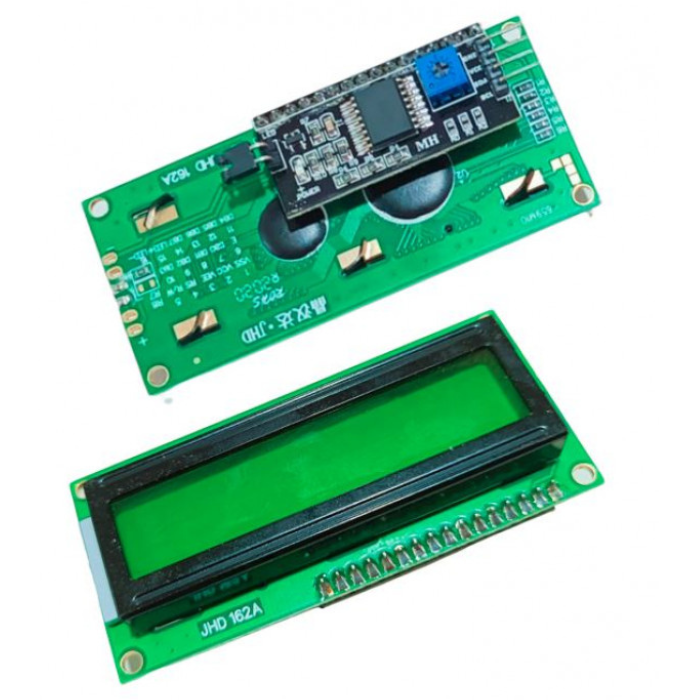

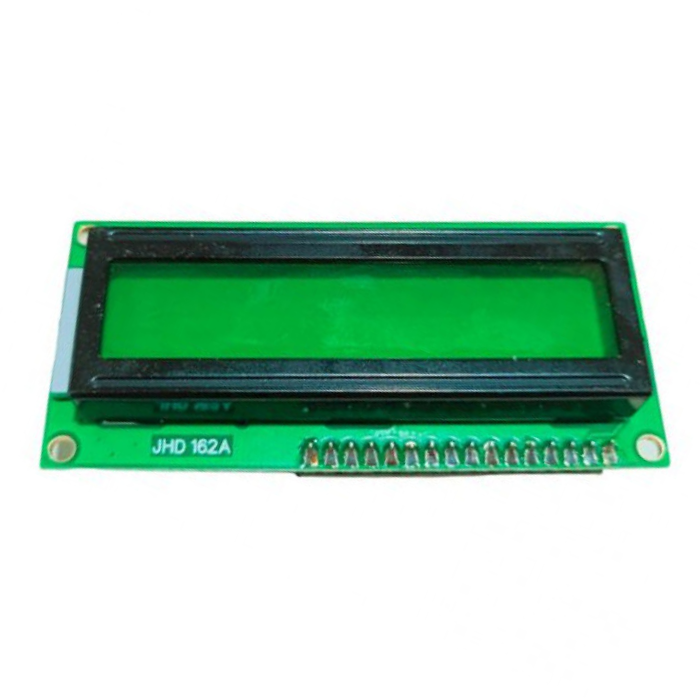

16x2 Green LCD with Soldered I2C/IIC Interface
If you need an easy-to-use display for your project, the 16x2 Green LCD with Soldered I2C/IIC Interface is a great option. It shows 16 characters across 2 lines with a clear green backlight, so you can read it easily.
It already has an I2C adapter soldered on. This means you don’t have to use up many pins on your Arduino. You only need to connect four pins: VCC, GND, SDA, and SCL. It works with both 5V and 3.3V systems, making it flexible for different projects.
You can use it to display simple text, numbers, or data from sensors like temperature. It’s designed to make your project simpler and more effective.
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
Found a better price?
Let us know!
We'll try to match the price for you
Package Includes:
1 x 16x2 Green LCD with Soldered I2C/IIC Interface
Specifications:
| Specification | Details |
|---|---|
| Interface | I2C |
| Interface Address | 0x27 |
| Character Size | 16 characters wide, 2 rows |
| Character Color | Black |
| Backlight Color | Green |
| Backlight Features | Single LED, dimmable with resistor or PWM |
| Supply Voltage | 5V |
| Advantages | Reduces IO port usage, flexibility in connections, and less wiring |
