14 Pin Narrow IC Base - Pack of 5

Rs. 19
Rs. 29
Rs. 19
Save Rs. 10
Incl. GST (No Hidden Charges)
Please hurry! Only 34 left in stock
SKU: TIFCB1353
  • The socket has a small height above the circuit board, which allows it to be used in applications where space is limited.
  • The socket is designed to withstand a high number of insertions and removals, making it suitable for use in applications where the IC or other device may need to be removed and replaced frequently.
  • It has pins that are easy to insert and remove, making it easy to connect and disconnect an IC or other device from a circuit board.
  • The socket is designed to be compatible with a variety of ICs and other devices, making it a versatile component that can be used in a wide range of applications.
BEST COUPON
RC100
COPY CODE
When you shop for ₹ 2,500 required. Applicable at Checkout.
*Coupons are not applicable on Original Boards and Kits

Why Buy From Robocraze

Free shipping on Orders Above Rs 999/-

Technical Support & Easy Returns

Same Day Shipping

Earn RC Coins on Every Purchase

Cash on Delivery Available

Robocraze Academy Limited Time Offer

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here

File(s) size limit is 20MB.

Captcha challenge – enter the characters shown in the image
Reload Captcha
Robocraze Academy Limited Time Offer
14 Pin Narrow IC Base (Pack of 5) – 14-pin narrow IC socket base for PCB assembly & testing. -Robocraze
14 Pin Narrow IC Base - Pack of 5
Rs. 29 Rs. 19
14 Pin Narrow IC Base (Pack of 5) – 14-pin narrow IC socket base for PCB assembly & testing. -Robocraze
14 Pin Narrow IC Base (Pack of 5) – 14-pin narrow IC socket base for PCB assembly & testing. -Robocraze
14 Pin Narrow IC Base (Pack of 5) – 14-pin narrow IC socket base for PCB assembly & testing. -Robocraze

14 Pin Narrow IC Base - Pack of 5

Rs. 29 Rs. 19
Description

14 Pin Narrow IC Base - Pack of 5

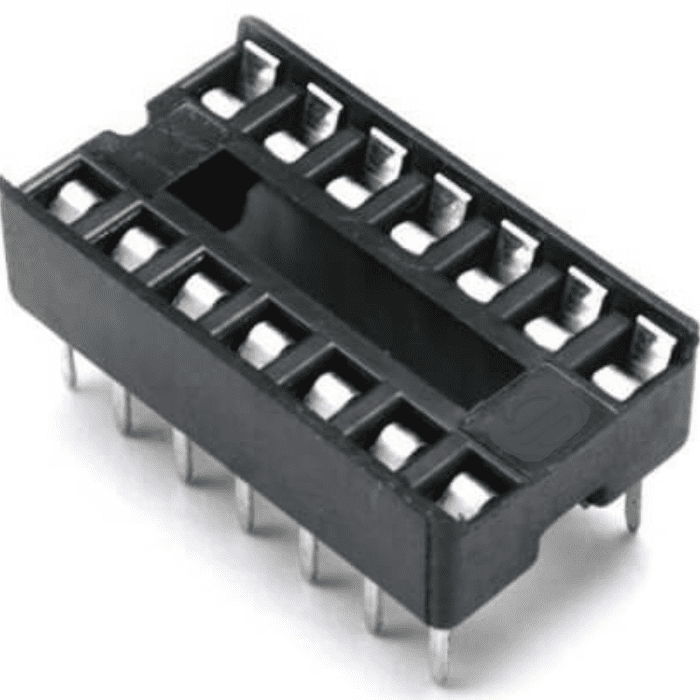

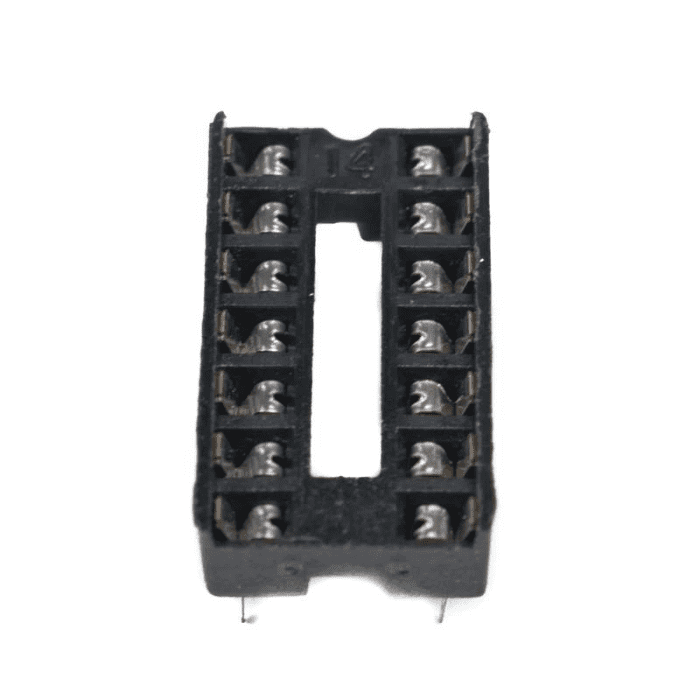

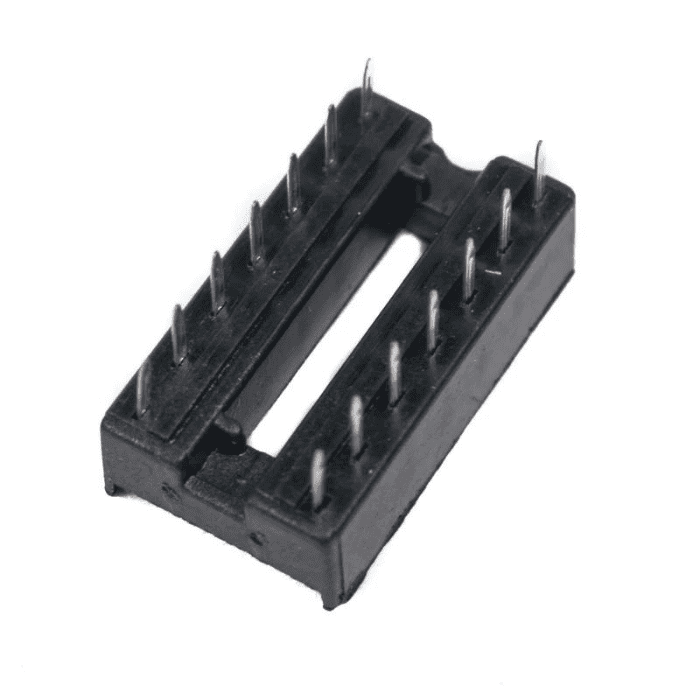

A 14-pin Narrow IC Base is an electronic component used to connect an integrated circuit (IC) or other devices to a circuit board. It is designed to have a low profile, meaning that it has a small height above the circuit board, which allows it to be used in applications where space is limited.
The 14-pin IC Base has 14 pins, which are used to make electrical connections between the IC or device and the circuit board. It is commonly used in applications such as prototyping and repair, where it is necessary to remove and replace ICs or other devices easily.

The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming

Applications:

  • Hobby projects
  • Production testing
  • Prototyping

Also check 16 Pin Narrow IC Base, available in a pack of 5, The IC base has a low profile design with a height of 0.6 inches or less above the circuit board. It features a molded notch for proper orientation and easy insertion and removal of ICs. The socket is suitable for educational settings, prototyping, production testing, and hobby projects.

Specifications

Package Includes:

  • 5 x 14 Pin Narrow IC Base

Specifications:

Number of pins 14
Pitch  0.1 inch
Row spacing 0.3 inch
Height above the circuit board  0.6 inch or less
Contact resistance 20 milliohms per pin
Current rating 1 amp per pin
Operating temperature -55°C to +125°C
Lifetime 20,000 insertions
Dimensions 10x15x15mm
Weight 5g
FAQ

1.What is 14 pin IC base?

  • The 14-pin dual in-line package (DIP) socket, also known as the DIP14 socket, is a very useful socket in the field of digital electronics because many 74 series logic integrated circuits (IC) have a 14-pin outline.
