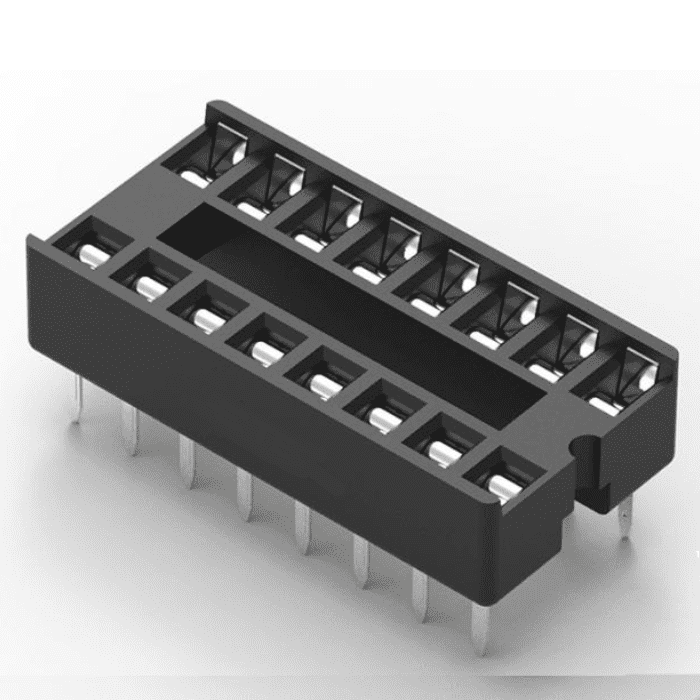

16 Pin Narrow IC Base - Pack of 5

16 Pin Narrow IC Base - Pack of 5

Regular price Rs. 30
Regular price Rs. 39 Sale price Rs. 30
Sale Sold out 23% off Best Price Guaranteed
You save Rs. 9 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively viewing.
Product will be SHIPPED TODAY, if ordered within 14 hours and 26 minutes.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here
  • Molded notch for proper orientation.
  • The socket has pins that are easy to insert and remove, making it easy to connect and disconnect an IC or other device from a circuit board.
  • A 16-pin low profile socket can be used in educational settings to allow students to easily connect and disconnect ICs and other devices from a circuit board as they learn about electronics.
  • The socket has contacts that provide reliable electrical connections between the IC or other device and the circuit board.
Trust Badge 1 Trust Badge 2 Trust Badge 3

16 Pin Narrow IC Base - Pack of 5

A 16-pin Narrow IC Base is an electronic component used to connect an integrated circuit (IC) or other devices to a circuit board. It is designed to have a low profile, meaning that it has a small height above the circuit board, which allows it to be used in applications where space is limited.

The 16 pin IC Base has 16 pins, which are used to make electrical connections between the IC or device and the circuit board. It is commonly used in applications such as prototyping and repair, where it is necessary to remove and replace ICs or other devices easily.

Applications:

  • Prototyping
  • Production testing
  • Hobby projects

Also check 18 Pin Narrow IC Base, available in a pack of 5 on Robocraze. the IC base is designed for 18-pin narrow ICs. It features a molded notch for proper orientation, ease of insertion and removal of ICs, and serves as a removable IC holder. The base is useful when the IC is temperature-sensitive, protecting it from damage caused by soldering iron heat.

Package Includes:

  • 5 x 16 Pin Narrow IC Base

Specification:

Number of pins 16
Pitch  0.1 inch
Row spacing 0.3 inch
Height above the circuit board 0.6 inch or less
Contact resistance 20 milliohms per pin
Current rating 1 amp per pin
Operating temperature -55°C to +125°C
Lifetime 20,000 insertions
Dimensions 17x10x15mm
Weight 5g

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details
Trust Badge 1 Trust Badge 2 Trust Badge 3

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1.What is 16 pin IC base?

  • A 16 pin IC base is a holder for 16 pin ICs that can be soldered directly to the PCB. When necessary, the IC can be removed from this socket. When the IC is used, it is inserted into the socket. This base serves as an IC holder that can be removed.
