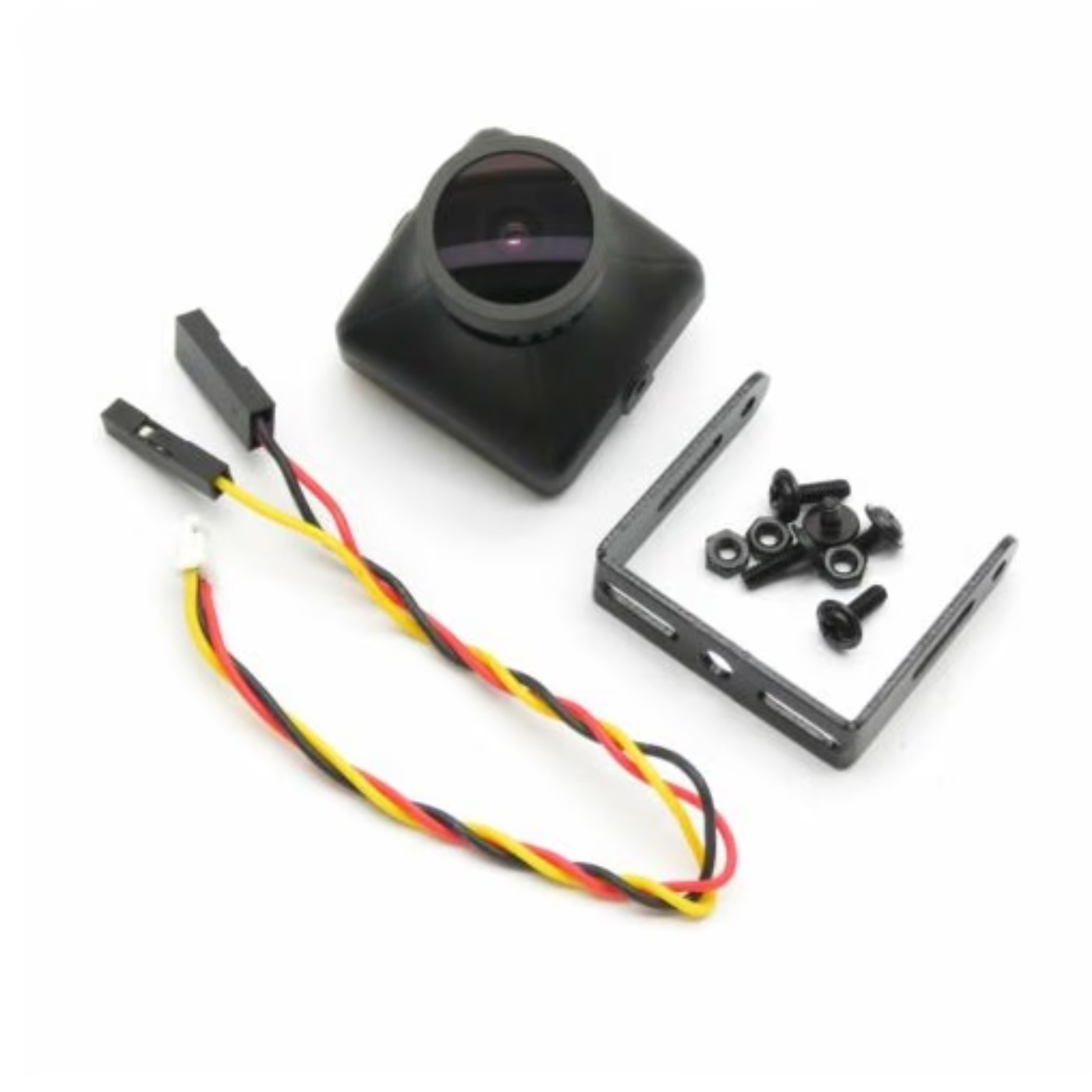

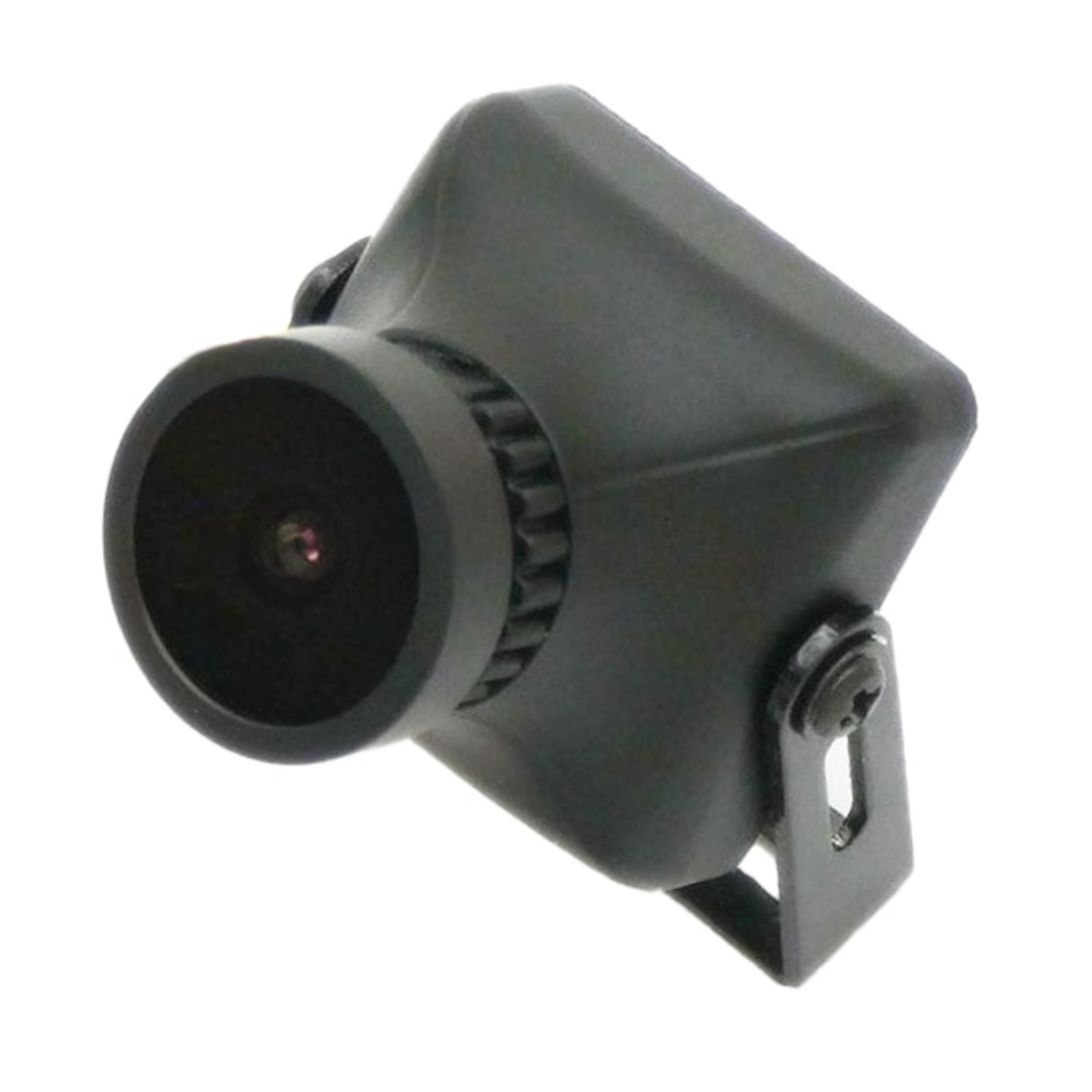

1200TVL CMOS FPV Camera with 2.1mm Lens for RC Drones and Multicopters
Let us know!
We'll try to match the price for you
We’ll notify you once the product is back in stock.
For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below
Couldn't load pickup availability
The 1200TVL CMOS FPV Camera with 2.1mm Lens for RC Drones and Multicopters is designed for drone enthusiasts who need a compact camera for first-person-view flying and aerial imaging projects. Featuring a 1/3-inch CMOS SUPER HAD II image sensor, this FPV drone camera delivers 1200TVL video resolution and offers low-light sensitivity of 0.01 Lux at F1.2 for improved visibility in dim conditions.
Its 2.1mm lens can be tilted up to 130 degrees, allowing you to adjust the viewing angle based on your drone's design and flying style. The camera supports PAL analog video output and operates at approximately 50 fps, making it suitable for real-time FPV viewing and general video capture.
With a wide 5–12V operating voltage range and easy parameter configuration, it is a practical choice for DIY FPV drone builds, RC aircraft, and multicopter projects. Whether you're assembling a custom racing drone, upgrading an existing FPV setup, or experimenting with aerial imaging, this 1200TVL FPV camera offers useful flexibility for hobby and prototyping applications.
| Item Type | FPV Camera |
| Resolution (TVL) | 1200 TVL |
| Image Sensor | 1/3-inch CMOS SUPER HAD II |
| Horizontal Resolution | 1200 TVL |
| Minimum Illumination | 0.01 Lux at F1.2 |
| Auto Gain Control (AGC) | Yes |
| Backlight Compensation (BLC) | Yes |
| Signal-to-Noise Ratio (S/N) | >60 dB |
| Operating Temperature | -10°C to 50°C |
| Dimensions | 26 × 26 × 30 mm |
| Weight | 15 g |
