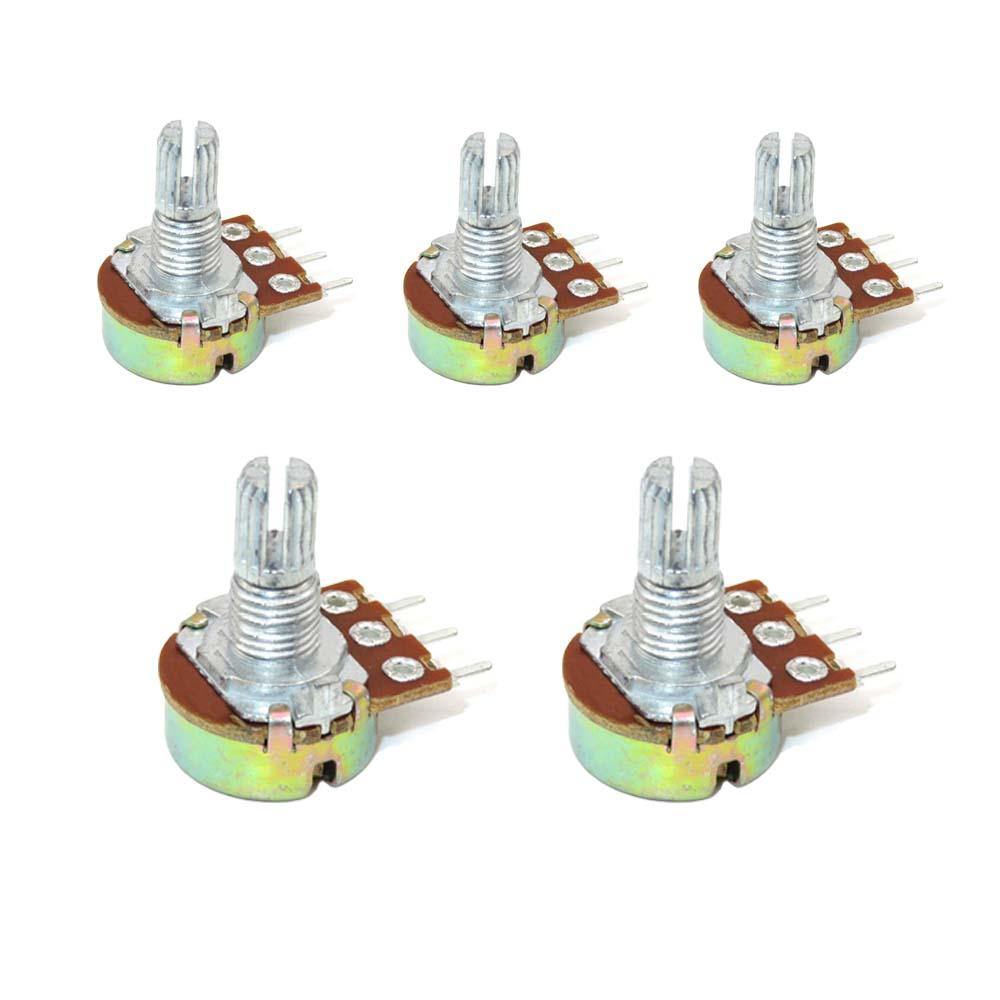

10K Pot Potentiometer - (Pack of 5)

Rs 153/-
- 43%
Rs 153/-
Rs 269/-
Save Rs 116/-
🪙
RC REWARDS Earn 1 RC Coin on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 20 left in stock

Why Buy From Robocraze

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000

SKU: TIFCB1190
  • This 10K Pot Potentiometer features 3 terminals for interfacing.
  • It is manufactured with a mix of carbon film and metal.
  • The 10K Potentiometer is used for adjusting various parameters like voltage, current, etc in an electronic circuit.
  • It is normally used to control any device.
Robocraze Academy Limited Time Offer
10K Pot Potentiometer (Pack of 5) – Smooth-adjustment potentiometers - Electronic Components - Robocraze
10K Pot Potentiometer - (Pack of 5)
Rs 269/- Rs 153/-

10K Pot Potentiometer - (Pack of 5)

Rs 269/- Rs 153/-

10K Pot Potentiometer - (Pack of 5)

The 10K potentiometer is a three-terminal variable resistor used to adjust resistance or divide voltage in electronic circuits. With a nominal resistance of 10,000 ohms (10kΩ), this component is suitable for DIY electronics, Arduino experiments, robotics projects, and circuit prototyping. This pack includes five 10K pot potentiometers for use across multiple projects.

A potentiometer contains a resistive track and a movable contact called a wiper. Turning the shaft moves the wiper along the track, changing the resistance between the centre terminal and either outer terminal. When connected as a voltage divider, the wiper provides an adjustable output voltage that can be read by a microcontroller or used as a control input.

Ready to bring your circuits to life? Pair this component with our complete Arduino Kits and start building today.

Features:

  • 10kΩ resistance: Suitable for voltage-divider circuits and adjustable analog inputs.
  • Three-terminal design: Supports voltage-divider and variable-resistance configurations.
  • Manual adjustment: Turn the shaft to change the output or resistance.
  • Versatile applications: Useful for electronics learning, DIY kits, robotics, and prototyping.
  • Pack of 5: Includes five potentiometers for experiments and circuit development.

10K Potentiometer Pinout

The three terminals serve different purposes when the component is used as a voltage divider:

  • Pin 1 – Outer terminal: Connect to GND.
  • Pin 2 – Centre terminal (wiper): Provides the variable output voltage.
  • Pin 3 – Other outer terminal: Connect to the appropriate supply voltage.

The two outer terminals connect to opposite ends of the resistive track, while the centre terminal connects to the wiper. Reversing the outer connections changes the direction in which the output voltage rises as you turn the shaft. Confirm the terminal arrangement for your specific component before wiring it.

What Is a B10K Potentiometer?

The term B10K potentiometer commonly refers to a 10kΩ potentiometer with a linear taper. In a linear-taper potentiometer, the resistance ratio changes approximately in proportion to the shaft's rotation. This makes it useful for applications such as sensor adjustment, analog input experiments, and general circuit prototyping. Check the product's markings or datasheet before assuming its taper, as the taper is not confirmed by the nominal resistance value alone.

Using a 10K Potentiometer with Arduino

You can connect a 10K potentiometer to an Arduino to create a simple adjustable analog input.

  1. Connect one outer terminal to GND.
  2. Connect the other outer terminal to 5V on a compatible 5V Arduino board.
  3. Connect the centre wiper terminal to A0.

Upload this example to read the potentiometer position:


const int potPin = A0;

void setup() {
  Serial.begin(9600);
}

void loop() {
  int potValue = analogRead(potPin);
  Serial.println(potValue);
  delay(100);
}

On a typical 10-bit Arduino ADC, analogRead() returns a value from 0 to 1023, depending on the wiper voltage. The reading changes as you turn the shaft. ADC resolution and permitted input voltage vary by board, so use the correct supply and input limits for your Arduino.

Applications of a 10K Pot

A 10K potentiometer can be used for adjustable voltage dividers, analog control inputs, sensor calibration, robotics experiments, DIY electronics kits, and prototyping circuits. It is intended for low-power signal and control applications unless the component's power rating confirms suitability for other uses.

This pack of five is a practical option for students, hobbyists, and makers building Arduino-based projects and experimenting with variable resistance.

Package Includes:

  • 5 x 10K Pot Potentiometer

Specifications:

Resistance  10K Ohm
Potentiometer Type  Pot Potentiometer
Material Carbon Film and Metal
Interface 3 Pin
Shaft Length 15mm
Dimensions  1 x 1 x 1cms
Weight  15 grams

1.What does a 10k potentiometer do?

A potentiometer is a type of variable resistor that is used to adjust the resistance in an electrical circuit. It consists of a resistive element, a sliding contact (wiper), and two terminals. By adjusting the position of the wiper, the resistance between the two terminals can be varied. A 10k potentiometer is a potentiometer with a resistance of 10,000 ohms (10k ohms). The resistance of a potentiometer is typically expressed in ohms, and it is represented by the letter "R" in electrical formulas. Potentiometers are commonly used in a variety of applications, including volume control, tone control, and light dimming. They are often used as a simple way to adjust the resistance in a circuit without using a separate resistor.

2.How much current can a 10k potentiometer handle?

The current handling capability of a potentiometer depends on several factors, including the type of potentiometer, the size and material of the resistive element, and the size and type of the wiper. In general, the current handling capability of a potentiometer is limited by the size and material of the resistive element and the wiper. The resistive element and wiper are designed to handle a certain amount of current before they start to heat up and potentially fail. A 10k potentiometer is a relatively low-power component, and it is typically not designed to handle high levels of current. As a general rule of thumb, it is recommended to keep the current through a potentiometer below 1 milliampere (mA) to ensure that it does not overheat and fail.

3.What is the resistance of a 10k potentiometer?

A 10k potentiometer is a type of variable resistor that is used to adjust the resistance in an electrical circuit. The "10k" in the name refers to the resistance of the potentiometer, which is 10,000 ohms (10k ohms). The resistance of a potentiometer is typically expressed in ohms, and it is represented by the letter "R" in electrical formulas. Potentiometers are commonly used in a variety of applications, including volume control, tone control, and light dimming. They are often used as a simple way to adjust the resistance in a circuit without using a separate resistor. To use a potentiometer, it is typically connected in series with a circuit, and the wiper is adjusted to vary the resistance between the two terminals. The resistance of the potentiometer can be calculated using the following formula:

  • R = (Rmax x W) / 100

4. What does "B10K" mean on a potentiometer?

The "10K" indicates a maximum resistance of 10,000 ohms. The "B" denotes a linear taper, meaning the resistance increases at a steady, linear rate as the shaft is rotated, making it ideal for precise measurement and control applications.

5. How do I check the 10k ohm potentiometer price and availability?

You can check the current 10k ohm potentiometer price and bulk availability directly on this Robocraze product page. We offer competitive pricing and a pack of 5 to ensure you have spares for all your prototyping needs.

6. Can I use this 10k pot with a Raspberry Pi or ESP32?

Yes! While the Raspberry Pi lacks native analog inputs, you can use an ADC (like the MCP3008) to read this 10k pot. For the ESP32, you can connect the wiper directly to any of its built-in ADC pins, just like with an Arduino.

7. Why is my 10k potentiometer giving erratic or jumping readings on Arduino?

Erratic analog readings are usually caused by loose breadboard connections, electrical noise, or dust on the internal resistive track. First, ensure the pins are firmly seated. If the issue persists, adding a small decoupling capacitor (e.g., 0.1µF) between the wiper (middle pin) and Ground can smooth out the signal. You can also average multiple analogRead() samples in your code for a more stable value.

8. What is the difference between a 10K and a 100K potentiometer?

The primary difference is the maximum resistance. A 10k pot maxes out at 10,000 ohms, while a 100K pot maxes out at 100,000 ohms. For most standard microcontroller projects (like reading a dial position or setting a reference voltage), a 10k ohm potentiometer is the ideal industry standard. It draws minimal current while still providing a strong, noise-resistant signal to analog pins compared to higher resistance values.

9. What is the power rating of this 10K potentiometer?

This standard single-turn potentiometer typically has a power rating of 0.15W (150mW) to 0.25W. It is specifically designed for low-power signal control, voltage division, and analog input reading. It should not be used to directly drive high-power loads like motors, heaters, or high-brightness LEDs; always use a transistor, MOSFET, or motor driver for those applications.

10. Is this a single-turn or multi-turn (trimmer) potentiometer?

This is a standard single-turn potentiometer. It provides the full resistance range (0 to 10K ohms) within approximately a 270 to 300-degree rotation of the shaft. This makes it perfect for quick, intuitive, and user-facing manual adjustments in DIY electronics, robotics, and audio projects, unlike multi-turn trimmer pots which are meant for fine, infrequent calibration.
