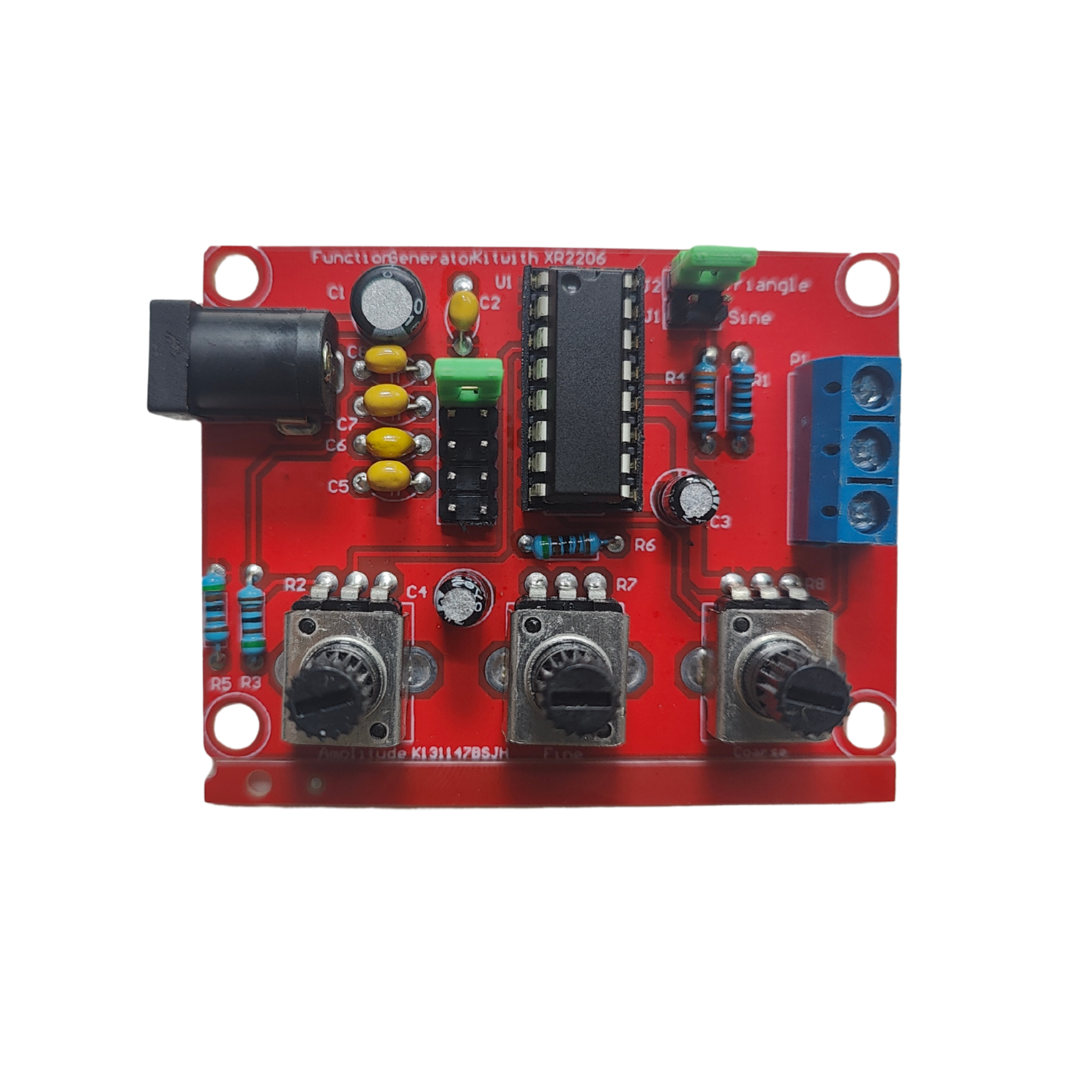

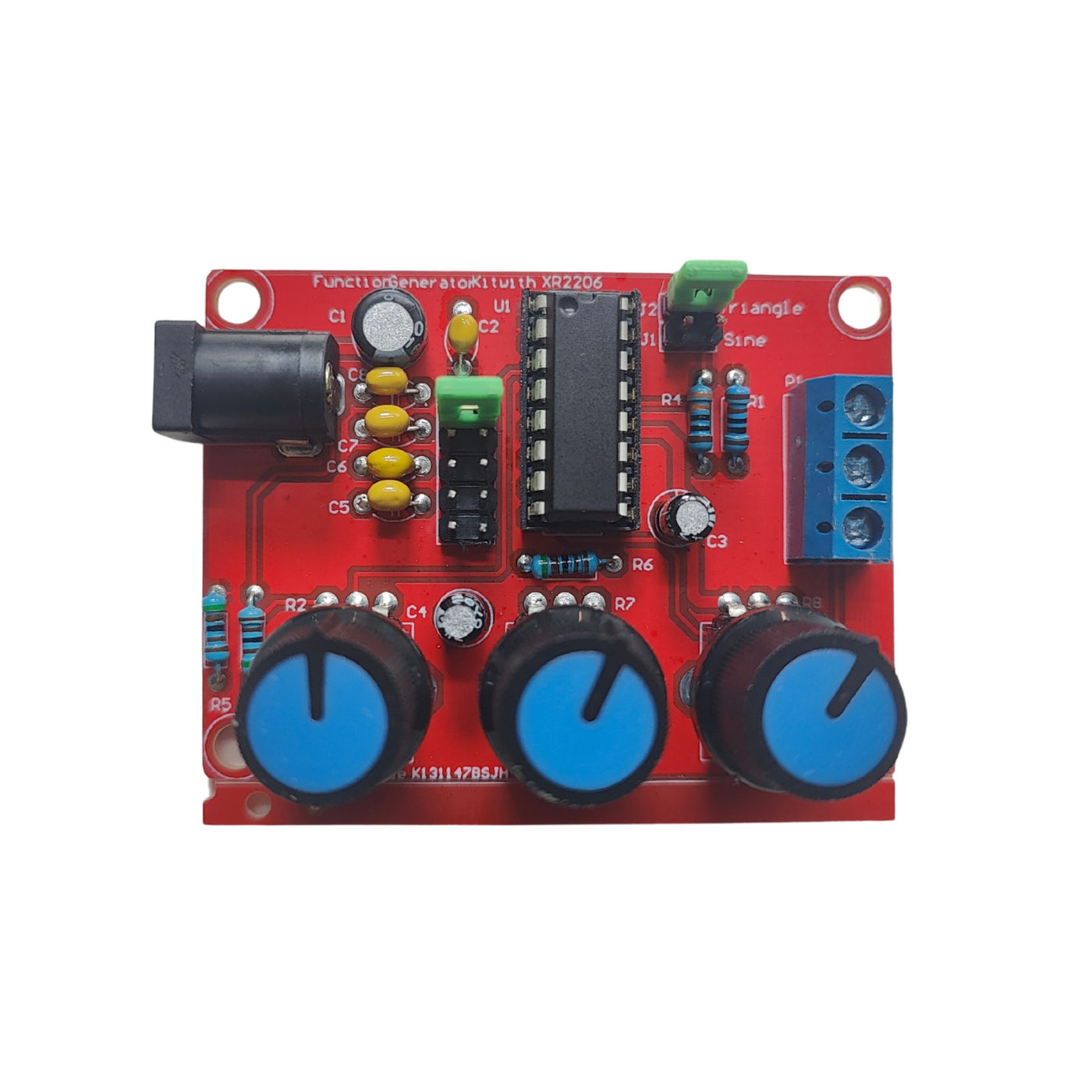

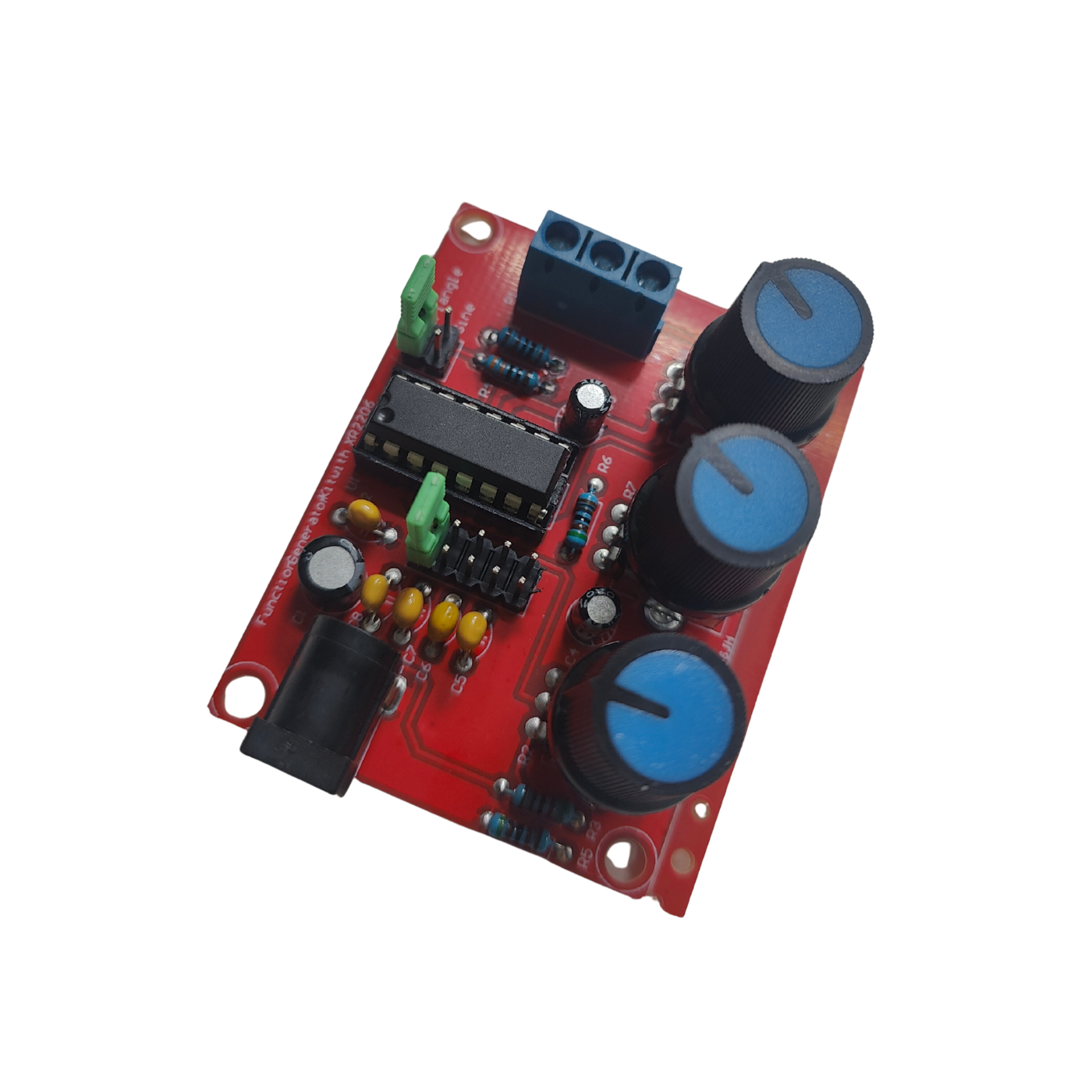

The XR2206 High Precision Signal Generator DIY Kit is a compact and reliable solution for anyone looking to generate accurate sine, triangle, and square waveforms for testing, experimentation, or DIY electronics projects. Designed around the XR2206 IC, this kit lets you create frequencies ranging from 1Hz to 1MHz with smooth adjustability for both amplitude and frequency.
Whether you're a beginner learning signal generation or an enthusiast building your own lab setup, this kit is easy to assemble thanks to its through-hole components and neatly designed layout.

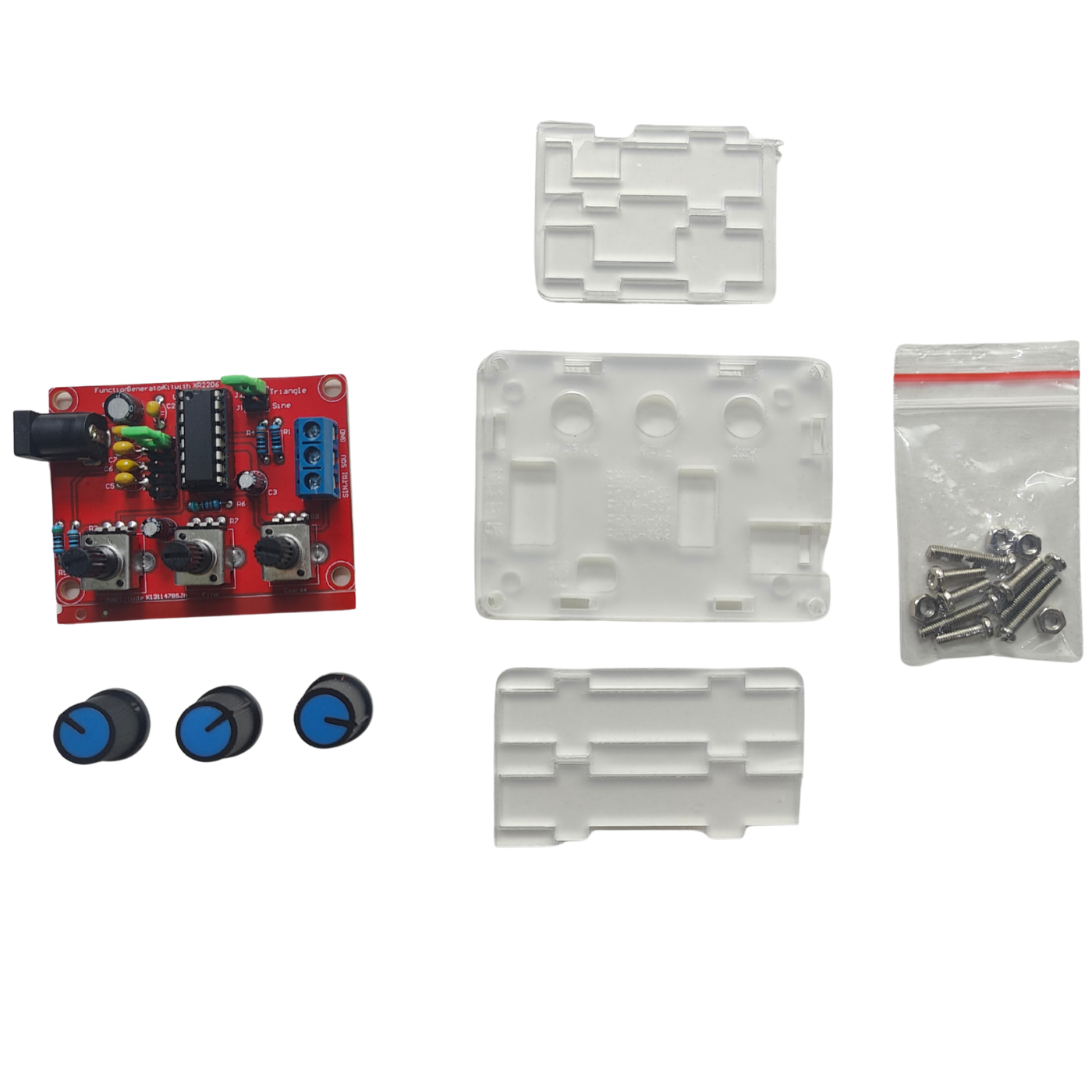

What makes this kit even more appealing is the included acrylic case, which provides protection while keeping the internal circuitry visible. The generator supports both 9V–12V external power and standard 9V batteries, making it versatile for bench setups as well as portable use.

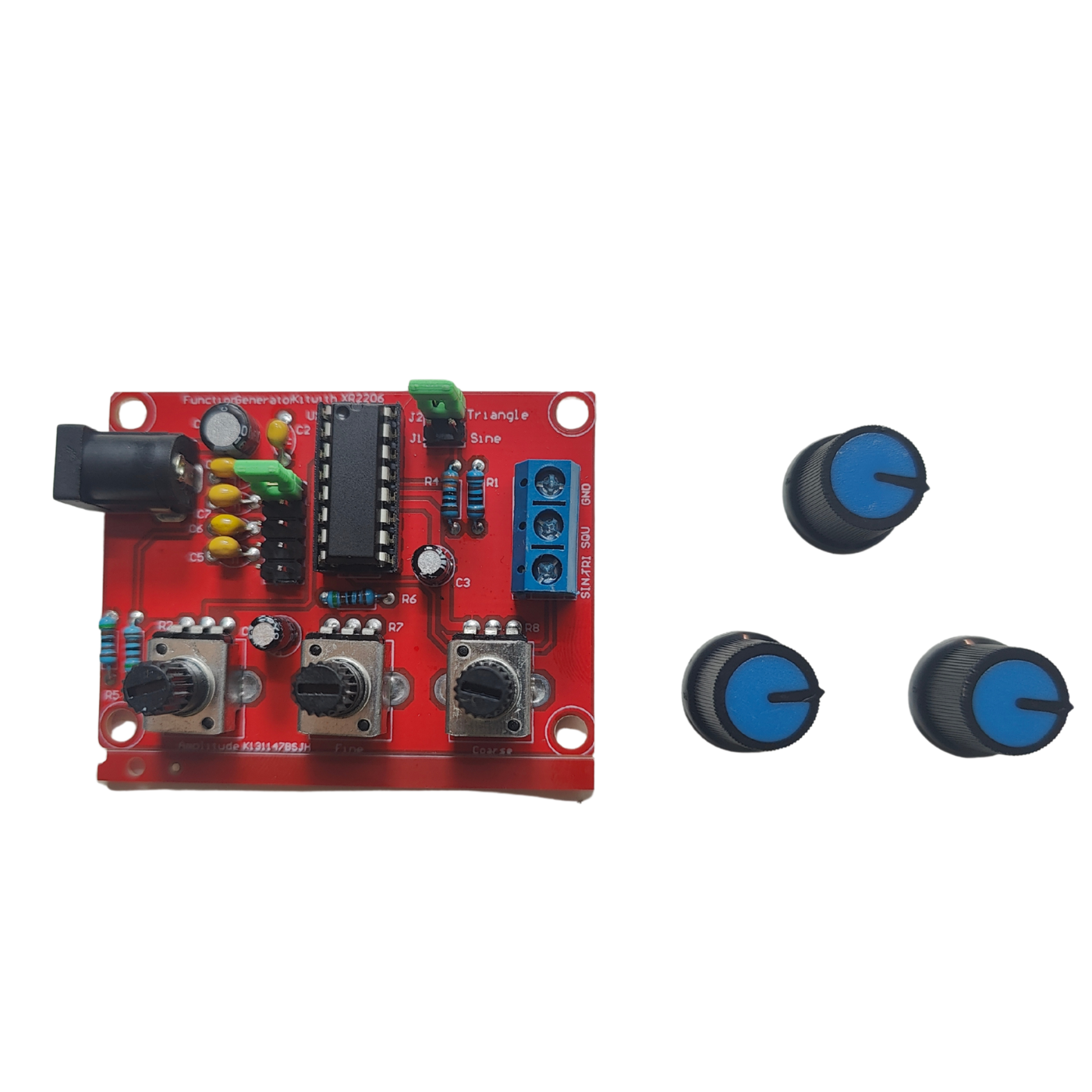

With stable performance, fine/coarse tuning controls, and clean waveform output, it’s perfect for students, hobbyists, and DIY engineers.
| Frequency Range | 1Hz – 1MHz |
|---|---|
| Waveform Types | Sine, Triangle, Square |
| Voltage Supply | 9–12V DC |
| Amplitude Range | 0–3V (adjustable) |
| Rise Time | < 50ns at 1kHz |
| Fall Time | < 30ns at 1kHz |
| Output Impedance | 600Ω ± 10% |
| Linearity | < 1% (up to 100kHz) |
| Power Type | External DC or 9V battery |
| Included Case | Acrylic enclosure |
