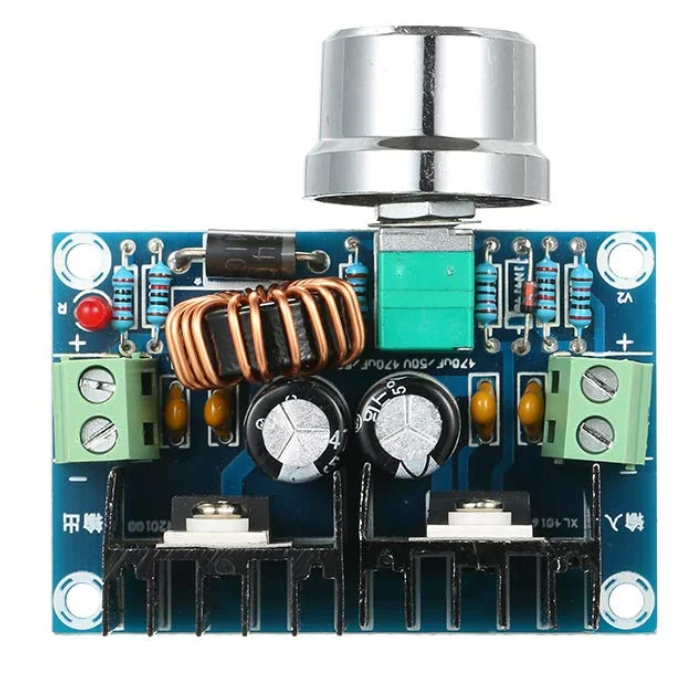

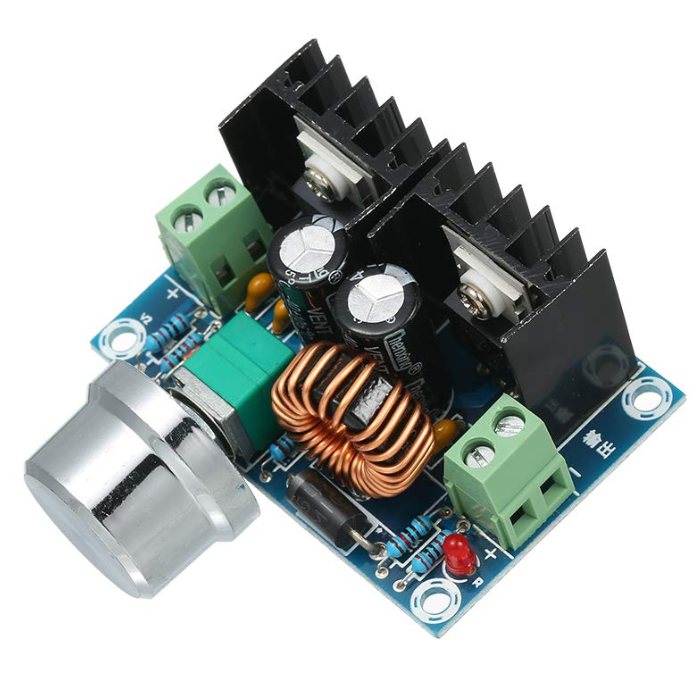

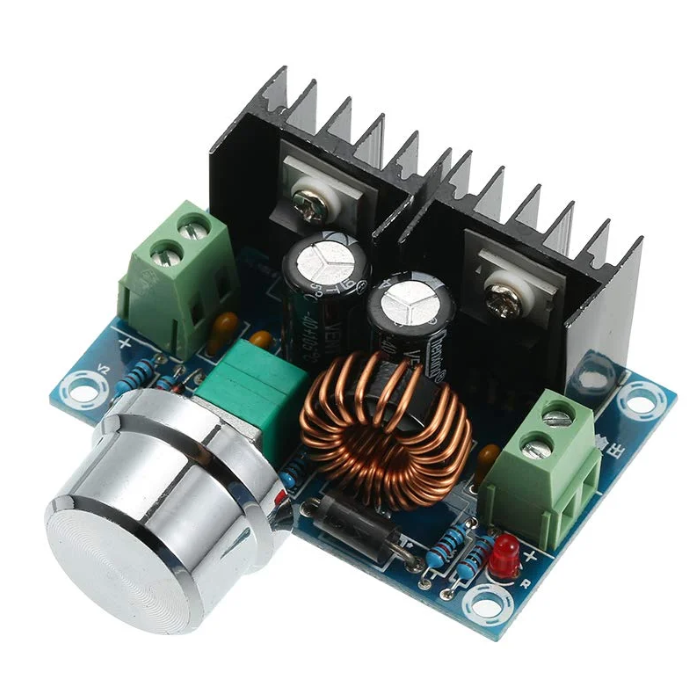

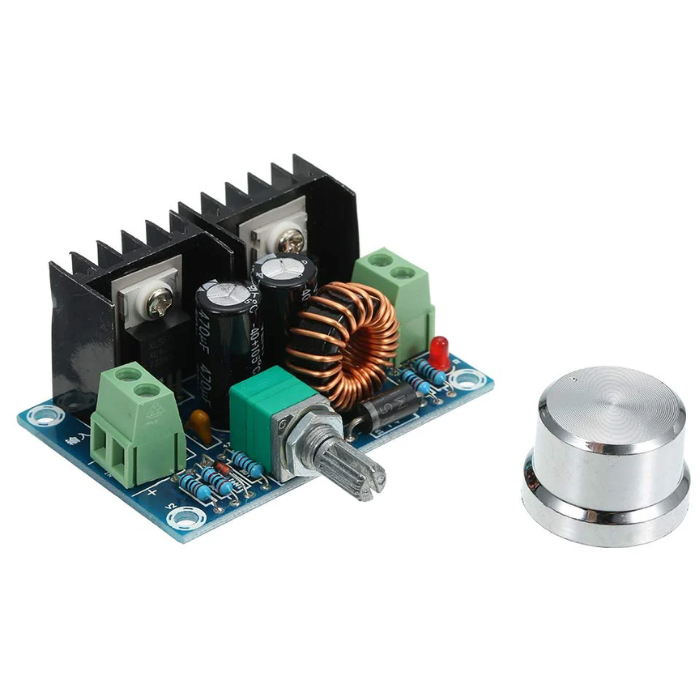

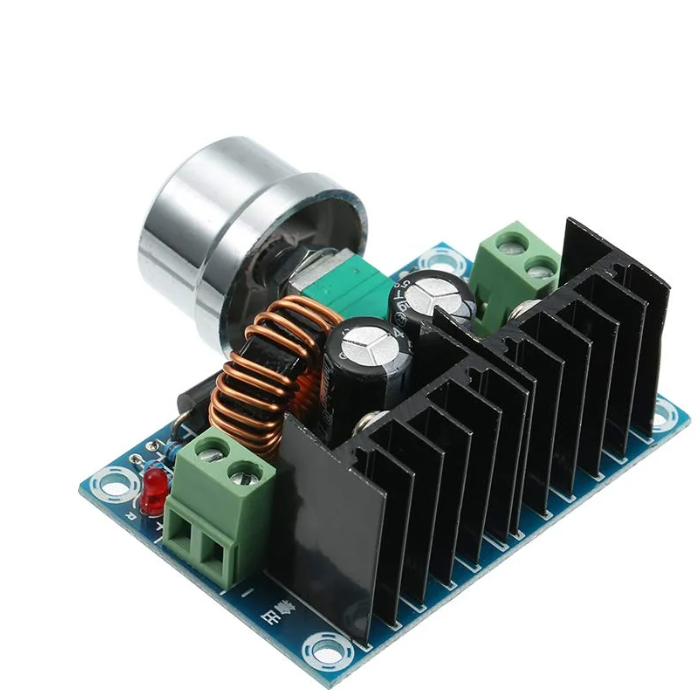

XL4016E1 DC 4-40V to DC 1.25-36V 8A Buck Converter Voltage Regulator 36V 24V 12V to 5V
XL4016E1 DC 4-40V to DC 1.25-36V 8A Buck Converter Voltage Regulator 36V 24V 12V to 5V
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Precise Voltage Regulation (Input: 8-36V DC, Output: 1.25-35V DC)
- High Power Performance (Max 200W, Efficiency up to 96%)
- Versatile Applications (LCD Monitors, TVs, Instruments, Telecom)
- Adjustable Output (1.25-32V) for Various Electronic Setups
- Built-in Protections (Thermal Shutdown, Current Limit, Short Circuit)
- Wide Input Voltage Range (8-36V) for Compatibility
- Simple and Reliable (Internal Compensation, Fixed Oscillator, Overcurrent Protection)
XL4016E1 DC 4-40V to DC 1.25-36V 8A Buck Converter Voltage Regulator 36V 24V 12V to 5V
The XL4016 is a type of power converter that can lower the voltage efficiently and smoothly. It can handle a load of up to 12 amps and has good control over the output power, even when the input power varies.
You only need a few extra parts to use this converter, as it already has built-in controls and a steady output frequency. The converter's control system can adjust how much power is delivered, anywhere from 0% to 100%. If there is too much current flowing, the converter has a safety feature that reduces its frequency.
This helps protect the system from damage. Also, the converter has a built-in system to reduce the need for many extra components.
Features:
- Wide 8V to 36V Input Voltage Range
- Output Adjustable from 1.25V to 32V
- High efficiency up to 96%
- Built-in thermal shutdown function
- Built-in current limit function
- Built-in output short protection function
- Excellent line and load regulation
Applications:
- LCD Monitor and LCD TV
- Portable instrument power supply
- Telecom / Networking Equipment
Package Includes:
- 1 x XL4016E1 DC 4-40V to DC 1.25-36V 8A Buck Converter Voltage Regulator 36V 24V 12V to 5V.
Specifications:
| Input Voltage (V) |
8-36VDC |
|---|---|
| Output Voltage(V) |
1.25 to 36 |
| Max. Output Current (Amp) |
8 |
| Conversion Efficiency |
96% |
| Switching Frequency |
180 KHz |
| Load Regulation |
± 0.5% |
| Voltage Regulation |
± 0.5% |
