Winsen MP-4-24V Methane Gas Sensor Module for CH4 Detection - Buy Online in India

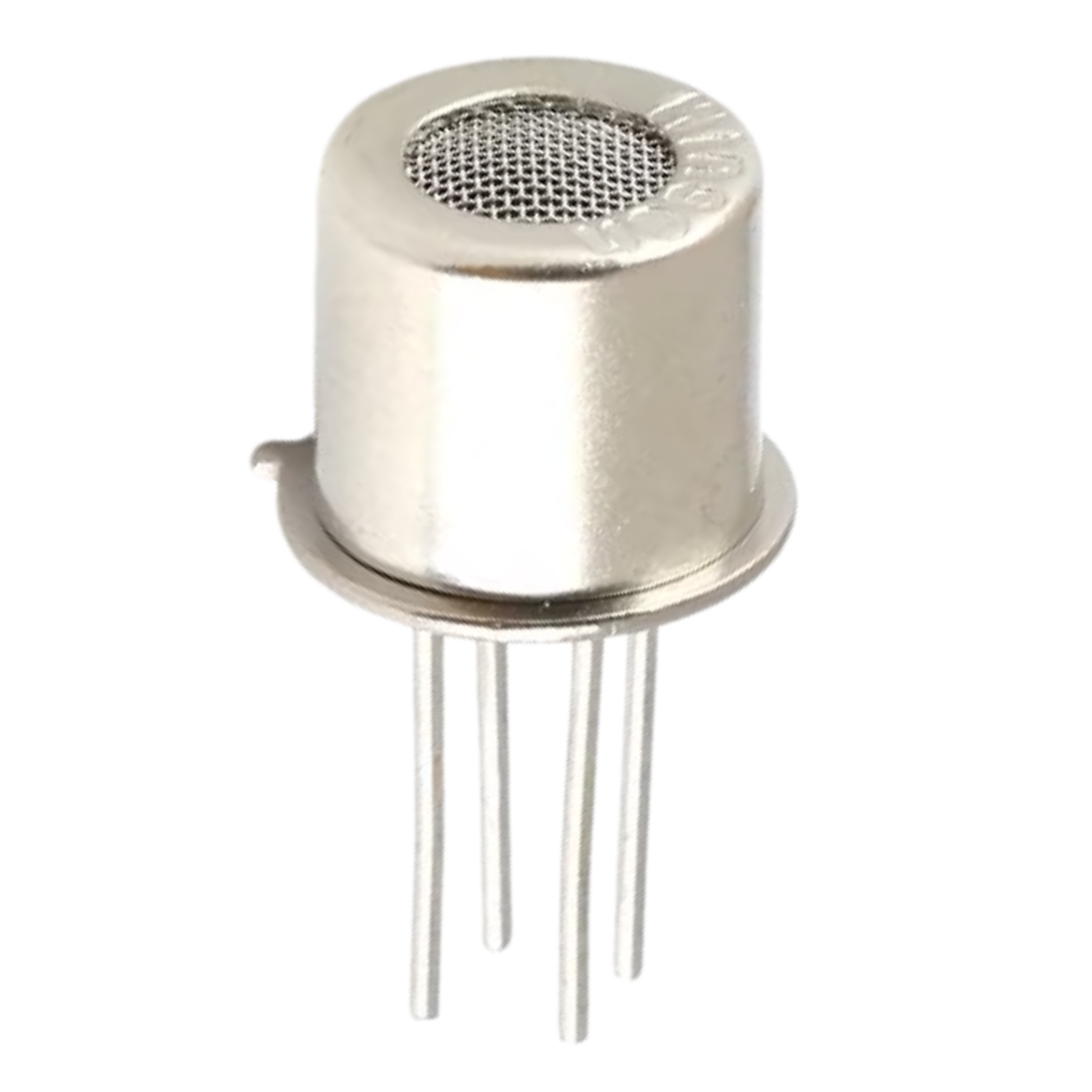

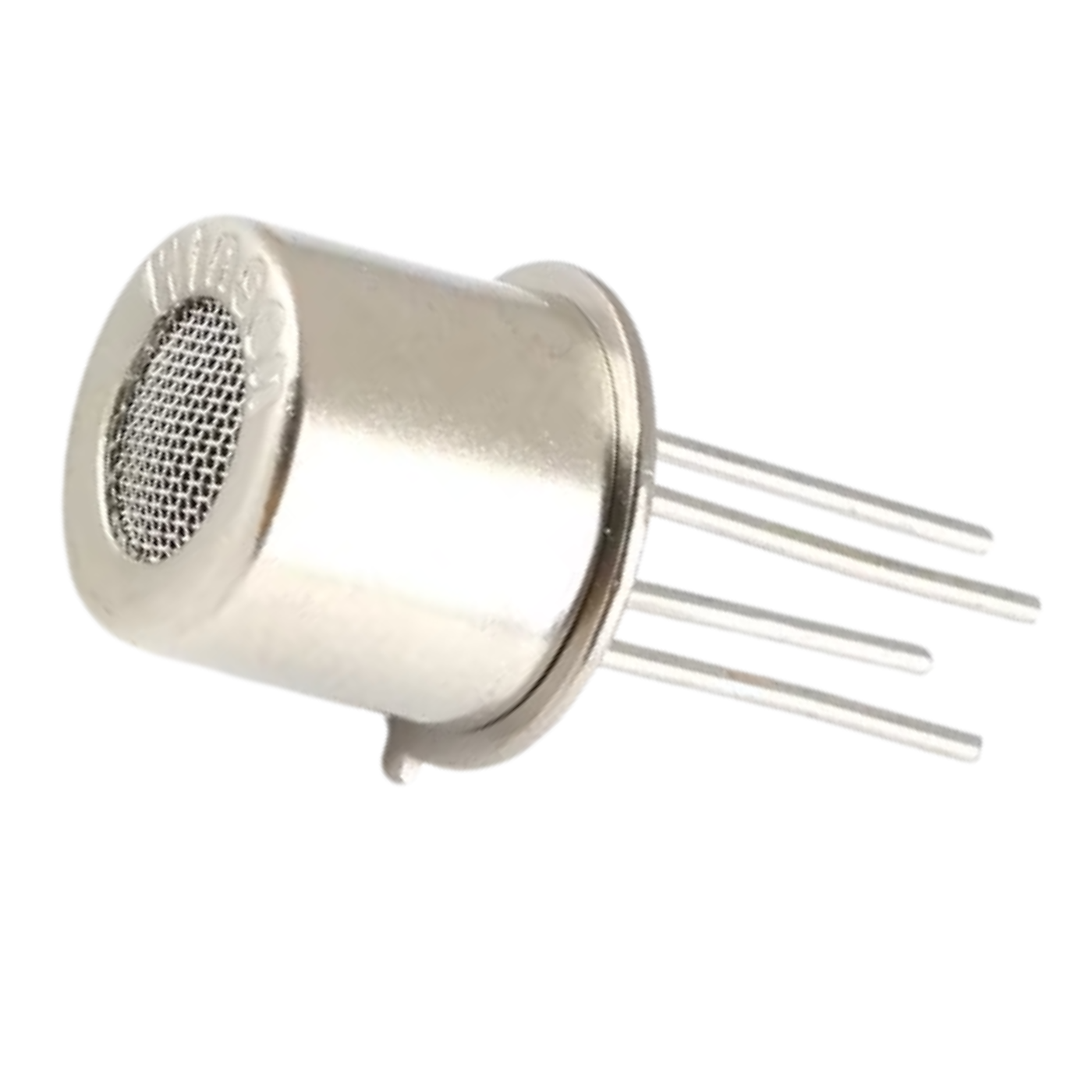

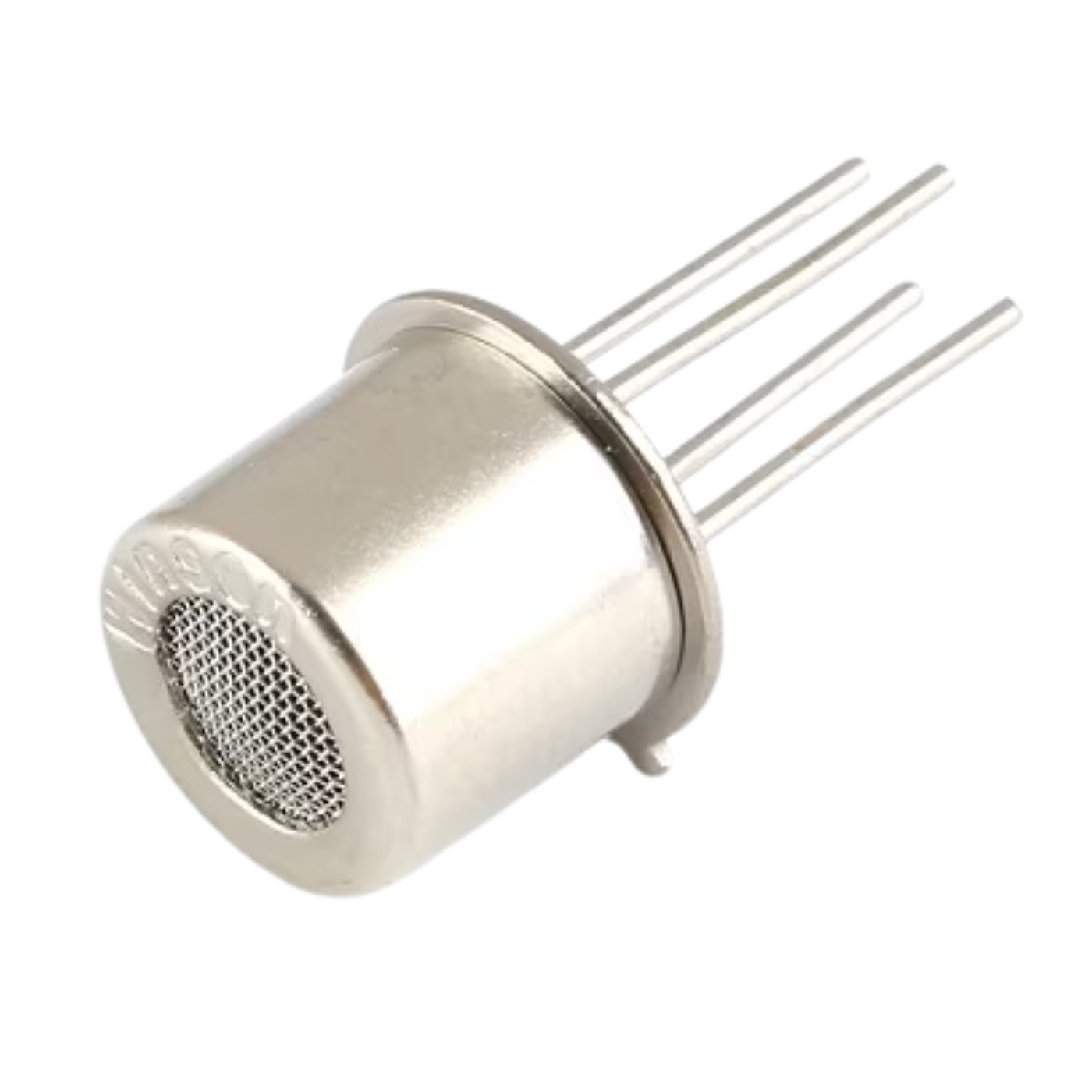

Winsen MP-4-24V Methane Gas Sensor Module for CH4 Detection
- Rs 294/-
- Rs 294/-
-
Rs 349/-
- 16%
Save Rs 55/-
Incl. GST (No Hidden Charges)
Found a better price?
Let us know!
We'll try to match the price for you
Please hurry! Only 0 left in stock
We’ll notify you once the product is back in stock.
SKU:
TIFSS0505
Couldn't load pickup availability
Winsen MP-4-24V Methane Gas Sensor Module for CH4 Detection
Winsen MP-4-24V Methane Gas Sensor Module for CH4 Detection
Winsen MP-4-24V Methane Gas Sensor Module for CH4 Detection
The Winsen MP-4-24V Methane Gas Sensor Module for CH₄ Detection is a high-performance methane gas sensor designed to detect CH₄ (methane) and other combustible natural gases with excellent sensitivity and stability. It utilizes metal oxide semiconductor (MOS) sensing technology combined with an advanced planar construction for dependable gas detection.
The sensing element consists of a subminiature Al₂O₃ ceramic plate, integrated heater, electrodes, and a durable metal base with a protective metal cap. As the concentration of methane gas increases, the sensor's conductivity rises accordingly, allowing a simple electronic circuit to convert this conductivity change into a corresponding gas concentration output signal.
This CH₄ gas sensor module is ideal for gas leakage alarms, industrial monitoring, smart safety systems, and embedded electronics projects requiring accurate methane gas detection.
Features:
- Lower consumption.
- Small size.
- Fast reaction and resume.
- Highest sensitivity.
- Excellent stability and longevity.
- Easy circuit with large signal output.
- Excellent selectivity.
Package Includes:
- 1 x Winsen MP-4-24V Methane Gas Sensor Module for CH4 Detection
Specifications:
| Specification | Value |
|---|---|
| Item Type | Gas Sensor |
| Model No. / Name | MP-4 |
| Target Gases | CH₄ (Methane), Natural Gas, Marsh Gas |
| Detecting Range | 300–10000 ppm |
| Loop Voltage (Vc) | ≤24 V |
| Heater Voltage | 5 V ± 0.1 V |
| Heater Resistance | 85 Ω ± 15 Ω |
| Heater Power Consumption | ≤350 mW |
| Sensitive Resistance | 1 kΩ – 20 kΩ |
| Operating Temperature | 20°C ± 2°C |
| Operating Humidity | 55% ± 5% RH |
| Life Cycle | 10 Years |
