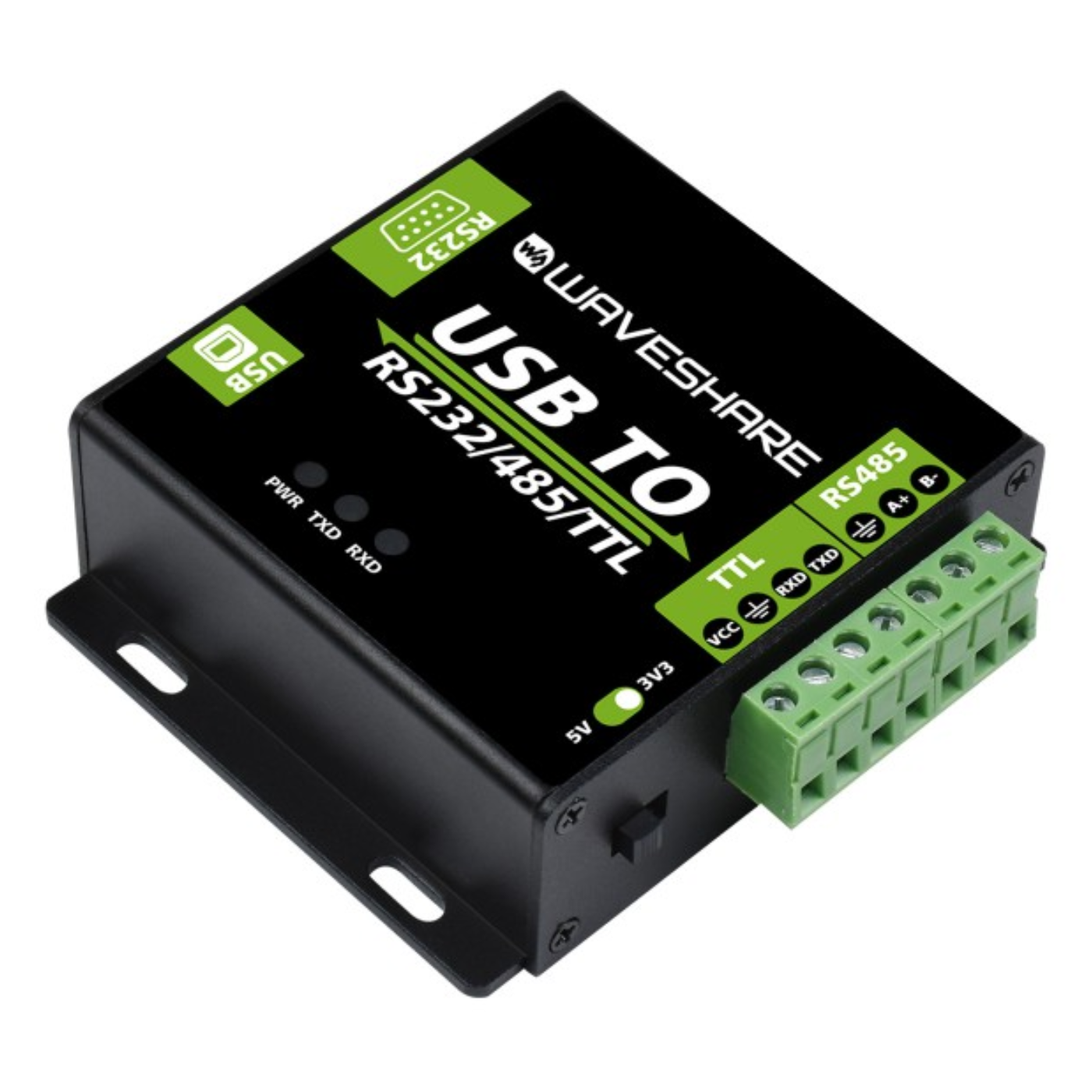

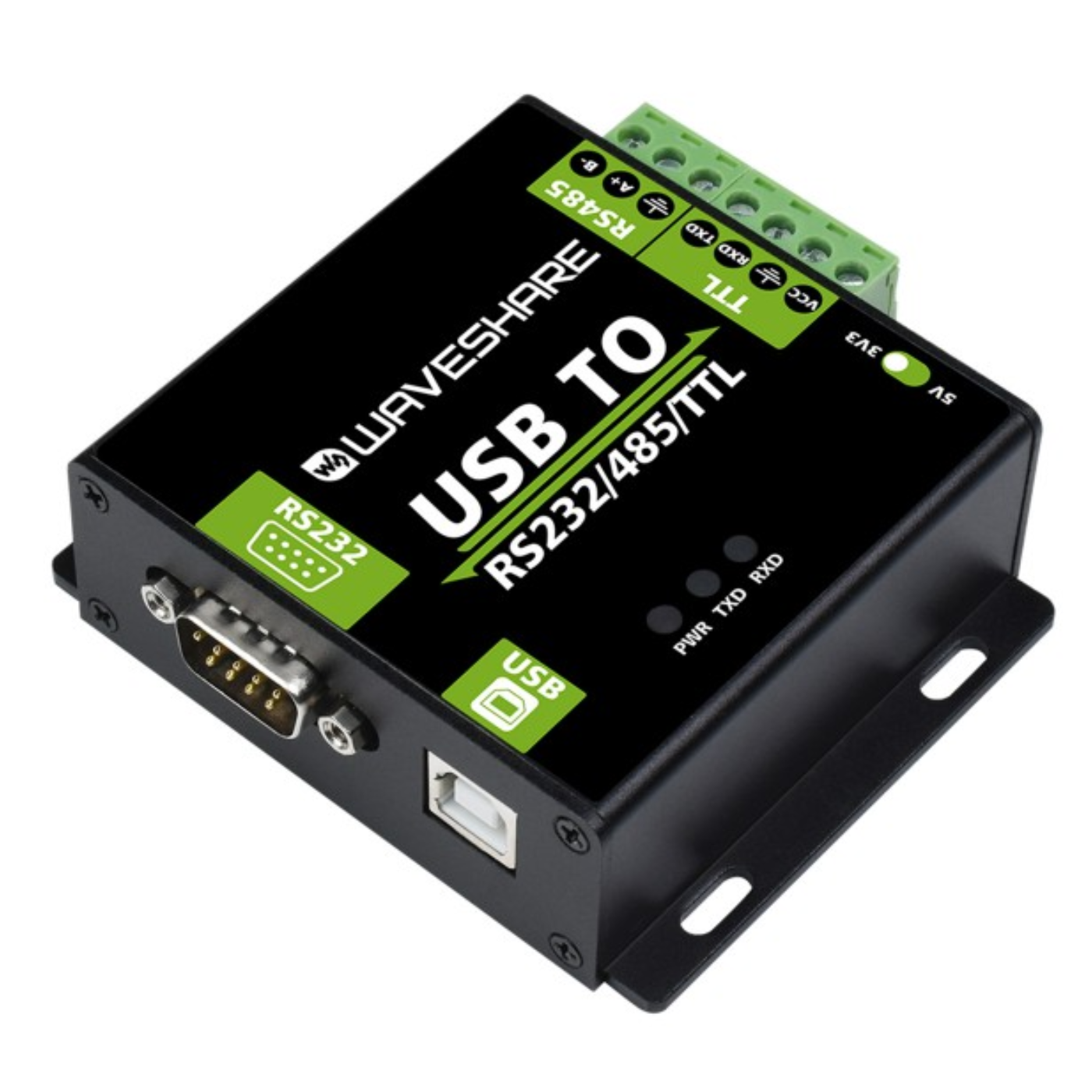

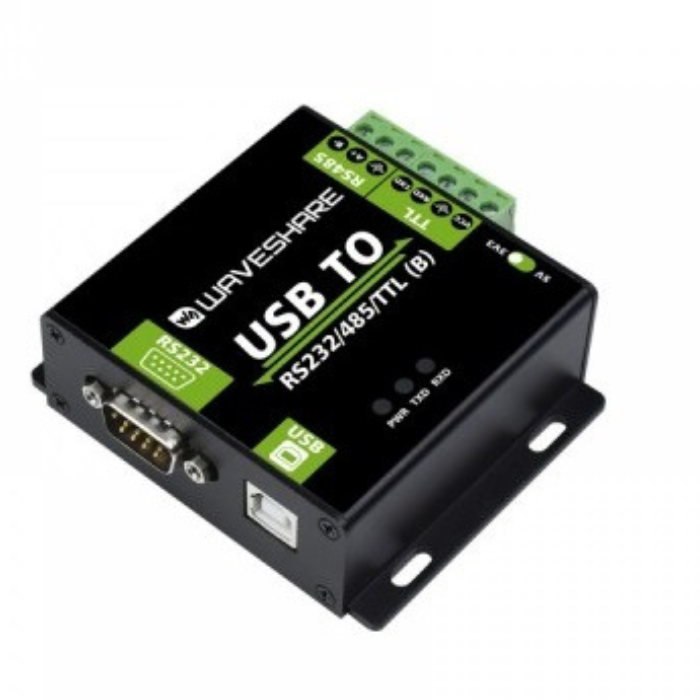

Waveshare USB TO RS232/485/TTL Industrial Interface Converter
Couldn't load pickup availability
The Waveshare USB TO RS232/485/TTL Industrial Interface Converter is a versatile and rugged solution designed for industrial-grade serial communication.
Featuring the reliable FT232RL chip, this industrial USB to serial interface converter supports RS232, RS485, and TTL interfaces with seamless switching and automatic transceiving. Engineered with advanced safety measures including power isolation, ADI magnetic isolation, and TVS diode protection, it ensures stable and secure data transmission even in harsh industrial environments.

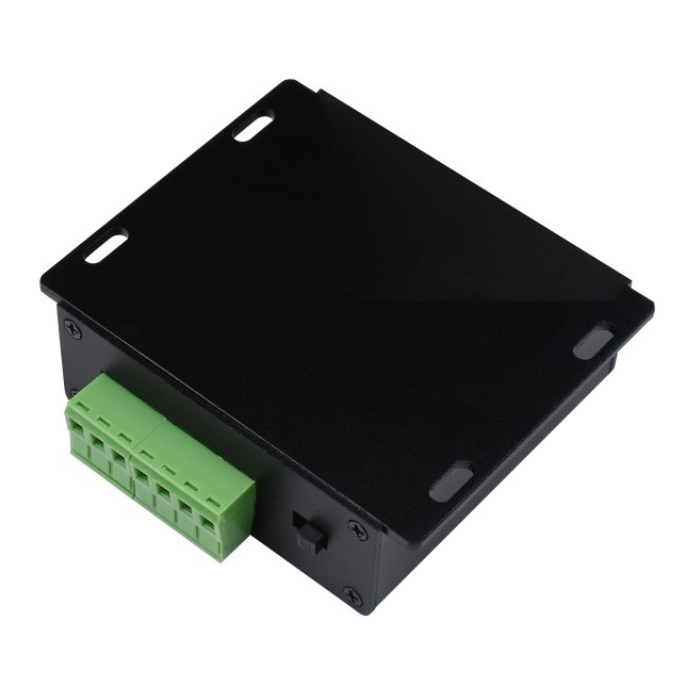

Encased in a robust aluminium alloy housing, the converter is highly durable and ideal for long-term deployment. Whether you need a Waveshare USB to RS232 converter or a Waveshare USB to TTL converter, this device offers fast, stable, and reliable communication—making it perfect for industrial control systems and applications that demand high communication reliability and safety.
| Parameter | Details |
|---|---|
| Baud Rate (bps) | FT232RL: 300bps ~ 921600bps (standard), up to 2 Mbps (maximum) |

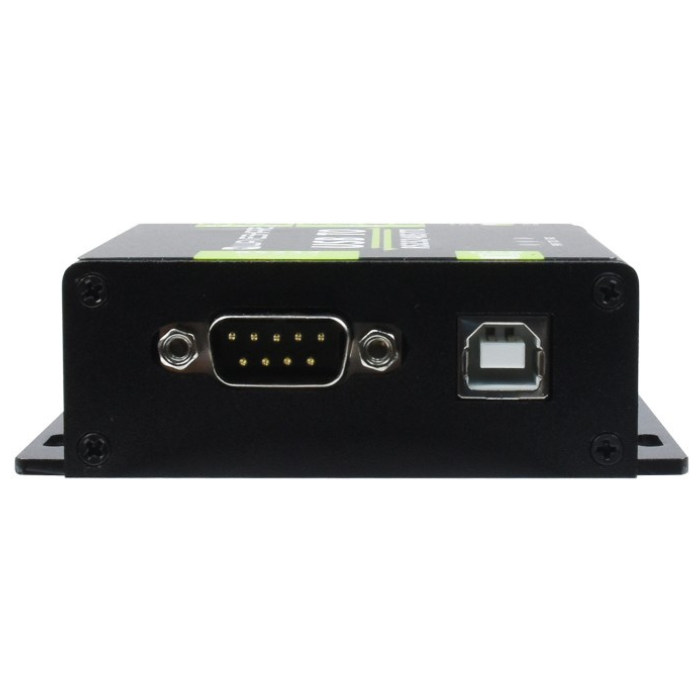

| Connector | Terminal screw connector |
| Direction Control | Hardware automatic direction discrimination and control |
| Protection Features | 600W lightning-proof, surge suppression, 15KV ESD protection, reserved 120? balancing resistor solder pads |
| Transmission Mode | Point-to-multipoint (supports up to 32 nodes; recommended to use repeaters for 16 nodes or more) |
| Weight | 131 gm |

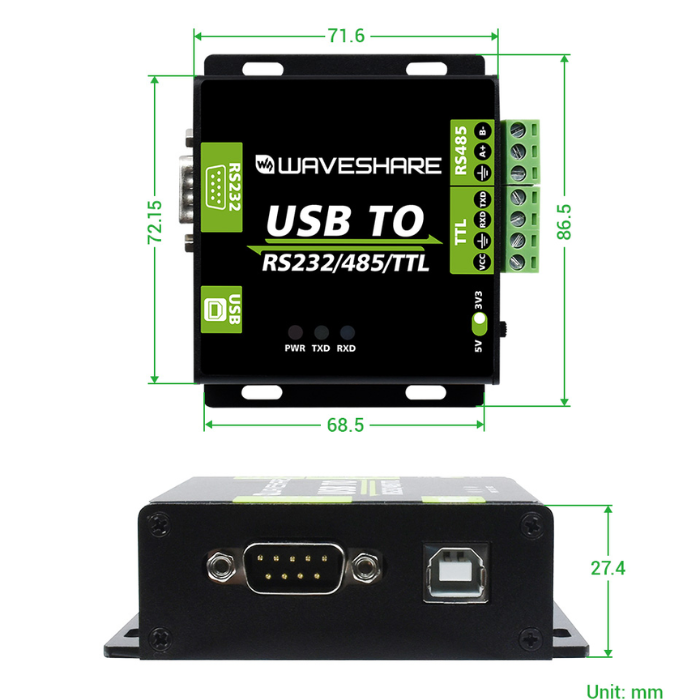

| Dimensions (L x W x H) | 8.4 x 8.5 x 2.8 cm |
