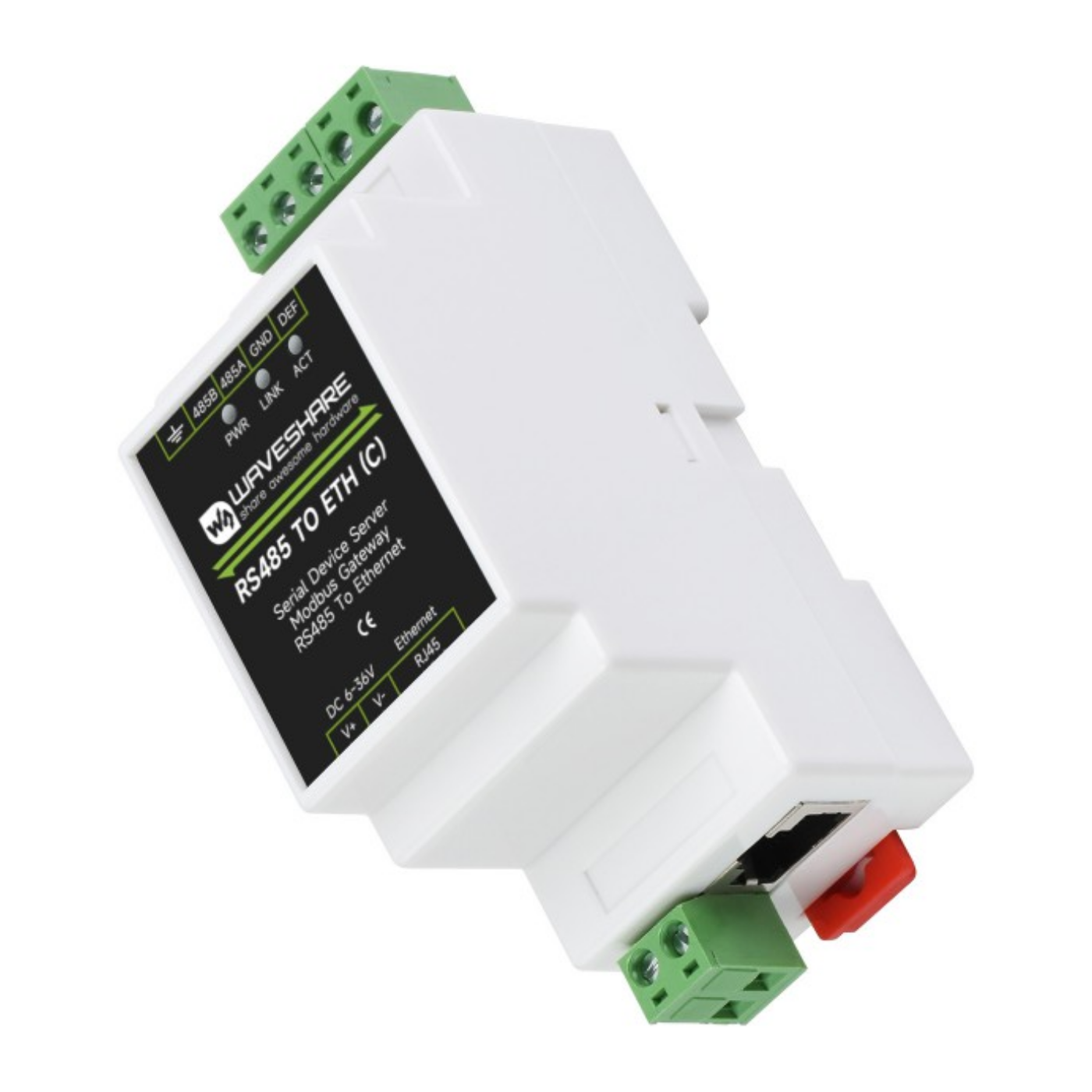

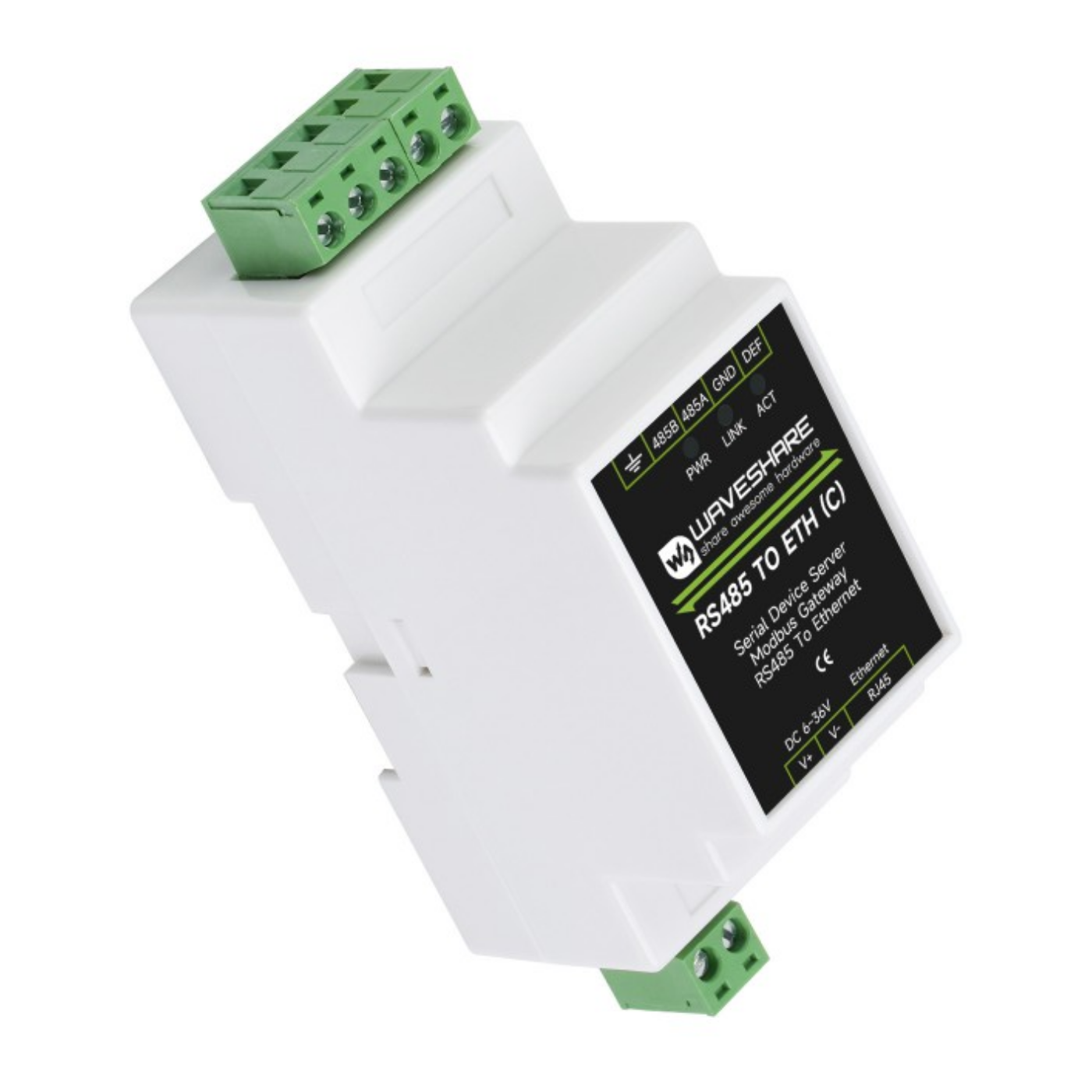

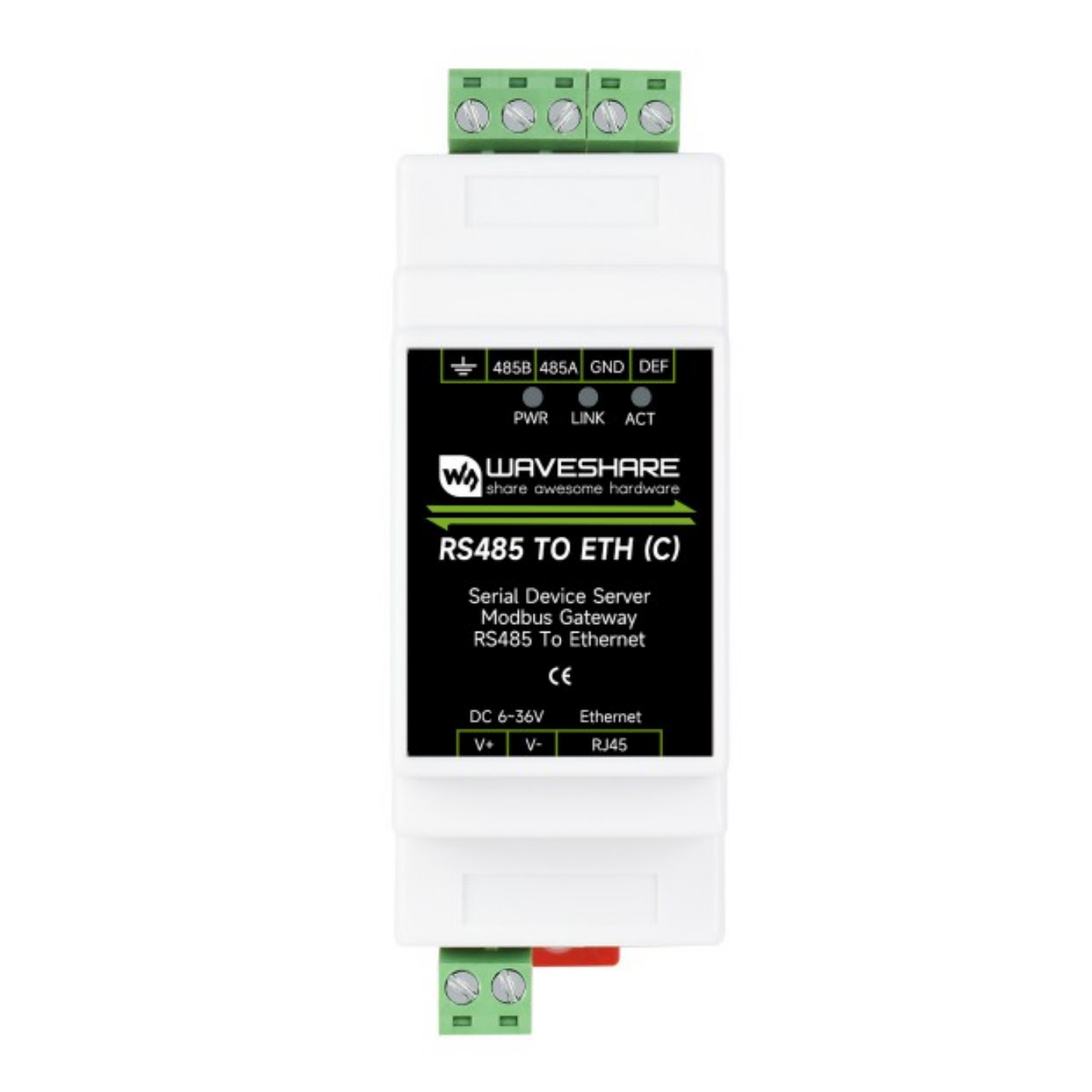

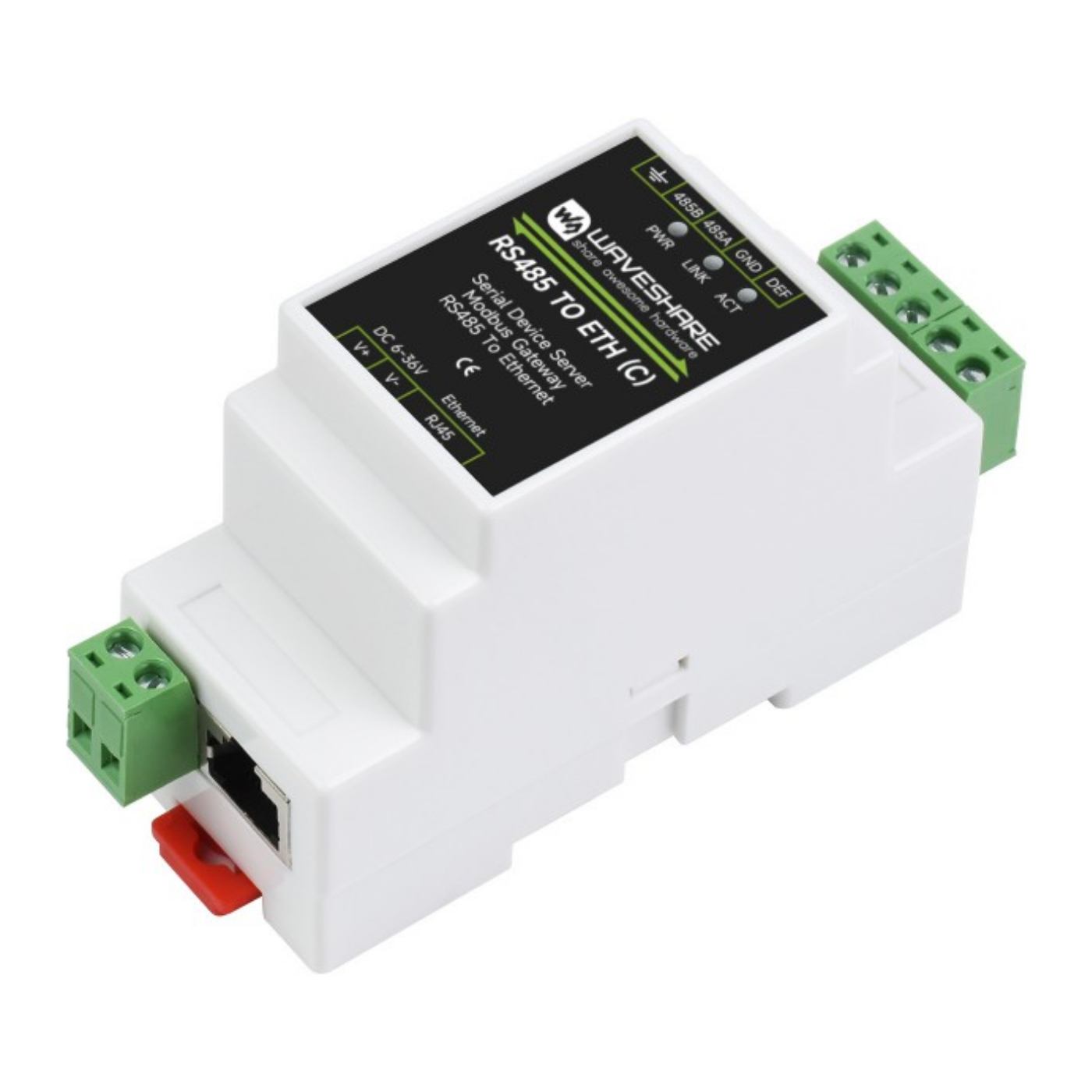

The Waveshare Industrial RS485 to RJ45 Ethernet Serial Server is a compact and versatile communication solution for connecting RS485 devices to Ethernet networks. It enables bi-directional transparent data transmission between RS485 and Ethernet, allowing industrial sensors, meters, controllers, and other serial devices to communicate with computers, servers, and IoT platforms over a network.

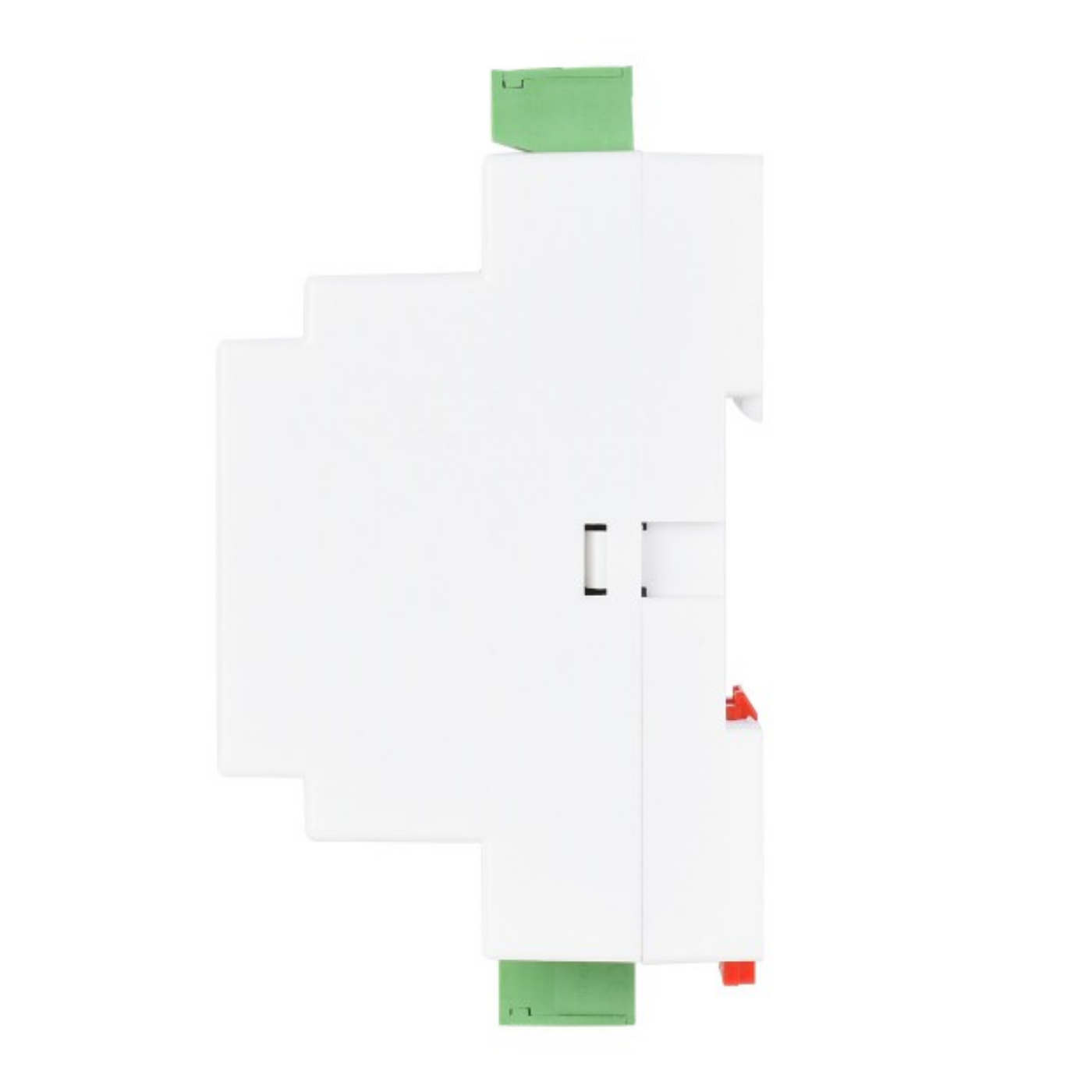

With an electrically isolated RS485 interface, 10/100M RJ45 Ethernet, a wide 6–36V DC power input, and support for TCP/IP, UDP, Modbus, MQTT, and JSON-based data communication, it is well suited for industrial automation and remote data acquisition. Its rail-mount design also makes it convenient to install inside control cabinets and industrial systems.
| Specification | Details |
|---|---|
| Product | RS485 TO ETH (C) |
| Product Type | Serial Server, Modbus Gateway, MQTT Gateway |
| Basic Function | Bi-directional transparent data transmission between RS485 and Ethernet |
| Communication Interface | 1 × RS485 Port, 1 × Ethernet Port |
| Power Supply | 6–36V DC via Screw Terminal |
| Isolation Protection | Power Isolation, Signal Isolation |
| Ethernet Speed | 10/100M Auto-Negotiation |
| Ethernet Connector | RJ45 with 2KV Surge Protection |
| Serial Port | Isolated RS485 |
| Baud Rate | 300–115200 bps |
| Parity Bit | None, Odd, Even, Mark, Space |
| Data Bits | 5–9 Bits |
| Flow Control | N/A |
| Supported Protocols | Ethernet, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS |
| Configuration | Host, Web Browser, Device Management Functions Library |
| Communication Method | TCP/IP Direct Communication, VCOM |
| Operating Modes | TCP Server, TCP Client, UDP, UDP Multicast |
| Operating Temperature | -40°C to 85°C |
| Humidity Range | 5%–95% RH |
| Dimensions (L × W × H) | 87 × 36 × 59 mm |
