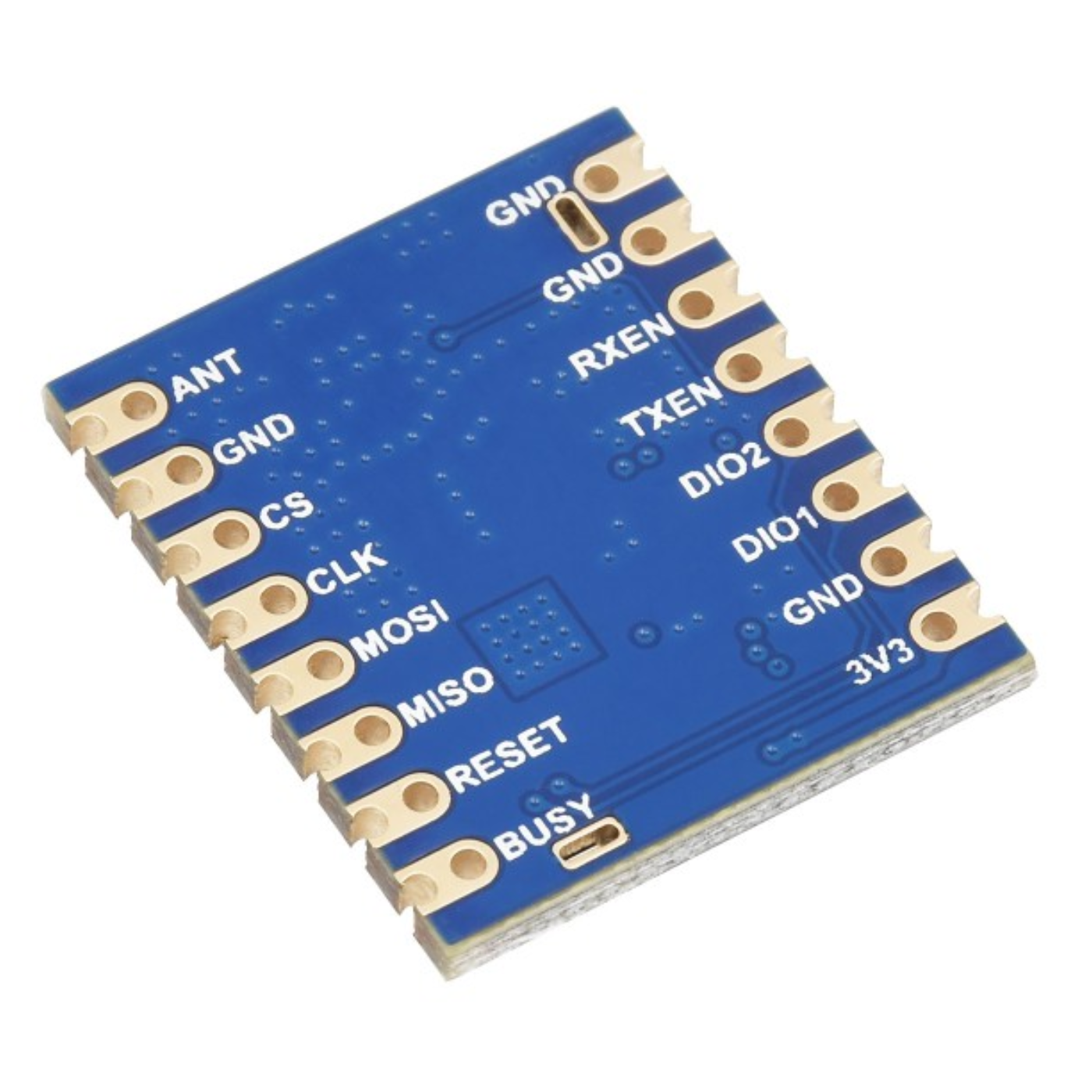

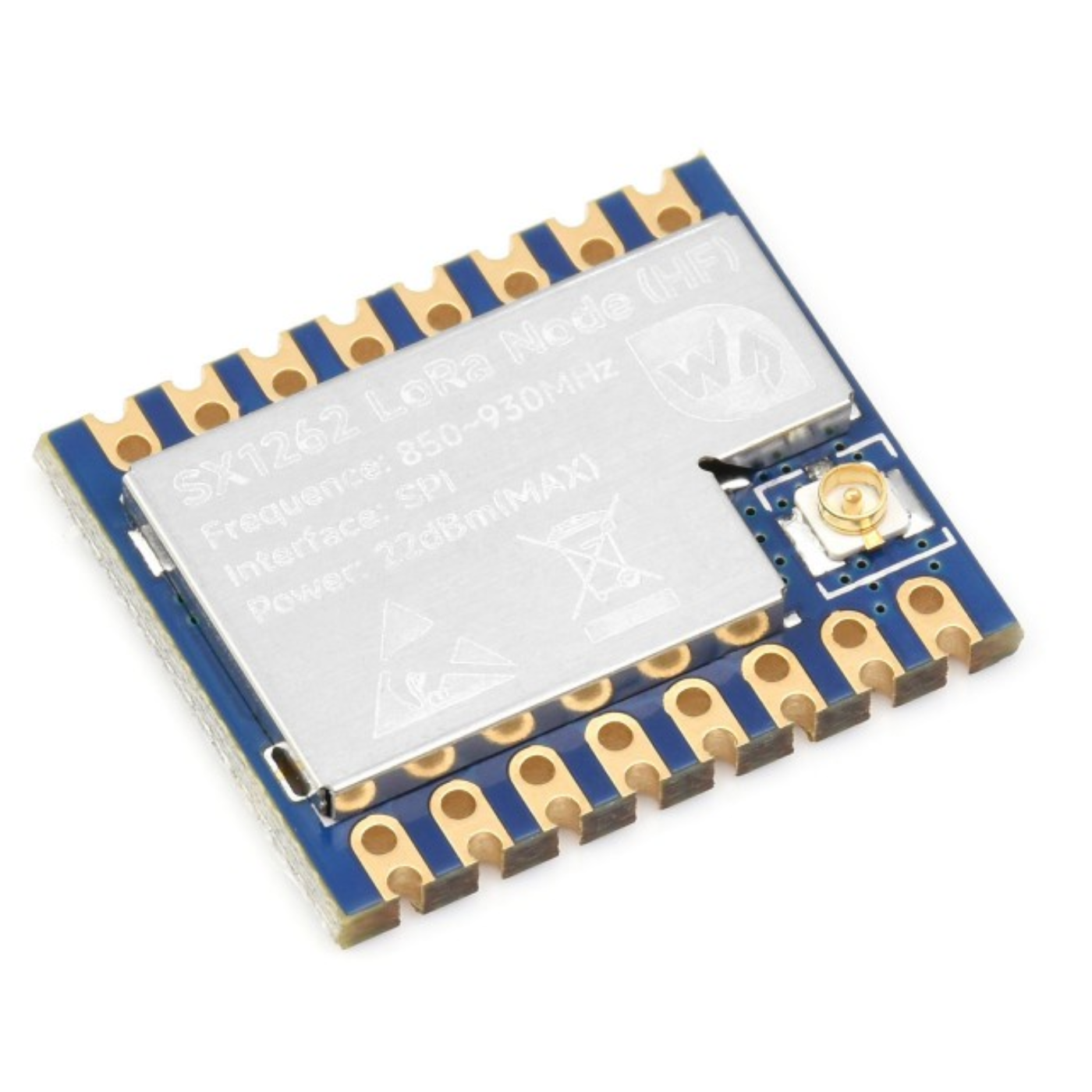

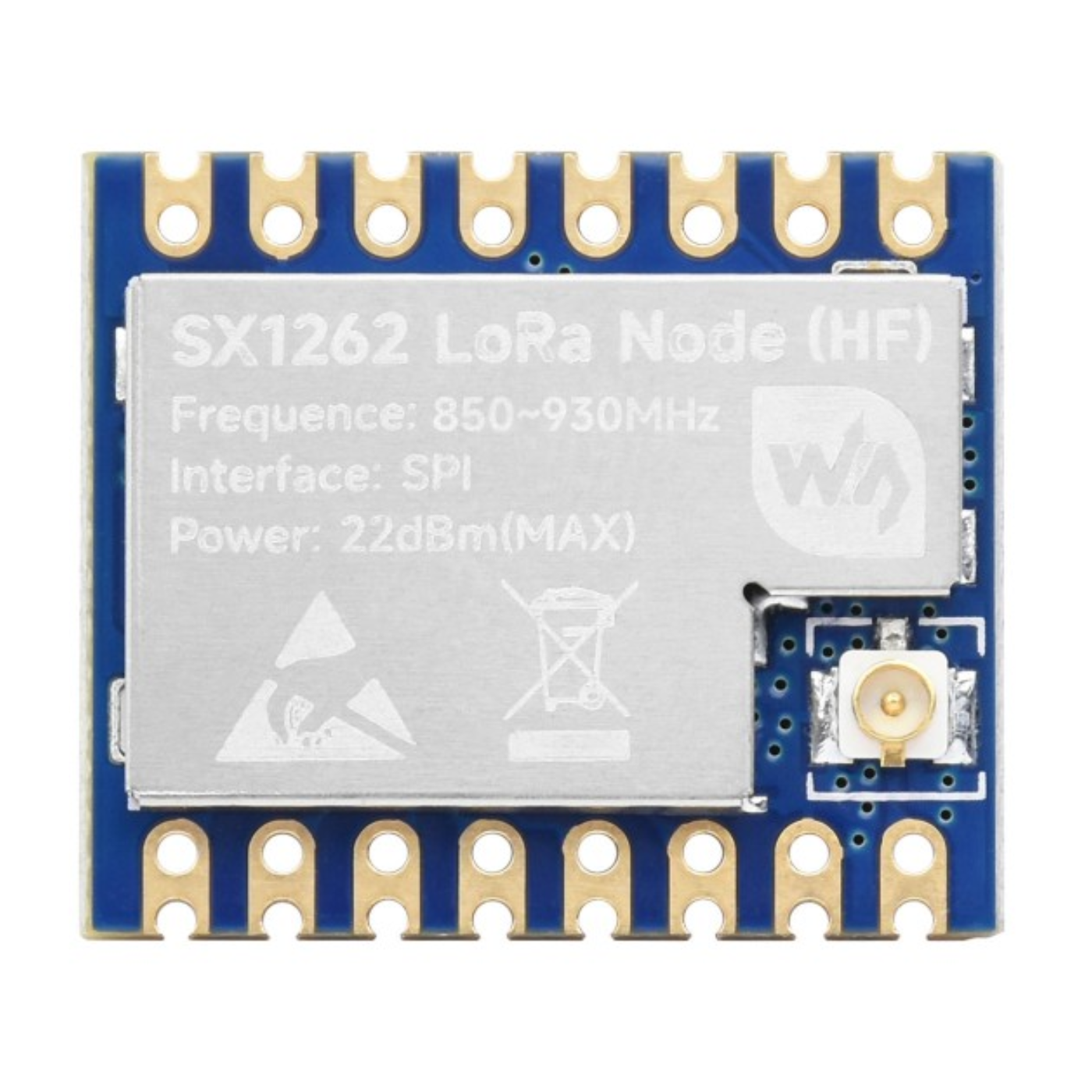

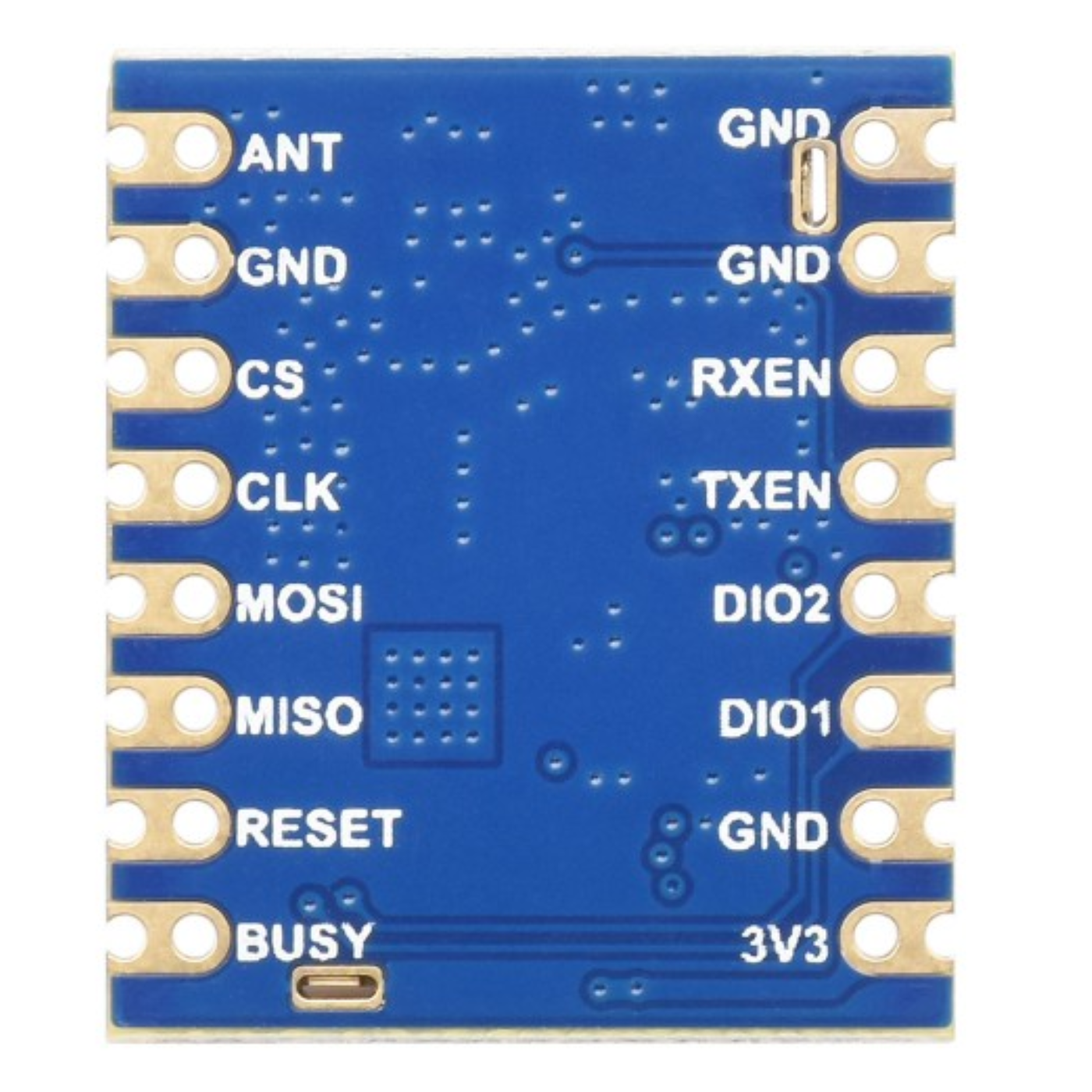

Waveshare Core1262 HF LoRa Module with SX1262 Chip Long-Range
Waveshare Core1262 HF LoRa Module with SX1262 Chip Long-Range
Waveshare Core1262 HF LoRa Module with SX1262 Chip Long-Range
The Waveshare Core1262-HF LoRa Module is a compact long-range wireless communication module based on the SX1262 chip, designed for reliable Sub-GHz communication in IoT, industrial, smart home, and data acquisition applications. The HF version operates across 850–930 MHz and supports LoRa/(G)FSK modulation, with LoRa data rates from 0.018–62.5 Kbps and (G)FSK data rates from 0.6–300 Kbps.
It operates at 3.3V, communicates through an SPI interface, and supports SF5–SF12 spreading factors. The module measures only 19.00 × 22.00 mm and uses a 2.54 mm pitch castellated edge/solder-hole connector, making it suitable for compact embedded designs. Its temperature-compensated crystal oscillator (TCXO), professional shielding, and LoRa spread-spectrum technology help provide stable and interference-resistant communication.
Features:
- The latest version SX1262 offers improved power efficiency and a longer transmission distance than the SX1278.
- Suitable for sub-GHz band, along with the gateway, rapid connect to cloud servers to construct the LoRa/LoRaWAN network.
- Suitable for applications such as industrial, smart homes, and data collecting.
- Adopts high-quality components, such as TCXO, for stable operation under demanding situations.
- Includes development resources and a documentation (examples for Raspberry Pi Pico and STM32).
Package Includes:
- 1 x Waveshare Core1262 HF LoRa Module with SX1262 Chip Long-Range
Specifications:
| Specification | Details |
|---|---|
| Version | Core1262-HF |
| RF Chip | SX1262 |
| Frequency Range | HF: 850–930 MHz |
| Modulation | LoRa / (G)FSK |
| Data Rate | 0.018–62.5 Kbps (LoRa) 0.6–300 Kbps ((G)FSK) |
| Transmit Power | 22 dBm @ 3.3V |
| Spreading Factor | SF5–SF12 |
| Operating Voltage | 3.3V |
| Module Power Consumption | Receiving current: 5.3 mA @ 125 KHz |

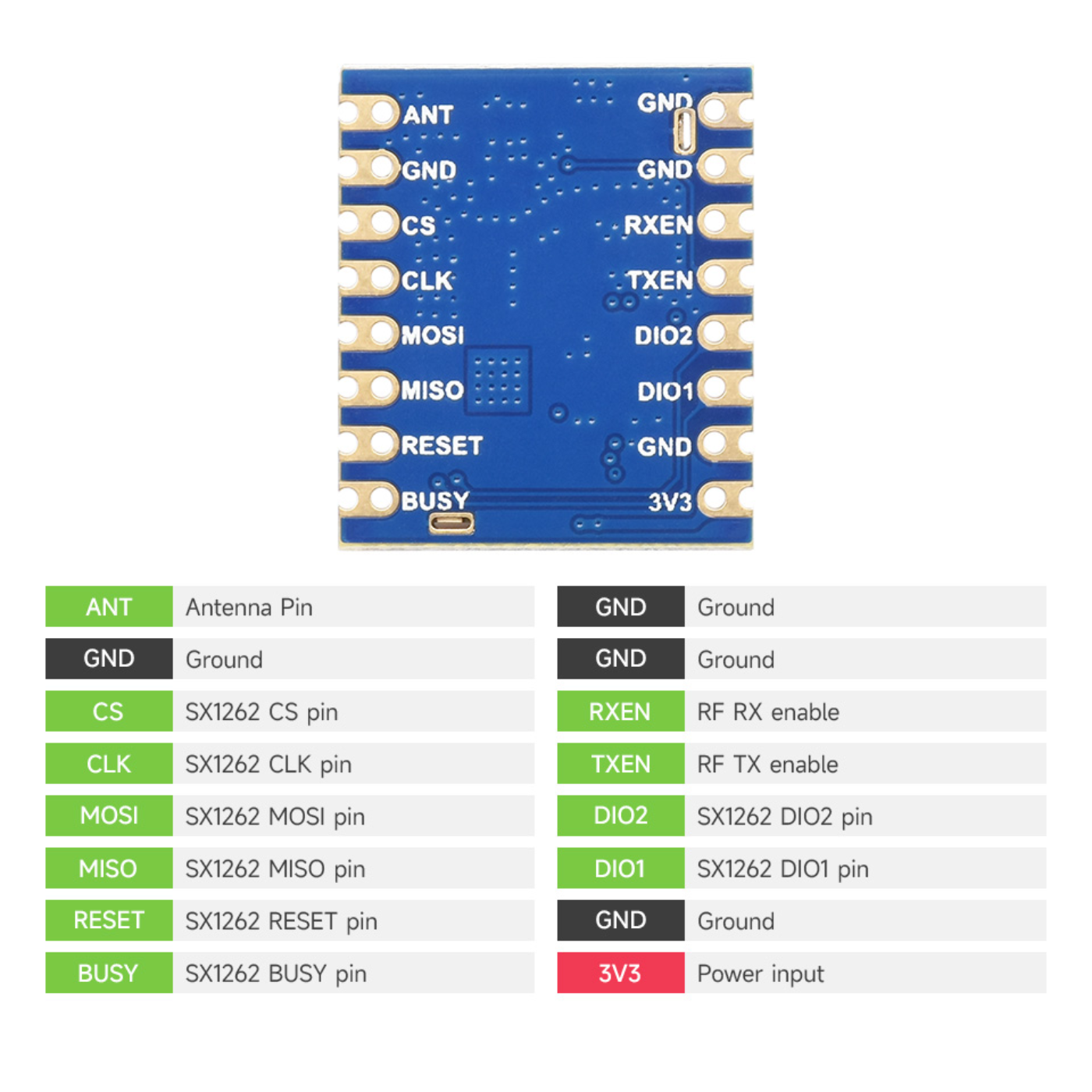

| Communication Bus | SPI |
| Operating Temperature | 0–85°C |
| Connector | Castellated edge / solder holes, 2.54 mm pitch |

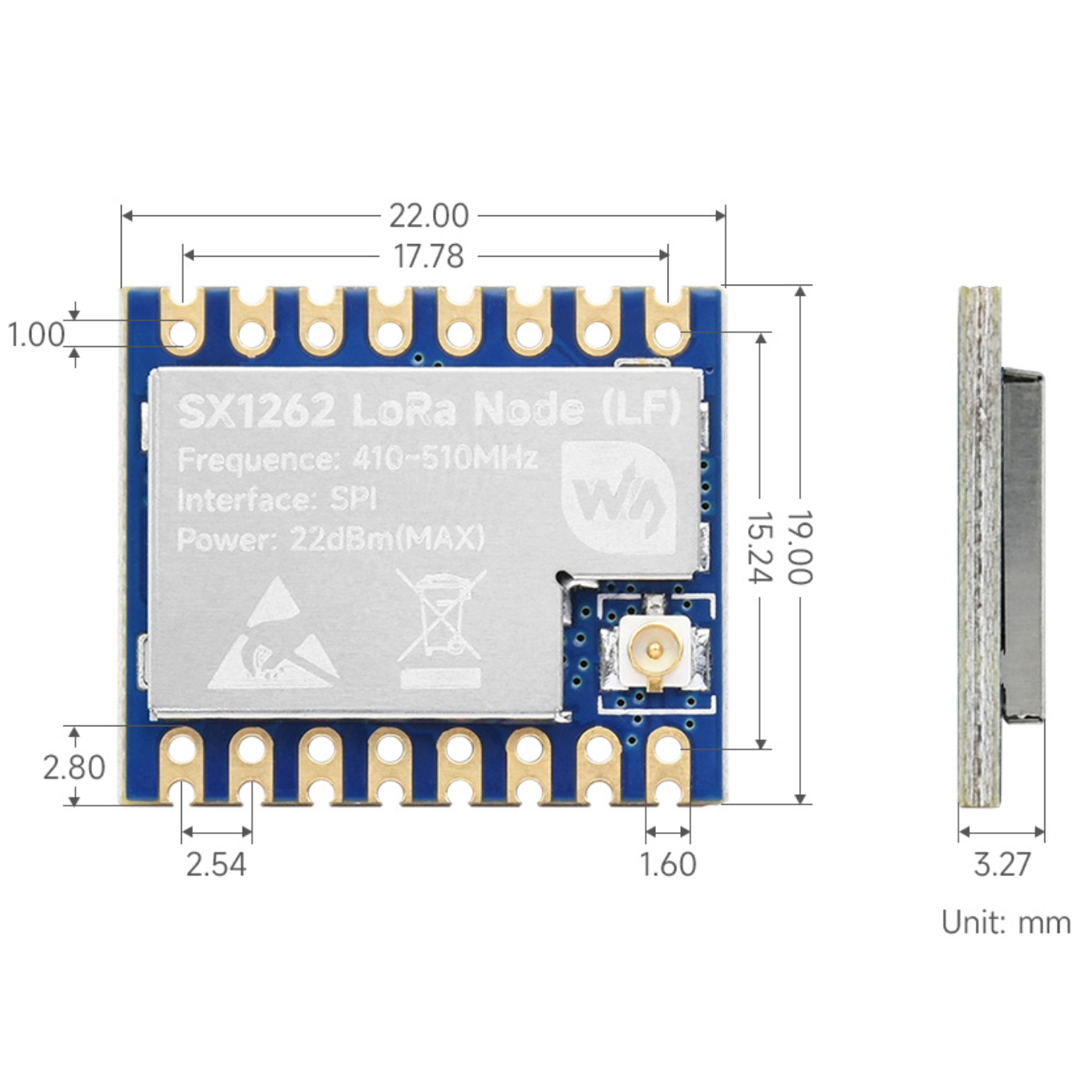

| Dimensions | 19.00 × 22.00 mm |
