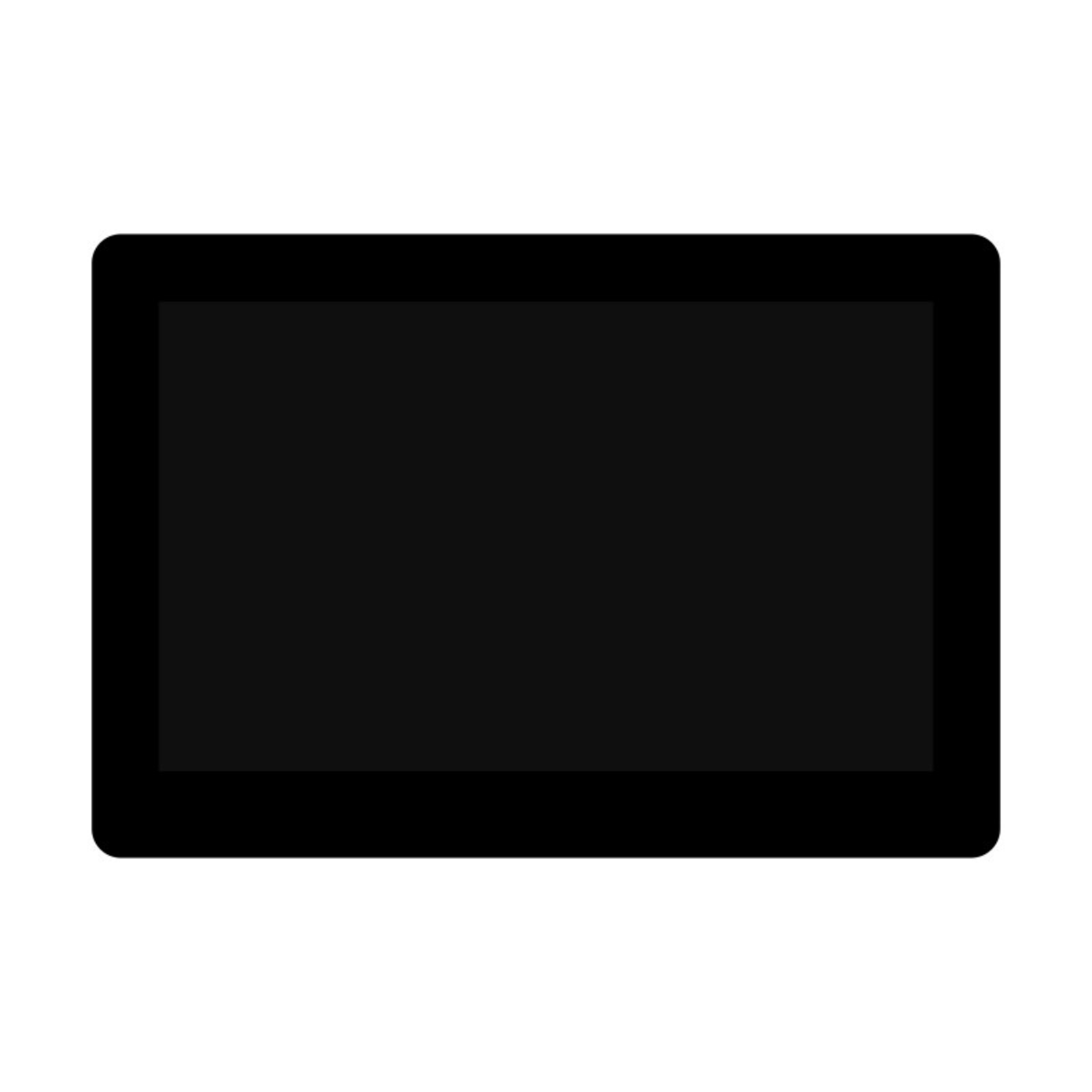

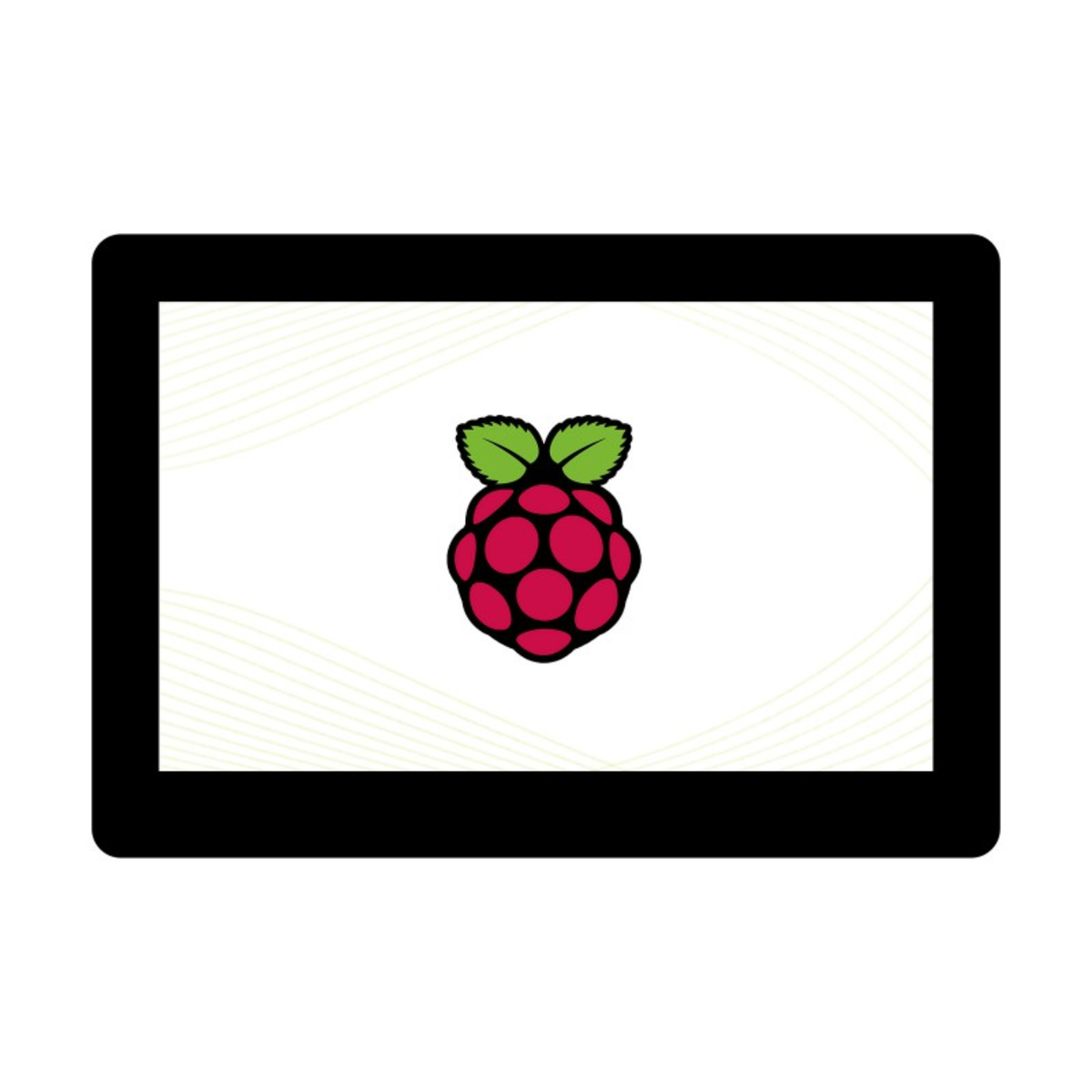

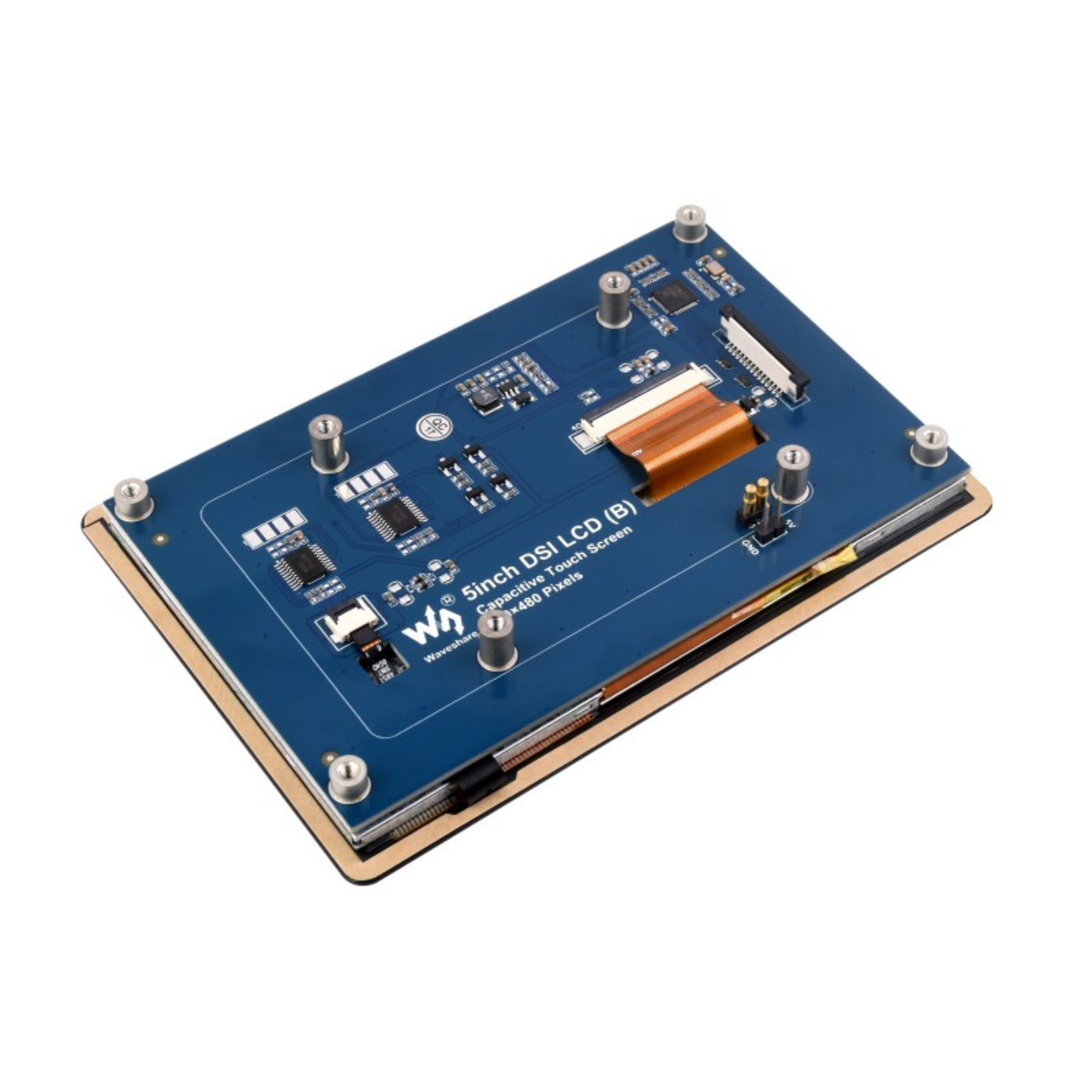

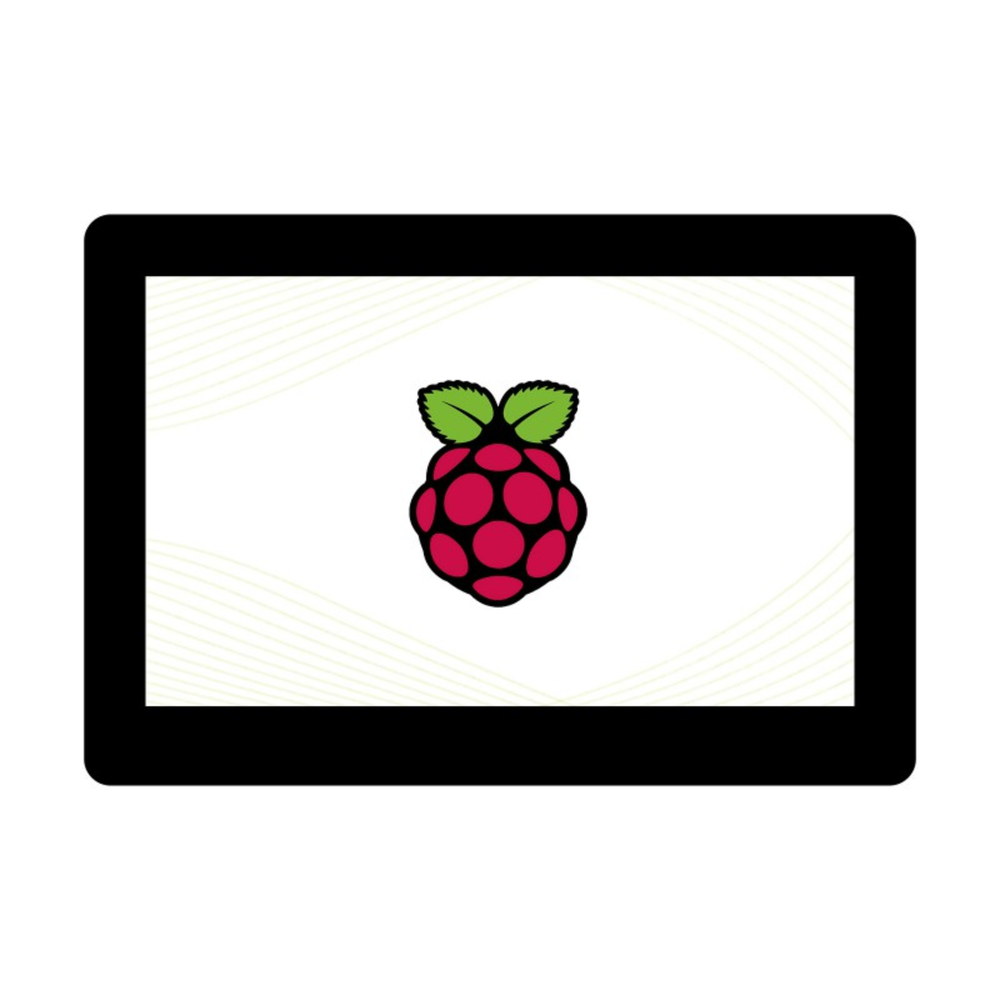

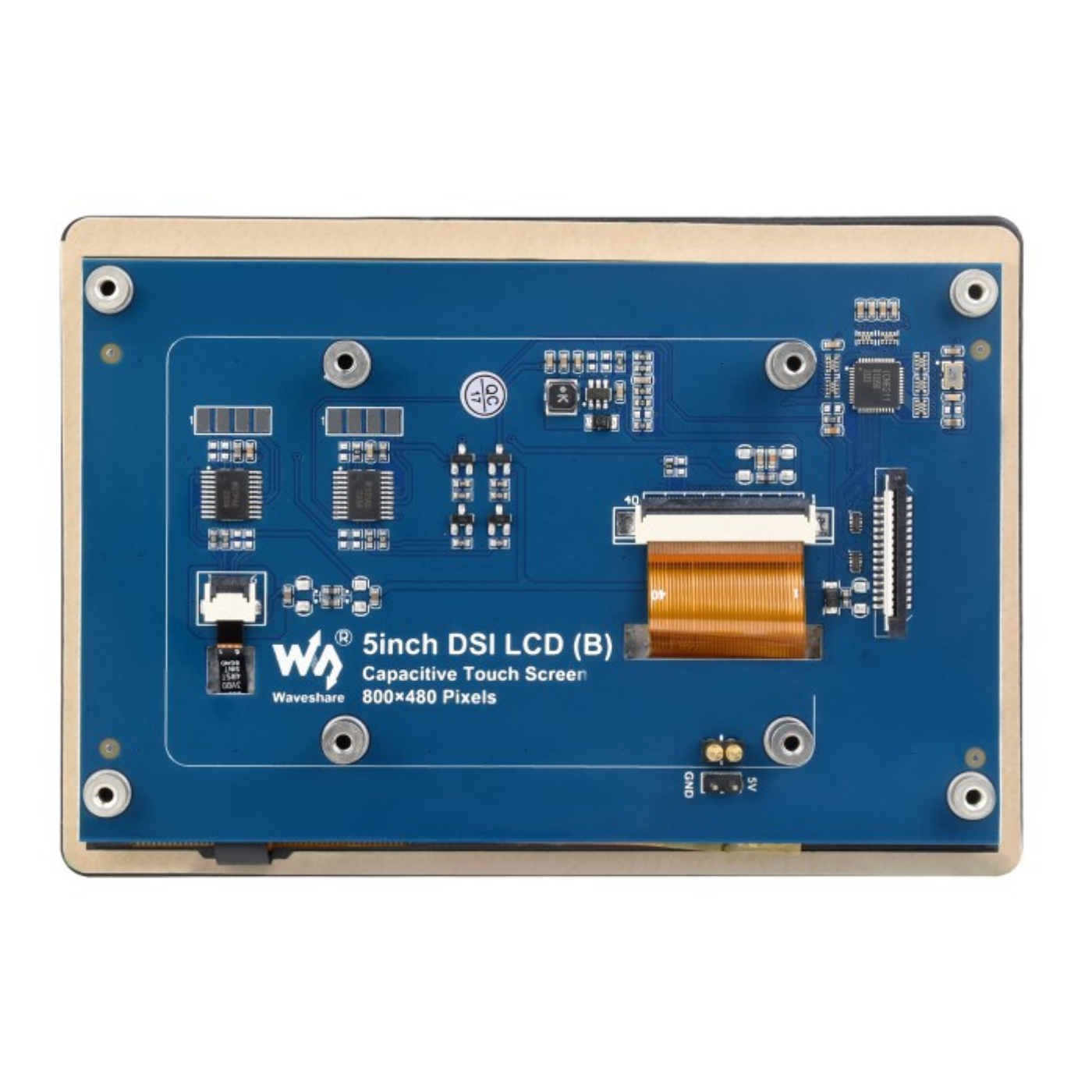

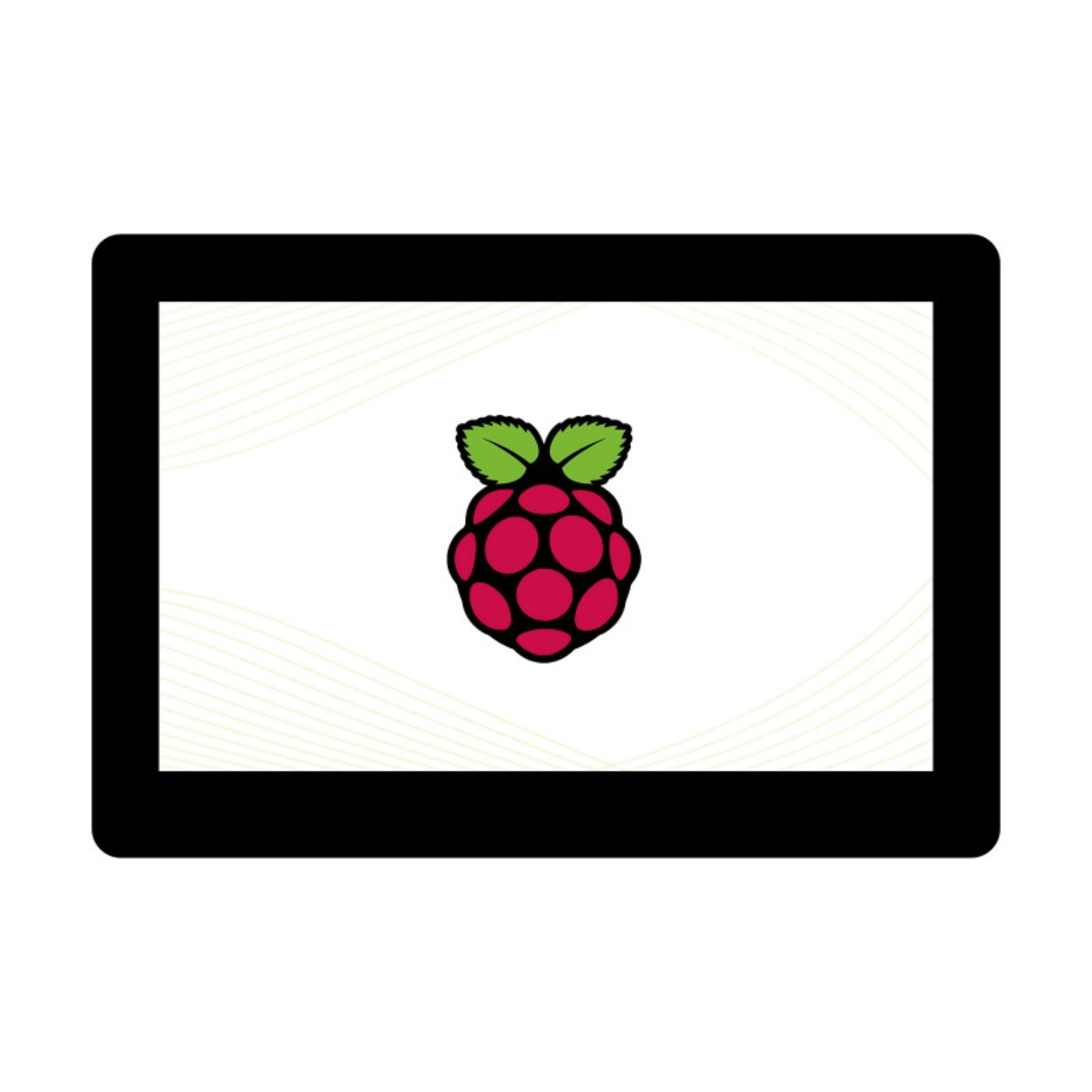

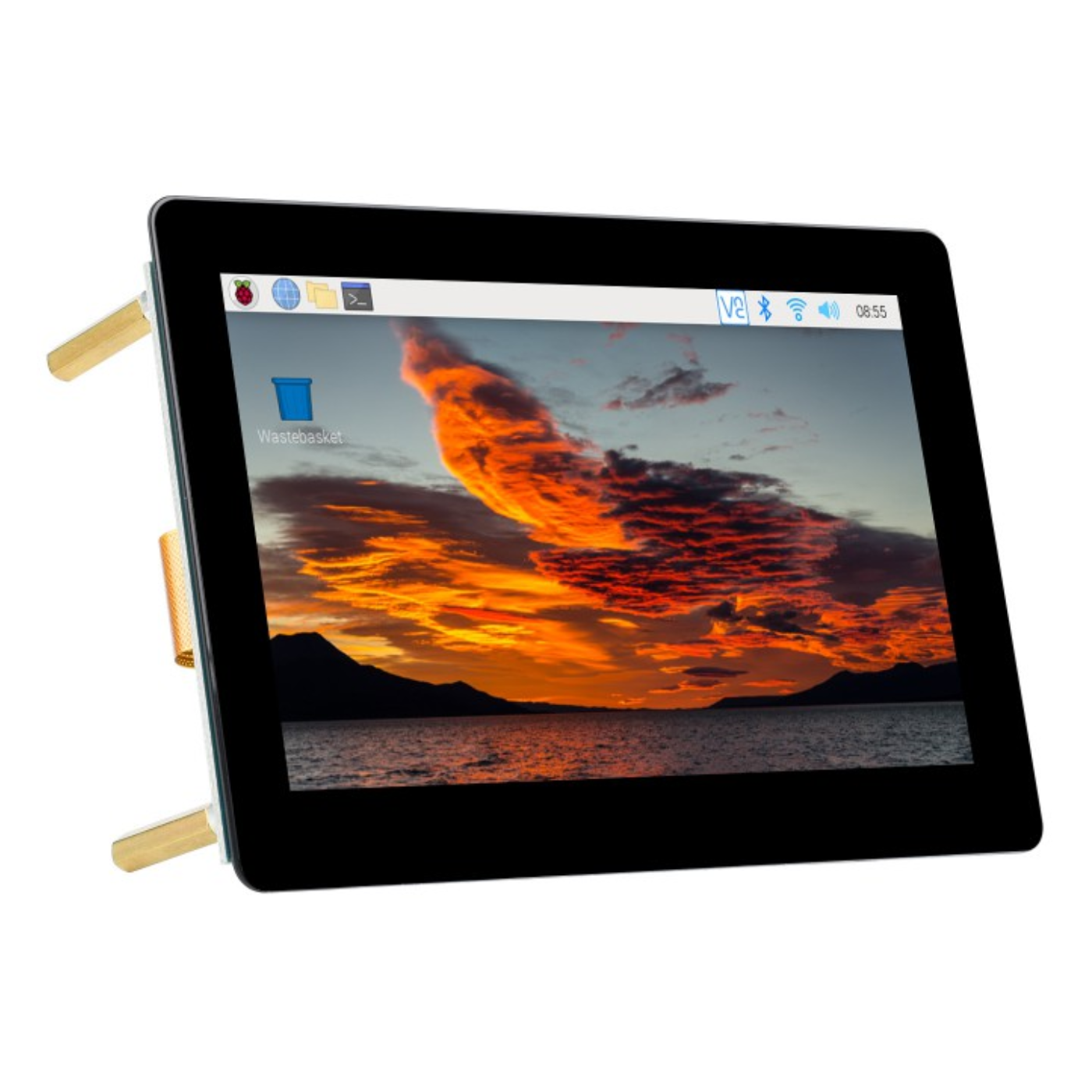

The Waveshare 5inch IPS DSI 800×480 Capacitive LCD (B) is a compact Raspberry Pi touch display designed for projects that need a responsive graphical interface without occupying the board's 40-pin GPIO header. It features a 5-inch IPS panel with an 800 × 480 resolution, a 160° viewing angle, and a DSI display interface for direct connection to compatible Raspberry Pi boards.
Its capacitive touch panel supports up to 5-point touch, while the toughened glass surface has a hardness of up to 6H for improved durability. The display supports refresh rates of up to 60Hz and allows brightness adjustment through software.
It is compatible with Raspberry Pi 5, 4B, 3B+, 3A+, 3B, 2B, B+, A+, CM3, CM3+ and CM4, making it useful for Raspberry Pi dashboards, control panels, portable computers, smart home interfaces, kiosks and other interactive DIY electronics projects.
| Specification | Details |
|---|---|
| Display Size | 5 Inches |
| Panel Type | IPS LCD |
| Resolution | 800 × 480 Pixels |
| Interface | DSI |
| Touch Type | Capacitive Touch |
| Touch Points | 5-Point Multi-Touch |
| Refresh Rate | Up to 60Hz |
| Viewing Angle | 160° |
| Touch Glass Hardness | Up to 6H |
| Aspect Ratio | 5:3 |
| Brightness Control | Software Adjustable |
| Compatible Boards | Raspberry Pi 5, 4B, 3B+, 3A+, 3B, 2B, B+, A+, CM3, CM3+, CM4 |
Yes. It connects to the Raspberry Pi DSI port and works driver free on recent Raspberry Pi OS.
The Waveshare 5 inch DSI LCD (B) has an 800x480 IPS panel with 5-point capacitive touch and a 60Hz refresh rate.
Pi 5, 4B, 3B+ and CM4 with DSI. Pi 5 uses a 22-pin cable.
Yes. Brightness can be adjusted in software on Raspberry Pi OS.
The 5 inch DSI display suits compact control panels, robot status screens, smart home wall panels and portable Raspberry Pi projects.
