- This is Waveshare 5 inch HDMI Resistive Touchscreen Display
- This has 800×480 High resolution, resistive touch panel.
- This Display Supports Raspberry Pi, comes with Raspbian driver (works with your Raspbian directly), and Ubuntu image.
- This Display Supports Banana Pi / Banana Pro, comes with Lubuntu, Raspbian images.
- This Display Supports BB Black, comes with Angstrom image.
- This has HDMI interface for displaying, USB interface for touch control.
- This has Back light control to lower power consumption.

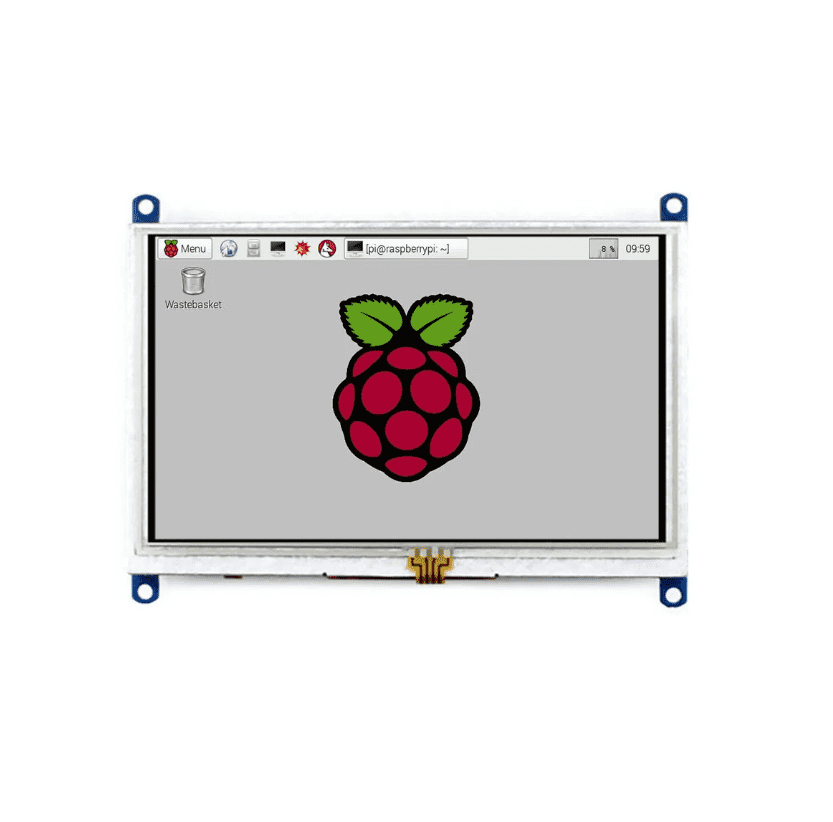

Waveshare 5 inch HDMI Resistive Touchscreen Display
The 5-inch Resistive Touch Screen LCD display provides various support systems such as Raspberry Pi, Banana Pi, Banana Pro, BeagleBone Black, etc. This Resistive Touch Screen display supports Windows 10/8.1/8/7 OS. For the Windows 10/8.1/8 OS. This LCD display can support Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT systems. When the LCD display works on systems such as Raspberry Pi, the resolution must be set manually, otherwise, it will cause an abnormal display. There is no such problem when the LCD works on the PC version of Windows.
The built-in HDMI interface enables the Waveshare display to work as a computer monitor just like any other HDMI screen. The Touch Screen display comes with a preloaded Raspbian driver and Ubuntu image. The 800x480 high-resolution display has separate interfaces for touch control and display control. While the display is controlled over the HDMI interface the touch control is done via USB interface. To reduce the power consumption backlight of the display can be switched on/off as per user preference.
Features:
- Screen Size: 5 inches
- Resolution: 800 x 480 pixels
- Touch Type: Resistive touch
- Display Interface: HDMI
- Touch Interface: SPI
- Power Consumption: Low power
- Compatibility: Supports Raspberry Pi (all models), Banana Pi, and general desktop computers
- Operating Systems: Compatible with Raspberry Pi OS, Ubuntu, Kali, Retropie, and Windows (single touch, driver-free)
- Additional Features: Includes a 3.5mm audio jack and supports HDMI audio output
- Backlight Control: Supports backlight control for power saving
Applications:
- Raspberry Pi Projects: Ideal for creating interactive Raspberry Pi projects, such as home automation systems, media centers, and portable devices.
- DIY Electronics: Used in various DIY electronics projects that require a compact and touch-enabled display.
- Portable Devices: Suitable for building portable computing devices and handheld gadgets.
- Educational Tools: Great for educational purposes, allowing students to learn about touch interfaces and display technology.
- Industrial Control Systems: Can be integrated into industrial control panels for monitoring and control purposes.
- Kiosks: Used in information kiosks and point-of-sale systems for user interaction.
- Gaming Consoles: Employed in custom-built gaming consoles and retro gaming setups.
- Prototyping: Useful for prototyping and testing new applications that require a touch interface
Package Includes:
- 1 x Waveshare 5 inch Touchscreen Display
Specifications
| Brand | Waveshare |
| Display Port | HDMI |
| Touch Type | Resistive Touch screen |
| Display Size | 5 inch |
| Package Dimensions | 11 x 9 x 5cms |
| Weight | 100 grams |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy

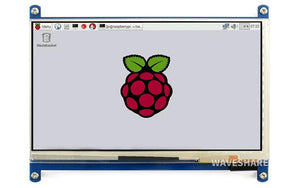

Waveshare HDMI 7 inch Display
Example product title
Example product title
Found a better price?
Let us know!
We'll try to match the price for you
1. Can a 5-inch Resistive Touch Screen LCD be connected to a Raspberry pi?
- Yes, The 5-inch Resistive Touch Screen LCD display can be connected to Raspberry pi. The 5-inch Resistive Touch Screen LCD display also support other systems such as Banana Pi, Banana Pro, BeagleBone Black, etc.
2. What is the use of the 5-inch Resistive Touch Screen LCD?
- The built-in HDMI interface enables the display to work as a computer monitor just like any other HDMI screen. The display comes with a preloaded Raspbian driver and Ubuntu image. The 800x480 high-resolution display has separate interfaces for touch control and display control. While the display is controlled over the HDMI interface the touch control is done via the USB interface.
3. Which systems can the waveshare 5-inch HDMI Resistive Touchscreen Display supports?
- The 5-inch Resistive Touch Screen LCD display provides various support systems such as Raspberry Pi, Banana Pi, Banana Pro, BeagleBone Black, Windows 10/8.1/8/7 OS, Raspbian / Ubuntu / Kali / Retropie and WIN10 IoT systems. When the LCD works on systems such as Raspberry Pi, the resolution must be set manually, otherwise, it will cause an abnormal display.
4. What is the resolution of the Waveshare 5-inch HDMI Resistive Touchscreen?
- The display has a resolution of 800x480 pixels, providing clear and detailed visuals.
5. Is this touchscreen compatible with all Raspberry Pi models?
- Yes, it is directly compatible with all versions of Raspberry Pi. However, for Raspberry Pi Zero models, an additional HDMI cable is required.
