Waveshare 3.5inch Capacitive Touch LCD IPS Display Module 320×480
Let us know!
We'll try to match the price for you
Couldn't load pickup availability
The Waveshare 3.5-inch Capacitive Touch LCD IPS Display Module is a compact yet powerful display solution featuring a 320 × 480 pixel resolution that delivers crisp visuals and excellent clarity. Designed with an IPS panel, it offers wide viewing angles and consistent color performance, making it ideal for graphical interfaces and interactive applications.

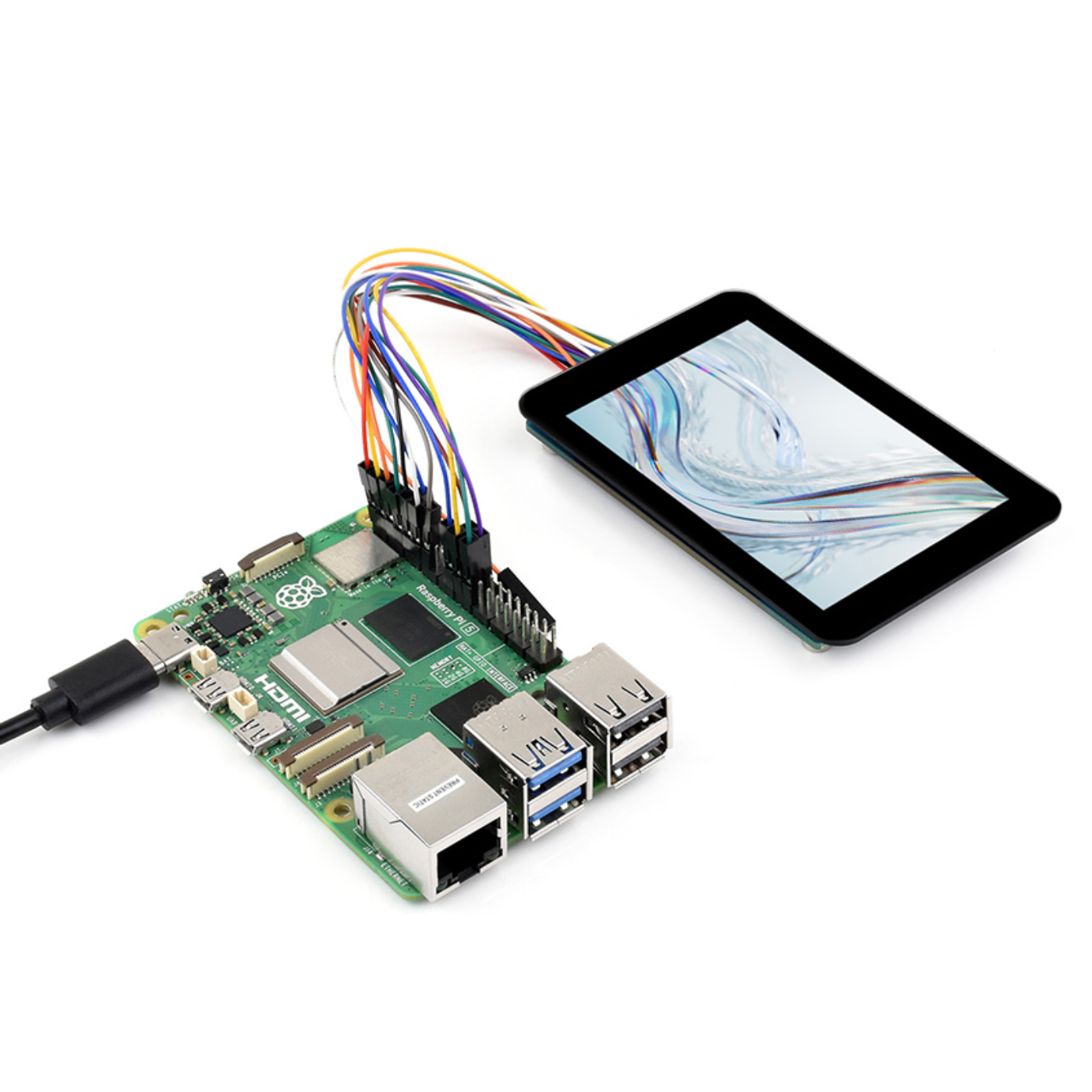

The module integrates the ST7796S display driver for reliable display control and the FT6336U capacitive touch controller for accurate, multi-touch responsiveness. Optimized for embedded development, this 3.5 inch LCD Raspberry Pi display is perfectly suited for Raspberry Pi projects, control panels, and custom HMI applications where space, touch precision, and visual quality matter.

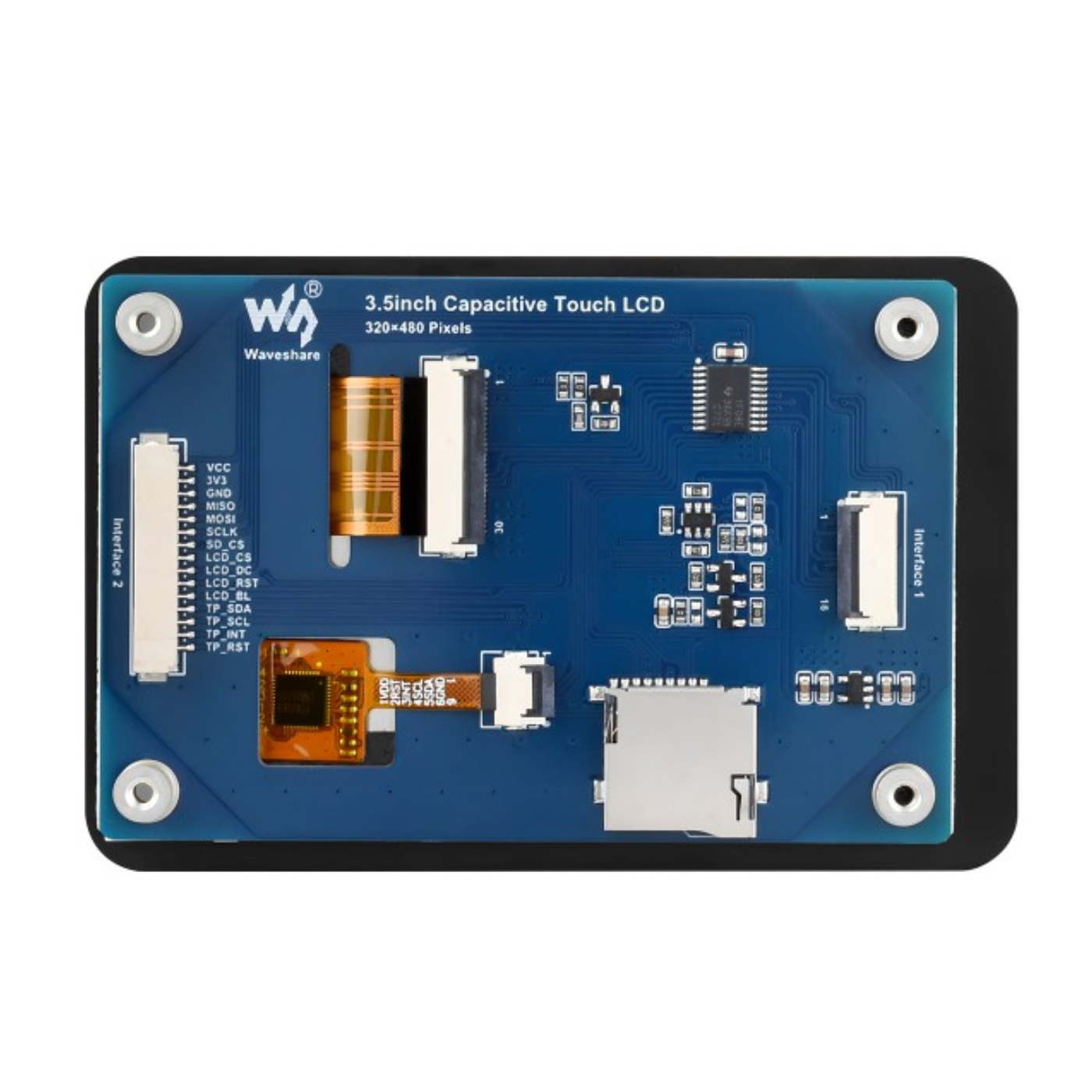

| Pin | Description | 15PIN Pin No. |
18PIN Pin No. |
|---|---|---|---|
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| 3V3 | Power (3.3V input) | 2 | NC |
| GND | Ground | 3 | 3 |
| MISO | SPI MISO pin | 4 | 6 |
| MOSI | SPI MOSI pin | 5 | 5 |
| SCLK | SPI CLK pin | 6 | 4 |
| SD_CS | TF card chip selection, low active | 7 | 10 |
| LCD_CS | LCD chip selection, low active | 8 | 9 |
| LCD_DC | LCD data/command selection (high for data, low for command) | 9 | 7 |
| LCD_RST | LCD reset pin, low active | 10 | 8 |
| LCD_BL | LCD backlight pin | 11 | 2 |
| TP_SDA | Touch panel data pin | 12 | 14 |
| TP_SCL | Touch panel clock pin | 13 | 13 |
| TP_INT | Touch panel interrupt pin | 14 | 15 |
| TP_RST | Touch panel reset pin, low active | 15 | 12 |
| Parameter | Details |
|---|---|
| Operating Voltage | 3.3V / 5V |
| Resolution | 320 × 480 pixels |
| Display Driver | ST7796S |
| Touch Driver | FT6336U |
| Display Interface | 4-wire SPI |
| Touch Interface | I2C |
| Display Panel | IPS |
| Touch Type | Capacitive |
| Pixel Pitch | 0.153 × 0.153 mm |
| Touch Points | Two-point touch |

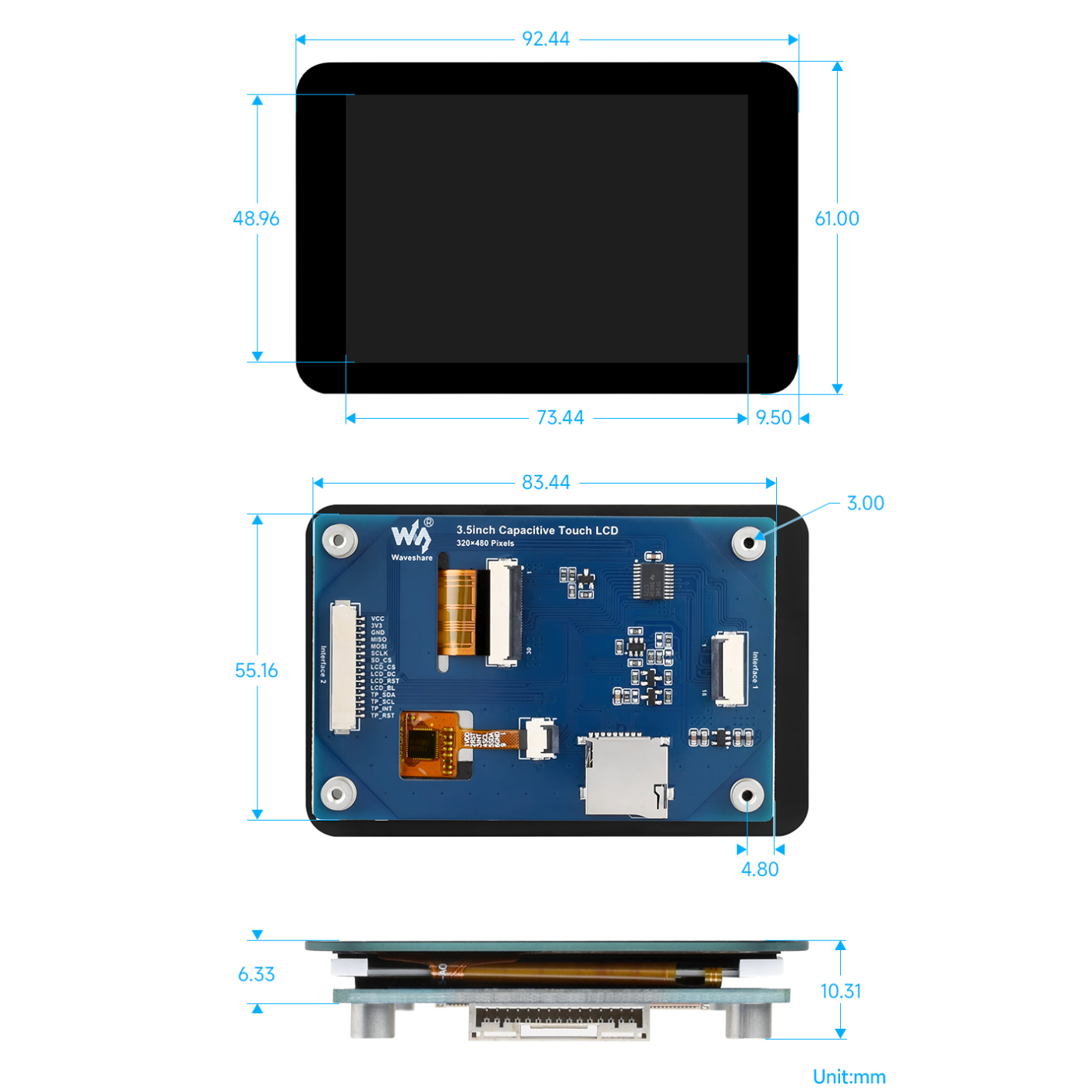

| Display Size | 48.96 × 73.44 mm |
| Module Size | 61.00 × 92.44 mm |
