Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface - Buy Online in India

Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface

Rs 1,029/-
- 37%
Rs 1,029/-
Rs 1,646/-
Save Rs 617/-
🪙
RC REWARDS Earn 10 RC Coins on this order
Incl. GST (No Hidden Charges)
Please hurry! Only 0 left in stock

We’ll notify you once the product is back in stock.

Free Delivery Above ₹999

Technical Support & Easy Returns

Same-Day Shipping (Order by 3 PM on Business Days)

Earn RC Coins on Every Prepaid Order

COD Available on Order Value Between ₹500 to ₹3,000
SKU: TIFDP0131
  • 2-inch IPS LCD display with a 240 × 320 pixel resolution for sharp, colorful visuals.
  • Supports 262K colors for clear graphics, images, and text.
  • Uses a 4-wire SPI interface to reduce the number of required GPIO pins.
  • Built-in ST7789VW display driver for efficient screen control.
  • Supports 3.3V / 5V operating voltage with compatible logic voltage.
  • Compact 58.0 × 35.0 mm module size with a 30.60 × 40.80 mm display area.
  • Compatible with Raspberry Pi, Arduino, STM32, and VisionFive2 development boards.
  • Suitable for displaying English/Chinese characters, images, points, lines, circles, rectangles, and other graphics.

Bulk Order?

For Best Price Contact on WhatsApp for bulk discounts!
Or Fill the Form Below

Submit your Bulk Enquiry Here
+91

File(s) size limit is 20MB. Max 3 files.

Select Categories
CAPTCHA
Reload Captcha
Robocraze Academy Limited Time Offer
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface -Displays -LCD Displays -Robocraze
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface
Rs 1,646/- Rs 1,029/-
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface -Displays -LCD Displays -Robocraze
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface -Displays -LCD Displays -Robocraze
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface -Displays -LCD Displays -Robocraze
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface -Displays -LCD Displays -Robocraze
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface -Displays -LCD Displays -Robocraze
Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface -Displays -LCD Displays -Robocraze

Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface

Rs 1,646/- Rs 1,029/-
Description

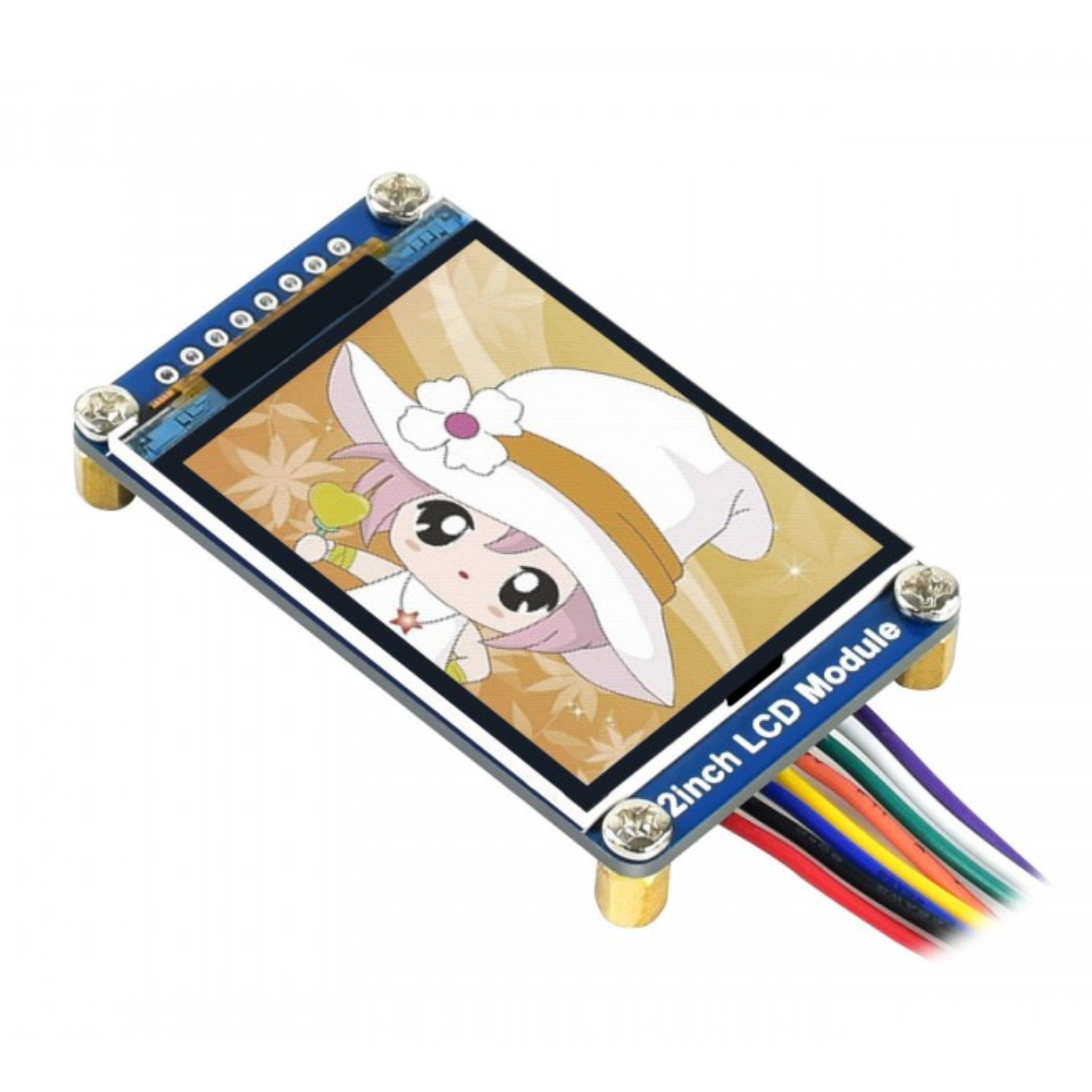

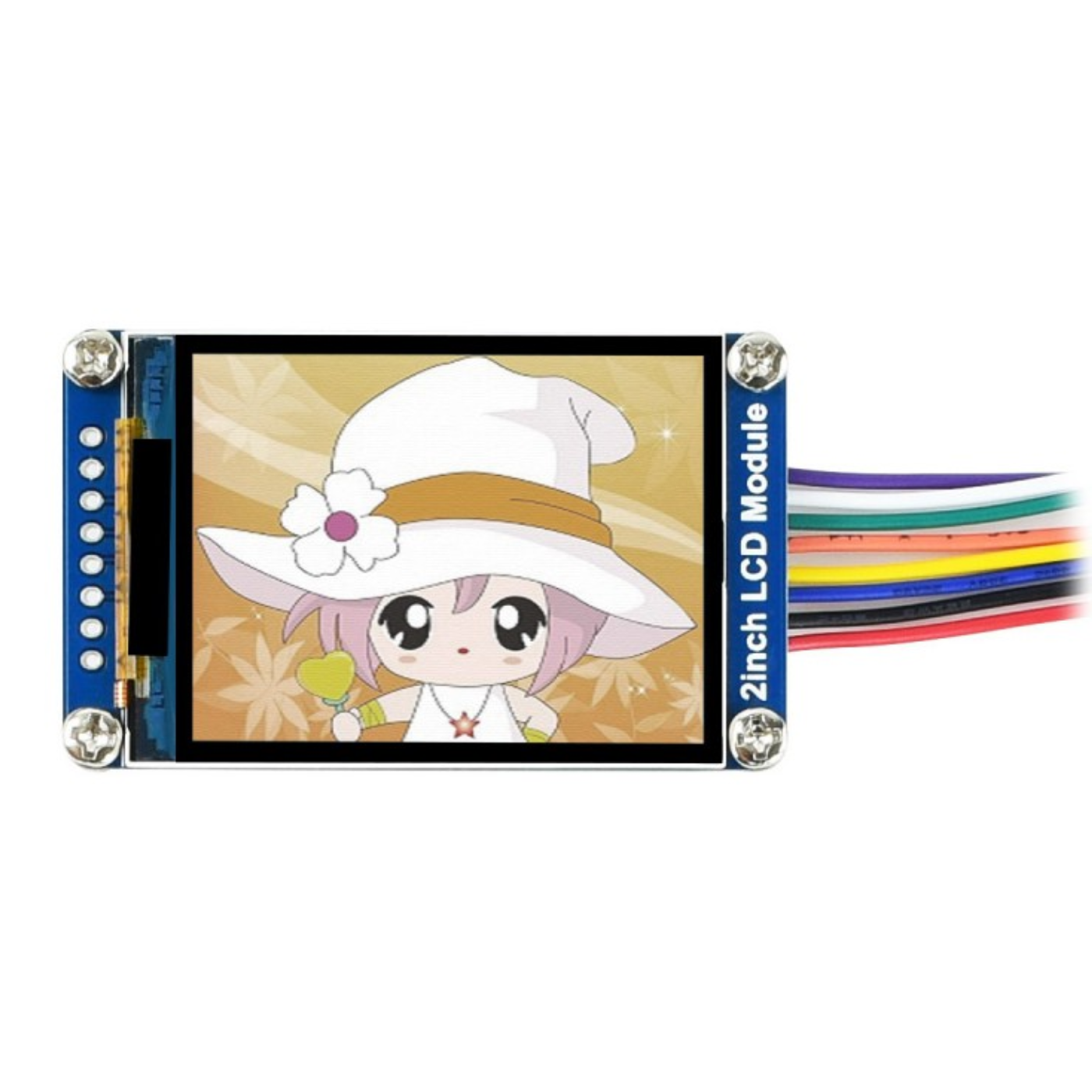

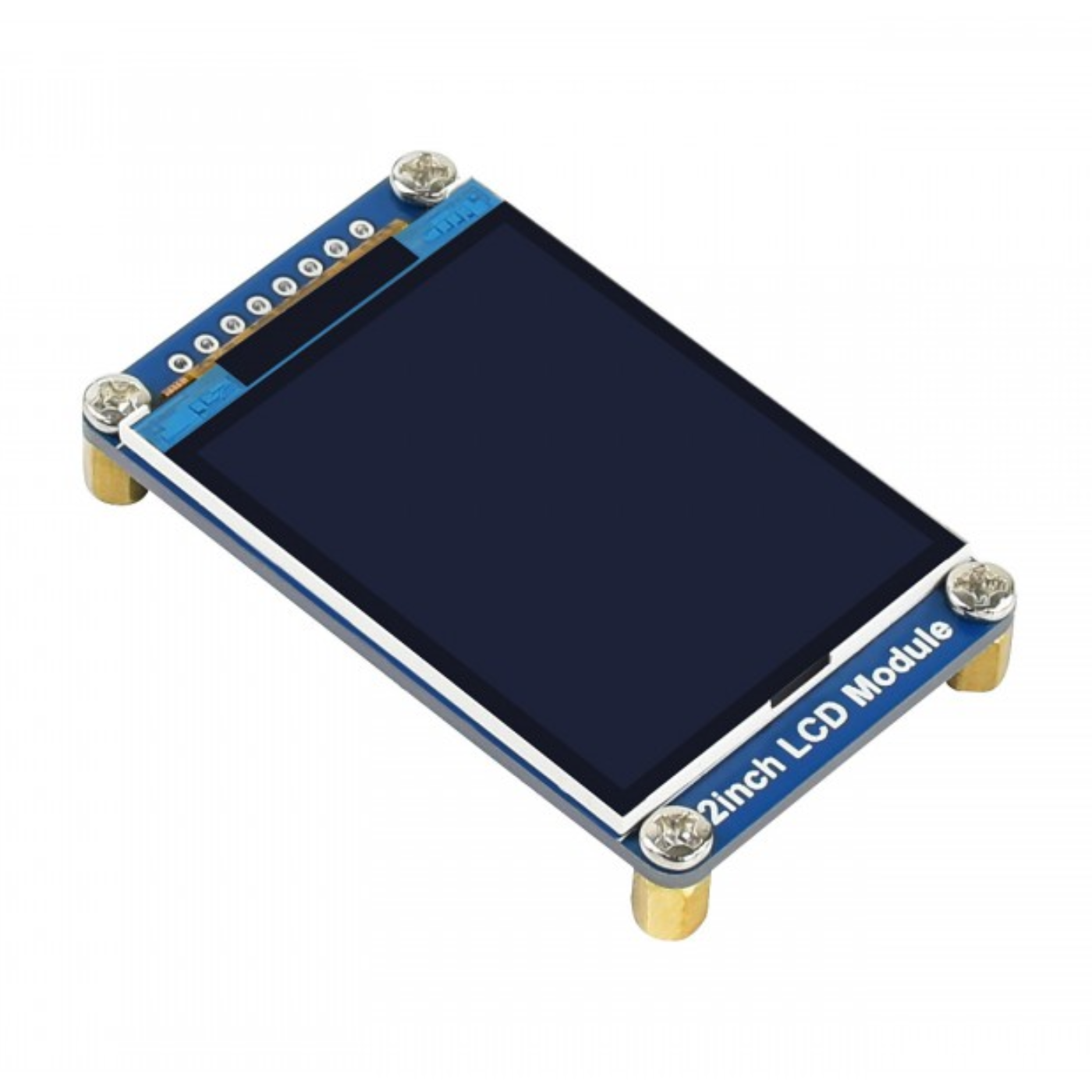

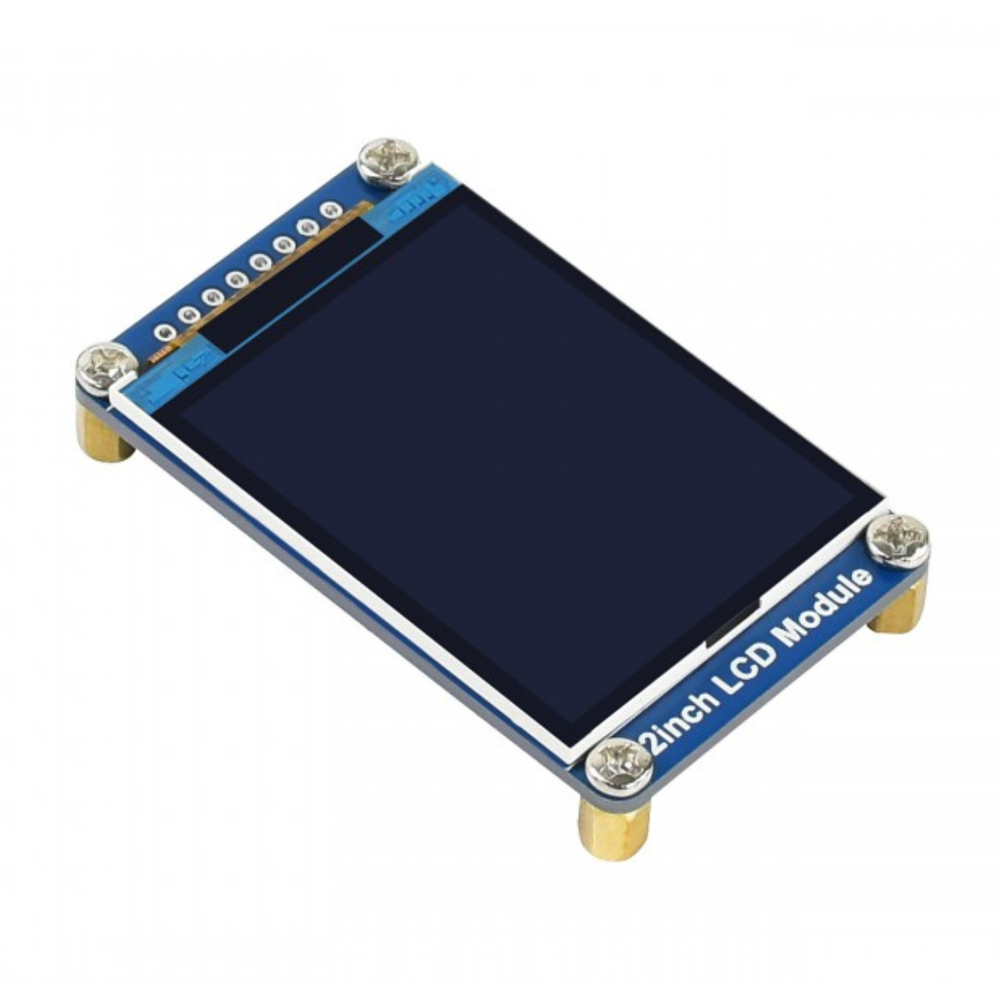

Waveshare 2inch 240×320 IPS LCD Display Module SPI Interface

The Waveshare 2inch LCD Display Module is a compact IPS LCD display module featuring a 240 × 320 pixel resolution, 262K colors, and a 4-wire SPI interface for efficient communication with development boards. It uses the ST7789VW display driver and operates at 3.3V / 5V, making it suitable for a range of embedded electronics and maker projects. The display measures 30.60 × 40.80 mm, with a 0.1275 × 0.1275 mm pixel size, while the complete module measures 58.0 × 35.0 mm.

Its SPI interface helps minimize the required GPIO pins, making it a practical choice for projects using Raspberry Pi, Arduino, STM32, and VisionFive2. The module can display text, images, and basic graphics such as points, lines, circles, and rectangles, making it useful for DIY electronics projects, embedded displays, IoT devices, robotics projects, and development boards.

Features:

  • 240×320 resolution and 262K colors provide a clean and vibrant viewing effect.
  • SPI interface minimizes required IO pins.
  • Includes online development materials (examples for Raspberry Pi, VisionFive2, Arduino, and STM32).
Specifications

Package Includes:

  • 1 x 2inch LCD Module
  • 1 x PH2.0 20cm 8Pin

Specifications:

Specification Details
Operating Voltage 3.3V / 5V
Resolution 240 × 320 pixels
Communication Interface 4-wire SPI
Display Size 30.60 × 40.80 mm
Display Panel IPS
Pixel Size 0.1275 × 0.1275 mm

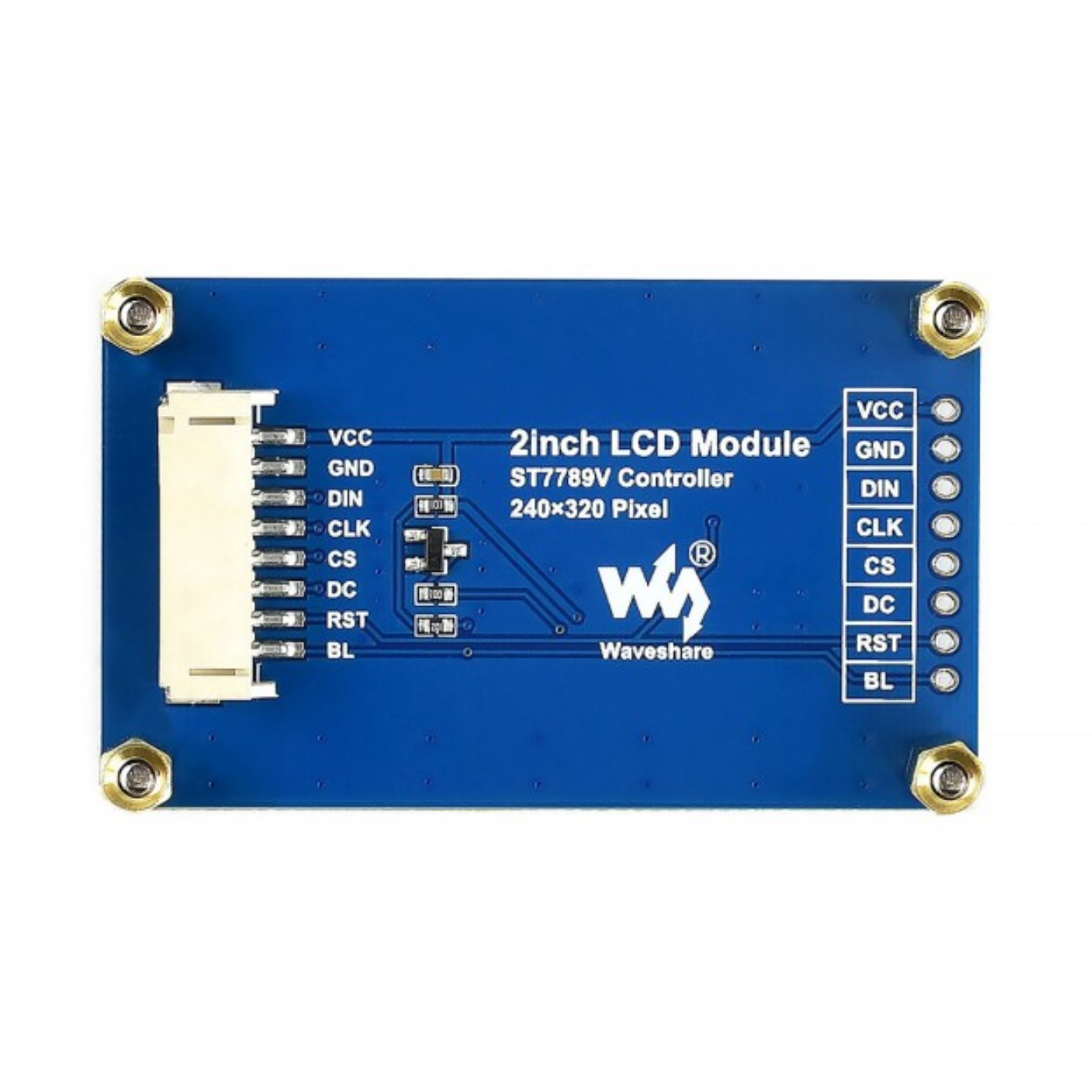

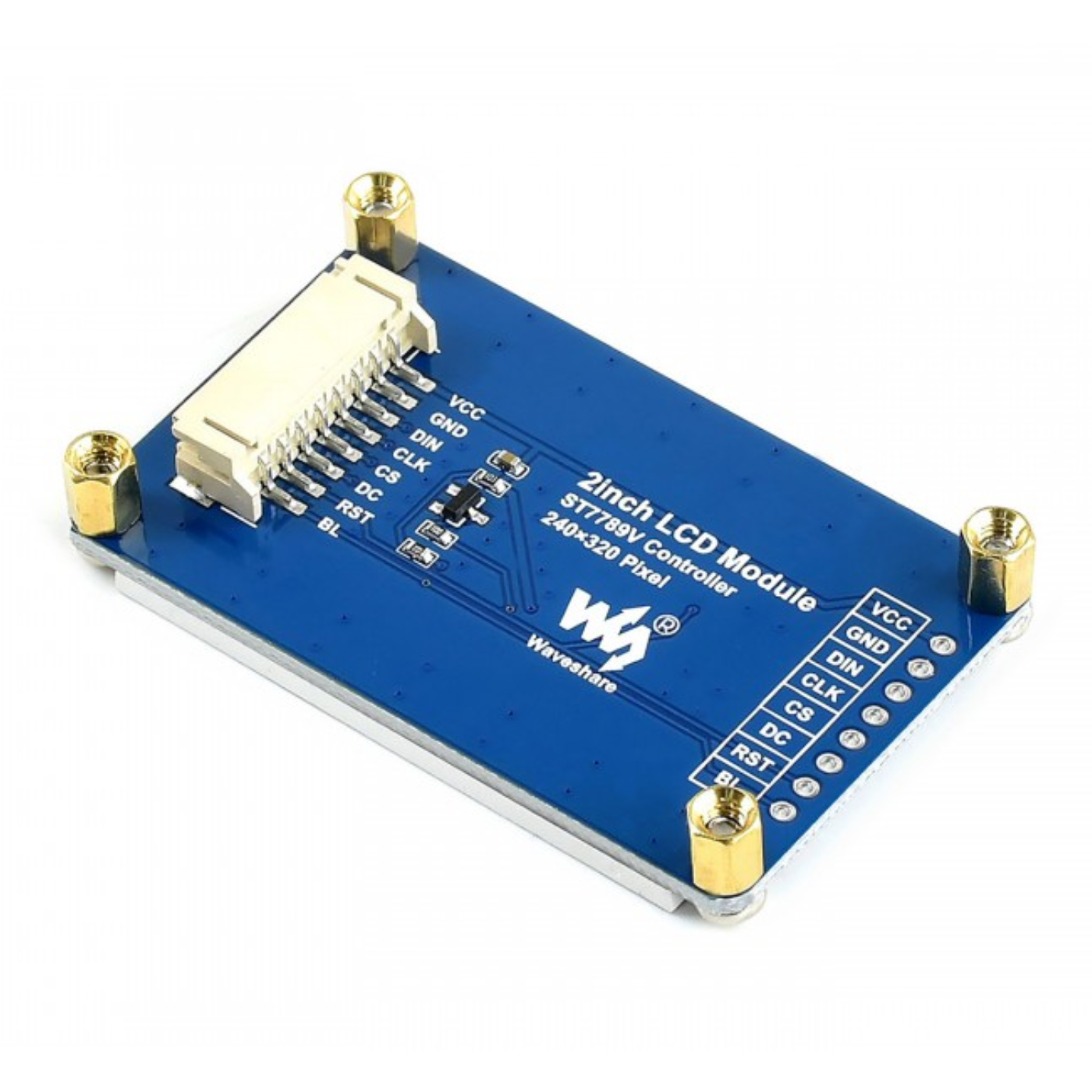

Driver ST7789VW

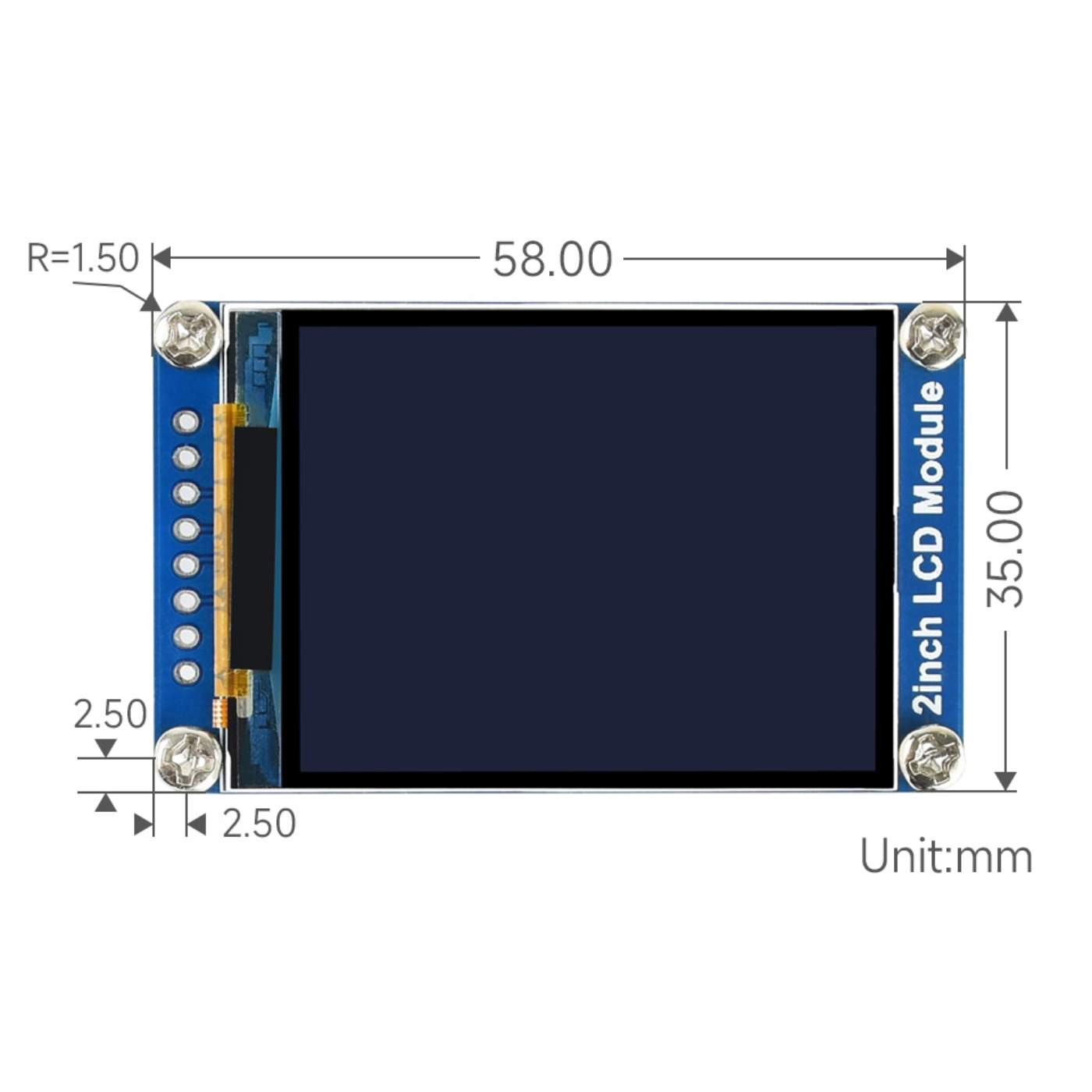

Module Size 58.0 × 35.0 mm
