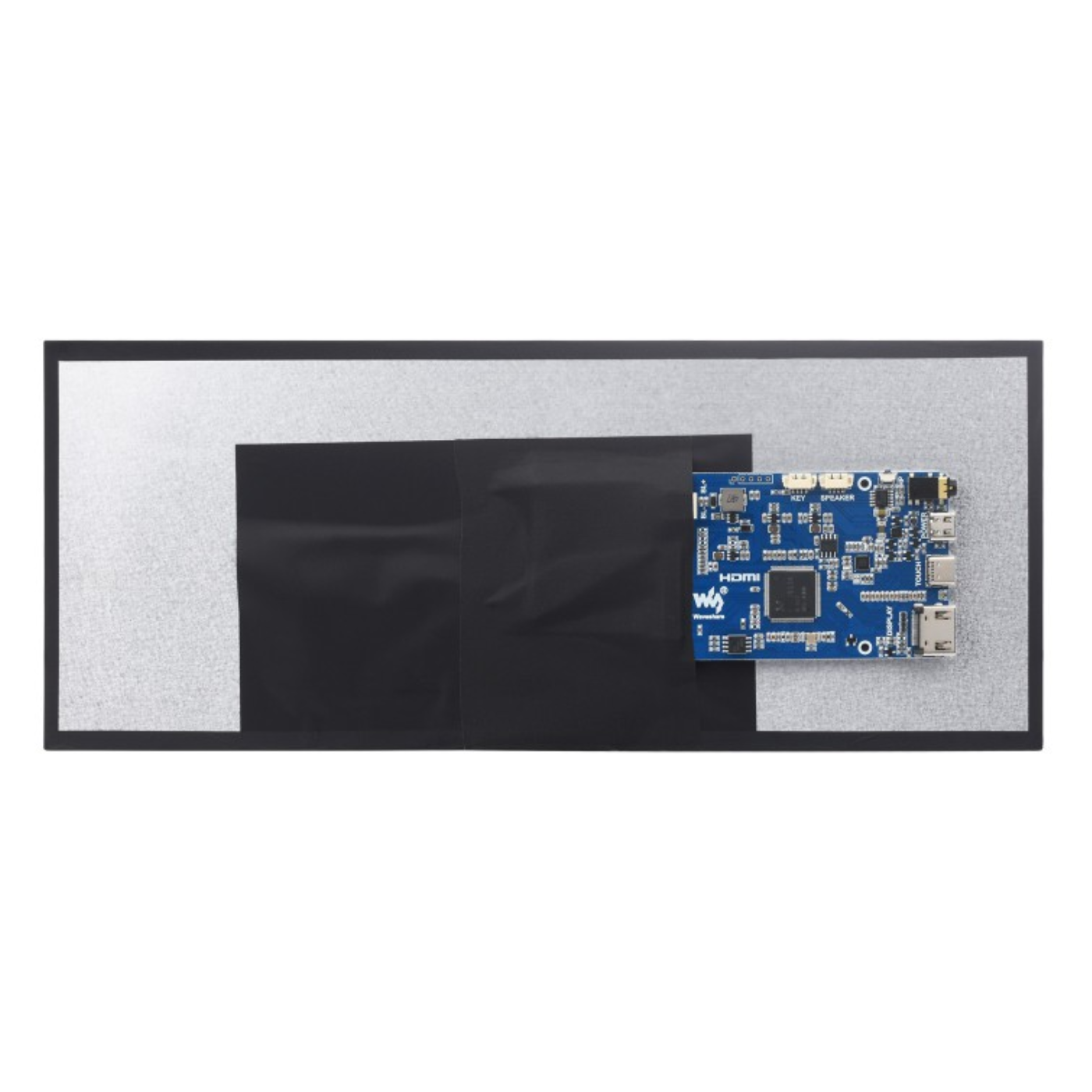

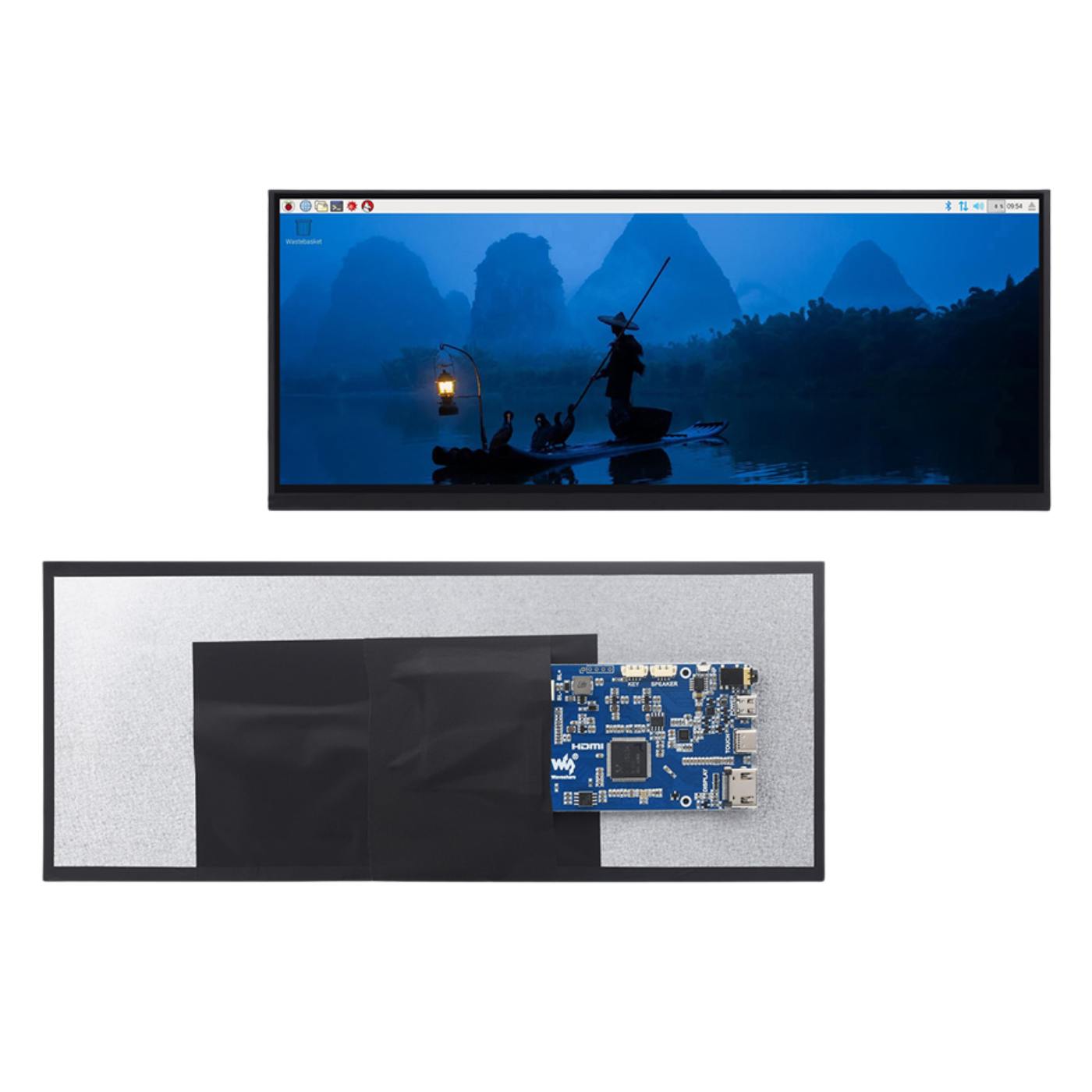

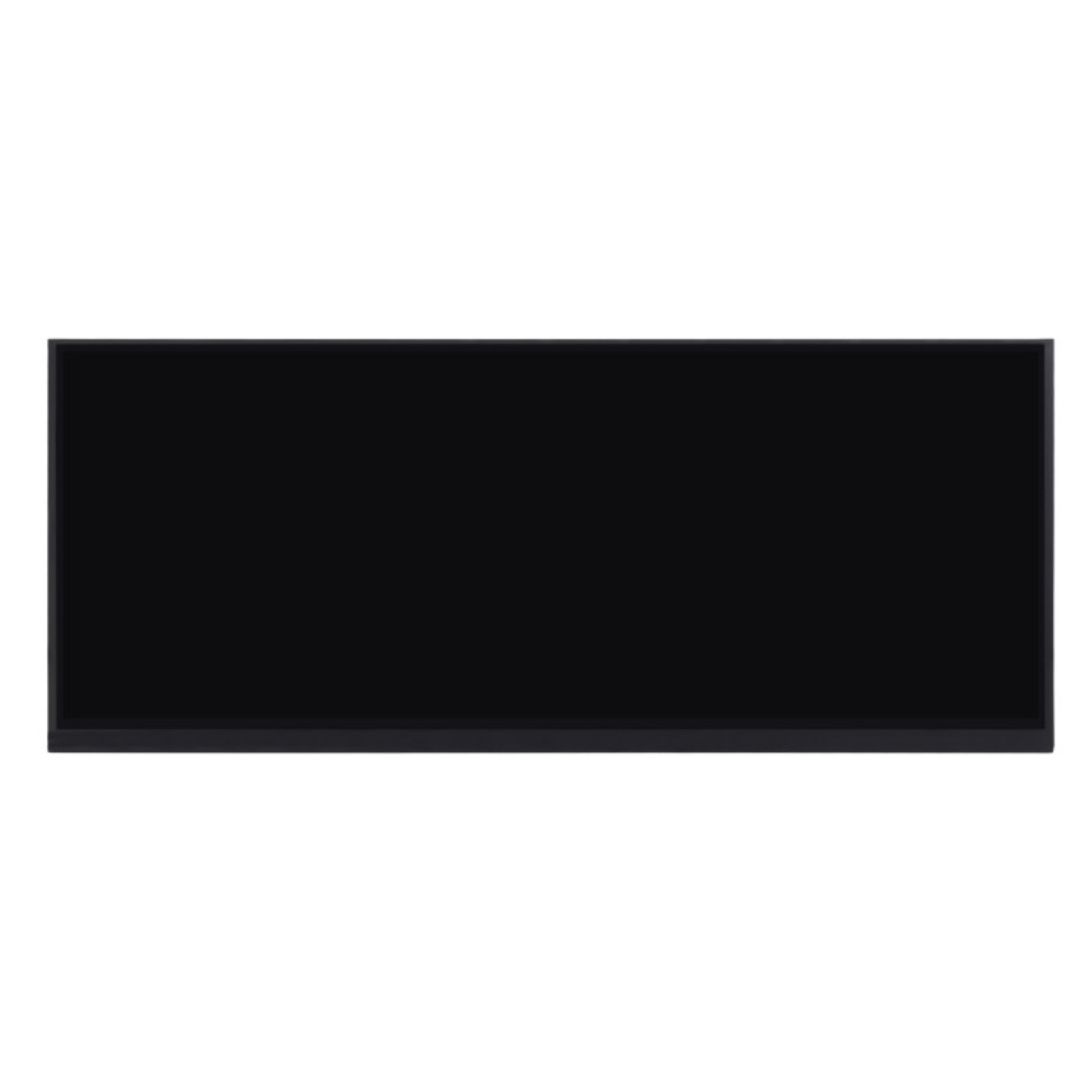

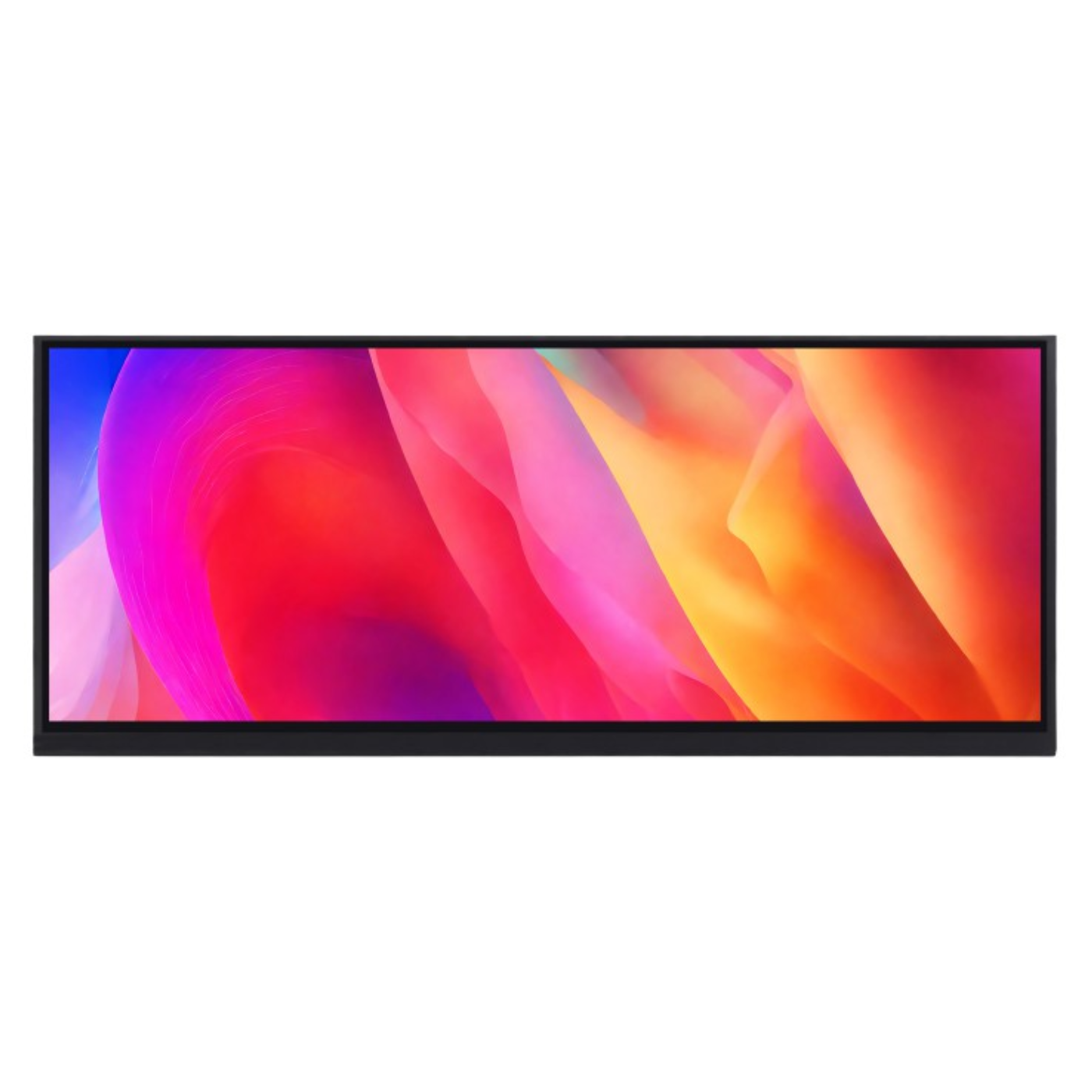

The Waveshare 12.3-Inch 1920 × 720 IPS LCD Touchscreen Display is a versatile touchscreen monitor designed for Raspberry Pi projects, Jetson boards, PCs, mini PCs, laptops, and compatible smartphones. It features a 12.3-inch IPS panel with a 1920 × 720 resolution, delivering clear and detailed visuals with a 178° wide viewing angle. The display uses In-Cell capacitive touch technology, integrating the touch sensor into the panel to create a slimmer structure while supporting up to 10-point touch depending on the operating system.

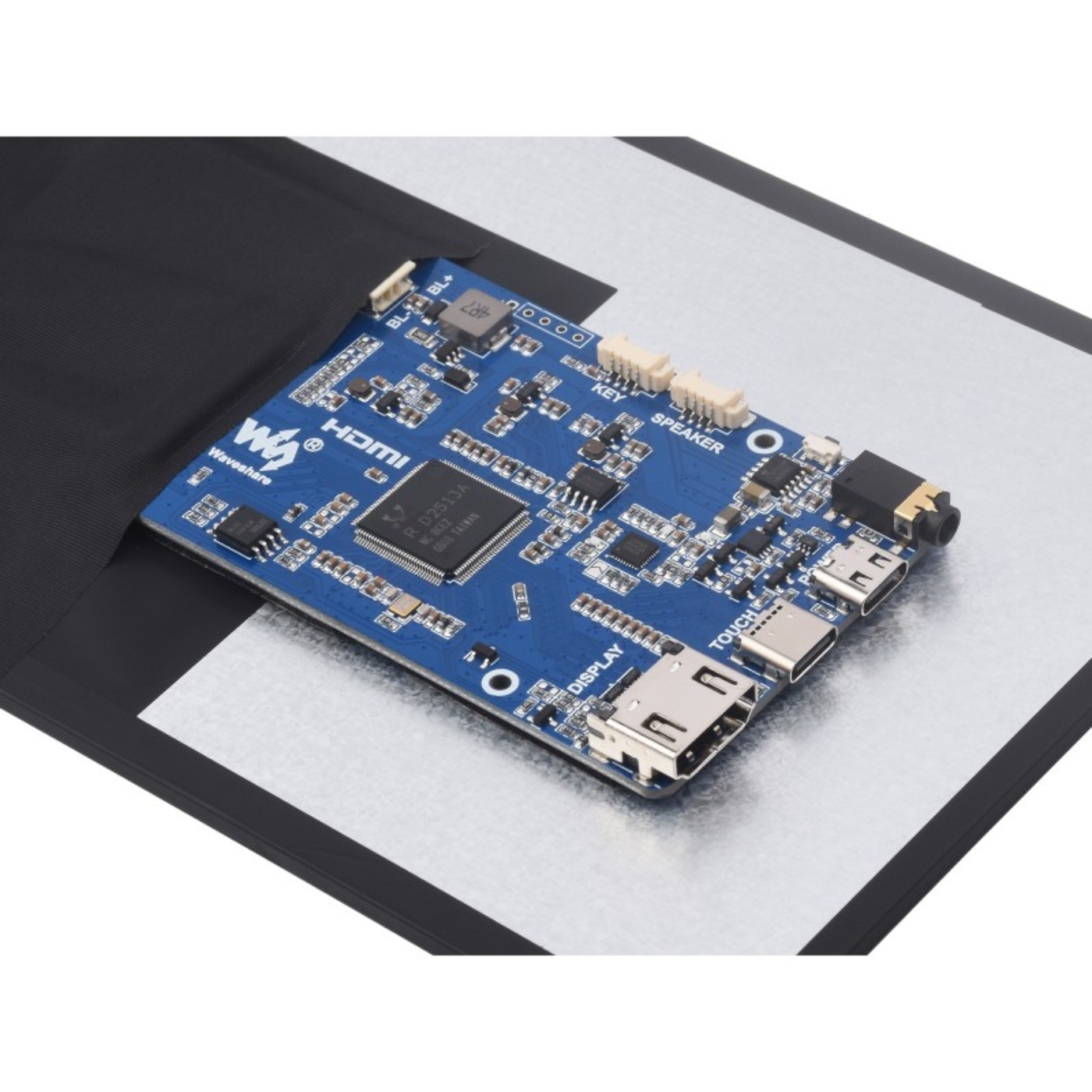

With HDMI and full-featured Type-C display interfaces, it can handle convenient plug-and-play audio and video transmission, while the 300 cd/m² brightness and DDC/CI control allow brightness adjustment. The display also provides a 3.5mm audio jack, making it suitable for interactive dashboards, Raspberry Pi interfaces, embedded systems, smart displays, and other DIY electronics projects.
| Item | Description | Unit |
|---|---|---|
| Model | 12.3inch 1920×720 LCD | / |
| Size | 12.3 | Inch |
| Viewing Angle | 178 | Deg |
| Resolution | 1920×720 | Pixels |

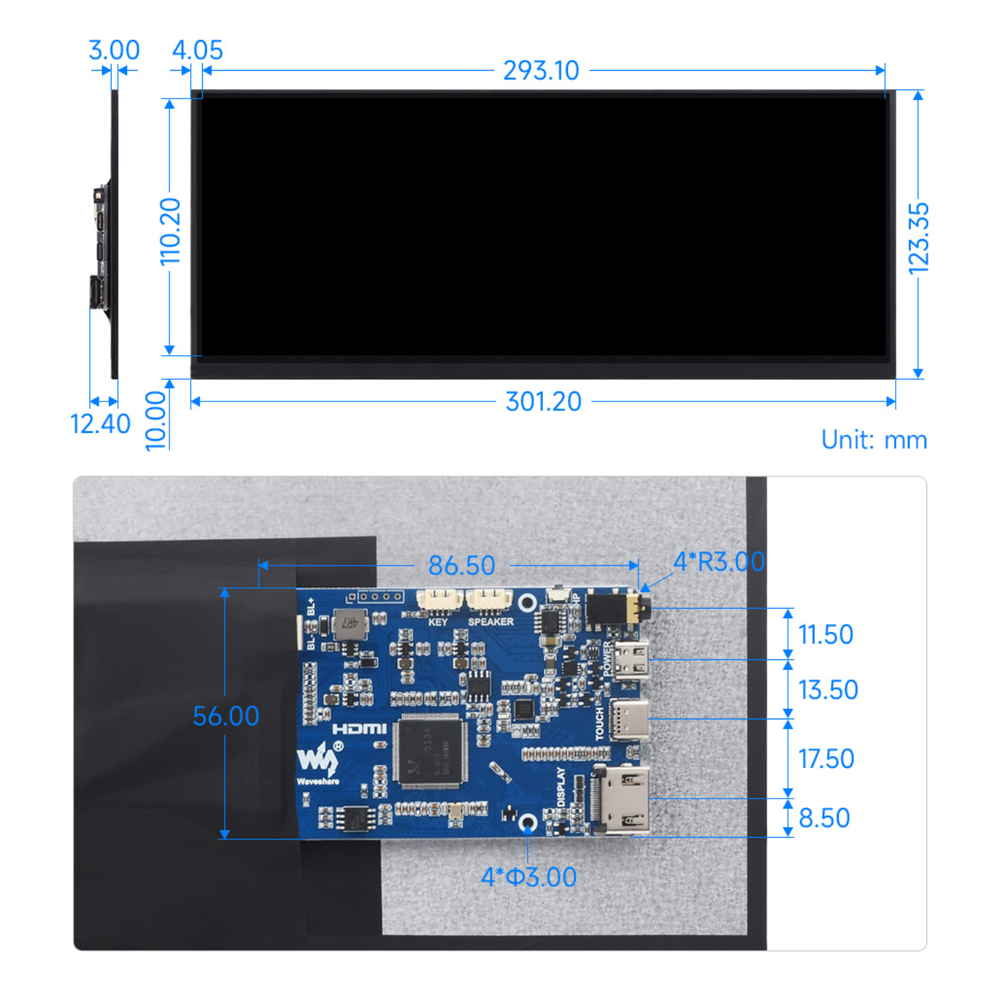

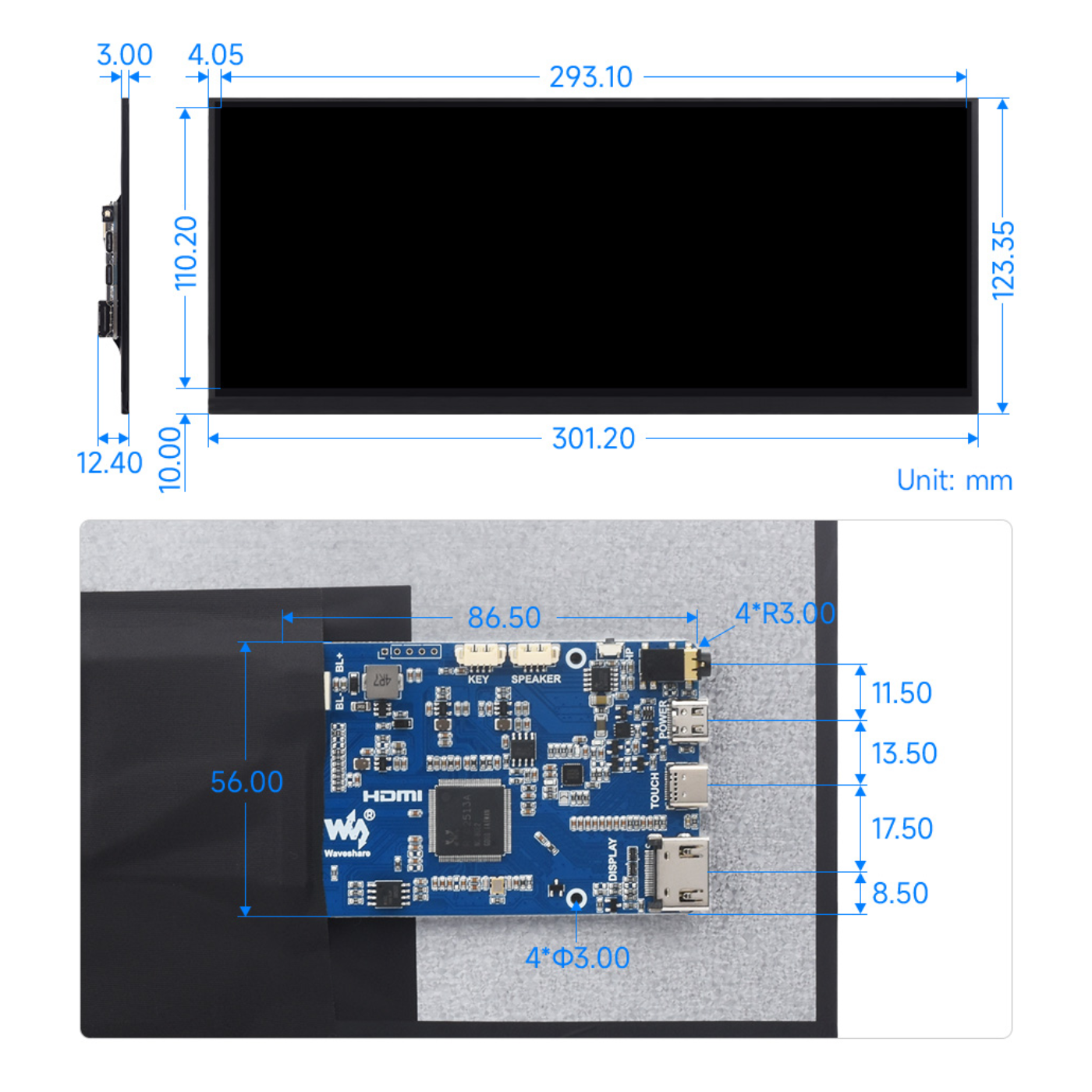

| Overall Dimensions | 301.2(H) × 123.35(V) × 12.4(D) | mm |
| Display Area | 293.10(H) × 110.20(V) | mm |
| Color Gamut | 72% | NTSC |
| Maximum Brightness | 300 | cd/m² |
| Contrast | 1200:1 | / |
| Backlight Adjustment | OSD Menu / DDCCI Brightness Adjustment | / |
| Refresh Rate | 60 | Hz |

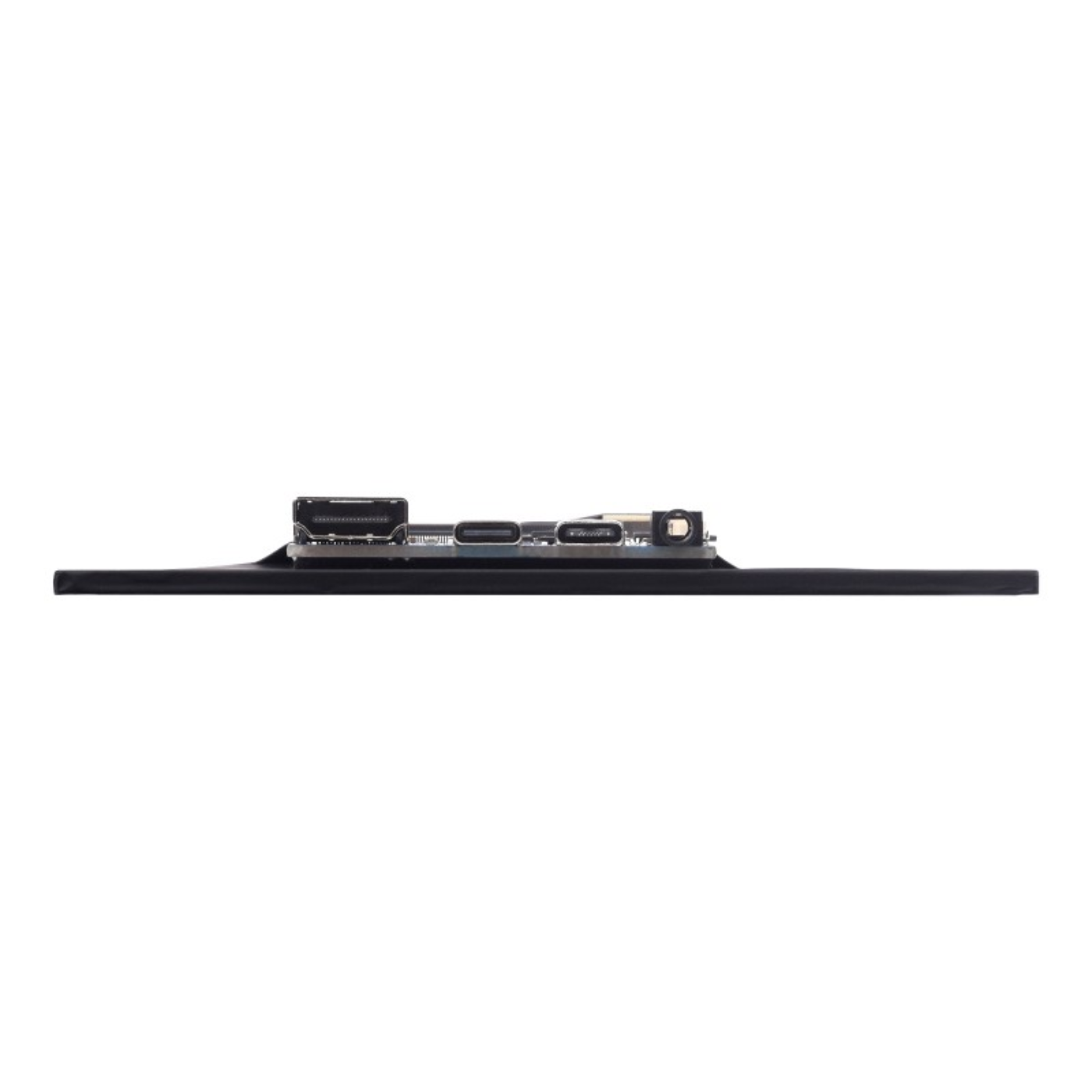

| Display Interface | HDMI / Type-C | / |
| Power Port | 5V Power Supply | / |
| Maximum Power Consumption | 5 | Watt |
