- Compact Ethernet module with built-in TCP/IP stack.
- Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, and PPPoE.
- Integrated data link and physical layer.
- Wake-up support at power off.
- SPI interface for microcontroller communication.
- 32KB internal buffer.
- Built-in 10BaseT/100BaseTX Ethernet with auto-negotiation.
- Operates at 3.3V.
- LED status indicator.

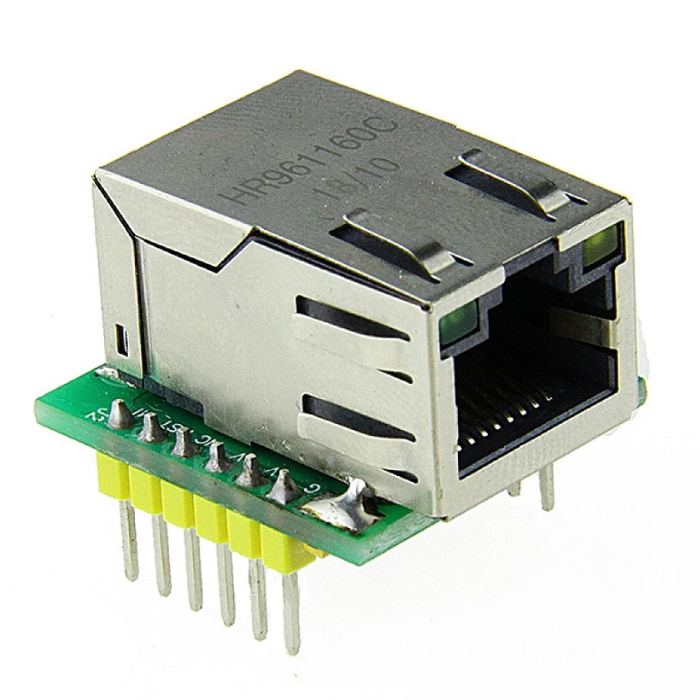

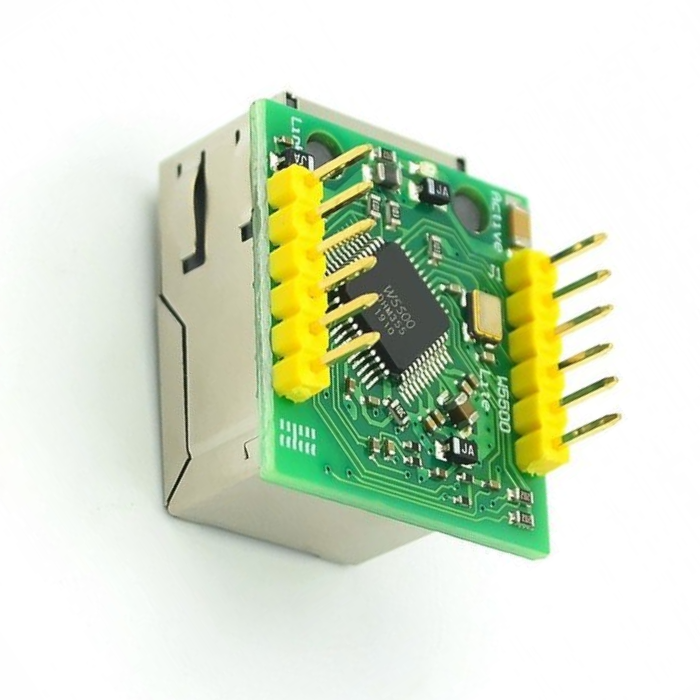

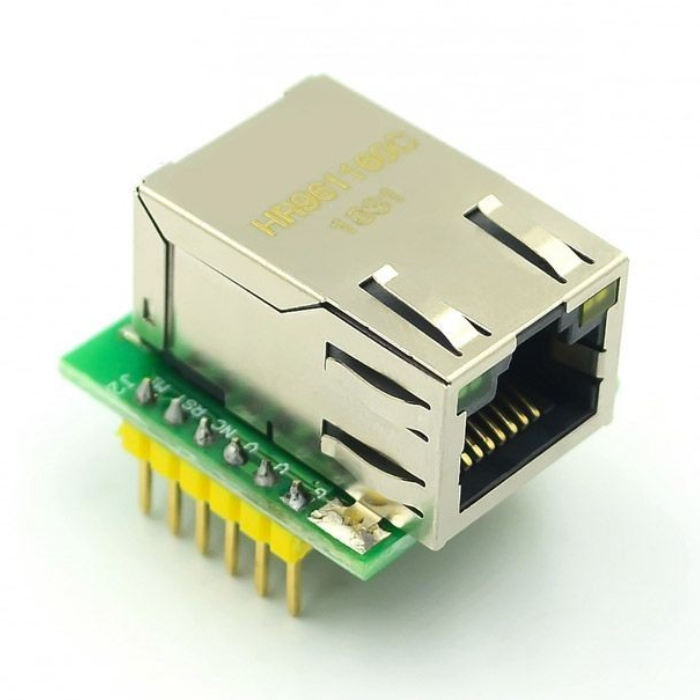

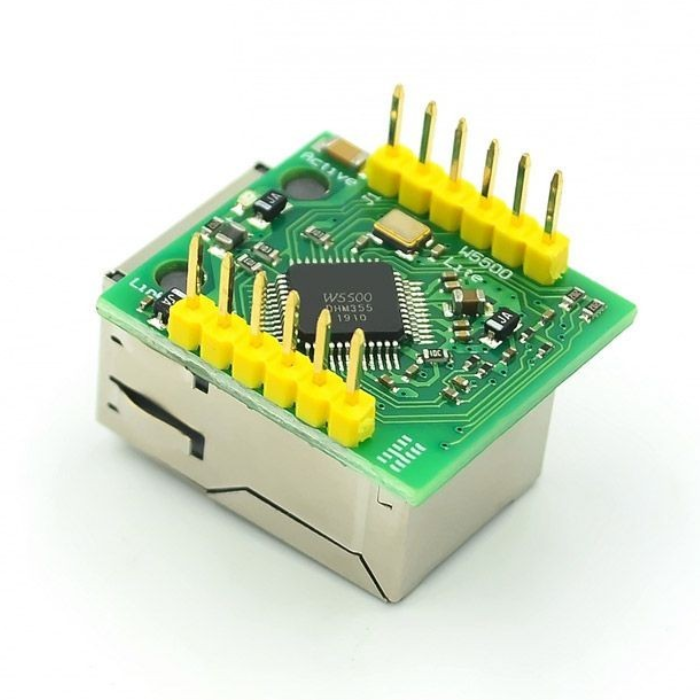

W5500 Mini Ethernet Gateway Module
The W5500 Mini Ethernet Gateway Module is a compact network solution featuring the W5500 chip. It uses the SPI interface and includes a built-in TCP/IP stack, supporting protocols like TCP/IP, UDP, ICMP, ARP, IGMP, and PPPoE. The module also supports Wake on LAN over UDP and is designed for easy integration with breadboards, making it perfect for embedded systems, IoT applications, and custom projects.
Package Includes
1 x W5500 Mini Ethernet Gateway Module
Specifications
| Specification | Details |
|---|---|
| Built-in Protocol Stack | Hardware TCP/IP stack |
| Supported Protocols | TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE |
| Data Link & Physical Layer | Integrated |
| Wake-up Support | Wake-up support at power off |
| Interface | SPI interface |
| Buffer | 32KB send and receive buffer |
| Ethernet PHY | Built-in 10BaseT/100BaseTX Ethernet |
| Auto-negotiation Support | Yes |
| Working Voltage | 3.3V |
| LED Status Indicator | Yes |
| Weight | 12g |
| Dimensions (L x W x H) | 2.8 x 2.3 x 2.4 cm |
