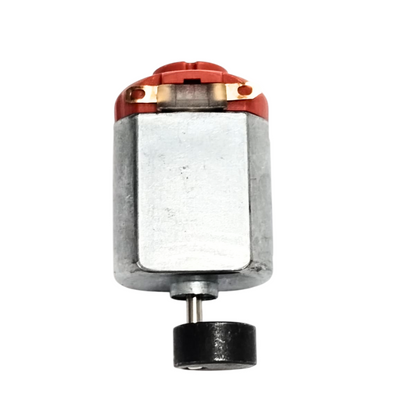

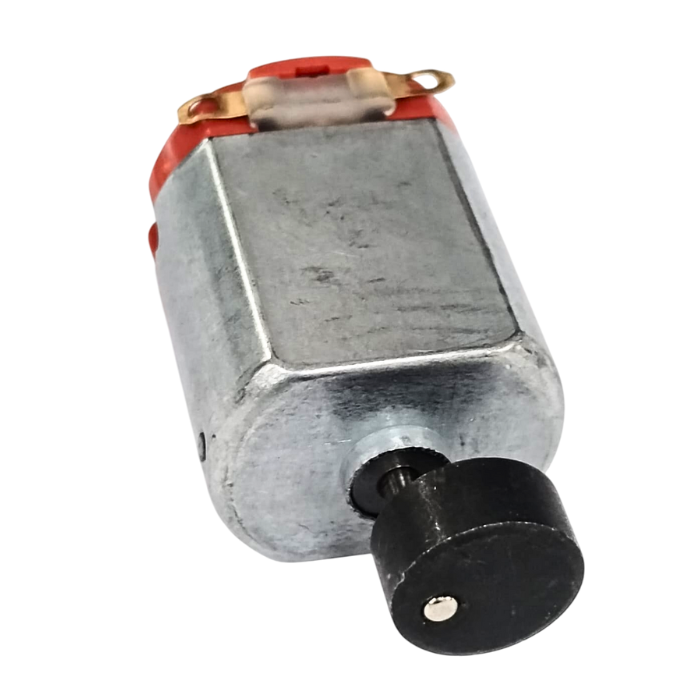

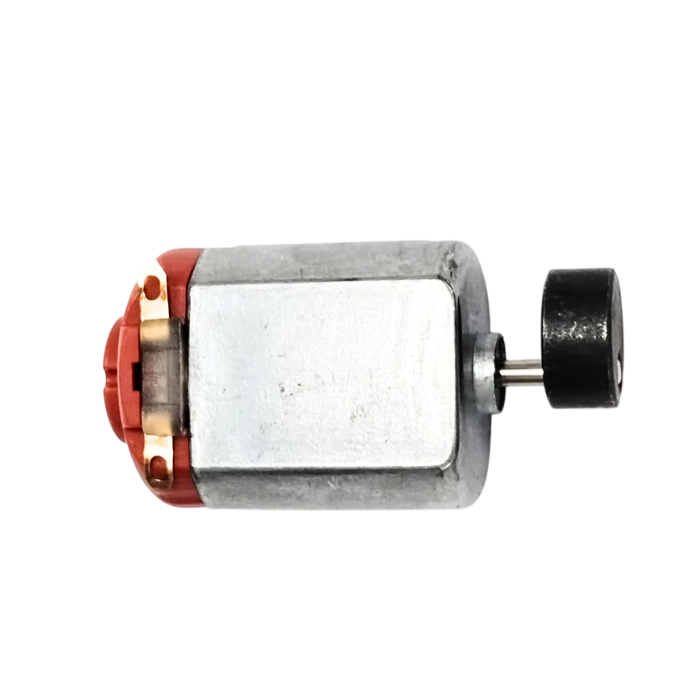

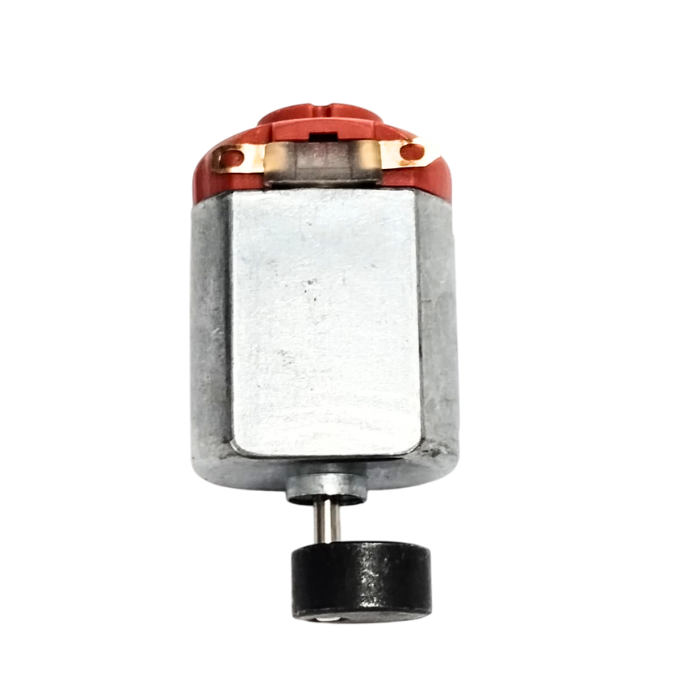

- This Vibration Motor is made from Toy Motor.
- Operating Voltage Range = 4.5 - 6V
- Nominal Operating voltage = 5V
Operating Voltage Range = 4.5 - 6V
Nominal Operating voltage = 5V
No Load characteristics
No load speed = 13600 r/min
No load current = 0.27A
At maximum efficiency
Speed = 4360 r/min
current = 2.92 A
Torque = 2.92 mN-m
Torque = 29.8 g.cm
Output = 3.47 W
Stall characteristics
Torque = 17.7 mN-m
Torque = 180 g-cm
Current = 6.90 A
