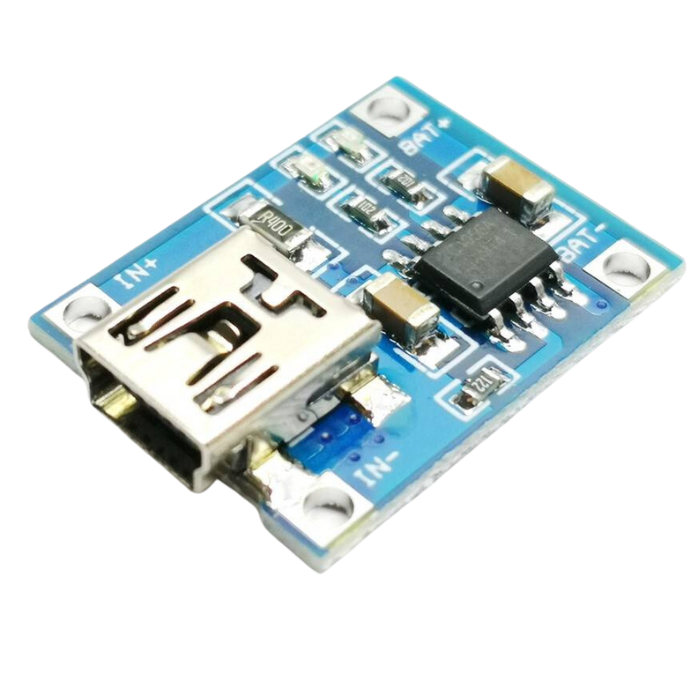

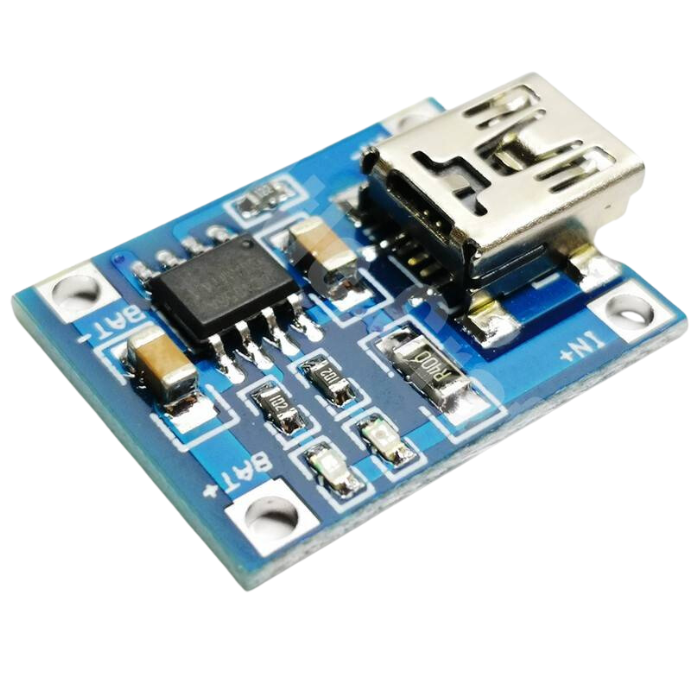

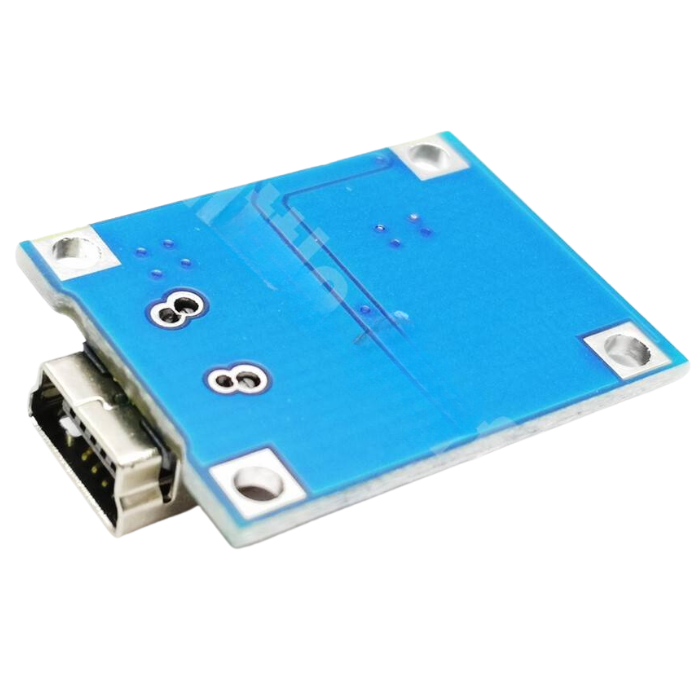

TP4056 Li-ion Battery Charging Module
TP4056 Li-ion Battery Charging Module
Couldn't load pickup availability
BEST COUPON FOR YOU
When you shop for ₹ 2500 or more.Applicable on Checkout.
*Coupons are not applicable on Original Boards and Kits
- Efficient Charging: TP4056 charges 3.7V lithium batteries with 4.5V ~ 5.5V input, ensuring a full charge at 4.2V with 1.5% accuracy.

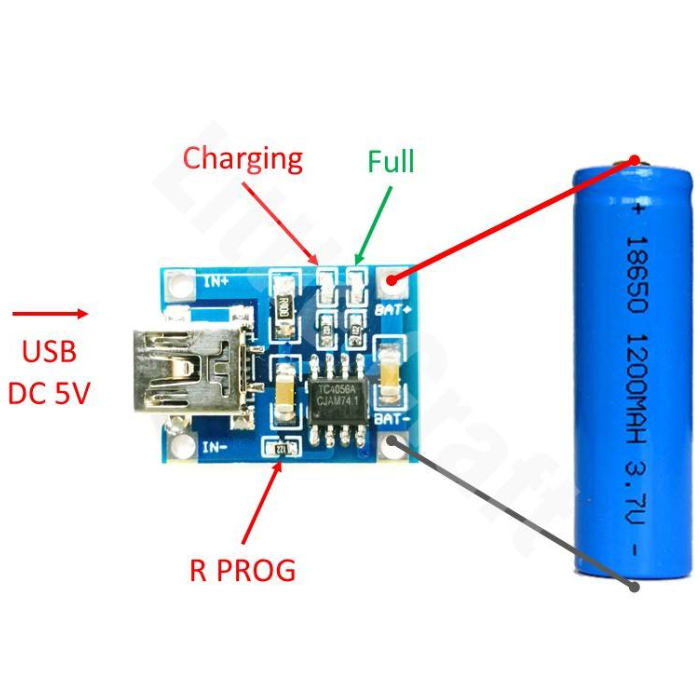

- Versatile Interface: Mini USB port for convenient connection, or use external sources at IN+/IN- pads for DIY projects.
- Smart Indicators: Blue LED indicates charging, Red LED signals a full charge.
- Adaptable Charge Current: Modify onboard resistor to adjust current from 100mA to 1000mA for flexibility.
- Advanced Technology: Features TP4056 charging chip for reliable, protected, and precise charging.
- Compact Design: Small-sized, lightweight module ideal for various applications.
- Wide Operating Range: Operates between -10 to +85ºC for versatile usage.
TP4056 Li-ion Battery Charging Module
The TP4056 1A Li-Ion Lithium Battery Charging Module – Mini B USB, a compact solution for efficient charging. This module, with its Mini USB interface, offers hassle-free connection to a computer's USB port for battery charging. For non-USB sources, the IN+/IN- pads provide an alternative, making it perfect for DIY enthusiasts.
The smart charging indicators, blue for charging and red for a full charge, ensure you stay informed. With adaptable charging current, advanced technology, and a compact design, this module is a versatile choice for various applications. Made for efficiency, the TP4056 is your go-to solution for reliable battery charging.
The TP4056 guarantees the highest quality and durability. Its advanced technology, featuring the TP4056 charging chip, ensures protection and precise charging. The module's adaptability in charging current, ranging from 100mA to 1000mA, provides flexibility for different needs.
Whether you're in need of a compact charging solution for your DIY projects or looking for reliable battery charging for various applications, the TP4056 has you covered. Suitable for a wide age range, it comes in a convenient size and color/size variations to fit your specific needs.
Features:
- Charging indicator: RED LED charging, BLUE LED full Charged
- Charge Current: 1A (default), modify the onboard resistor to adjust the charging current according to the table below.
- Use mature charging chip TP4056 for simple peripheral circuits, good protection performance, and high charging accuracy.
- Fully machinery automated processing, all patch parts manufacturing.
- Charging current can be adjusted by just changing the circuit board’s fixed resistors. It can change the output to the 100mA-1000mA, very conveniently.
Applications:
- DIY Projects: The TP4056 Li-ion Battery Charging Module is ideal for DIY enthusiasts working on various projects, thanks to its versatile Mini USB interface and IN+/IN- pads for non-USB sources.
- Battery Charging: Specifically designed for efficient and reliable charging of 3.7V lithium batteries, ensuring a full charge at 4.2V with 1.5% accuracy.
- Adaptable Charge Current: The module allows users to modify the onboard resistor, enabling adjustment of the charging current from 100mA to 1000mA, offering flexibility for different charging needs.
- Suitable for Various Applications: Whether used in robotics, Arduino projects, or other electronic applications, the TP4056 is a reliable choice for charging lithium batteries.
Package Includes:
- 1 x TP4056 Li-ion Battery Charging Module
Specifications:
| Input Voltage | 4.5V ~ 5.5V |
| Input Interface | Mini USB port |
| Charging Method | Linear charge |
| Full Charge Voltage | 4.2V |
| Power | 4.2W |
| Charging Accuracy | 1.5% |
| Operating Temperature | -10 to +85ºC |
| Charging Indicator | Blue LED (charging), Red LED (full) |
| Charge Current | 1A (default), adjustable via resistor |
Shipping & Returns
Shipping & Returns
- All orders confirmed before 3 pm IST are shipped on the
same day, barring rare pickup delays on holidays or disturbances - Delivery time in Metro cities is 1-3 days, Others it is
3-7 days. It varies based on location, reliant on courier services - Return window: 7 days from receipt unless stated
otherwise. No refunds/replacements after - Returns only for non-working/damaged products are accepted
- Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
- Refunds are processed within 3-4 working days post inspection and approval.
For more details, please check our Shipping and Return Policy
People Also Buy
TP4056 1A Li-Ion Battery Charging Protection Module Micro USB
4 Power Indicator Battery Detection Module
Witty Fox 3.7V 800mAh Li-ion GPS Battery
Found a better price?
Let us know!
We'll try to match the price for you
1. Can TP4056 charge Li ion?
Yes, the TP4056 Li-ion Battery Charging Module is designed specifically for charging 3.7V lithium-ion batteries. It has an input voltage range of 4.5V to 5.5V and ensures a full charge at 4.2V with 1.5% accuracy. The module offers a Mini USB port for convenient connection or can be used with external sources at IN+/IN- pads for DIY projects. It features smart indicators with a blue LED indicating charging and a red LED signaling a full charge. Additionally, the charge current is adaptable and can be modified by changing the onboard resistor, ranging from 100mA to 1000mA for flexibility in charging current.
2. What is the use of TP4056 charging module?
The TP4056 Li-ion Battery Charging Module is used for efficiently charging 3.7V lithium-ion batteries. It provides a compact and versatile solution for battery charging in various applications, particularly in do-it-yourself (DIY) projects. Key features and uses of the TP4056 charging module include:
- Efficient Charging: Charges 3.7V lithium-ion batteries with an input voltage range of 4.5V to 5.5V, ensuring a full charge at 4.2V with 1.5% accuracy.
- Versatile Interface: Offers a Mini USB port for convenient connection to a computer's USB port or external sources at IN+/IN- pads for DIY projects.
- Smart Indicators: Blue LED indicates charging, and red LED signals a full charge, providing visual feedback on the charging status.
- Adaptable Charge Current: The onboard resistor can be modified to adjust the charging current, ranging from 100mA to 1000mA, providing flexibility for different needs.
- Advanced Technology: Features the TP4056 charging chip for reliable, protected, and precise charging.
- Compact Design: Small-sized and lightweight, making it ideal for various applications.
- Wide Operating Range: Operates between -10 to +85ºC for versatile usage.
3. Can a TP4056 charge a 3.7 V battery?
Yes, the TP4056 Li-ion Battery Charging Module is specifically designed to charge 3.7V lithium-ion batteries. It operates within an input voltage range of 4.5V to 5.5V and ensures a full charge at 4.2V with 1.5% accuracy. This module is well-suited for charging 3.7V lithium-ion batteries and is commonly used in electronic projects and applications where such batteries are utilized.
4. Is TP4056 safe?
The TP4056 Li-ion Battery Charging Module is generally considered safe when used according to the manufacturer's guidelines and specifications. It is designed with features to enhance safety during the charging process, including:
- TP4056 Charging Chip: The module features the TP4056 charging chip, known for providing reliable, protected, and precise charging.
- Charging Indicators: The module includes smart indicators, with a blue LED indicating charging and a red LED signaling a full charge. These indicators help users monitor the charging status.
- Adaptable Charge Current: The charge current can be adjusted by modifying the onboard resistor, providing flexibility and customization while maintaining safety.
Despite these safety features, it is crucial to handle and use the TP4056 module in accordance with the provided instructions and guidelines. Avoid exceeding specified voltage and current limits, and be cautious about the conditions and environment in which the module is employed. As with any electronic component, using it within its specified parameters and following best practices for handling lithium-ion batteries contributes to safe and reliable operation.
5. Does TP4056 get hot?
The TP4056 Li-ion Battery Charging Module may generate some heat during operation, especially when charging a battery. The amount of heat produced can depend on factors such as the charging current, ambient temperature, and the presence of any external heat dissipation measures.
It's essential to operate the TP4056 within its specified parameters to minimize the risk of overheating. If the module is used within the recommended charging current and temperature range, and if there is adequate ventilation, the heat generated should be within acceptable limits.
If you notice excessive heat or have concerns about temperature, consider the following:
- Check Current Settings: Ensure that the charging current is within the specified limits for your application.
- Ventilation: Provide proper ventilation to dissipate heat. Avoid enclosing the module in a confined space without sufficient airflow.
- Heat Sinks: Depending on the application, you may consider adding a heat sink to help dissipate heat more effectively.
- Monitoring: Monitor the module during operation and discontinue use if you observe any unusual or excessive heat.
