TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable

TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable

Regular price Rs. 109
Regular price Rs. 173 Sale price Rs. 109
Sale Sold out 37% off Best Price Guaranteed
You save Rs. 64 | Free Shipping on Orders Above ₹ 499/-
Incl. GST (No Hidden Charges)
Currently, people are actively checking out this product.

BEST COUPON FOR YOU

FLAT ₹ 100/- OFF RC100

When you shop for ₹ 2500 or more.Applicable on Checkout.

*Coupons are not applicable on Original Boards and Kits

Submit your Bulk Enquiry Here

Contact form

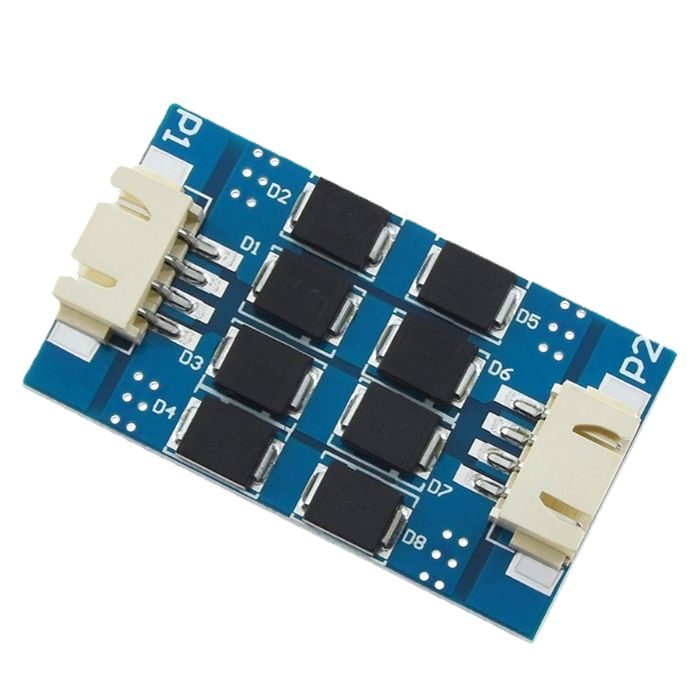

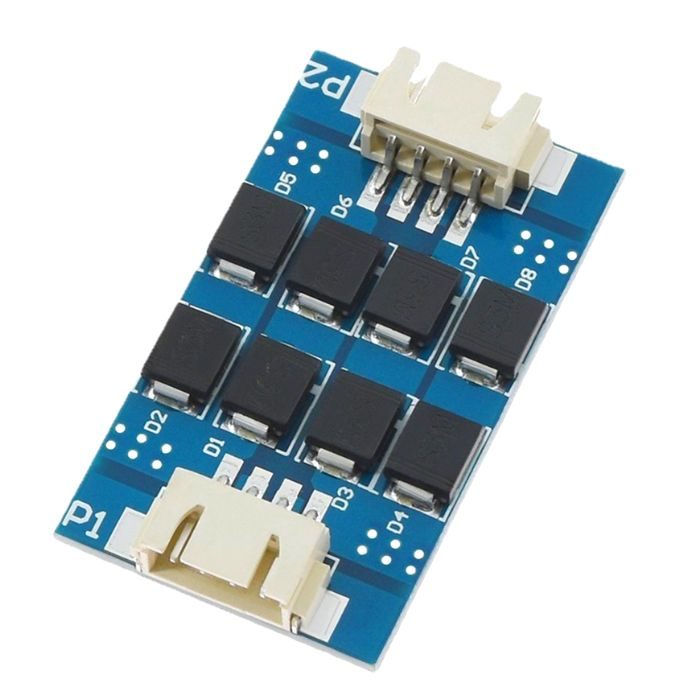

  • This is TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable
  • TL Smoother can effectively eliminate the mechanical chatter generated by 3D printer motors.
  • The TL-Smoother is an addon module for 3D printer stepper motor drivers.

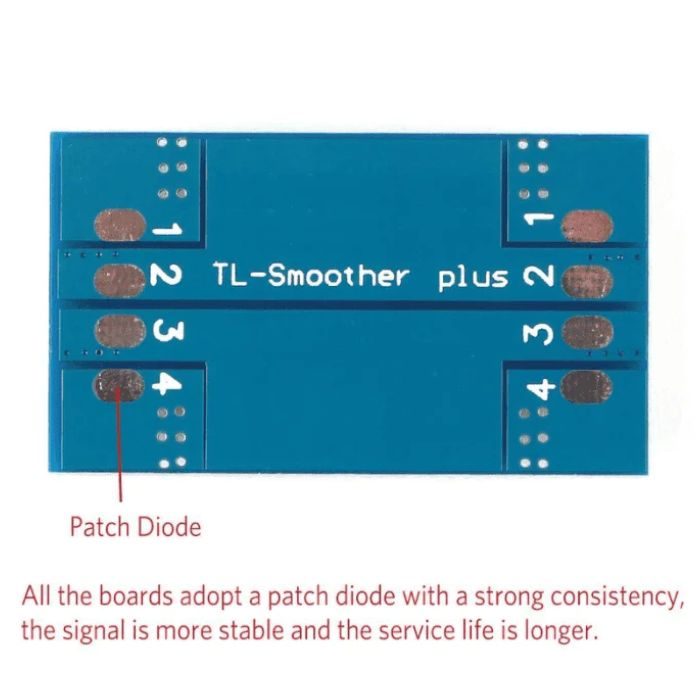

  • The board provides flyback diodes for the motor outputs, so they are also protected against inductance voltages in the unpowered state of the driver.
  • You will get smoother movement, especially on the delta-style 3D printer I3 and UM models can also be used, and different machines will have different clipping effects.

TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable

TL Smoother Addon Module Board Kit for 3D Printer Pattern Elimination Motor Clipping Filter. This product mainly aims at the ripple generated by parallel 3D printer printing, especially the effect of using 8825 drive and low resistance motor. It can effectively eliminate the uneven signal wave at low speed and low speed so as to achieve the effect of relative certificate signal wave when using 8825 drive 24V power supply Delta machine

The TL-Smoother is an addon module for 3D printer stepper motor drivers. The board provides flyback diodes (freewheeling diodes) for the motor outputs, so they are also protected against inductance voltages in the unpowered state of the driver.

You will get smoother movement, especially on the delta-style 3D printer under DVR8825 stepper drivers or A4988 / 2 drivers. I3 and UM models can also be used, and different machines will have different clipping effects.

check out : TL-Smoother module For 3D printer motor drivers V2.0

Note: If you are currently using Trinamic Drivers with SpreadCycle, or are considering upgrading to such drivers, then these TL-Smoothers may not offer the big benefit you are expecting. This is because Trinamics patented SpreadCycle performs a very similar (albeit more efficient) smoothing/filtering process, with extra features like stealthChop that also assist in this regard.

Features:

  • TL Smoother can effectively eliminate the mechanical chatter generated by 3D printer motors, especially for parallel arm configurations of the machine effect is significant. Lower vibration lower noise smoother result.
  • The TL-Smoother is an addon module for 3D printer stepper motor drivers.
  • The board provides flyback diodes (freewheeling diodes) for the motor outputs, so they are also protected against inductance voltages in the unpowered state of the driver.
  • You will get smoother movement, especially on the delta-style 3D printer under DVR8825 stepper drivers or A4988 / 2 drivers.
  • I3 and UM models can also be used, and different machines will have different clipping effects.

Application:

  • These TL-Smoother Stepper Filter Modules are designed and built specifically for 3D printing and have been stocked to help you improve the quality of your prints by ensuring that all the electrical signals are coherent, evenly spread, and consistent throughout each wave cycle. They fit between the stepper drivers and the Stepper Motors, where they help reduce feedback and inductive charges with flyback diodes.

Package Includes:

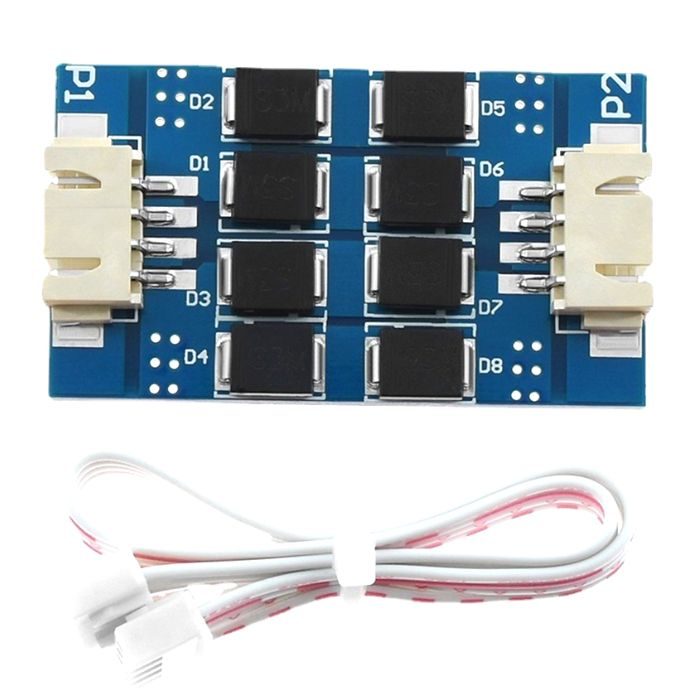

  • 1 x TL-Smoother Eight Chip Module DFORCE Vibration Pattern Filter with Cable

Specifications:

Number of Flyback Diodes

8

Stepper Driver Compatibility

DRV8825 Drivers, A4988 Drivers

Included Cable

4-Pin Female to 4-Pin Female

Mounting Points

2.3mm Hole on Each Corner

Model Number

S3M: Surface Mount Flyback Diode

DC Blocking Voltage (VR)

1000V

RMS Reverse Voltage (VRMS)

700V

Average Rectified Output Current

3A @ TT = +75°C

Module Dimensions

Approx. 50 x 25mm

Weight (gm)

10

Shipping & Returns

  • All orders confirmed before 3 pm IST are shipped on the
    same day, barring rare pickup delays on holidays or disturbances
  • Delivery time in Metro cities is 1-3 days, Others it is
    3-7 days. It varies based on location, reliant on courier services
  • Return window: 7 days from receipt unless stated
    otherwise. No refunds/replacements after
  • Returns only for non-working/damaged products are accepted
  • Initiate return requests to our customer service team via Support ticket or contact us at +91-8123057137
  • Refunds are processed within 3-4 working days post inspection and approval.

For more details, please check our Shipping and Return Policy

View full details

People Also Buy

Found a better price?

Let us know!
We'll try to match the price for you

  • ⚡ Dispatched within 24 hours

  • 💰 Earn RC Coins on every purchase

  • 🚚 Free shipping on orders above Rs 500/-

  • 🛠️ Dedicated Technical Support Team

1 of 4

1. What does a TL smoother do?

  • TL smoothers are small printed circuit boards (PCBs) that are commonly used in FDM 3D printers to smooth out the appearance of prints. In other words, they reduce surface artefacts caused by erratic stepper motor movements, which are commonly referred to as "zebra stripes," "salmon skin," or "moire."

2. What causes salmon skin 3D print?

  • Salmon skin in 3D prints is so named because the walls of your model emit a pattern that resembles salmon skin, just like zebra stripes and moiré. Here are some of the possible causes of these issues in your 3D prints: Stepper motor drivers that are outdated. Printing on an unstable surface or vibrations.
