Robocraze
TIP127 Darlington PNP Transistor - (Pack of 5)
TIP127 Darlington PNP Transistor - (Pack of 5)
Regular price
Rs. 59
Regular price
Rs. 83
Sale price
Rs. 59
Unit price
per
Incl. GST (No Hidden Charges)
Couldn't load pickup availability
- Low saturation voltage
- Simple drive requirements
- High safe operating area
- For low distortion complementary designs
- Easy to carry and handle
TIP127 Darlington PNP Transistor - (Pack of 5)
TIP127 is a three-layer PNP device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector-emitter voltage VCE.
What is a Transistor?
A transistor is a semiconductor device used to amplify and switch electronic signals and electrical power. It is composed of semiconductor material with at least three terminals for connection to an external circuit. A voltage or current applied to one pair of the transistor's terminals changes the current through another pair of terminals. Because the controlled (output) power can be higher than the controlling (input) power, a transistor can amplify a signal.
Package Includes:

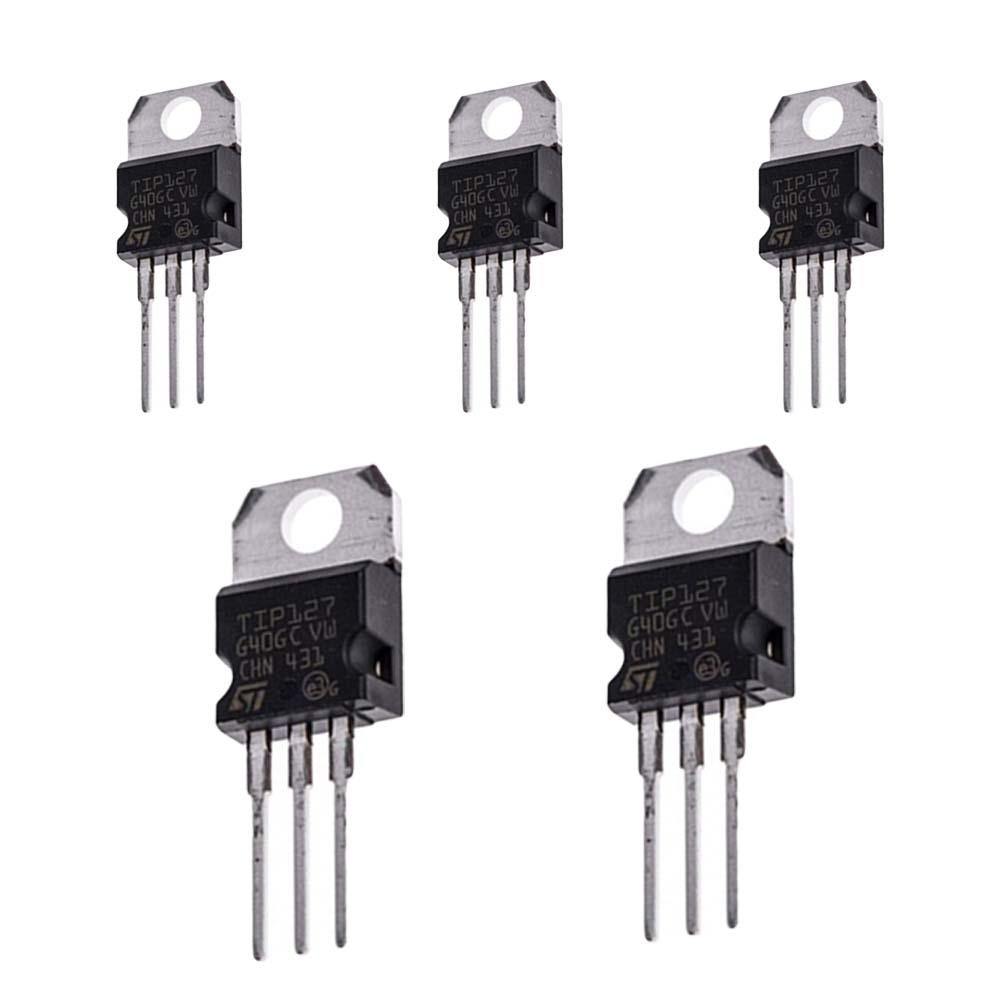

- 5 x TIP127 Darlington PNP Transistor
Specifications:
| Transistor Polarity | PNP |
| Collector−Emitter Voltage (VCEO) | 100V |
| Collector−Base Voltage (VCBO) | 100V |
| Emitter Base Voltage (VEBO) | 5V |
| Continuous Collector Current (Ic) | 5A |
| Power Dissipation (Pd) | 65W |
| Dimensions | 5 x 4 x 3cms |
| Weight | 5 grams |
